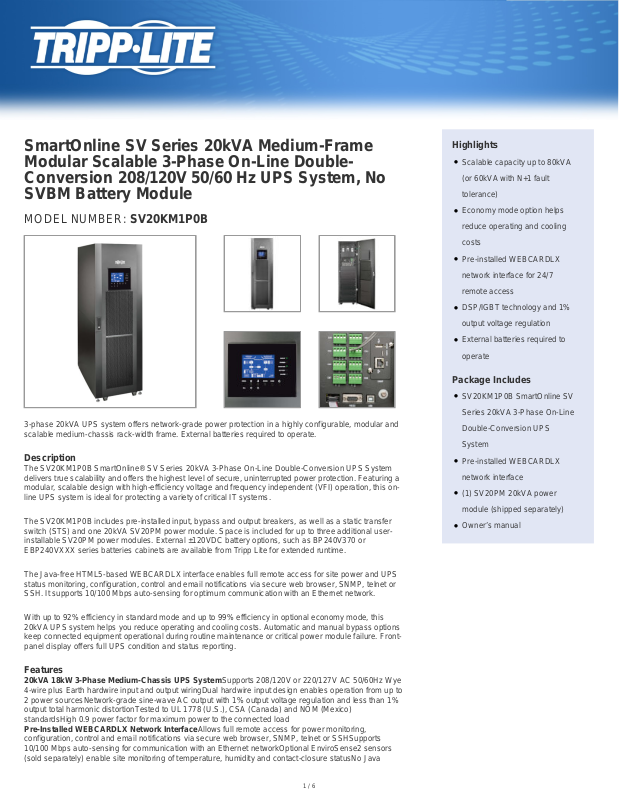

Tripp-Lite SV20KM1P0B Data Sheet

SmartOnline SV Series 20kVA Medium-Frame
Modular Scalable 3-Phase On-Line Double­Conversion 208/120V 50/60 Hz UPS System, No
SVBM Battery Module

MODEL NUMBER: SV20KM1P0B

3-phase 20kVA UPS system offers network-grade power protection in a highly configurable, modular and
scalable medium-chassis rack-width frame. External batteries required to operate.

Description

The SV20KM1P0B SmartOnline® SV Series 20kVA 3-Phase On-Line Double-Conversion UPS System
delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a
modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on­line UPS system is ideal for protecting a variety of critical IT systems.

The SV20KM1P0B includes pre-installed input, bypass and output breakers, as well as a static transfer
switch (STS) and one 20kVA SV20PM power module. Space is included for up to three additional user­installable SV20PM power modules. External ±120VDC battery options, such as BP240V370 or
EBP240VXXX series batteries cabinets are available from Tripp Lite for extended runtime.

Highlights

●

Scalable capacity up to 80kVA
(or 60kVA with N+1 fault
tolerance)

●

Economy mode option helps
reduce operating and cooling
costs

●

Pre-installed WEBCARDLX
network interface for 24/7
remote access

●

DSP/IGBT technology and 1%
output voltage regulation

●

External batteries required to
operate

Package Includes

●

SV20KM1P0B SmartOnline SV
Series 20kVA 3-Phase On-Line
Double-Conversion UPS
System

●

Pre-installed WEBCARDLX
network interface

●

(1) SV20PM 20kVA power
module (shipped separately)

●

Owner’s manual

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS
status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or
SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.

With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this
20kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options
keep connected equipment operational during routine maintenance or critical power module failure. Front­panel display offers full UPS condition and status reporting.

Features

20kVA 18kW 3-Phase Medium-Chassis UPS SystemSupports 208/120V or 220/127V AC 50/60Hz Wye

4-wire plus Earth hardwire input and output wiringDual hardwire input design enables operation from up to
2 power sourcesNetwork-grade sine-wave AC output with 1% output voltage regulation and less than 1%
output total harmonic distortionTested to UL 1778 (U.S.), CSA (Canada) and NOM (Mexico)
standardsHigh 0.9 power factor for maximum power to the connected load
Pre-Installed WEBCARDLX Network InterfaceAllows full remote access for power monitoring,
configuration, control and email notifications via secure web browser, SNMP, telnet or SSHSupports
10/100 Mbps auto-sensing for communication with an Ethernet networkOptional EnviroSense2 sensors
(sold separately) enable site monitoring of temperature, humidity and contact-closure statusNo Java

1 / 6

required
Modular, Scalable Design for Maximum FlexibilityModular configuration with hot-swappable power
modules and batteries enables easy, fast maintenance with zero downtimeOpen slots for up to 3
additional 20kVA SV20PM power modules accommodate increased capacity up to 80kVA (or 60kVA with
N+1 fault tolerance)Supports external ±120VDC battery options for extended runtimes
Optional Economy ModeUp to 99% efficient in optional economy mode to lower operating and cooling
costs
Wide Input/Narrow Output Voltage Operating RangeEnables full continuous online operation during
brownouts as low as 121V and overvoltages up to 253VRegulates output voltage within 1% of the
selected nominal output voltage in on-line double-conversion mode
Advanced IGBT Inverter with Digital Signal Processor (DSP) TechnologyProvides for less than 2%
input total harmonic distortion (THDi) to support 1:1 generator sizing and prevent the need to oversize
generator systems relative to UPS capacity
Automatic and Manual Bypass OptionsKeep connected equipment operational during routine
maintenance or critical power module failure

Specifications

OVERVIEW

UPC Code 037332237453
UPS Type On-Line

INPUT

Rated input current (Maximum Load) SV20KM1P0B 20kVA Configuration: 60A; Maximum 80kVA Configuration: 240A; 133A maximum inrush current
Nominal Input Voltage(s) Supported 120/208V 3-PH Wye; 127/220V 3-PH Wye
Nominal Input Voltage Description Set of two hardwire input connections enables 3-Phase Wye, 4 wire (3P, N, E) inputs from two separate power

UPS Input Connection Type Hardwire
Input Circuit Breakers MAIN and ALTERNATE AC inputs are each protected by 300A 3 pole magnetic breakers
Input Phase 3-Phase
Input Frequency 40 to 70Hz (online mode); 50/60Hz Auto-selectable
Power Factor (Input) Greater than 0.99 (full load)
THDi Less than 3% (full linear load)

OUTPUT

Output Volt Amp Capacity (VA) 20000
Output kVA Capacity (kVA) 20
Output Watt Capacity (Watts) 18000
Output kW Capacity (kW) 18
Output Capacity Details OVERLOAD CAPABILITY: Supports 105-110% load for 1 hour, 111-125% load for 10 minutes, 126-150% for 1

Power Factor 0.9

sources

minute and Over 150% for 200ms before switching to Bypass; Online operation resumes when load is reduced to
100% or less

Crest Factor 3:1
