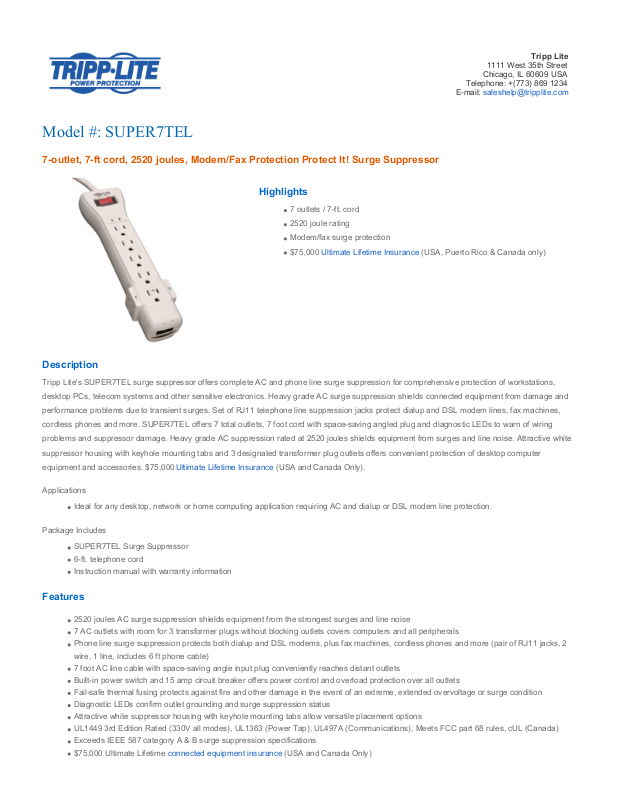

Tripp-Lite SUPER7TEL Data Sheet

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

Model #: SUPER7TEL

7-outlet, 7-ft cord, 2520 joules, Modem/Fax Protection Protect It! Surge Suppressor

Highlights

7 outlets / 7-ft. cord

2520 joule rating

Modem/fax surge protection

$75,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)

Description

Tripp Lite's SUPER7TEL surge suppressor offers complete AC and phone line surge suppression for comprehensive protection of workstations,

desktop PCs, telecom systems and other sensitive electronics. Heavy grade AC surge suppression shields connected equipment from damage and

performance problems due to transient surges. Set of RJ11 telephone line suppression jacks protect dialup and DSL modem lines, fax machines,

cordless phones and more. SUPER7TEL offers 7 total outlets, 7 foot cord with space-saving angled plug and diagnostic LEDs to warn of wiring

problems and suppressor damage. Heavy grade AC suppression rated at 2520 joules shields equipment from surges and line noise. Attractive white

suppressor housing with keyhole mounting tabs and 3 designated transformer plug outlets offers convenient protection of desktop computer

equipment and accessories. $75,000 Ultimate Lifetime Insurance (USA and Canada Only).

Applications

Ideal for any desktop, network or home computing application requiring AC and dialup or DSL modem line protection.

Package Includes

SUPER7TEL Surge Suppressor
6-ft. telephone cord
Instruction manual with warranty information

Features

2520 joules AC surge suppression shields equipment from the strongest surges and line noise
7 AC outlets with room for 3 transformer plugs without blocking outlets covers computers and all peripherals
Phone line surge suppression protects both dialup and DSL modems, plus fax machines, cordless phones and more (pair of RJ11 jacks, 2
wire, 1 line, includes 6 ft phone cable)
7 foot AC line cable with space-saving angle input plug conveniently reaches distant outlets
Built-in power switch and 15 amp circuit breaker offers power control and overload protection over all outlets
Fail-safe thermal fusing protects against fire and other damage in the event of an extreme, extended overvoltage or surge condition
Diagnostic LEDs confirm outlet grounding and surge suppression status
Attractive white suppressor housing with keyhole mounting tabs allow versatile placement options
UL1449 3rd Edition Rated (330V all modes), UL1363 (Power Tap), UL497A (Communications), Meets FCC part 68 rules, cUL (Canada)
Exceeds IEEE 587 category A & B surge suppression specifications
$75,000 Ultimate Lifetime connected equipment insurance (USA and Canada Only)

Specifications

OVERVIEW

Intended Application Home/Office

OUTPUT

Frequency compatibility 50 / 60 Hz

Output watts 1800

Circuit Breaker (amps) 15

Outlet quantity / type 7 NEMA 5-15R

Transformer accommodation Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 5

transformers total

Outlet orientation Single row of 5, plus 2 side mounted outlets

INPUT

Nominal Input Voltage(s)
Supported

120V AC

Recommended Electrical
Service

120V (110-125V)

Input connection type NEMA 5-15P

Input plug features Space-saving right angle input plug

Input cord length (ft.) 7

Input cord length (m) 2.1

Input cord gauge, type 14 gauge, SJT

Voltage compatibility (VAC) 120

Maximum Surge Amps 156000

LEDS ALARMS & SWITCHES

Switches Two position on/off power switch

Diagnostic LEDs Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status

SURGE / NOISE SUPPRESSION

AC suppression joule rating 2520

AC suppression response
time

< 1 ns

Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression

Clamping voltage (RMS) 150V

UL1449 let through rating 330V - UL Verified

EMI / RFI filtering Up to 20 dB

DATALINE SURGE SUPPRESSION

Telephone/DSL Protection Yes

Telephone/DSL Protection
Details

1 line
