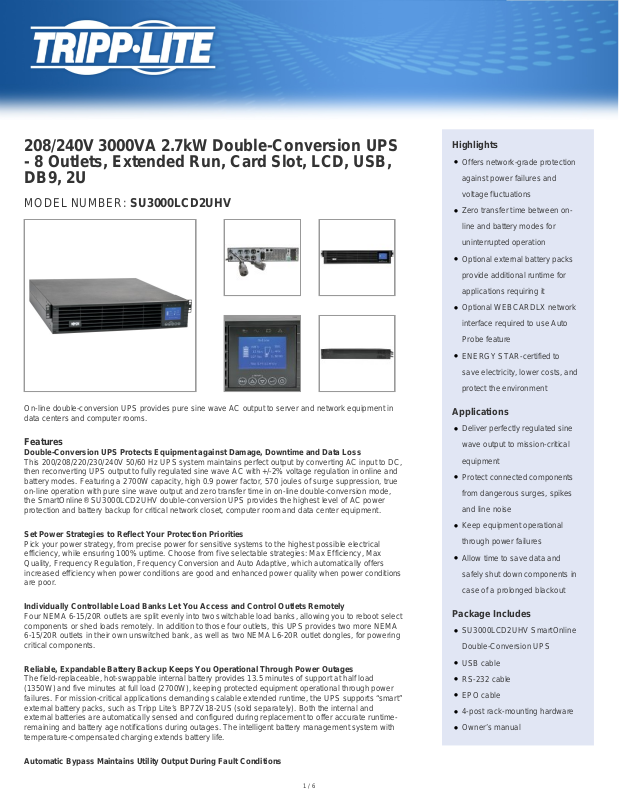

208/240V 3000VA 2.7kW Double-Conversion UPS
- 8 Outlets, Extended Run, Card Slot, LCD, USB,
DB9, 2U
MODEL NUMBER: SU3000LCD2UHV
Highlights
●
Offers network-grade protection
against power failures and
voltage fluctuations
●
Zero transfer time between online and battery modes for
uninterrupted operation
●
Optional external battery packs
provide additional runtime for
applications requiring it
●
Optional WEBCARDLX network
interface required to use Auto
Probe feature
●
ENERGY STAR-certified to
save electricity, lower costs, and
protect the environment
On-line double-conversion UPS provides pure sine wave AC output to server and network equipment in
data centers and computer rooms.
Features
Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
This 200/208/220/230/240V 50/60 Hz UPS system maintains perfect output by converting AC input to DC,
then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and
battery modes. Featuring a 2700W capacity, high 0.9 power factor, 570 joules of surge suppression, true
on-line operation with pure sine wave output and zero transfer time in on-line double-conversion mode,
the SmartOnline® SU3000LCD2UHV double-conversion UPS provides the highest level of AC power
protection and battery backup for critical network closet, computer room and data center equipment.
Set Power Strategies to Reflect Your Protection Priorities
Pick your power strategy, from precise power for sensitive systems to the highest possible electrical
efficiency, while ensuring 100% uptime. Choose from five selectable strategies: Max Efficiency, Max
Quality, Frequency Regulation, Frequency Conversion and Auto Adaptive, which automatically offers
increased efficiency when power conditions are good and enhanced power quality when power conditions
are poor.
Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Four NEMA 6-15/20R outlets are split evenly into two switchable load banks, allowing you to reboot select
components or shed loads remotely. In addition to those four outlets, this UPS provides two more NEMA
6-15/20R outlets in their own unswitched bank, as well as two NEMA L6-20R outlet dongles, for powering
critical components.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 13.5 minutes of support at half load
(1350W) and five minutes at full load (2700W), keeping protected equipment operational through power
failures. For mission-critical applications demanding scalable extended runtime, the UPS supports “smart”
external battery packs, such as Tripp Lite’s BP72V18-2US (sold separately). Both the internal and
external batteries are automatically sensed and configured during replacement to offer accurate runtimeremaining and battery age notifications during outages. The intelligent battery management system with
temperature-compensated charging extends battery life.
Applications
●
Deliver perfectly regulated sine
wave output to mission-critical
equipment
●
Protect connected components
from dangerous surges, spikes
and line noise
●
Keep equipment operational
through power failures
●
Allow time to save data and
safely shut down components in
case of a prolonged blackout
Package Includes
●
SU3000LCD2UHV SmartOnline
Double-Conversion UPS
●
USB cable
●
RS-232 cable
●
EPO cable
●
4-post rack-mounting hardware
●
Owner’s manual
Automatic Bypass Maintains Utility Output During Fault Conditions
1 / 6
Page 2
Auto-bypass mode keeps connected equipment powered and operational, even during UPS fault
conditions.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save
money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced
BTU output when utility power is already high quality.
Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power
outages, even when batteries are expired and require replacement.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD screen reports UPS operating mode, detailed UPS status and site-power information,
as well as a variety of advanced UPS setup and configuration options. LEDs indicate AC input/output,
battery and fault status.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite’s free downloadable
PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged
power failure. An EPO port connects the UPS to a contact closure switch to enable emergency inverter
shutdown. Cables are included.
Optional WEBCARDLX Network Interface Offers 24/7 Access
The SU3000LCD2UHV includes a slot for an optional Java-free HTML5-based WEBCARDLX (sold
separately) that enables full remote access for site power and UPS status monitoring, configuration,
control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps
auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent
accidental overloads, power loss and downtime. WEBCARDLX 15.5.2 or later is required to use the Auto
Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network
devices.
Versatile Installation Options
Hardware is included for mounting the UPS system in 2U of space in an EIA-standard 19-inch 4-post rack.
Use the optional 2POSTRMKITWM (sold separately) for 2-post rack mounting or the optional 2-9USTAND
(sold separately) for mounting in an upright tower position. The 10-foot power cord with NEMA L6-20P
plug connects to any compatible AC outlet.
Specifications
OVERVIEW
UPC Code 037332180742
UPS Type On-Line
INPUT
Rated input current (Maximum Load) 14.97A
Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
UPS Input Connection Type L6-20P
UPS Input Cord Length (ft.) 10
UPS Input Cord Length (m) 3.1
Recommended Electrical Service 208/240V 20A
2 / 6
Page 3
Input Phase Single-Phase
OUTPUT
Output Volt Amp Capacity (VA) 3000
Output kVA Capacity (kVA) 3
Output Watt Capacity (Watts) 2700
Output kW Capacity (kW) 2.7
Output Capacity Details DE-RATING INFORMATION: Max output in Frequency Conversion mode is reduced to 1890 watts for
208/220/230/240V output voltages; Max output is reduced to 2160W at 200V output voltage in all operating modes
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for
30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are
WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits).
Power Factor 0.9
Crest Factor 3:1
Nominal Voltage Details Nominal output voltage is user configured on first power-on
Frequency Compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Frequency Compatibility Details Output frequency matches input nominal on startup; Output capacity de-rates by 30% during frequency conversion
operation
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation
(Economy Line Mode)
Output Voltage Regulation (Battery
Mode)
+/- 2%
+/- 10%
+/- 2%
Load Management Receptacles Two switchable outlet load banks (2 NEMA 6-15/20R outlets per bank)
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery
Mode)
Pure Sine wave
Nominal Output Voltage(s)
Supported
200V; 208V; 220V; 230V; 240V
Output Receptacles (6) 6-15/20R; (2) L6-20R
Individually Controllable Load Banks Yes
BATTERY
Full Load Runtime (min.) 5 min. (2700w)
Half Load Runtime (min.) 13.5 min. (1350w)
Expandable Battery Runtime Supports extended runtime with optional external battery packs
External Battery Pack Compatibility <a class="productLink" href="// External-72V-2U-RackTower-Battery-Pack-for-Select-Tripp-
Lite-UPS-Systems~BP72V15-2U">BP72V15-2U</a> (limit 1); <a class="productLink"
href="// External-72V-3U-Rack-Tower-Battery-Pack-Select-Tripp-Lite-UPS-systems~BP72V28RT-
3U">BP72V28RT-3U</a> (multi-pack compatible); <a class="productLink"
href="// External-72V-2U-Rack-Tower-Battery-Pack-for-Tripp-Lite-UPS-Systems~BP72V18-
2US">BP72V18-2US</a> (multi-pack compatible)
DC System Voltage (VDC) 72
3 / 6
Page 4
Battery Recharge Rate (Included
Batteries)
3.0 hours from 10% to 90% (typical, full load discharge)
Internal UPS Replacement Battery
Cartridge
<a class="productLink" href="// Replacement-Battery-Cartridge-72V-Tripp-Lite-SmartOnline-
UPS-Systems~RBC72S">RBC72S</a>
Battery Access Front panel battery access door
Battery Replacement Description Hot-swappable, replaceable batteries
Expandable Runtime Yes
VOLTAGE REGULATION
Voltage Regulation Description Online, double-conversion power conditioning
Overvoltage Correction 2% output voltage regulation during overvoltages to 288
Undervoltage Correction 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display Interactive front-panel LCD interface reports UPS operating mode, detailed UPS status and site-power information;
LCD interface also enables a variety of advanced UPS setup and configuration options
Switches 5 front panel switches: On/Off, Up, Down and Escape
Alarm Cancel Operation Power-fail alarm can be silenced by following on-screen prompts
Audible Alarm Audible alarm indicates power failure, low battery, overload and fault
LED Indicators 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red)
SURGE / NOISE SUPPRESSION
UPS Dataline Suppression Details Single line dialup / network dataline protection included
EMI / RFI AC Noise Suppression Yes
AC Suppression Joule Rating 570
AC Suppression Response Time Instantaneous
PHYSICAL
Cooling Method Fan
Included Mounting Accessory
Description
Installation Form Factors Supported
with Included Accessories
Installation Form Factors Supported
with Optional Accessories
4 post installation accessories included
4 post 19 inch rackmount
2 post rackmount ( <a class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-
Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> ); Tower ( <a
class="productLink" href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-
9USTAND">2-9USTAND</a> )
Minimum Required Rack Depth with
External Battery Pack (cm)
Minimum Required Rack Depth with
External Battery Pack (in.)
Minimum Required Rack Depth
without External Battery Pack (cm)
77
30.25
74
4 / 6
Page 5
Minimum Required Rack Depth
without External Battery Pack (in.)
29.25
Primary Form Factor Rackmount
Primary UPS Depth (mm) 616
Primary UPS Height (mm) 88
Primary UPS Width (mm) 438
Rack Height 2U
Shipping Dimensions (hwd / cm) 24.00 x 59.99 x 76.00
Shipping Dimensions (hwd / in.) 9.45 x 23.62 x 29.92
Shipping Weight (kg) 39.01
Shipping Weight (lbs.) 86.00
UPS Housing Material Metal
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Dimensions
(hwd, in.)
8.79 x 43.79 x 61.60
3.46 x 17.24 x 24.25
UPS Power Module Weight (kg) 32.12
UPS Power Module Weight (lbs.) 70.81
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Relative Humidity 5 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 933
AC Economy Mode BTU / Hr. (Full
Load)
588
Battery Mode BTU / Hr. (Full Load) 1399
AC Mode Efficiency Rating (100%
Load)
AC Economy Mode Efficiency Rating
(100% Load)
>90%
>95%
Audible Noise <50dB at front side 1M
Operating Elevation (m) Up to 3000m
COMMUNICATIONS
Network Management Cards <a class="productLink" href="// SNMP-Web-Management-Accessory-Card-SmartPro-
SmartOnline-UPS-Systems~SNMPWEBCARD">SNMPWEBCARD</a> ; <a class="productLink"
href="// Web-Management-Accessory-Card~WEBCARDLX">WEBCARDLX</a>
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 plus assignable contact
closure pin functions for On-battery, On bypass, Output-on and Low-battery conditions and remote Shutdown,
Output-off, Reboot and Power-toggle operations
5 / 6
Page 6
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Interface Contact closure; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
LINE / BATTERY TRANSFER
Transfer Time No transfer time (0 ms.) in online, double-conversion mode; 4 ms. transfer time during economy mode operation
http:// poweralert
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Grounding Lug Back panel grounding lug included
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features Automatic inverter bypass; Hot swappable batteries; Auto Probe Monitoring and Reboot (requires WEBCARDLX);
Green Energy-Saving Features High efficiency economy mode operation; Individually controllable load banks
STANDARDS & COMPLIANCE
UPS Certifications ENERGY STAR Qualified; Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM
WARRANTY
Product Warranty Period
(Worldwide)
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
160V (100% load), 140V (66% load), 120V (33% load)
288V
Cold-start operation supported
Zero transfer time; On-Line/Double-Conversion
(Mexico); Tested to UL1778 (USA)
2-year limited warranty
$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime
Insurance</a>
© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies
6 / 6
Loading...
