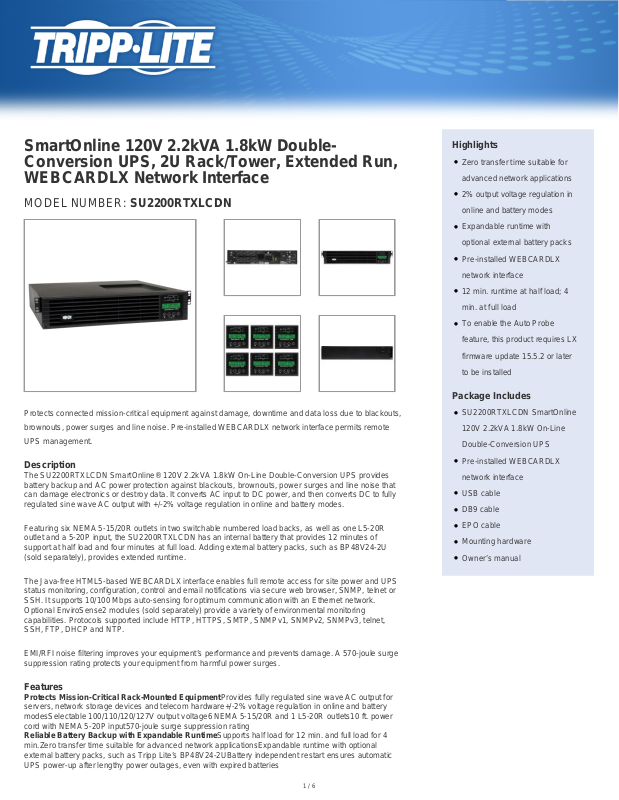

SmartOnline 120V 2.2kVA 1.8kW DoubleConversion UPS, 2U Rack/Tower, Extended Run,
WEBCARDLX Network Interface
MODEL NUMBER: SU2200RTXLCDN
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts,
brownouts, power surges and line noise. Pre-installed WEBCARDLX network interface permits remote
UPS management.
Description
The SU2200RTXLCDN SmartOnline® 120V 2.2kVA 1.8kW On-Line Double-Conversion UPS provides
battery backup and AC power protection against blackouts, brownouts, power surges and line noise that
can damage electronics or destroy data. It converts AC input to DC power, and then converts DC to fully
regulated sine wave AC output with +/-2% voltage regulation in online and battery modes.
Featuring six NEMA 5-15/20R outlets in two switchable numbered load backs, as well as one L5-20R
outlet and a 5-20P input, the SU2200RTXLCDN has an internal battery that provides 12 minutes of
support at half load and four minutes at full load. Adding external battery packs, such as BP48V24-2U
(sold separately), provides extended runtime.
Highlights
●
Zero transfer time suitable for
advanced network applications
●
2% output voltage regulation in
online and battery modes
●
Expandable runtime with
optional external battery packs
●
Pre-installed WEBCARDLX
network interface
●
12 min. runtime at half load; 4
min. at full load
●
To enable the Auto Probe
feature, this product requires LX
firmware update 15.5.2 or later
to be installed
Package Includes
●
SU2200RTXLCDN SmartOnline
120V 2.2kVA 1.8kW On-Line
Double-Conversion UPS
●
Pre-installed WEBCARDLX
network interface
●
USB cable
●
DB9 cable
●
EPO cable
●
Mounting hardware
●
Owner’s manual
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS
status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or
SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring
capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet,
SSH, FTP, DHCP and NTP.
EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 570-joule surge
suppression rating protects your equipment from harmful power surges.
Features
Protects Mission-Critical Rack-Mounted EquipmentProvides fully regulated sine wave AC output for
servers, network storage devices and telecom hardware+/-2% voltage regulation in online and battery
modesSelectable 100/110/120/127V output voltage6 NEMA 5-15/20R and 1 L5-20R outlets10 ft. power
cord with NEMA 5-20P input570-joule surge suppression rating
Reliable Battery Backup with Expandable RuntimeSupports half load for 12 min. and full load for 4
min.Zero transfer time suitable for advanced network applicationsExpandable runtime with optional
external battery packs, such as Tripp Lite’s BP48V24-2UBattery independent restart ensures automatic
UPS power-up after lengthy power outages, even with expired batteries
1 / 6
Page 2
Pre-Installed WEBCARDLX Network InterfaceAllows full remote access for power monitoring,
configuration, control and email notifications via secure web browser, SNMP, telnet or SSHOptional
EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contactclosure status
Switchable Numbered Load BanksOutlets are divided into 2 numbered load banks, each of which may
be individually powered on and off remotely to reset or reboot connected equipment
Interactive LCD ScreenReports detailed status information, including load, voltage and battery
levelsOffers advanced configuration and setup options, including output voltage and operating mode
EMI/RFI Line Noise FilteringRemoves electromagnetic and radio frequency interference that can disrupt
or damage equipment’s performance
Audible AlarmIndicates startup/shutdown, power failure, low battery, overload and fault conditions
Communications PortsUSB and DB9 ports enable data-saving unattended shutdown when used with
Tripp Lite’s PowerAlert software (available via free download at poweralert)EPO port
supports emergency shutdown in large facilities
Versatile Installation OptionsHardware included for 4-post mounting in 2U of EIA-standard 19 in.
rackMounts on wall or 2-post rack with optional 2POSTRMKITWMMounts in upright tower position with
optional 2-9USTAND
Specifications
OVERVIEW
UPC Code 037332182982
UPS Type On-Line
INPUT
Rated input current (Maximum Load) 16A
Nominal Input Voltage(s) Supported 100V AC; 110V AC; 115V AC; 120V AC; 127V AC
Nominal Input Voltage Description 120V factory default
UPS Input Connection Type 5-20P
Input Circuit Breakers 30A
UPS Input Cord Length (ft.) 10
UPS Input Cord Length (m) 3.1
Recommended Electrical Service 20A 120V
Input Phase Single-Phase
OUTPUT
Output Volt Amp Capacity (VA) 2200
Output kVA Capacity (kVA) 2.2
Output Watt Capacity (Watts) 1800
Output kW Capacity (kW) 1.8
2 / 6
Page 3
Output Capacity Details ON LINE MODE: Maximum output capacity is reduced to 1620 watts at 115V nominal and 1440 watts at 100V
nominal; FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency
regulation / conversion mode (127/120V 1260 watts / 115V 1134 watts / 110V 1071 watts / 100V 1008 watts)
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150%
load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and
frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE
bypass limits)
Power Factor 0.82
Crest Factor 3:1
Nominal Voltage Details 120V factory-default nominal voltage
Frequency Compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Frequency Compatibility Details ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output
matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds
+/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz.
FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency
input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY
MODE: Output is regulated to +/-0.05Hz.
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation
(Economy Line Mode)
Output Voltage Regulation (Battery
Mode)
+/- 2%
+/- 10%
+/- 3%
Load Management Receptacles Two switchable three-outlet 5-15/20R load banks
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery
Mode)
Nominal Output Voltage(s)
Supported
Pure Sine wave
100V; 110V; 115V; 120V; 127V
Output Receptacles (6) 5-15/20R; (1) L5-20R
Individually Controllable Load Banks Yes
BATTERY
Full Load Runtime (min.) 4 min. (1800w)
Half Load Runtime (min.) 12 min. (900w)
Expandable Battery Runtime Extended runtime supported via optional external battery packs
External Battery Pack Compatibility <a class="productLink" href="// External-48V-2U-Rack-Tower-Battery-Pack-Enclosure-DC-
Cabling-select-UPS-Systems~BP48V24-2U">BP48V24-2U</a> (limit 1); <a class="productLink"
href="// External-48V-3U-Rack-Tower-Battery-Pack-Enclosure-DC-Cabling-select-UPS-
Systems~BP48V60RT-3U">BP48V60RT-3U</a> (multi-pack compatible); <a class="productLink"
href="// External-48V-2U-Rack-Tower-Battery-Pack-for-UPS-Systems~BP48V27-2US">BP48V27-
2US</a> (multi-pack compatible)
Expandable Runtime Description Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software, see
manual for details
DC System Voltage (VDC) 48
Battery Recharge Rate (Included
Batteries)
Less than 3 hours recharge to 90% (typical, full load discharge)
3 / 6
Page 4
Internal UPS Replacement Battery
Cartridge
<a class="productLink" href="// 2U-UPS-Replacement-48VDC-Battery-Cartridge-1-set-4-
select-Tripp-Lite-SmartPro-UPS~RBC94-2U">RBC94-2U</a>
Battery Access Front panel battery access
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime Yes
VOLTAGE REGULATION
Voltage Regulation Description Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and
overvoltages
Overvoltage Correction Corrects overvoltages to 150V (0-100% load)
Undervoltage Correction Corrects undervoltages to 100V at full load (90V at 100V nominal)
Severe Undervoltage Correction Corrects brownouts to 70V (70% load) & 55V (33% load)
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data,
plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
Switches 2 switches control off/on power status and alarm-cancel operation; 2 additional scroll-down and scroll-up / select
options enable LCD status viewing and configuration options
Alarm Cancel Operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option
available
Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown
conditions
LED Indicators 7 front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco
mode operation, bypass mode operation and AC output status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 570
UPS AC Suppression Response
Time
Instantaneous
UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Cooling Method Fan
Included Mounting Accessory
Description
Installation Form Factors Supported
with Included Accessories
Installation Form Factors Supported
with Optional Accessories
Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to
914mm)
4 post 19 inch rackmount
2 post rackmount ( <a class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-
Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> ); 2-4 post front rail
rackmount ( <a class="productLink" href="// Heavy-Duty-2-post-Front-Mounting-Ear-
Kit~UPSHDEARKIT">UPSHDEARKIT</a> ); 4 post rackmount short-depth ( <a class="productLink"
href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-Wall-Mount-
Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> ); Tower ( <a class="productLink"
href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-9USTAND">2-
9USTAND</a> ); Wallmount ( <a class="productLink" href="// 2-Post-Rack-Mount-
Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> )
4 / 6
Page 5
Minimum Required Rack Depth with
External Battery Pack (cm)
66
Minimum Required Rack Depth with
External Battery Pack (in.)
Minimum Required Rack Depth
without External Battery Pack (cm)
Minimum Required Rack Depth
without External Battery Pack (in.)
26
61
24
Optional Mounting Accessory Notes Optional <a class="productLink" href="// 2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-
Systems~2-9USTAND">2-9USTAND</a> enables upright tower UPS placement; <a
class="productLink" href="// 2-Post-Rack-Mount-Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-
Systems~2POSTRMKITWM">2POSTRMKITWM</a> enables wall-mount and 2-post rackmount installation;
<a class="productLink" href="// 4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-
Wall-Mount-Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> enables installation in 4-post short-depth
racks from 14.5 to 23.5 inches (368 to 597mm); <a class="productLink" href="// Heavy-
Duty-2-post-Front-Mounting-Ear-Kit~UPSHDEARKIT">UPSHDEARKIT</a> enables installation in 2 or 4-post
racks using front vertical rails only, without rear support
Primary Form Factor Rackmount
Primary UPS Depth (mm) 483
Primary UPS Height (mm) 89
Primary UPS Width (mm) 445
Rack Height 2U
Shipping Dimensions (hwd / cm) 22.61 x 50.55 x 59.69
Shipping Dimensions (hwd / in.) 8.90 x 19.90 x 23.50
Shipping Weight (kg) 28.58
Shipping Weight (lbs.) 63.00
UPS Housing Material Steel
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Dimensions
(hwd, in.)
8.89 x 44.45 x 48.26
3.5 x 17.5 x 19
UPS Power Module Weight (kg) 22.00
UPS Power Module Weight (lbs.) 48.5
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 5 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 684
AC Economy Mode BTU / Hr. (Full
Load)
392
Battery Mode BTU / Hr. (Full Load) 1085
AC Economy Mode Efficiency Rating
(100% Load)
94%
5 / 6
Page 6
Audible Noise 57 dBA at 1m front side
Operating Elevation (m) Up to 3000m
COMMUNICATIONS
Network Management Cards <a class="productLink" href="// Web-Management-Accessory-
Network Monitoring Port Description Includes pre-installed WEBCARDLX Network Management Card interface; Supports detailed monitoring of UPS and
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Interface Contact closure; DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface;
LINE / BATTERY TRANSFER
Transfer Time Zero (0 milliseconds) in double-conversion mode; 4 milliseconds economy mode
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Cold Start (Startup in Battery Mode
During a Power Failure)
Card~WEBCARDLX">WEBCARDLX</a>
site power conditions; DB9 port supports RS232 and contact closure communications
http:// poweralert
USB (HID enabled)
100V at full load (90V full load at 100V nominal setting); 70V at 70% load; 55V at 33% load
150
Cold-start operation supported
High Availability UPS Features Automatic inverter bypass; Hot swappable batteries; Auto Probe Monitoring and Reboot (included); Zero transfer
Green Energy-Saving Features High efficiency economy mode operation; Individually controllable load banks; Schedulable daily hours of economy
STANDARDS & COMPLIANCE
UPS Certifications Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada);
WARRANTY
Product Warranty Period
(Worldwide)
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
time; On-Line/Double-Conversion
mode operation
Tested to UL1778 (USA)
2-year limited warranty
$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime
Insurance</a>
© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https:// products/product-certification-agencies
6 / 6
Loading...
