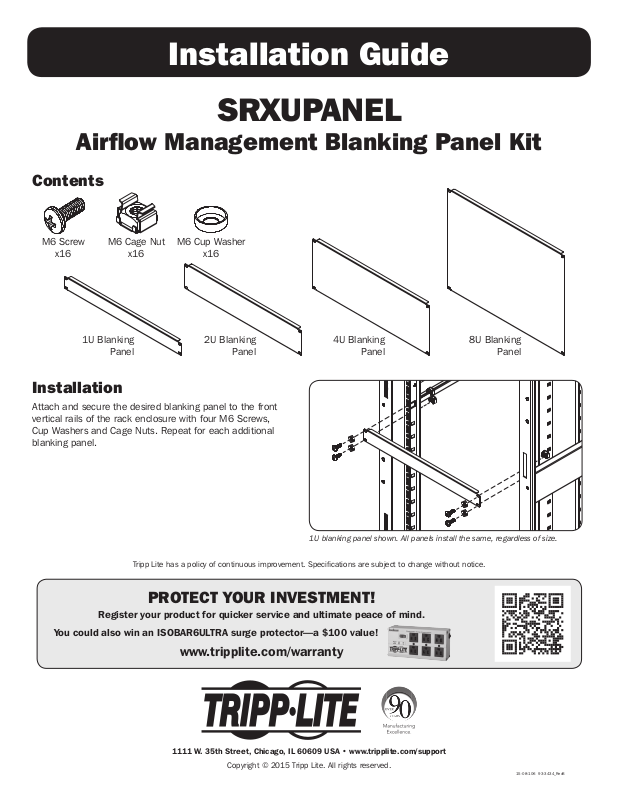

Airflow Management Blanking Panel Kit
Contents
Installation Guide
SRXUPANEL
M6 Screw
x16
M6 Cage Nut
x16
1U Blanking
Panel
M6 Cup Washer
x16
2U Blanking
Panel
Installation
Attach and secure the desired blanking panel to the front
vertical rails of the rack enclosure with four M6 Screws,
Cup Washers and Cage Nuts. Repeat for each additional
blanking panel.
4U Blanking
Panel
8U Blanking
Panel
1U blanking panel shown. All panels install the same, regardless of size.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a $100 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2015 Tripp Lite. All rights reserved.
15-08-106 93-3434_RevB
