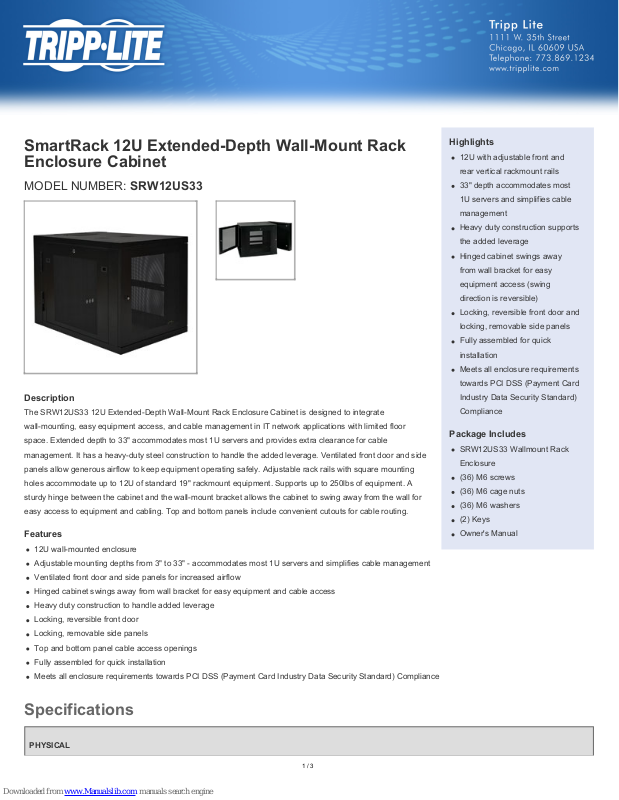

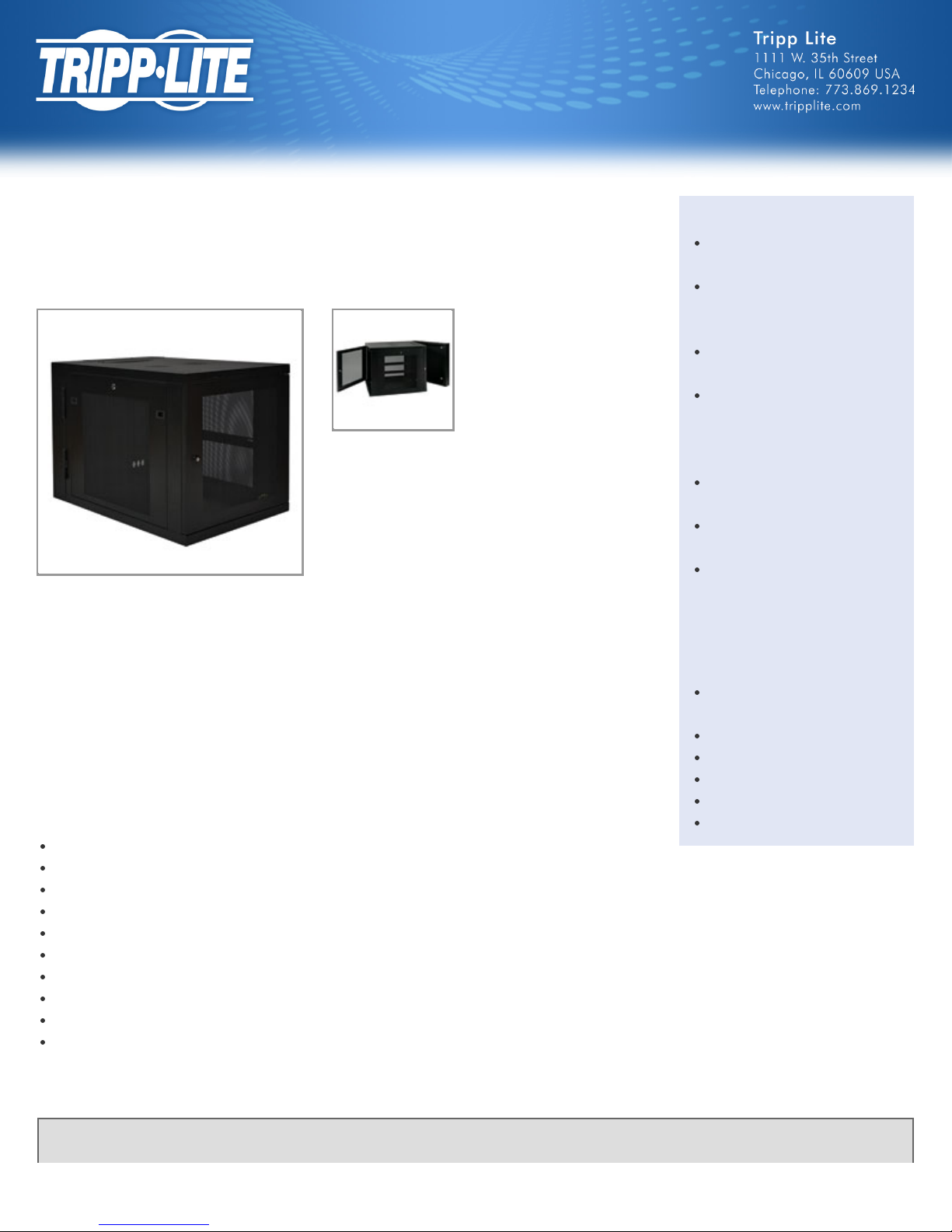

SmartRack 12U Extended-Depth Wall-Mount Rack
Enclosure Cabinet
MODEL NUMBER: SRW12US33
Description
The SRW12US33 12U Extended-Depth Wall-Mount Rack Enclosure Cabinet is designed to integrate
wall-mounting, easy equipment access, and cable management in IT network applications with limited floor
space. Extended depth to 33" accommodates most 1U servers and provides extra clearance for cable
management. It has a heavy-duty steel construction to handle the added leverage. Ventilated front door and side
panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting
holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 250lbs of equipment. A
sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for
easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.
Features
12U wall-mounted enclosure
Adjustable mounting depths from 3" to 33" - accommodates most 1U servers and simplifies cable management
Ventilated front door and side panels for increased airflow
Hinged cabinet swings away from wall bracket for easy equipment and cable access
Heavy duty construction to handle added leverage
Locking, reversible front door
Locking, removable side panels
Top and bottom panel cable access openings
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Specifications
PHYSICAL
Highlights
12U with adjustable front and
rear vertical rackmount rails
33" depth accommodates most
1U servers and simplifies cable
management
Heavy duty construction supports
the added leverage
Hinged cabinet swings away
from wall bracket for easy
equipment access (swing
direction is reversible)
Locking, reversible front door and
locking, removable side panels
Fully assembled for quick
installation
Meets all enclosure requirements
towards PCI DSS (Payment Card
Industry Data Security Standard)
Compliance
Package Includes
SRW12US33 Wallmount Rack
Enclosure
(36) M6 screws
(36) M6 cage nuts
(36) M6 washers
(2) Keys
Owner's Manual
1 / 3
Page 2
Installed whole system maximum
rack depth (inches)
32.5
Installed whole system maximum
rack depth (cm)
82.55
Installed whole system minimum
rack depth (inches)
3
Installed whole system minimum
rack depth (cm)
7.62
Rack Height 12U
Shipping Dimensions (HWD/in) 37.8 x 26.9 x 25.6
Shipping Dimensions (HWD/cm) 96 x 68.32 x 65.02
Shipping weight (lbs) 120
Shipping weight (kg) 54.43
Unit Dimensions (in.) EXTERNAL DIMENSIONS: 25 x 23.63 x 33.5
Unit weight (lbs) 100
Unit weight (kg) 45.36
Unit Dimensions (cm) EXTERNAL DIMENSIONS: 63.5 x 60 x 85.09
Color Black
Style Wall Mounted
Weight Capacity - Stationary (lbs) 250
Weight Capacity - Stationary (kg) 113.4
Factory preset rack depth (cm) 66.01
Cable Access Hole Measurement
(inches)
9.812 x 2.35 (l x w)
Factory preset rack depth (inches) 25.99
SPECIAL FEATURES
Grounding lug Front and Back door frames
CERTIFICATIONS
NOM (Mexico) Tested to NOM (Mexico)
Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, IP250 Protection Rating, RoHS
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
Related Items
Optional Products
2 / 3
Page 3
Model Number Description Qty.
SRCABLEDUCT1U 1U Horizontal Cable Manager (Finger duct with cover.) 1
SRCABLEDUCT1UHD 1U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1
SRCABLERING1U 1U Horizontal Cable Manager (Flexible ring type.) 1
SRCASTER
Heavy-Duty Rolling Caster Kit (Includes 4 casters. Casters are included with 48/42/25U
enclosures.)
1
SRFAN3U 3U Fan Panel, 120V (3 high-performance fans; 210 CFM; 5-15P plug.) 1
SRFANWM Wall-Mount Roof Fan Kit, 120V (2 high-performance fans; 5-15P plug) 1
SRXFAN3U 3U Fan Panel, 230V (3 high-performance fans; 210 CFM; C14 inlet.) 1
SR1UPANEL10 1U Blanking Panel Kit (10 pieces; toolless mounting.) 1
SR1UPANEL50 1U Blanking Panel Kit (50 pieces; toolless mounting.) 1
UPSHDEARKIT
Heavy-Duty Mounting Ear Kit - Supports 2U cabinets up to 65 lb / 29 kg from front vertical rails in
4-post or 2-post racks and enclosures. )
1
SRCAGENUTS Square Hole Hardware Kit (Includes 50 M6 screws and washers.) 1
SRSWITCH Magnetic Door Switch Kit for front and rear doors; requires ENVIROSENSE 1
SRCABLERING2U 2U Horizontal Cable Manager (Flexible ring type.) 1
SRCABLEDUCT2UHD 2U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1
SRSHELF2P1U 1U Cantilever Fixed Shelf (40 lb / 18 kg capacity; 12-in. / 305 mm depth.) 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at:
http://www.tripplite.com/sku/SRW12US33.
© 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
