23” Wide Mounting Rail Kit for

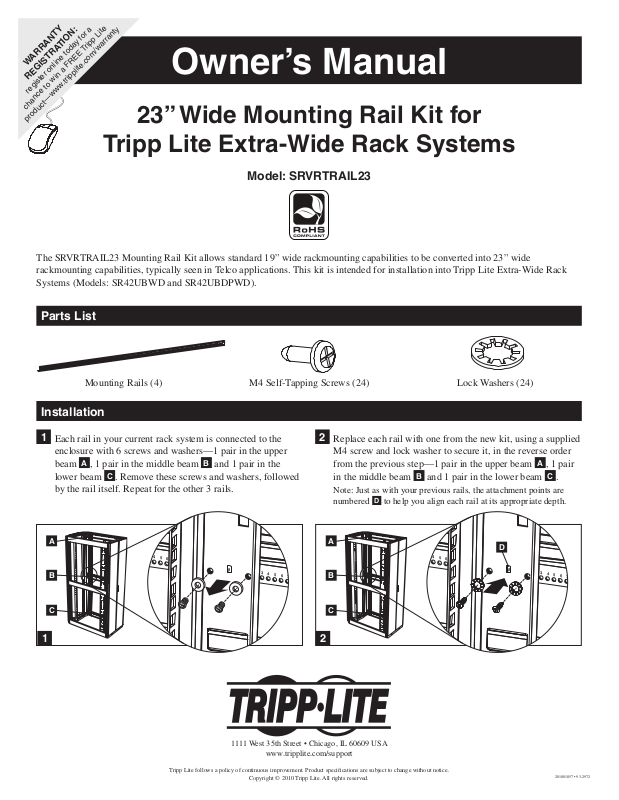

Owner’s Manual
Tripp Lite Extra-Wide Rack Systems
Model: SRVRTRAIL23
The SRVRTRAIL23 Mounting Rail Kit allows standard 19” wide rackmounting capabilities to be converted into 23” wide
rackmounting capabilities, typically seen in Telco applications. This kit is intended for installation into Tripp Lite Extra-Wide Rack
Systems (Models: SR42UBWD and SR42UBDPWD).
Parts List
Mounting Rails (4) M4 Self-Tapping Screws (24) Lock Washers (24)
Installation
1
Each rail in your current rack system is connected to the
enclosure with 6 screws and washers—1 pair in the upper
A
beam
lower beam
, 1 pair in the middle beam
C
. Remove these screws and washers, followed
by the rail itself. Repeat for the other 3 rails.
A A
B B
C C
1 2
B
and 1 pair in the
Note: Just as with your previous rails, the attachment points are
2
Replace each rail with one from the new kit, using a supplied
M4 screw and lock washer to secure it, in the reverse order
from the previous step—1 pair in the upper beam
in the middle beam
numbered
D
to help you align each rail at its appropriate depth.
B
and 1 pair in the lower beam
D
A
, 1 pair
C
.
