Ideal for enclosures with perforated doors (not for use in enclosures with solid/plexiglass/glass
doors)Install the unit using a bottom-mounting configuration only, with the enclosure’s floor open and no
tray or pan below the SRCOOL7KRMEvaporator coils can be vented through enclosure’s rear perforated
doors or optional SRCOOL7KDUCT (no solid doors)In an open frame application, cooling air delivered to
the equipment is lessened, since cold air escapes into the room. Condenser must be ducted using the
SRCOOL7KDUCT.

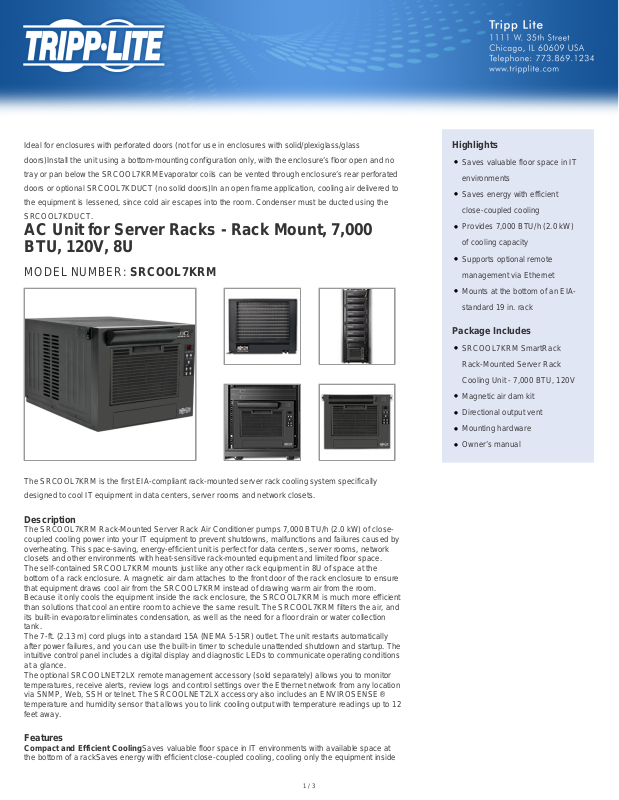

AC Unit for Server Racks - Rack Mount, 7,000
BTU, 120V, 8U
MODEL NUMBER: SRCOOL7KRM
Highlights
●
Saves valuable floor space in IT
environments
●
Saves energy with efficient
close-coupled cooling
●
Provides 7,000 BTU/h (2.0 kW)
of cooling capacity
●
Supports optional remote
management via Ethernet
●
Mounts at the bottom of an EIAstandard 19 in. rack
Package Includes
●
SRCOOL7KRM SmartRack
Rack-Mounted Server Rack
Cooling Unit - 7,000 BTU, 120V
●
Magnetic air dam kit
●
Directional output vent
●
Mounting hardware
●
Owner’s manual
The SRCOOL7KRM is the first EIA-compliant rack-mounted server rack cooling system specifically
designed to cool IT equipment in data centers, server rooms and network closets.
Description
The SRCOOL7KRM Rack-Mounted Server Rack Air Conditioner pumps 7,000 BTU/h (2.0 kW) of closecoupled cooling power into your IT equipment to prevent shutdowns, malfunctions and failures caused by
overheating. This space-saving, energy-efficient unit is perfect for data centers, server rooms, network
closets and other environments with heat-sensitive rack-mounted equipment and limited floor space.
The self-contained SRCOOL7KRM mounts just like any other rack equipment in 8U of space at the
bottom of a rack enclosure. A magnetic air dam attaches to the front door of the rack enclosure to ensure
that equipment draws cool air from the SRCOOL7KRM instead of drawing warm air from the room.
Because it only cools the equipment inside the rack enclosure, the SRCOOL7KRM is much more efficient
than solutions that cool an entire room to achieve the same result. The SRCOOL7KRM filters the air, and
its built-in evaporator eliminates condensation, as well as the need for a floor drain or water collection
tank.
The 7-ft. (2.13 m) cord plugs into a standard 15A (NEMA 5-15R) outlet. The unit restarts automatically
after power failures, and you can use the built-in timer to schedule unattended shutdown and startup. The
intuitive control panel includes a digital display and diagnostic LEDs to communicate operating conditions
at a glance.
The optional SRCOOLNET2LX remote management accessory (sold separately) allows you to monitor
temperatures, receive alerts, review logs and control settings over the Ethernet network from any location
via SNMP, Web, SSH or telnet. The SRCOOLNET2LX accessory also includes an ENVIROSENSE®
temperature and humidity sensor that allows you to link cooling output with temperature readings up to 12
feet away.
Features
Compact and Efficient CoolingSaves valuable floor space in IT environments with available space at
the bottom of a rackSaves energy with efficient close-coupled cooling, cooling only the equipment inside
1 / 3
the rack enclosure instead of the entire roomProvides 7,000 BTU/h (2.0 kW) of cooling capacity in a rackmounted 8U chassisPrevents equipment shutdowns, malfunctions and failures caused by overheating and
temperature fluctuationsUses environmentally friendly R410A refrigerant
Convenient OperationDirectional output vent aims air upward to cool overheated rack
equipmentSupports unattended shutdown and startup, including automatic restarts after power
failuresIntuitive front-panel controls with an informative digital display and diagnostic LEDsOperates at
noise levels comparable to an average office setting
Remote Management SupportOptional SRCOOLNET2LX remote management accessory (sold
separately) allows you to monitor temperatures, receive alerts, review logs and control settings over the
Ethernet network from any location via SNMP, Web, SSH or telnetSRCOOLNET2LX includes
ENVIROSENSE temperature and humidity sensor that allows you to link cooling operation with
temperature readings up to 12-ft. (3.66 m) away
Optional SRCOOL7KDUCT Exhaust Duct KitDirects and disperses heat from SRCOOL7KRM through
an upper vent into your facility's ventilation systemSold separately
Easy InstallationPlugs into a standard 15A outlet (NEMA 5-15R)Built-in evaporator eliminates
condensation—no floor drain or water collection tank neededMagnetic air dam attaches to rack
enclosure's front door to optimize airflowIncludes mounting hardware for installation at bottom of EIAstandard 19 in. rack enclosures
Specifications
OVERVIEW
UPC Code 037332184733
INPUT
Electrical Consumption 1020 Watts Max
Nominal Input Voltage(s) Supported 120V AC
Input Connection Type NEMA 5-15P
Input Frequency 60 Hz
Input Cord Length (ft.) 7
Input Cord Length (m) 2.13
COOLING
Cooling Type Active
Airflow 198.25 CFM
Equivalent Room Size 250 sq. ft. (25 sq. m)
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display 2-digit LCD displays numerical temperature readout
Front Panel LEDs Push-button control panel with multiple LEDs for operational configuration
PHYSICAL
Color Black
Form Factors Supported Rackmount
Rack Height 8U
2 / 3
