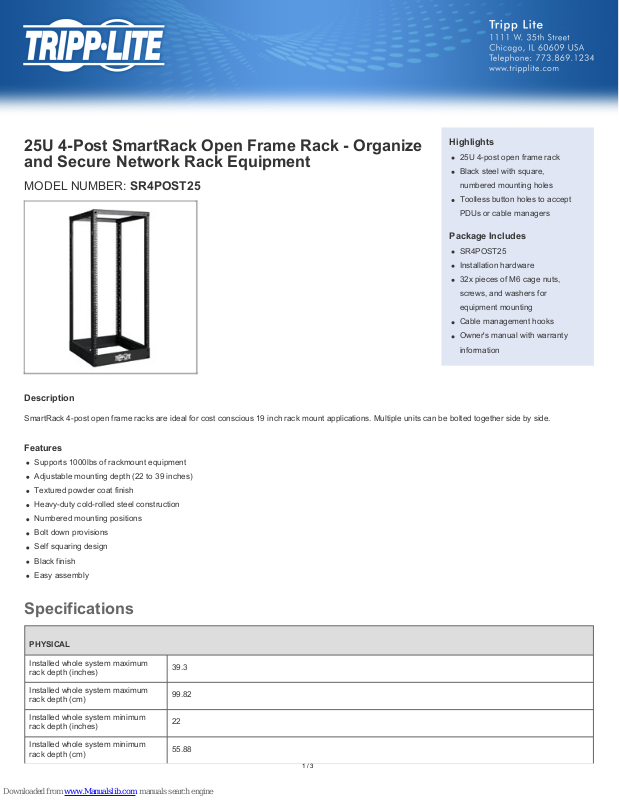

25U 4-Post SmartRack Open Frame Rack - Organize
and Secure Network Rack Equipment
MODEL NUMBER: SR4POST25
Description
SmartRack 4-post open frame racks are ideal for cost conscious 19 inch rack mount applications. Multiple units can be bolted together side by side.
Features
Supports 1000lbs of rackmount equipment
Adjustable mounting depth (22 to 39 inches)
Textured powder coat finish
Heavy-duty cold-rolled steel construction
Numbered mounting positions
Bolt down provisions
Self squaring design
Black finish
Easy assembly
Specifications
PHYSICAL
Installed whole system maximum
rack depth (inches)
39.3
Installed whole system maximum
rack depth (cm)
99.82
Installed whole system minimum
rack depth (inches)
22
Installed whole system minimum
rack depth (cm)
55.88
Highlights
25U 4-post open frame rack
Black steel with square,
numbered mounting holes
Toolless button holes to accept
PDUs or cable managers
Package Includes
SR4POST25
Installation hardware
32x pieces of M6 cage nuts,
screws, and washers for
equipment mounting
Cable management hooks
Owner's manual with warranty
information
1 / 3
Page 2
Rack Height 25U
Shipping Dimensions (HWD/in) 4.13 x 5.71 x 56.5
Shipping Dimensions (HWD/cm) 10.5 x 14.5 x 143.51
Shipping weight (lbs) 46
Shipping weight (kg) 20.7
Unit Dimensions (HWD/cm) 125.2 x 51.3 x 55.9~99.8 (depth adjustable)
Unit Dimensions (in.) 49.3 x 20.2 x 22~39.3 (depth adjustable)
Unit weight (lbs) 45
Unit weight (kg) 20.25
Unit Dimensions (cm) 125.2 x 51.31 x 55.88~99.1 (depth adjustable)
Color Black
Style 4-Post
Weight Capacity - Stationary (lbs) 1000
Weight Capacity - Stationary (kg) 453.6
SPECIAL FEATURES
Grounding lug Included screws, nuts, and washers secure user-supplied grounding wire to Front or Back frames
CERTIFICATIONS
NOM (Mexico) Tested to NOM (Mexico)
Approvals EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
Related Items
Optional Products
Model Number Description Qty.
SRFAN3U 3U Fan Panel, 120V (3 high-performance fans; 210 CFM; 5-15P plug.) 1
SRXFAN3U 3U Fan Panel, 230V (3 high-performance fans; 210 CFM; C14 inlet.) 1
SR1UBRUSH 1U Cable Pass-Through Panel with Brush Strip 1
SR1UPANEL10 1U Blanking Panel Kit (10 pieces; toolless mounting.) 1
SRCABLEDUCT1U 1U Horizontal Cable Manager (Finger duct with cover.) 1
SRCABLERING1U 1U Horizontal Cable Manager (Flexible ring type.) 1
SRCABLERING2U 2U Horizontal Cable Manager (Flexible ring type.) 1
2 / 3
Page 3
SRSHELF4PHD Heavy-Duty Fixed Shelf (250 lb / 113 kg capacity; 26 in / 660 mm depth.) 1
SRSHELF4PKYBD Keyboard Shelf (25 lb / 11 kg capacity; 16-in. / 406 mm depth.) 1
SRBOLTDOWN Bolt-Down Kit (Secures included stabilizing brackets or optional stabilizing plates to facility floor.) 1
SRCAGENUTS Square Hole Hardware Kit (Includes 50 M6 screws and washers.) 1
SRCASTER Heavy-Duty Rolling Caster Kit (Includes 4 casters) 1
UPSHDEARKIT
Heavy-Duty Mounting Ear Kit - Supports 2U cabinets up to 65 lb / 29 kg from front vertical rails in
4-post or 2-post racks and enclosures. )
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at:
http://www.tripplite.com/sku/SR4POST25.
