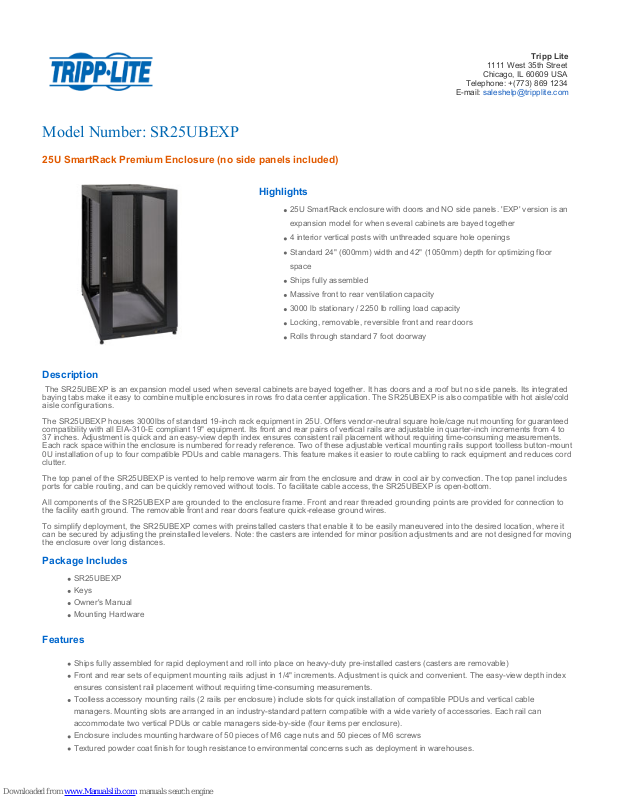

Page 1
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model Number: SR25UBEXP
25U SmartRack Premium Enclosure (no side panels included)
Highlights
25U SmartRack enclosure with doors and NO side panels. 'EXP' version is an
expansion model for when several cabinets are bayed together
4 interior vertical posts with unthreaded square hole openings
Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor
space
Ships fully assembled
Massive front to rear ventilation capacity
3000 lb stationary / 2250 lb rolling load capacity
Locking, removable, reversible front and rear doors
Rolls through standard 7 foot doorway
Description
The SR25UBEXP is an expansion model used when several cabinets are bayed together. It has doors and a roof but no side panels. Its integrated
baying tabs make it easy to combine multiple enclosures in rows fro data center application. The SR25UBEXP is also compatible with hot aisle/cold
aisle configurations.
The SR25UBEXP houses 3000lbs of standard 19-inch rack equipment in 25U. Offers vendor-neutral square hole/cage nut mounting for guaranteed
compatibility with all EIA-310-E compliant 19" equipment. Its front and rear pairs of vertical rails are adjustable in quarter-inch increments from 4 to
37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
Each rack space within the enclosure is numbered for ready reference. Two of these adjustable vertical mounting rails support toolless button-mount
0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord
clutter.
The top panel of the SR25UBEXP is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes
ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR25UBEXP is open-bottom.
All components of the SR25UBEXP are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to
the facility earth ground. The removable front and rear doors feature quick-release ground wires.
To simplify deployment, the SR25UBEXP comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it
can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving
the enclosure over long distances.
Package Includes
SR25UBEXP
Keys
Owner's Manual
Mounting Hardware
Features
Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters (casters are removable)
Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index
ensures consistent rail placement without requiring time-consuming measurements.
Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable
managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can
accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws
Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.
Page 2
Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.
Maximum usable internal depth of 37 inches (front to rear rail).
Weight ratings of 3000 lb stationary and 2250 lb rolling.
Front door is locking, reversible and removable.
Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be
placed closer to a wall.
Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard
data center floor tiles.
Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.
Compact design allows the enclosure to roll through standard height commercial doorways.
Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground.
Front and rear doors include quick-release ground wires.
Open bottom for cable access.
Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.
Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of
the rack.
Compatibility with airflow optimization accessories as well as cable management accessories.
Specifications
PHYSICAL
Installed whole system
maximum rack depth (inches)
37
Installed whole system
minimum rack depth (inches)
4
Rack Height 25U
Shipping Dimensions
(HWD/in)
55 x 26 x 45
Shipping weight (lbs) 200
Unit Dimensions (in.) EXTERNAL DIMENSIONS: 49 x 23.63 x 43(HWD)
Unit weight (lbs) 163
Color Black
Style Floor Standing
Weight Capacity - Stationary
(lbs)
3000
Weight Capacity - Rolling
(lbs)
2250
Units per Pallet 1
SPECIAL FEATURES
Grounding lug Front and Back door frames
CERTIFICATIONS
Certifications UL60950; RoHS; CE
NOM (Mexico) Tested to NOM (Mexico)
Approvals EIA/ECA-310-E
WARRANTY
Product Warranty Period
(Worldwide)
5-year limited warranty
Page 3
Related Items
Optional Products
Related Model Description Qty.
4POSTRAILKIT Enables 4-Post Rackmount Installation of Select Rackmount UPS Systems 1
4POSTRAILKIT1U 1U Universal Adjustable Rackmount Shelf Kit 1
SR1UPANEL10 1U Blanking Panel Kit (10 pieces; toolless mounting.) 1
SRBOLTDOWN Bolt-Down Kit (Secures included stabilizing brackets or optional stabilizing plates to
facility floor.)
1
SRCABLEDUCT1U 1U Horizontal Cable Manager (Finger duct with cover.) 1
SRCABLEDUCT1UHD 1U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1
SRCABLEDUCT2UHD 2U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1
SRCABLELADDER 10-ft. x 1-ft. (3 m x 0.3 m) Cable Ladder (Includes 2 sections; requires SRCABLETRAY
or SRLADDERATTACH)
1
SRCABLERING1U 1U Horizontal Cable Manager (Flexible ring type.) 1
SRCABLERING2U 2U Horizontal Cable Manager (Flexible ring type.) 1
SRCABLETRAY Roof-Mounted Cable Trough (Provides cable routing and power/data cable segregation.) 1
SRCABLETRAYEXP Roof-Mounted Cable Trough Vertical Expansion (Requires SRCABLETRAY.) 1
SRCAGENUTS Square Hole Hardware Kit (Includes 50 M6 screws and washers.) 1
SRCASTERHDKIT Heavy-Duty Rolling Caster Kit (includes 4 casters) 1
SRCOMBO Door Handles with Combination Lock (2-pack for front and rear doors; includes bypass
key.)
1
SRFAN3U 3U Fan Panel, 120V (3 high-performance fans; 210 CFM; 5-15P plug.) 1
SRXFAN3U 3U Fan Panel, 230V (3 high-performance fans; 315 CFM; C14 inlet.) 1
SRFANROOF Roof-Mounted Fan Panel, 120V (6 high-performance fans; 630 CFM; 5-15P plug;
toolless mounting)
1
SRFILTER Filter Kit for SmartRack Enclosures 1
SRGROUND SmartRack Copper Bus Grounding Bar 1
SRSCREWS Threaded hole hardware kit - 50 each #12-24 screws 1
SRSHELF2P 2U Cantilever Fixed Shelf (60 lb / 27 kg capacity; 18-in. / 457 mm depth.) 1
SRSHELF2P1U 1U Cantilever Fixed Shelf (40 lb / 18 kg capacity; 12-in. / 305 mm depth.) 1
SRSHELF4PHD Heavy-Duty Fixed Shelf (250 lb / 113 kg capacity; 26 in / 660 mm depth.) 1
SRSHELF4PKYBD Keyboard Shelf (25 lb / 11 kg capacity; 16-in. / 406 mm depth.) 1
SRSHELF4PSL Standard Sliding Shelf (50lb / 23 kg capacity; 28 1/4 in/ 660 mm depth.) 1
SRSHELF4PSLHD Heavy-Duty Sliding Shelf (200 lb / 91 kg capacity; 26 in / 660 mm depth.) 1
SRSTABILIZE Anti-Tip Stabilizing Plate Kit (Provides extra stability for standalone enclosures.) 1
SRSWITCH Magnetic Door Switch Kit for front and rear doors; requires ENVIROSENSE 1
UPSHDEARKIT Heavy-Duty 2-post Front Mounting Ear Kit 1
Page 4
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
http://www.tripplite.com/sku/SR25UBEXP.
