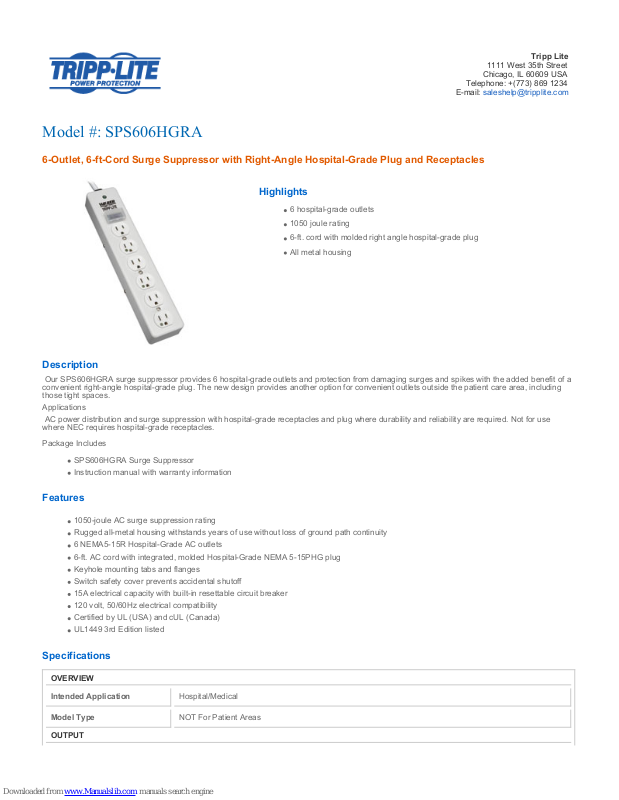

Page 1
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model #: SPS606HGRA
6-Outlet, 6-ft-Cord Surge Suppressor with Right-Angle Hospital-Grade Plug and Receptacles
Highlights
6 hospital-grade outlets
1050 joule rating
6-ft. cord with molded right angle hospital-grade plug
All metal housing
Description
Our SPS606HGRA surge suppressor provides 6 hospital-grade outlets and protection from damaging surges and spikes with the added benefit of a
convenient right-angle hospital-grade plug. The new design provides another option for convenient outlets outside the patient care area, including
those tight spaces.
Applications
AC power distribution and surge suppression with hospital-grade receptacles and plug where durability and reliability are required. Not for use
where NEC requires hospital-grade receptacles.
Package Includes
SPS606HGRA Surge Suppressor
Instruction manual with warranty information
Features
1050-joule AC surge suppression rating
Rugged all-metal housing withstands years of use without loss of ground path continuity
6 NEMA5-15R Hospital-Grade AC outlets
6-ft. AC cord with integrated, molded Hospital-Grade NEMA 5-15PHG plug
Keyhole mounting tabs and flanges
Switch safety cover prevents accidental shutoff
15A electrical capacity with built-in resettable circuit breaker
120 volt, 50/60Hz electrical compatibility
Certified by UL (USA) and cUL (Canada)
UL1449 3rd Edition listed
Specifications
OVERVIEW
Intended Application Hospital/Medical
Model Type NOT For Patient Areas
OUTPUT
Page 2
Frequency compatibility 50 / 60 Hz
Output watts 1800
Circuit Breaker (amps) 15
Outlet quantity / type 6 NEMA 5-15R-HG
Transformer accommodation Supports 1 large transformer plug accessories without covering remaining outlets
INPUT
Nominal Input Voltage(s)
Supported
120V AC
Recommended Electrical
Service
120V (110-125V)
Input connection type NEMA 5-15P-HG Right Angle Hospital-Grade
Input cord length (ft.) 6
Input cord length (m) 4.6
Voltage compatibility (VAC) 120
Maximum Surge Amps 19500
LEDS ALARMS & SWITCHES
Diagnostic LEDs LINE POWER PRESENT (green)
SURGE / NOISE SUPPRESSION
AC suppression joule rating 1050
AC suppression response
time
< 1 ns
Protection modes Includes full normal mode surge suppression
Clamping voltage (RMS) 140V
DATALINE SURGE SUPPRESSION
Telephone/DSL Protection No
Cable (Coax) Protection No
Network (Ethernet) Protection No
PHYSICAL
Shipping Dimensions
(HWD/in)
2.25 x 15 x 6
Shipping Dimensions
(HWD/cm)
5.7 x 38.1 x 15.24
Shipping weight (lbs) 3.5
Shipping weight (kg) 1.59
Unit Dimensions (HWD/in) 1.5 x 13.75 x 2.5
Unit Dimensions (HWD/cm) 3.81 x 34.9 x 6.35
Unit weight (lbs) 3.2
Unit weight (kg) 1.45
Page 3
Material of construction Metal
Integrated keyhole mounting
tabs
Includes keyhole mounting tabs and flanges
Receptacle Color White
AC line cord color Gray
Style Strip
CERTIFICATIONS
UL1449 3rd Edition (AC
Suppression)
UL1449 3rd Edition (Series Number: AGIB12015SL)
UL1363 (Power Tap) UL1363 (Series Number: AGIB12015SL)
cUL / CSA (Canada) cUL (Series Number: AGIB12015SL)
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=5007.
Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
