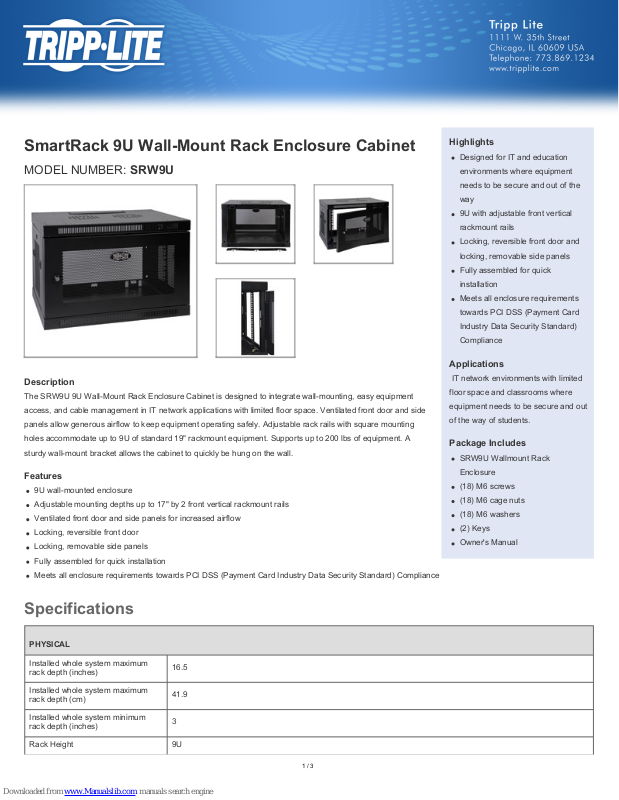

SmartRack 9U Wall-Mount Rack Enclosure Cabinet
MODEL NUMBER: SRW9U
Description
The SRW9U 9U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment
access, and cable management in IT network applications with limited floor space. Ventilated front door and side
panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting
holes accommodate up to 9U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A
sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall.
Features
9U wall-mounted enclosure
Adjustable mounting depths up to 17" by 2 front vertical rackmount rails
Ventilated front door and side panels for increased airflow
Locking, reversible front door
Locking, removable side panels
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Specifications
PHYSICAL
Installed whole system maximum
rack depth (inches)
16.5
Installed whole system maximum
rack depth (cm)
41.9
Installed whole system minimum
rack depth (inches)
3
Rack Height 9U
Highlights
Designed for IT and education
environments where equipment
needs to be secure and out of the
way
9U with adjustable front vertical
rackmount rails
Locking, reversible front door and
locking, removable side panels
Fully assembled for quick
installation
Meets all enclosure requirements
towards PCI DSS (Payment Card
Industry Data Security Standard)
Compliance
Applications
IT network environments with limited
floor space and classrooms where
equipment needs to be secure and out
of the way of students.
Package Includes
SRW9U Wallmount Rack
Enclosure
(18) M6 screws
(18) M6 cage nuts
(18) M6 washers
(2) Keys
Owner's Manual
1 / 3
Page 2
Shipping Dimensions (HWD/in) 22.6 x 26.4 x 20.5
Shipping Dimensions (HWD/cm) 57.40 x 67.06 x 52.07
Shipping weight (lbs) 38.4
Shipping weight (kg) 17.41
Unit Dimensions (in.) 19.88 x 23.63 x 17.78
Unit weight (lbs) 35
Unit weight (kg) 15.875
Unit Dimensions (cm) 50.49 x 60.02 x 45.16
Color Black
Style Wall Mounted
Weight Capacity - Stationary (lbs) 200
Weight Capacity - Stationary (kg) 90.7
Cable Access Hole Measurement
(inches)
9.812 x 2.35 (l x w)
SPECIAL FEATURES
Grounding lug Front and Back door frames
CERTIFICATIONS
Certifications EIA-310-E
NOM (Mexico) Tested to NOM (Mexico)
Approvals RoHS
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
Related Items
Optional Products
Model Number Description Qty.
SRFANWM Wall-Mount Roof Fan Kit, 120V (2 high-performance fans; 5-15P plug) 1
SRCABLEDUCT1U 1U Horizontal Cable Manager (Finger duct with cover.) 1
SRCABLERING1U 1U Horizontal Cable Manager (Flexible ring type.) 1
SRSHELF2P1U 1U Cantilever Fixed Shelf (40 lb / 18 kg capacity; 12-in. / 305 mm depth.) 1
SRSWITCH Magnetic Door Switch Kit for front and rear doors; requires ENVIROSENSE 1
SRCAGENUTS Square Hole Hardware Kit (Includes 50 M6 screws and washers.) 1
2 / 3
Page 3
SRCASTER Heavy-Duty Rolling Caster Kit (Includes 4 casters) 1
UPSHDEARKIT
Heavy-Duty Mounting Ear Kit - Supports 2U cabinets up to 65 lb / 29 kg from front vertical rails in
4-post or 2-post racks and enclosures. )
1
SRCABLEDUCT1UHD 1U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at:
http://www.tripplite.com/sku/SRW9U.
© 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
