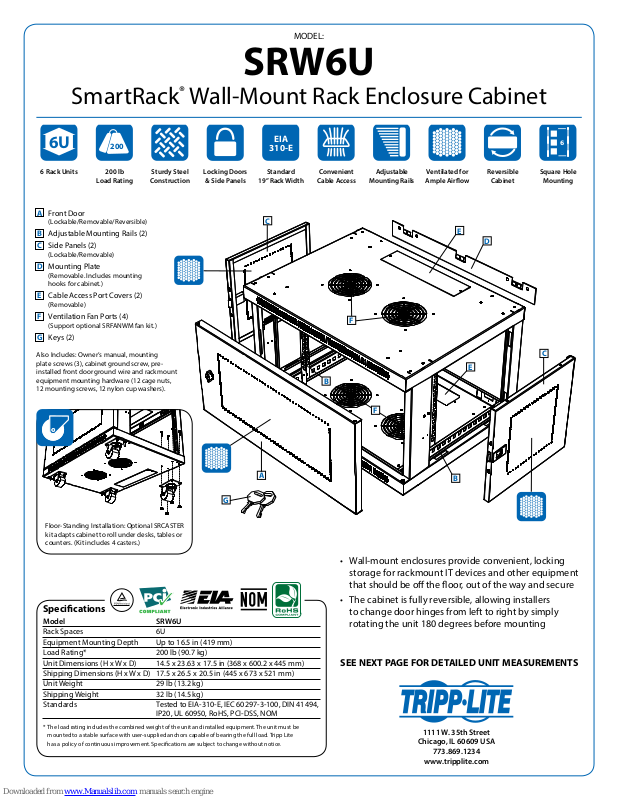

Page 1

MODEL:

SRW6U

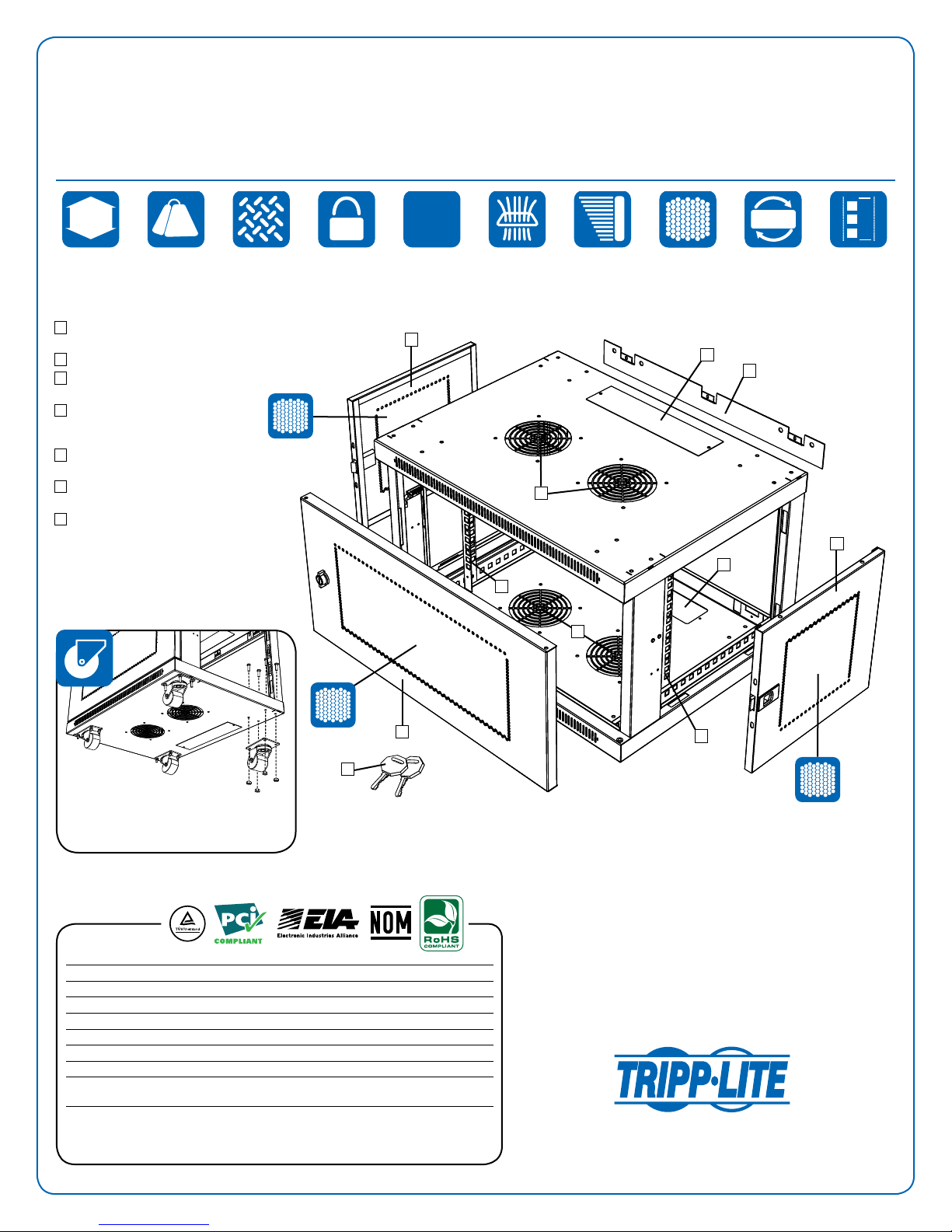

SmartRack® Wall-Mount Rack Enclosure Cabinet

6 Rack Units 200 lb

A Front Door

(Lockable/Removable/Reversible)

B Adjustable Mounting Rails (2)

C Side Panels (2)

(Lockable/Removable)

D Mounting Plate

(Removable. Includes mounting hooks for cabinet.)

E Cable Access Port Covers (2)

(Removable)

F Ventilation Fan Ports (4)

(Support optional SRFANWM fan kit.)

G Keys (2)

Also Includes: Owner’s manual, mounting plate screws (3), cabinet ground screw, preinstalled front door ground wire and rackmount equipment mounting hardware (12 cage nuts, 12 mounting screws, 12 nylon cup washers).

200

Load Rating

Sturdy Steel

Construction

Locking Doors

& Side Panels

EIA

310-E

Standard

19” Rack Width

Convenient

Cable Access

Adjustable

Mounting Rails

Ventilated for

Ample Airow

Reversible

Cabinet

Square Hole

Mounting

Floor-Standing Installation: Optional SRCASTER kit adapts cabinet to roll under desks, tables or counters. (Kit includes 4 casters.)

• Wall-mountenclosuresprovideconvenient,locking

storage for rackmount IT devices and other equipment that should be o the oor, out of the way and secure

• Thecabinetisfullyreversible,allowinginstallers

Specications

Model SRW6U

Rack Spaces 6U Equipment Mounting Depth Up to 16.5 in (419 mm) Load Rating* 200 lb (90.7 kg) Unit Dimensions (H x W x D) 14.5 x 23.63 x 17.5 in (368 x 600.2 x 445 mm) Shipping Dimensions (H x W x D) 17.5 x 26.5 x 20.5 in (445 x 673 x 521 mm) Unit Weight 29 lb (13.2 kg) Shipping Weight 32 lb (14.5 kg) Standards Tested to EIA-310-E, IEC 60297-3-100, DIN 41494,

IP20, UL 60950, RoHS, PCI-DSS, NOM

* The load rating includes the combined weight of the unit and installed equipment. The unit must be

mounted to a stable surface with user-supplied anchors capable of bearing the full load. TrippLite has a policy of continuous improvement. Specications are subject to change without notice.

to change door hinges from left to right by simply rotating the unit 180 degrees before mounting

SEE NEXT PAGE FOR DETAILED UNIT MEASUREMENTS

1111 W. 35th Street

Chicago, IL 60609 USA

773.869.1234

www.tripplite.com

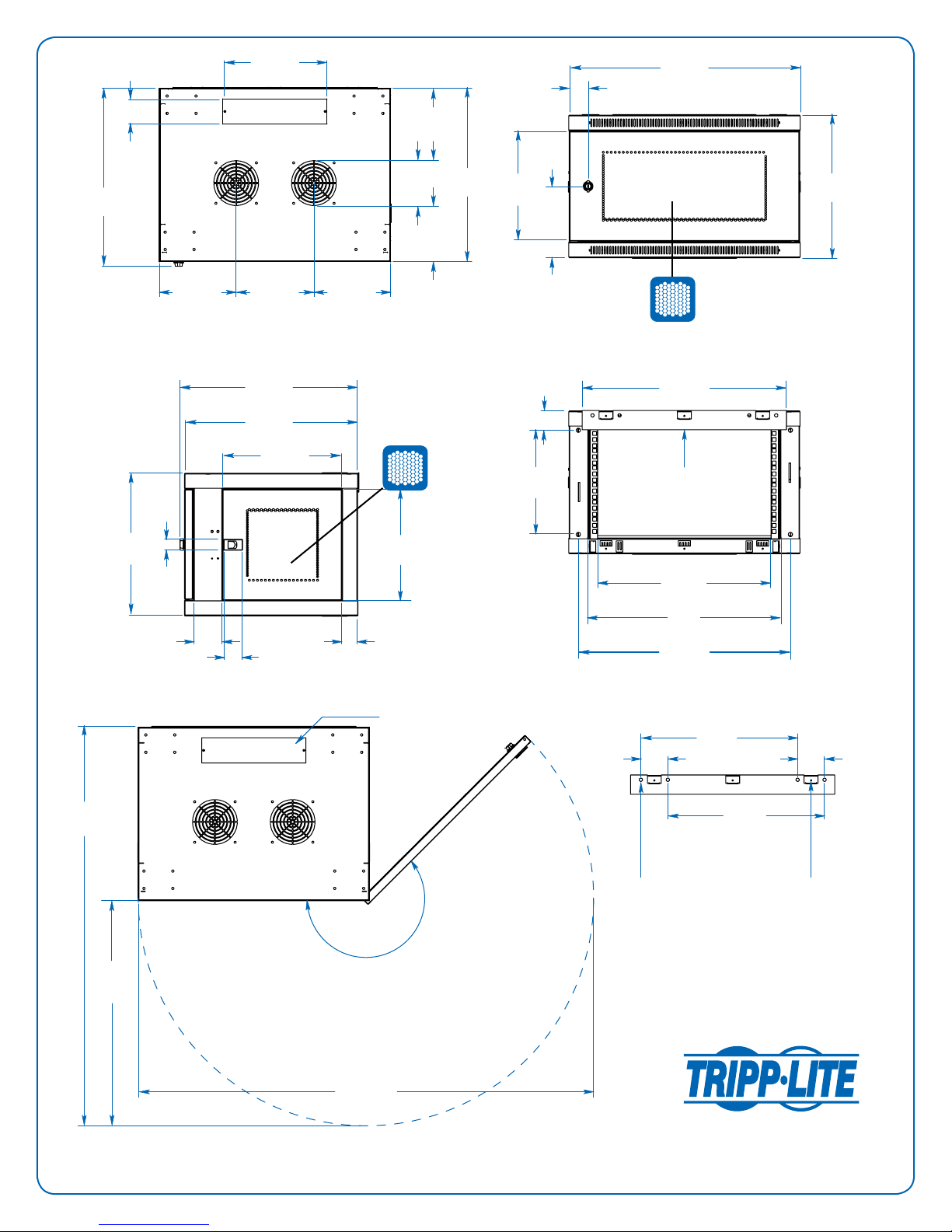

Page 2

[462]

18.20

[65]

2.56

[270]

10.63

[116]

4.56

[189]

7.44

[450]

17.72

[281]

11.08

[49]

1.92

[600]

23.63

[369]

14.53

[368]

14.48 [26]

1.02

[71]

2.80

[197]

7.75

[202]

7.94

TOP/BOTTOM VIEW

[459]

18.06 [447]

17.61 [306]

12.06

[48]

1.89

SIDE VIEW

[197]

7.75

[146]

5.76

[284]

11.19

[37]

1.46

CABLE ACCESS

[270]

10.64

[186]

7.31

[50]

1.97

FRONT VIEW

[530]

20.87

MOUNTING PLATE

(SEE BELOW)

[455]

17.91 [500]

19.71 [550]

21.65

REAR VIEW (FRONT DOOR NOT SHOWN)

[406]

[70]

2.75

16.00 [70]

2.75

[1038]

40.88

TOP VIEW

[585]

23.04

Dimensions: [mm] INCHES

Tripp Lite has a policy of continuous improvement. Specications are subject to change without notice.

[1181]

46.53

225º

MOUNTING PLATE

USER-SUPPLIED M8 OR 5/16” BOLTS ANCHOR PLATE TO WALL
