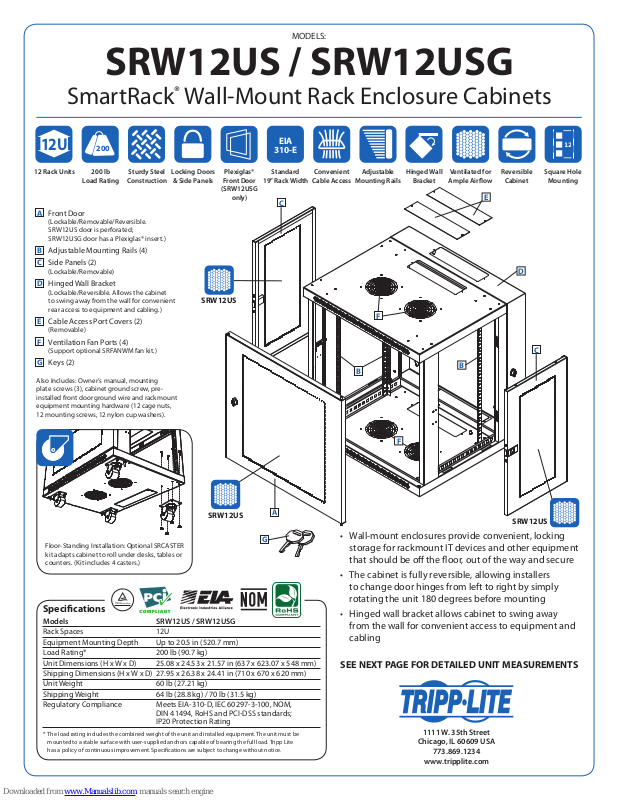

Page 1
MODELS:
SRW12US / SRW12USG
SmartRack® Wall-Mount Rack Enclosure Cabinets
12U
12 Rack Units 200 lb

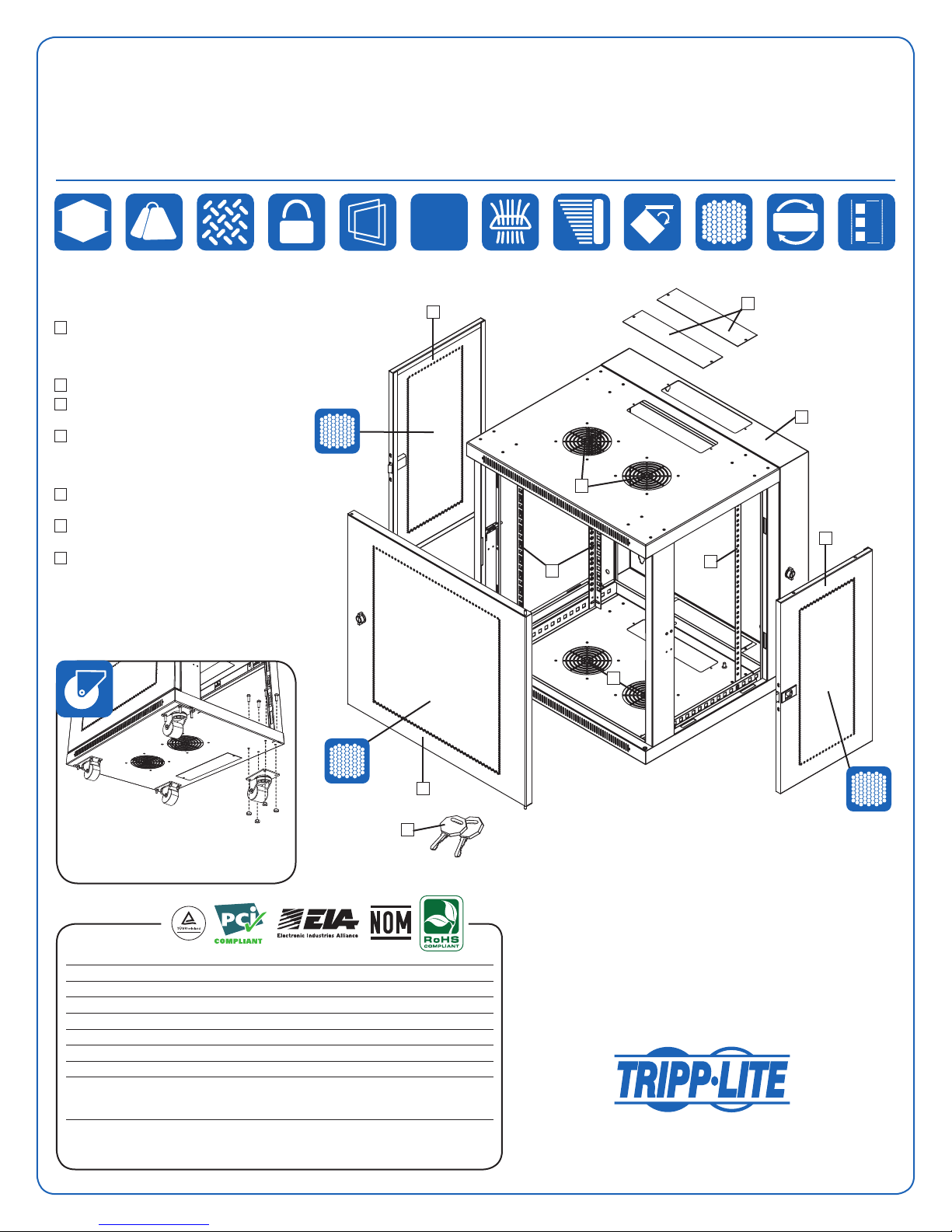

A Front Door
(Lockable/Removable/Reversible.
SRW12US door is perforated;
SRW12USG door has a Plexiglas® insert.)
B Adjustable Mounting Rails (4)
C Side Panels (2)
(Lockable/Removable)
D Hinged Wall Bracket
(Lockable/Reversible. Allows the cabinet
to swing away from the wall for convenient
rear access to equipment and cabling.)
E Cable Access Port Covers (2)
(Removable)
F Ventilation Fan Ports (4)
(Support optional SRFANWM fan kit.)
G Keys (2)
Also Includes: Owner’s manual, mounting
plate screws (3), cabinet ground screw, preinstalled front door ground wire and rackmount
equipment mounting hardware (12 cage nuts,
12 mounting screws, 12 nylon cup washers).
200
Load Rating
Sturdy Steel
Construction
Locking Doors
& Side Panels
SRW12US
Plexiglas®
Front Door
(SRW12USG
only)
EIA
310-E
Standard
19” Rack Width
C
Convenient
Cable Access
Adjustable
Mounting Rails
F
B
Hinged Wall
Bracket
Ventilated for
Ample Airow
E
B
Reversible
Cabinet
D
Square Hole
Mounting
C
F
SRW12US
Floor-Standing Installation: Optional SRCASTER
kit adapts cabinet to roll under desks, tables or
counters. (Kit includes 4 casters.)
A
G
• Wall-mountenclosuresprovideconvenient,locking
SRW12US
storage for rackmount IT devices and other equipment
that should be o the oor, out of the way and secure
• Thecabinetisfullyreversible,allowinginstallers
to change door hinges from left to right by simply
rotating the unit 180 degrees before mounting
Specications
Models SRW12US / SRW12USG
Rack Spaces 12U
Equipment Mounting Depth Up to 20.5 in (520.7 mm)
Load Rating* 200 lb (90.7 kg)
Unit Dimensions (H x W x D) 25.08 x 24.53 x 21.57 in (637 x 623.07 x 548 mm)
Shipping Dimensions (H x W x D) 27.95 x 26.38 x 24.41 in (710 x 670 x 620 mm)
Unit Weight 60 lb (27.21 kg)
Shipping Weight 64 lb (28.8 kg) / 70 lb (31.5 kg)
Regulatory Compliance Meets EIA-310-D, IEC 60297-3-100, NOM,
DIN 41494, RoHS and PCI-DSS standards;
IP20 Protection Rating
* The load rating includes the combined weight of the unit and installed equipment. The unit must be
mounted to a stable surface with user-supplied anchors capable of bearing the full load. TrippLite
has a policy of continuous improvement. Specications are subject to change without notice.
• Hingedwallbracketallowscabinettoswingaway
from the wall for convenient access to equipment and
cabling
SEE NEXT PAGE FOR DETAILED UNIT MEASUREMENTS
1111 W. 35th Street
Chicago, IL 60609 USA
773.869.1234
www.tripplite.com
Page 2
[270]
10.63
[38.50]
1.52
[623.07]
24.53
[611.77]
24.09
[600]
23.62
[559.30]
22.02
[65]
2.56
[200]
7.87

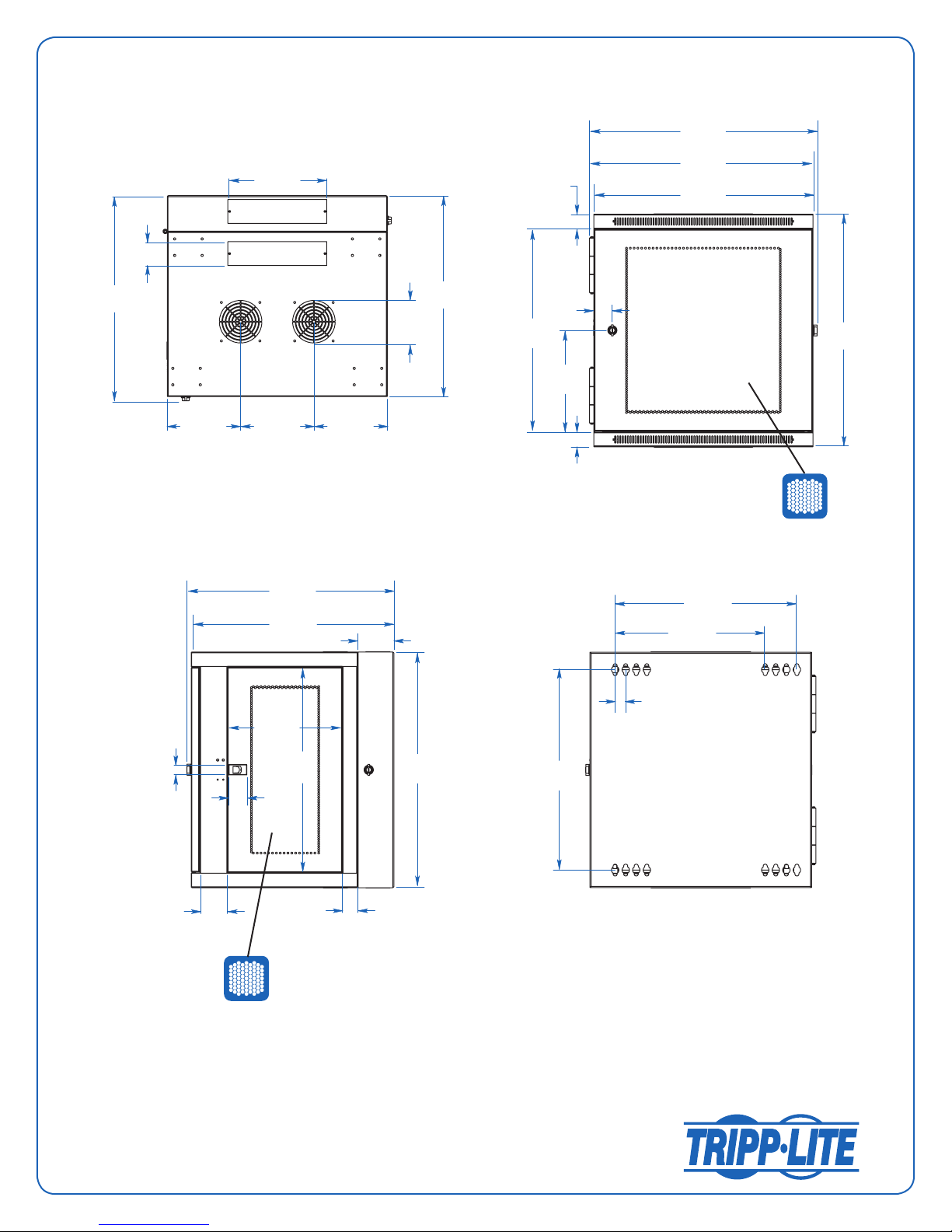

TOP/BOTTOM VIEW
[200]
7.87
[559.30]
22.02
[448]
21.57
[306.30]
12.06
[200]
7.87
[115.93]
4.56
[96.50]
3.80
[548]
21.57
[548.10]
21.58
[318.95]
12.56
[38.50]
1.52
[47]
1.85
[637]
25.08
FRONT VIEW
SRW12US
[492.13]
19.38
[406.40]
16.00
[28.58]
1.13
[26]
1.02
[71]
2.80
[551]
21.69
[49]
1.93
SIDE VIEW REAR VIEW
[637]
25.08
[37]
1.46
SRW12US
Dimensions: [mm] INCHES
Tripp Lite has a policy of continuous improvement. Specications are subject to change without notice.
[542.60]
21.36
MODELS:
SRW12US / SRW12USG
Page 3

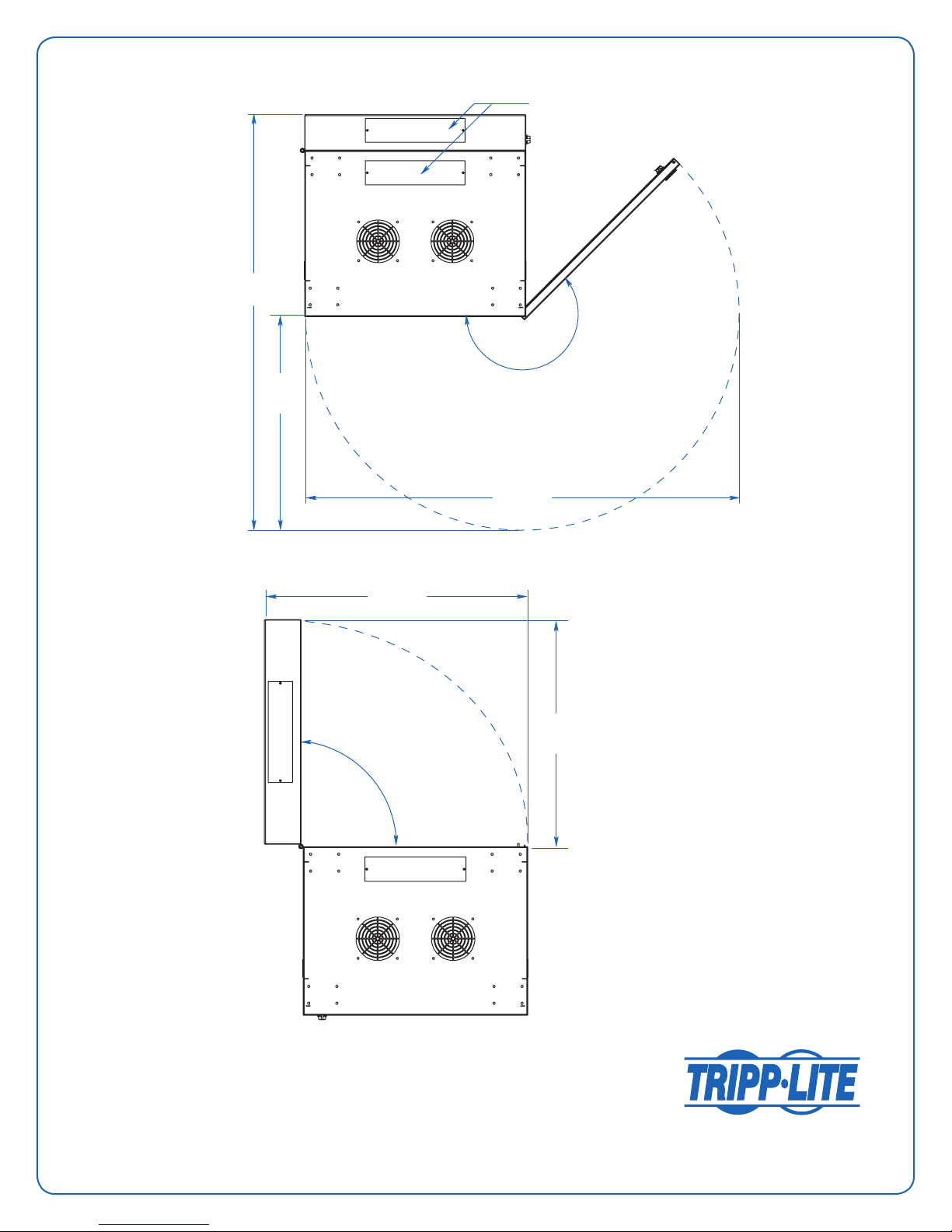

[1132.08]
44.57
[583.94]
CABLE ACCESS
TOP VIEW
225º
22.99
[1181]
46.53
FRONT OPENING
[703.83]
27.71
90º
REAR OPENING
[606.55]
23.88
MODELS:
SRW12US / SRW12USG
Dimensions: [mm] INCHES
Tripp Lite has a policy of continuous improvement. Specications are subject to change without notice.
Copyright © 2013 Tripp Lite.
1111 W. 35th Street
Chicago, IL 60609 USA
773.869.1234
www.tripplite.com
13-04-194
