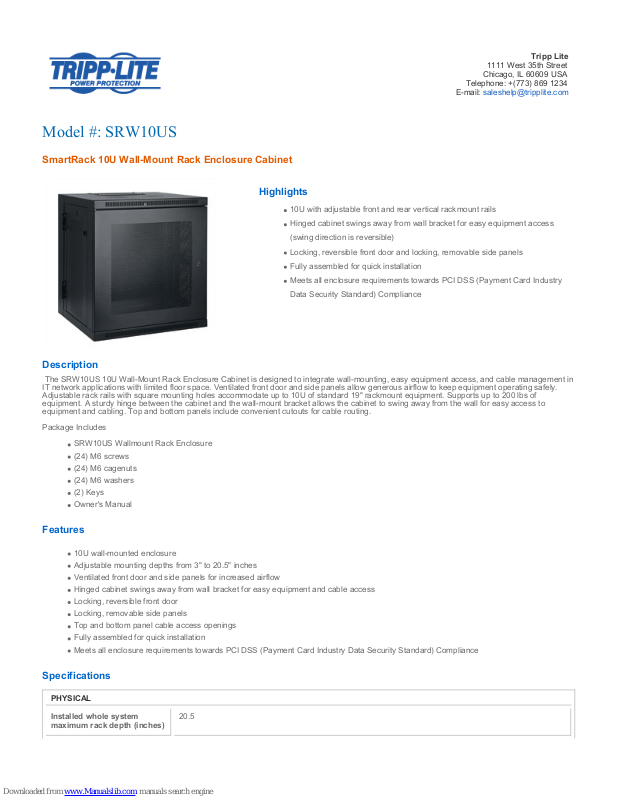

Page 1
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model #: SRW10US

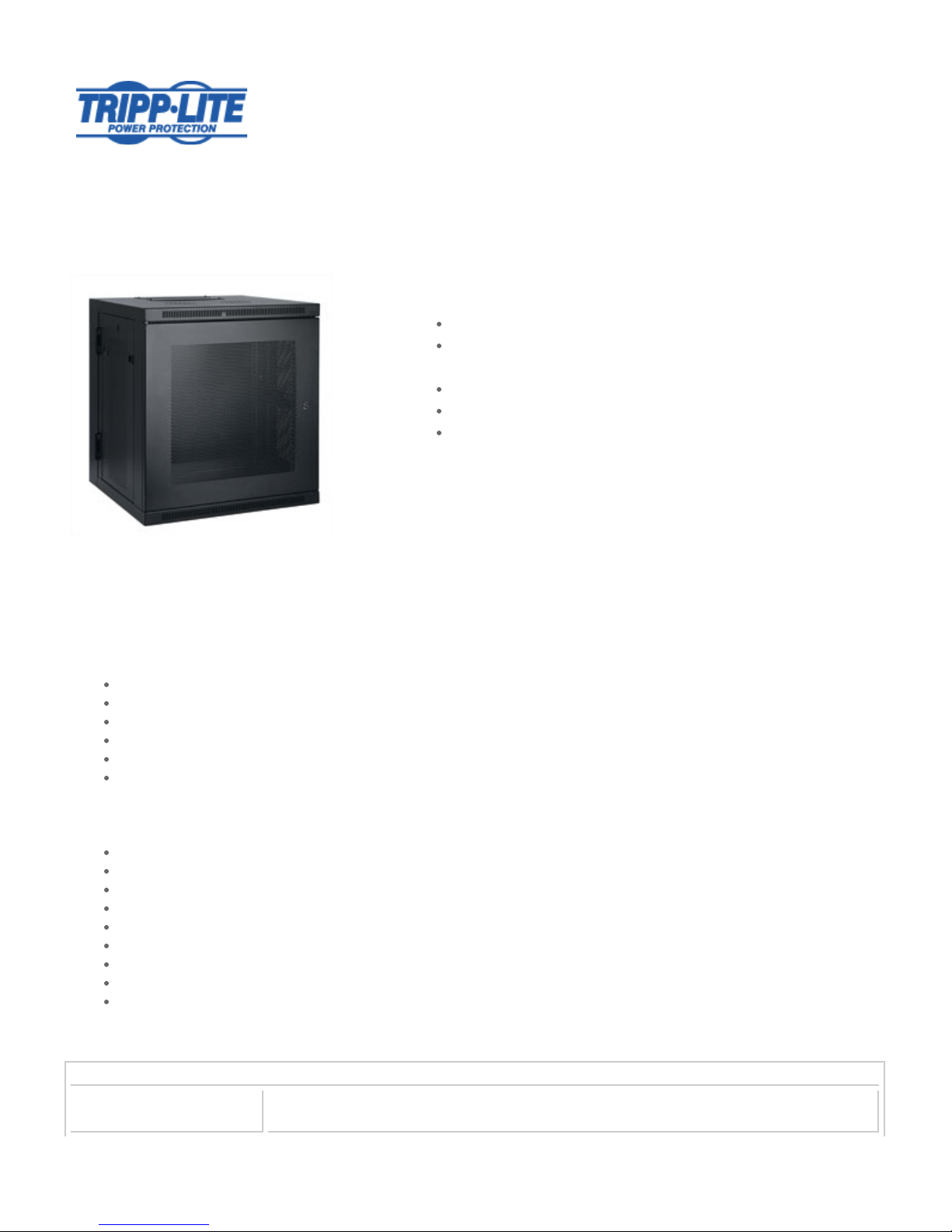

SmartRack 10U Wall-Mount Rack Enclosure Cabinet
Highlights
10U with adjustable front and rear vertical rackmount rails
Hinged cabinet swings away from wall bracket for easy equipment access
(swing direction is reversible)
Locking, reversible front door and locking, removable side panels
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry
Data Security Standard) Compliance
Description
The SRW10US 10U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in
IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely.
Adjustable rack rails with square mounting holes accommodate up to 10U of standard 19" rackmount equipment. Supports up to 200 lbs of
equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to
equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.
Package Includes
SRW10US Wallmount Rack Enclosure
(24) M6 screws
(24) M6 cagenuts
(24) M6 washers
(2) Keys
Owner's Manual
Features
10U wall-mounted enclosure
Adjustable mounting depths from 3" to 20.5" inches
Ventilated front door and side panels for increased airflow
Hinged cabinet swings away from wall bracket for easy equipment and cable access
Locking, reversible front door
Locking, removable side panels
Top and bottom panel cable access openings
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Specifications
PHYSICAL
Installed whole system
maximum rack depth (inches)
20.5
Page 2
Installed whole system
maximum rack depth (cm)
52.07
Installed whole system
minimum rack depth (inches)
3
Installed whole system
minimum rack depth (cm)
7.62
Rack Height 10U
Shipping Dimensions
(HWD/in)
24.41 x 26.38 x 24.41
Shipping Dimensions
(HWD/cm)
62 x 67 x 62
Shipping weight (lbs) 59
Shipping weight (kg) 26.76
Unit Dimensions (in.) EXTERNAL DIMENSIONS: 21.57 x 23.62 x 21.6 (HWD)
Unit weight (lbs) 55
Unit weight (kg) 24.94
Unit Dimensions (cm) EXTERNAL DIMENSIONS: 54.78 x 60 x 54.9 (HWD)
Color Black
Style Wall Mounted
Weight Capacity - Stationary
(lbs)
200
Weight Capacity - Stationary
(kg)
90.7
Cable Access Hole
Measurement (inches)
9.812 x 2.35 (l x w)
SPECIAL FEATURES
Grounding lug Front and Back door frames
CERTIFICATIONS
NOM (Mexico) Tested to NOM (Mexico)
Approvals EIA-310-E, IEC 60297-3-100, RoHS, DIN 41494, IP20 Protection Rating
WARRANTY
Product Warranty Period
(Worldwide)
5-year limited warranty
Related Items
Optional Products
Related Model Description Qty.
SRFANWM Wall-Mount Roof Fan Kit, 120V (2 high-performance fans; 5-15P plug) 1
SRFAN3U 3U Fan Panel, 120V (3 high-performance fans; 210 CFM; 5-15P plug.) 1
SRXFAN3U 3U Fan Panel, 230V (3 high-performance fans; 210 CFM; C14 inlet.) 1
SR1UPANEL10 1U Blanking Panel Kit (10 pieces; toolless mounting.) 1
Page 3
SRCABLEDUCT1U 1U Horizontal Cable Manager (Finger duct with cover.) 1
SRCABLERING1U 1U Horizontal Cable Manager (Flexible ring type.) 1
SRCABLERING2U 2U Horizontal Cable Manager (Flexible ring type.) 1
SRSHELF2P1U 1U Cantilever Fixed Shelf (40 lb / 18 kg capacity; 12-in. / 305 mm depth.) 1
SRSWITCH Magnetic Door Switch Kit for front and rear doors; requires ENVIROSENSE 1
SRCAGENUTS Square Hole Hardware Kit (Includes 50 M6 screws and washers.) 1
SRCASTER Heavy-Duty Rolling Caster Kit (Includes 4 casters. Casters are included with 48/42/25U
enclosures.)
1
UPSHDEARKIT Heavy-Duty Mounting Ear Kit - Supports 2U cabinets up to 65 lb / 29 kg from front
vertical rails in 4-post or 2-post racks and enclosures. )
1
SRCABLEDUCT1UHD 1U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1
SRCABLEDUCT2UHD 2U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=4743.
Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
