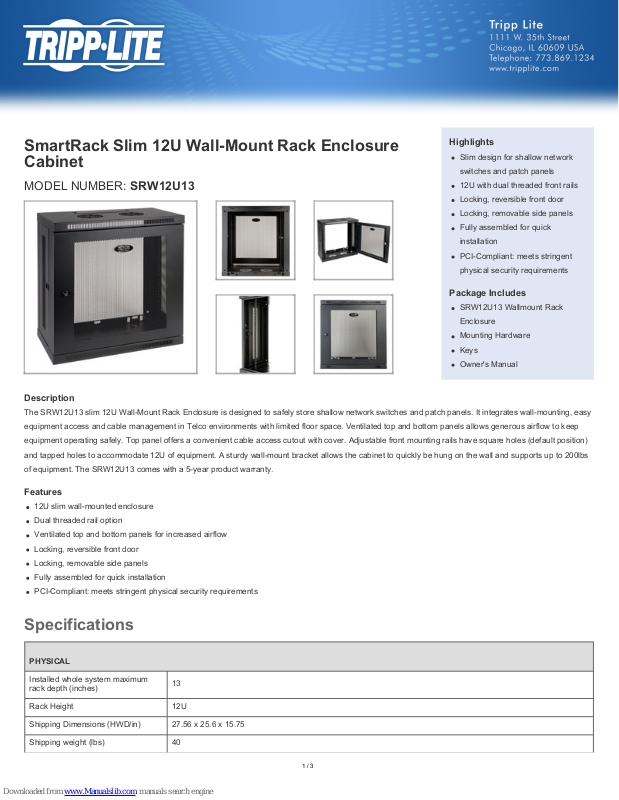

SmartRack Slim 12U Wall-Mount Rack Enclosure
Cabinet
MODEL NUMBER: SRW12U13
Description
The SRW12U13 slim 12U Wall-Mount Rack Enclosure is designed to safely store shallow network switches and patch panels. It integrates wall-mounting, easy
equipment access and cable management in Telco environments with limited floor space. Ventilated top and bottom panels allows generous airflow to keep
equipment operating safely. Top panel offers a convenient cable access cutout with cover. Adjustable front mounting rails have square holes (default position)
and tapped holes to accommodate 12U of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall and supports up to 200lbs
of equipment. The SRW12U13 comes with a 5-year product warranty.
Features
12U slim wall-mounted enclosure
Dual threaded rail option
Ventilated top and bottom panels for increased airflow
Locking, reversible front door
Locking, removable side panels
Fully assembled for quick installation
PCI-Compliant: meets stringent physical security requirements
Specifications
PHYSICAL
Installed whole system maximum
rack depth (inches)
13
Rack Height 12U
Shipping Dimensions (HWD/in) 27.56 x 25.6 x 15.75
Shipping weight (lbs) 40
Highlights
Slim design for shallow network
switches and patch panels
12U with dual threaded front rails
Locking, reversible front door
Locking, removable side panels
Fully assembled for quick
installation
PCI-Compliant: meets stringent
physical security requirements
Package Includes
SRW12U13 Wallmount Rack
Enclosure
Mounting Hardware
Keys
Owner's Manual
1 / 3
Page 2
Unit Dimensions (in.) EXTERNAL DIMENSIONS: 25.08 x 23.62 x 13 (HWD)
Unit weight (lbs) 38
Color Black
Style Wall Mounted
Weight Capacity - Stationary (lbs) 200
Cable Access Hole Measurement
(inches)
9.812 x 2.35 (l x w)
SPECIAL FEATURES
Grounding lug Front door frame
CERTIFICATIONS
Certifications EIA-310-E
NOM (Mexico) Tested to NOM (Mexico)
Approvals RoHS
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
Related Items
Optional Products
Model Number Description Qty.
SRFANWM Wall-Mounted Roof Fan Kit, 120V (2 high performance fans; 210 CFM; 5-15P plus) 1
SRCABLEDUCT1UHD 1U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1
SRCABLEDUCT1U 1U Horizontal Cable Manager (Finger duct with cover) 1
SRCABLERING1U 1U Horizontal Cable Manager (Flexible ring type) 1
SRSWITCH Magnetic Door Switch Kit for Front and Rear Doors; requires ENVIROSENSE 1
SRCAGENUTS Square Hole Hardware Kit (Includes 50 M6 screws and washers) 1
SRCASTER Rolling Caster Kit (Includes 4 caster) 1
UPSHDEARKIT Heavy-Duty 2-Post Front Mounting Ear Kit 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at:
http://www.tripplite.com/sku/SRW12U13.
© 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
2 / 3
Page 3
Specifications are subject to change without notice. Photos may differ slightly from final products.
