Tripp Lite SmartPro SMARTINT2200VS Specification

Download

Page 1

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: SMARTINT2200VS

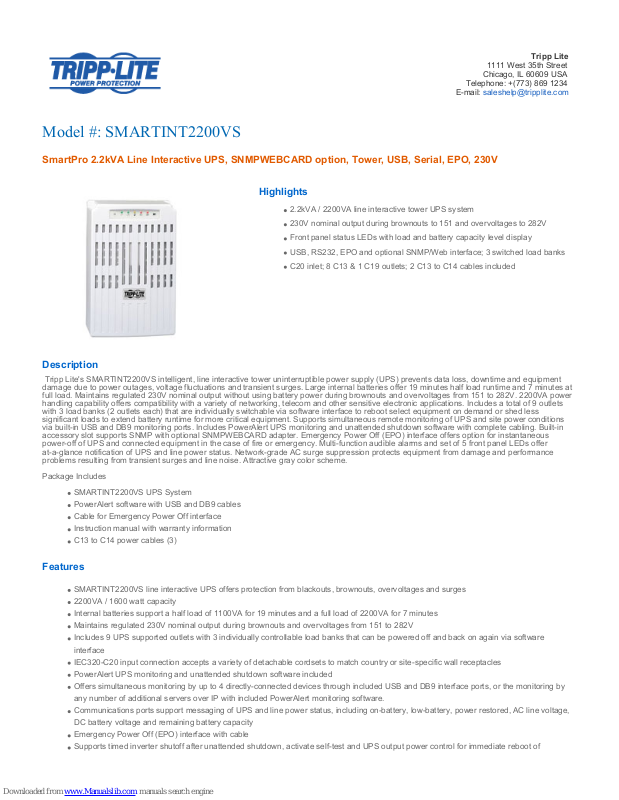

SmartPro 2.2kVA Line Interactive UPS, SNMPWEBCARD option, Tower, USB, Serial, EPO, 230V

Highlights

2.2kVA / 2200VA line interactive tower UPS system

230V nominal output during brownouts to 151 and overvoltages to 282V

Front panel status LEDs with load and battery capacity level display

USB, RS232, EPO and optional SNMP/Web interface; 3 switched load banks

C20 inlet; 8 C13 & 1 C19 outlets; 2 C13 to C14 cables included

Description

Tripp Lite's SMARTINT2200VS intelligent, line interactive tower uninterruptible power supply (UPS) prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Large internal batteries offer 19 minutes half load runtime and 7 minutes at full load. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 151 to 282V. 2200VA power handling capability offers compatibility with a variety of networking, telecom and other sensitive electronic applications. Includes a total of 9 outlets with 3 load banks (2 outlets each) that are individually switchable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive gray color scheme.

Package Includes

SMARTINT2200VS UPS System

PowerAlert software with USB and DB9 cables

Cable for Emergency Power Off interface

Instruction manual with warranty information

C13 to C14 power cables (3)

Features

SMARTINT2200VS line interactive UPS offers protection from blackouts, brownouts, overvoltages and surges

2200VA / 1600 watt capacity

Internal batteries support a half load of 1100VA for 19 minutes and a full load of 2200VA for 7 minutes

Maintains regulated 230V nominal output during brownouts and overvoltages from 151 to 282V

Includes 9 UPS supported outlets with 3 individually controllable load banks that can be powered off and back on again via software

interface

IEC320-C20 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles

PowerAlert UPS monitoring and unattended shutdown software included

Offers simultaneous monitoring by up to 4 directly-connected devices through included USB and DB9 interface ports, or the monitoring by

any number of additional servers over IP with included PowerAlert monitoring software.

Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage,

DC battery voltage and remaining battery capacity

Emergency Power Off (EPO) interface with cable

Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for immediate reboot of

Page 2

connected devices

Supports Tripp Lite's WatchDog software application (requires optional WATCHDOGSW)

Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter

Emergency Power Off (EPO) interface with cable

Multi-function audible alarms and set of 5 front panel LEDs

Network-grade AC surge suppression

Attractive gray color scheme

Specifications

OUTPUT

Output Volt Amp Capacity (VA)

2200

Output kVA capacity (kVA) 2.2

Output Watt Capacity (watts)

1600

Output kW capacity 1.6

Output power factor 0.7

Nominal Output Voltage(s) Supported

220V; 230V; 240V

Nominal Voltage details 230v inverter nominal output voltage

Frequency compatibility 50 / 60 Hz

Output voltage regulation (line mode)

-19% +8%

Output voltage regulation (Battery mode)

+/- 5%

Built-in UPS output receptacles

8 C13 outlet(s); 1 C19 outlet(s)

Included output power cables

Includes 3 C13 to C14 output power cables

Built-in controllable switched load banks

Three switchable two-outlet C13 load banks

Output circuit breaker 10A (x2) - each breaker protects 4 C13 outlets each, C19 is unbreakered

Output AC waveform (AC mode)

Sine wave

Output AC waveform (battery mode)

PWM sine wave

INPUT

Rated input current (at maximum load)

11.3A

Nominal Input Voltage(s) Supported

230V AC

UPS input connection type C20 inlet

UPS input connection description

IEC320-C20 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles

Phase Single-Phase

Page 3

BATTERY

Full load runtime (minutes) 7 min. (1600w)

Half load runtime (minutes) 19 min. (800w)

DC system voltage (VDC) 48

Battery recharge rate (included batteries)

Less than 4 hours from 10% to 90%

Replacement battery cartridge (internal UPS battery replacement)

RBC54

Battery Access Battery access door

Battery replacement description

Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage regulation description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151V to 282V

Overvoltage correction Input voltages between 245 and 282 are reduced by 12%

Undervoltage correction Input voltages between 177 and 199 are boosted by 14%

Severe undervoltage correction

Input voltages between 151 and 176 are boosted by 30%

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Alarms Audible alarm indicates power-failure, overload and low-battery conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate

low-battery status

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation

SURGE / NOISE SUPPRESSION

UPS AC suppression joule rating

480

UPS AC suppression response time

Instantaneous

EMI / RFI AC noise suppression

Yes

PHYSICAL

Installation form factors supported with included accessories

Tower

Primary form factor Tower

UPS / Power Module dimensions in primary form factor (height x width x depth / inches)

14.2 x 9.2 x 12

UPS / Power Module dimensions in primary form factor (height x width x depth / cm)

36.2 x 23.5 x 30.5

Page 4

UPS / Power Module weight (lbs)

UPS / Power Module weight (kg)

24.5

UPS Shipping dimensions (height x width x depth / inches)

16 x 14.8 x 19.8

UPS Shipping dimensions (height x width x depth / cm)

40.6 x 37.5 x 50.2

Shipping weight (lbs) 60.5

Shipping weight (kg) 27.5

Cooling method Fan

UPS housing material Polycarbonate

ENVIRONMENTAL

Operating Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load)

347.2

Battery mode BTU / hr. (full load)

812.9

Audible Noise Audible Noise < 47dBA At Front Side 1 Meter

COMMUNICATIONS

Communications interface USB; DB9 Serial; Contact closure

Network monitoring port description

Supports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total)

PowerAlert software Included

Communications cable 2 USB and 2 DB9 cables included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time 2-4 milliseconds

Low voltage transfer to battery power (setpoint)

151

High voltage transfer to battery power (setpoint)

282

SPECIAL FEATURES

Cold Start (startup in battery mode during a power failure)

Cold-start operation supported

High availability UPS features

Hot swappable batteries

Page 5

Green & high efficiency features

Individually controllable load banks

CERTIFICATIONS

UPS Certifications CE; Meets FCC Part 15 Category A (EMI)

UPS Certification details CE 62040

WARRANTY

Product Warranty Period (International)

2-year limited warranty

Product Warranty Period (Mexico)

2-year limited warranty

Product Warranty Period (Puerto Rico)

2-year limited warranty
