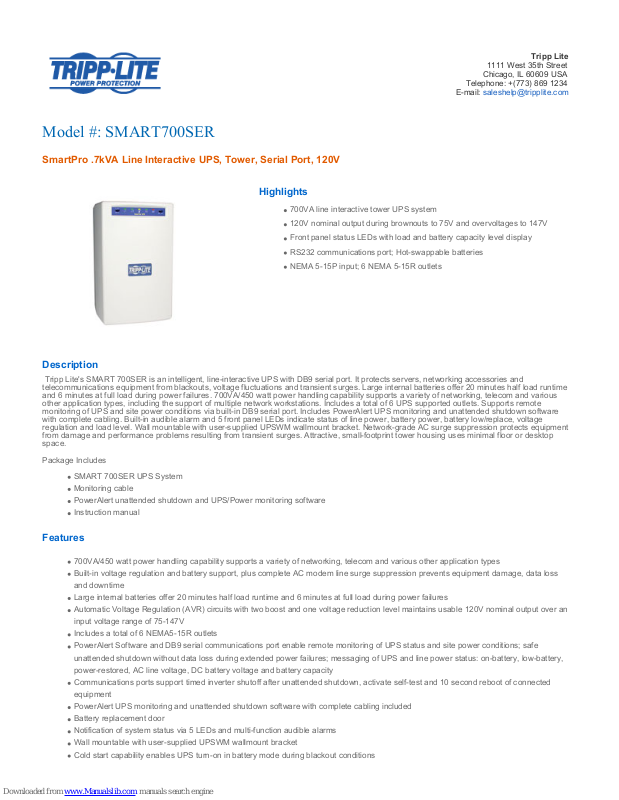

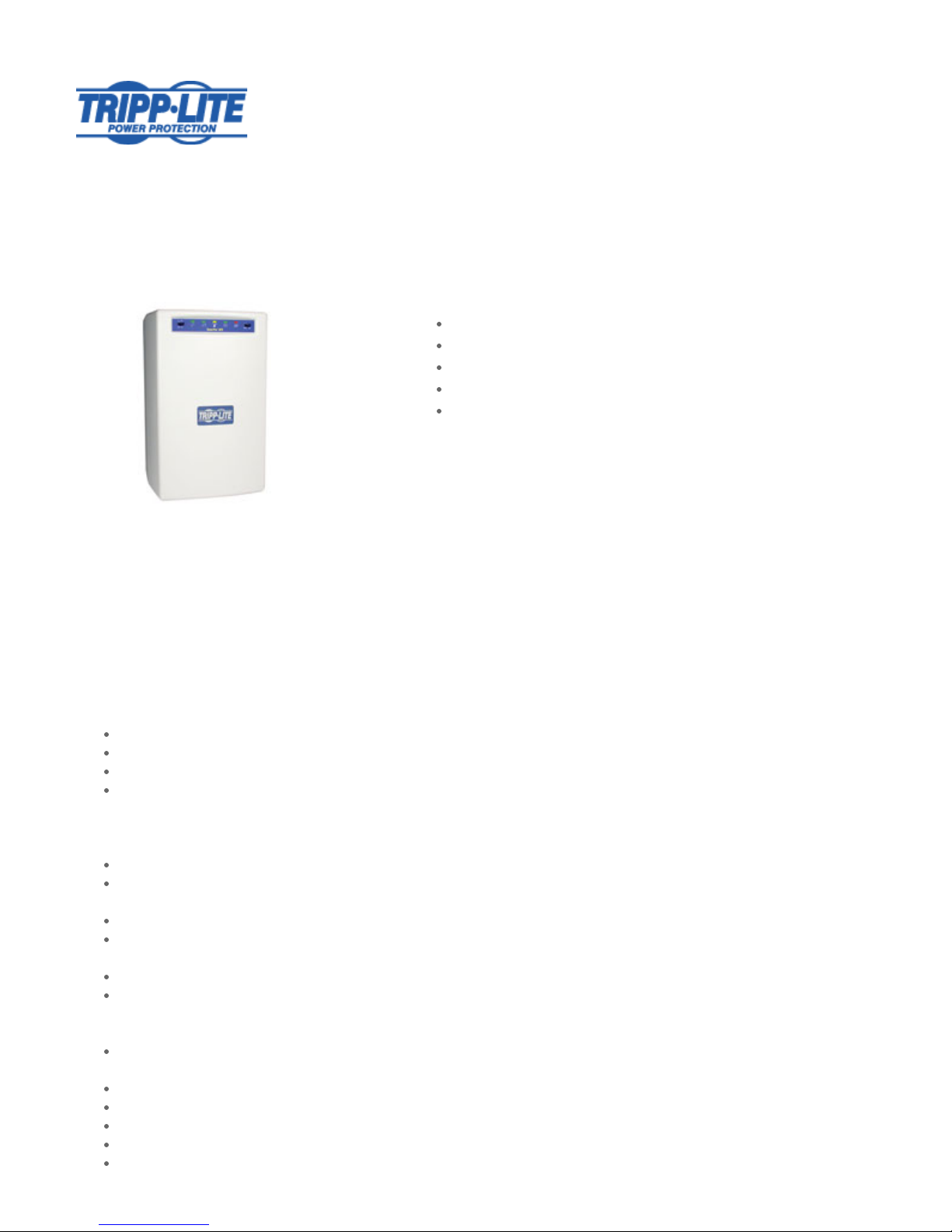

Page 1

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: SMART700SER

SmartPro .7kVA Line Interactive UPS, Tower, Serial Port, 120V

Highlights

700VA line interactive tower UPS system

120V nominal output during brownouts to 75V and overvoltages to 147V

Front panel status LEDs with load and battery capacity level display

RS232 communications port; Hot-swappable batteries

NEMA 5-15P input; 6 NEMA 5-15R outlets

Description

Tripp Lite's SMART 700SER is an intelligent, line-interactive UPS with DB9 serial port. It protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 6 minutes at full load during power failures. 700VA/450 watt power handling capability supports a variety of networking, telecom and various other application types, including the support of multiple network workstations. Includes a total of 6 UPS supported outlets. Supports remote monitoring of UPS and site power conditions via built-in DB9 serial port. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Wall mountable with user-supplied UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, small-footprint tower housing uses minimal floor or desktop space.

Package Includes

SMART 700SER UPS System Monitoring cable PowerAlert unattended shutdown and UPS/Power monitoring software Instruction manual

Features

700VA/450 watt power handling capability supports a variety of networking, telecom and various other application types Built-in voltage regulation and battery support, plus complete AC modem line surge suppression prevents equipment damage, data loss and downtime Large internal batteries offer 20 minutes half load runtime and 6 minutes at full load during power failures Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 120V nominal output over an input voltage range of 75-147V Includes a total of 6 NEMA5-15R outlets PowerAlert Software and DB9 serial communications port enable remote monitoring of UPS status and site power conditions; safe unattended shutdown without data loss during extended power failures; messaging of UPS and line power status: on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity Communications ports support timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment PowerAlert UPS monitoring and unattended shutdown software with complete cabling included Battery replacement door Notification of system status via 5 LEDs and multi-function audible alarms Wall mountable with user-supplied UPSWM wallmount bracket Cold start capability enables UPS turn-on in battery mode during blackout conditions

Page 2

Specifications

OUTPUT

Output Volt Amp Capacity (VA)

700

Output Watt Capacity (watts)

450

Output power factor 0.6

Nominal Output Voltage(s) Supported

115V; 120V

Frequency compatibility 60 Hz

Output voltage regulation (line mode)

-18%, +8%

Output voltage regulation (Battery mode)

115V (+/- 5%)

Built-in UPS output receptacles

6 5-15R outlet(s)

Output AC waveform (AC mode)

Sine wave

Output AC waveform (battery mode)

PWM sine wave

INPUT

Rated input current (at maximum load)

4.33A

Nominal Input Voltage(s) Supported

120V AC

UPS input connection type 5-15P

Input circuit breaker 10A

UPS Input cord length (ft.) 7

UPS Input cord length (m) 2.1

Recommended Electrical Service

15A 120V

BATTERY

Full load runtime (minutes) 6 min. (450w)

Half load runtime (minutes) 20 min. (225w)

DC system voltage (VDC) 12

Battery recharge rate (included batteries)

Less than 6 hours from 10% to 90%

Replacement battery cartridge (internal UPS battery replacement)

RBC52 (x2)

Battery Access Battery access door

Battery replacement description

Hot-swappable, user replaceable batteries

Page 3

VOLTAGE REGULATION

Voltage regulation description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147

Overvoltage correction Input voltages between 128 and 147 are reduced by 12%

Undervoltage correction Input voltages between 93 and 107 are boosted by 14%

Severe undervoltage correction

Input voltages between 75 and 92 are boosted by 30%

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Alarms Audible alarm indicates power-failure and low-battery conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate

low-battery status

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation

SURGE / NOISE SUPPRESSION

UPS AC suppression joule rating

480

UPS AC suppression response time

Instantaneous

EMI / RFI AC noise suppression

Yes

PHYSICAL

Installation form factors supported with included accessories

Tower

Installation form factors supported with optional accessories

Wallmount (UPSWM - tower mounting kit)

Primary form factor Tower

UPS / Power Module dimensions in primary form factor (height x width x depth / inches)

11.8 x 7.2 x 7.8

UPS / Power Module dimensions in primary form factor (height x width x depth / cm)

29.8 x 18.4 x 19.7

UPS / Power Module weight (lbs)

UPS / Power Module weight (kg)

9.5

UPS Shipping dimensions (height x width x depth / inches)

15 x 11.2 x 10.8

UPS Shipping dimensions (height x width x depth / cm)

38.1 x 28.6 x 27.3

Shipping weight (lbs) 23.5

Shipping weight (kg) 10.7

Page 4

UPS housing material Polycarbonate

ENVIRONMENTAL

Operating Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load)

133

Battery mode BTU / hr. (full load)

565.9

COMMUNICATIONS

Network monitoring port description

Supports detailed monitoring of UPS and site power conditions

PowerAlert software Included

Communications cable DB9 serial cable included

LINE / BATTERY TRANSFER

Transfer time 2-4 milliseconds

Low voltage transfer to battery power (setpoint)

High voltage transfer to battery power (setpoint)

147

SPECIAL FEATURES

Cold Start (startup in battery mode during a power failure)

Cold-start operation supported

High availability UPS features

Hot swappable batteries

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI)

WARRANTY

Product Warranty Period (Worldwide)

2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty.

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$250,000 Ultimate Lifetime Insurance
