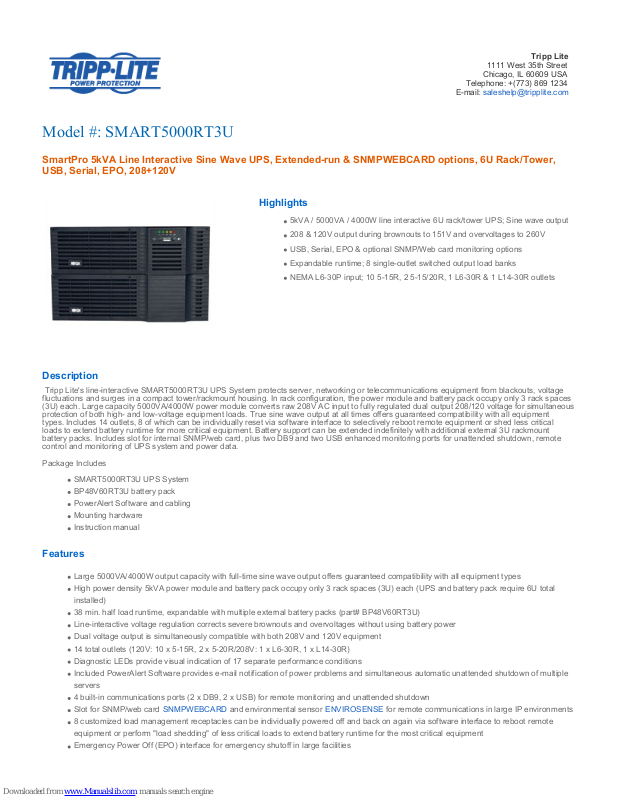

Tripp Lite SmartPro SMART5000RT3U Specification Sheet

Download

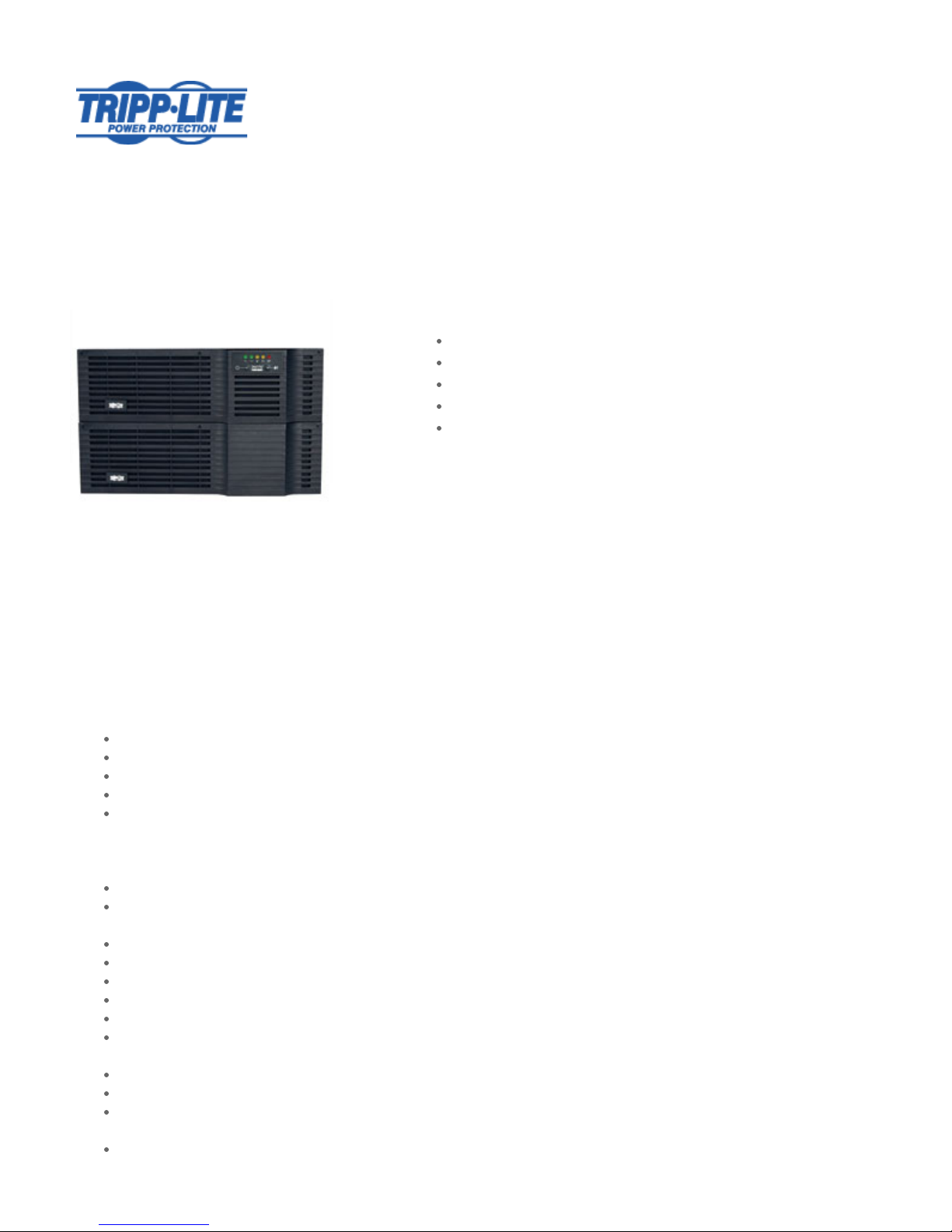

Page 1

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: SMART5000RT3U

SmartPro 5kVA Line Interactive Sine Wave UPS, Extended-run & SNMPWEBCARD options, 6U Rack/Tower, USB, Serial, EPO, 208+120V

Highlights

5kVA / 5000VA / 4000W line interactive 6U rack/tower UPS; Sine wave output

208 & 120V output during brownouts to 151V and overvoltages to 260V

USB, Serial, EPO & optional SNMP/Web card monitoring options

Expandable runtime; 8 single-outlet switched output load banks

NEMA L6-30P input; 10 5-15R, 2 5-15/20R, 1 L6-30R & 1 L14-30R outlets

Description

Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. In rack configuration, the power module and battery pack occupy only 3 rack spaces (3U) each. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Battery support can be extended indefinitely with additional external 3U rackmount battery packs. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data.

Package Includes

SMART5000RT3U UPS System BP48V60RT3U battery pack PowerAlert Software and cabling Mounting hardware Instruction manual

Features

Large 5000VA/4000W output capacity with full-time sine wave output offers guaranteed compatibility with all equipment types High power density 5kVA power module and battery pack occupy only 3 rack spaces (3U) each (UPS and battery pack require 6U total installed) 38 min. half load runtime, expandable with multiple external battery packs (part# BP48V60RT3U) Line-interactive voltage regulation corrects severe brownouts and overvoltages without using battery power Dual voltage output is simultaneously compatible with both 208V and 120V equipment 14 total outlets (120V: 10 x 5-15R, 2 x 5-20R/208V: 1 x L6-30R, 1 x L14-30R) Diagnostic LEDs provide visual indication of 17 separate performance conditions Included PowerAlert Software provides e-mail notification of power problems and simultaneous automatic unattended shutdown of multiple servers 4 built-in communications ports (2 x DB9, 2 x USB) for remote monitoring and unattended shutdown Slot for SNMP/web card SNMPWEBCARD and environmental sensor ENVIROSENSE for remote communications in large IP environments 8 customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or perform "load shedding" of less critical loads to extend battery runtime for the most critical equipment Emergency Power Off (EPO) interface for emergency shutoff in large facilities

Page 2

Hot-swappable/user replaceable external battery pack(s) allow on-site battery replacement without powering off connected equipment or removing the UPS from the rack UPS external battery pack ships fully assembled and ready for connection to the power module, no time consuming, connection of individual internal batteries by user is necessary

Specifications

OUTPUT

Output Volt Amp Capacity (VA)

5000

Output kVA capacity (kVA)

Output Watt Capacity (watts)

4000

Output kW capacity 4

Output power factor 0.8

Nominal Output Voltage(s) Supported

120V; 208V

Frequency compatibility 60 Hz

Output voltage regulation (line mode)

208 & 120V (-10%, +20%)

Output voltage regulation (Battery mode)

+/- 5%

Built-in UPS output receptacles

10 5-15R outlet(s); 2 5-15/20R outlet(s); 1 L14-30R outlet(s); 1 L6-30R outlet(s)

Built-in controllable switched load banks

Eight switchable single-outlet 5-15R load banks

Output circuit breaker 15A branch rated (x3) - 2 breakers support 5 5-15R outlets each, one breaker supports 2 5-20R outlets, L6-30R

and L14-30R outlets are unbreakered

Output AC waveform (AC mode)

Sine wave

Output AC waveform (battery mode)

Pure Sine wave

INPUT

Nominal Input Voltage(s) Supported

208V AC

UPS input connection type

L6-30P

Input circuit breaker 30A double-pole

UPS Input cord length (ft.) 10

UPS Input cord length (m) 3

Recommended Electrical Service

30A 208V

Input cord length (ft.) 10

Input cord length (m) 3

BATTERY

Page 3

Full load runtime (minutes)

16 min. (4000w)

Half load runtime (minutes)

38 min. (2000w)

Expandable battery runtime

Extended runtime supported via optional external battery packs

External battery pack compatibility

BP48V60RT-3U (multi-pack compatible)

DC system voltage (VDC) 48

Battery recharge rate (included batteries)

Less than 4 hours from 10% to 90%

Battery replacement description

Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage regulation description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 282

Overvoltage correction Input voltages between 240V and 282 are reduced by 12%

Undervoltage correction Input voltages between 180V and 199 are boosted by 12%

Severe undervoltage correction

Input voltages between 151V and 179 are boosted by 24%

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Alarms Audible alarm indicates power-failure, overload and low-battery conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate

low-battery status

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation

SURGE / NOISE SUPPRESSION

UPS AC suppression joule rating

1020

UPS AC suppression response time

Instantaneous

EMI / RFI AC noise suppression

Yes

AC suppression joule rating

1020

AC suppression response time

Instantaneous

PHYSICAL

Installation form factors supported with included accessories

4 post 19 inch rackmount (mounting rail kit included)

Installation form factors supported with optional accessories

2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND)

Optional mounting accessory notes

2 sets of 2POSTRMKITHD required for 2 post rackmount installation of separate power module and battery pack

Page 4

Primary form factor Rackmount

UPS / Power Module dimensions in primary form factor (height x width x depth / inches)

5.2 x 17.5 x 22.5

UPS / Power Module dimensions in primary form factor (height x width x depth / cm)

13.3 x 44.4 x 57.2

Installed whole system maximum rack depth (inches)

22.8

Installed whole system maximum rack depth (cm)

57.8

Installed whole system total rack space height (rack spaces)

Secondary form factor Tower (requires 2-9USTAND)

UPS / Power Module weight (kg)

UPS dimensions details Includes 3U power module and 3U external battery pack

Included battery pack dimensions (height x width x depth / inches)

5.2 x 17.5 x 22.8

Included battery pack dimensions (height x width x depth / cm)

13.3 x 44.4 x 57.8

Included battery pack weight (lbs)

135

Included battery pack weight (kg)

61.3

UPS Shipping dimensions (height x width x depth / cm)

22.8 x 23 x 31.5

Shipping weight (lbs) 320

Shipping weight (kg) 145.3

UPS housing material Steel

Cooling method Fans

ENVIRONMENTAL

Operating Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load)

868.1

Battery mode BTU / hr. (full load)

1511.1

Page 5

COMMUNICATIONS

Communications interface USB; DB9 Serial; Contact closure

Network monitoring port description

Supports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total)

PowerAlert software Included

Communications cable USB and DB9 cabling included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time 2-4 milliseconds

Low voltage transfer to battery power (setpoint)

151

High voltage transfer to battery power (setpoint)

282

SPECIAL FEATURES

Grounding lug Back panel grounding lug

Cold Start (startup in battery mode during a power failure)

Cold-start operation supported

High availability UPS features

Hot swappable batteries

Green & high efficiency features

Individually controllable load banks

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A

(EMI)

WARRANTY

Product Warranty Period (Worldwide)

2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty.

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$250,000 Ultimate Lifetime Insurance
