Tripp Lite SmartPro SMART3000VS Specification Sheet

Download

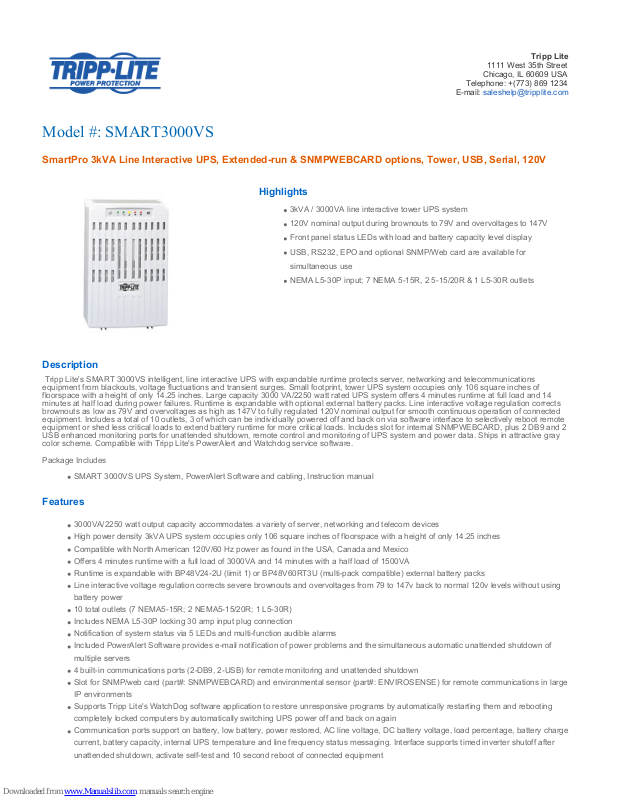

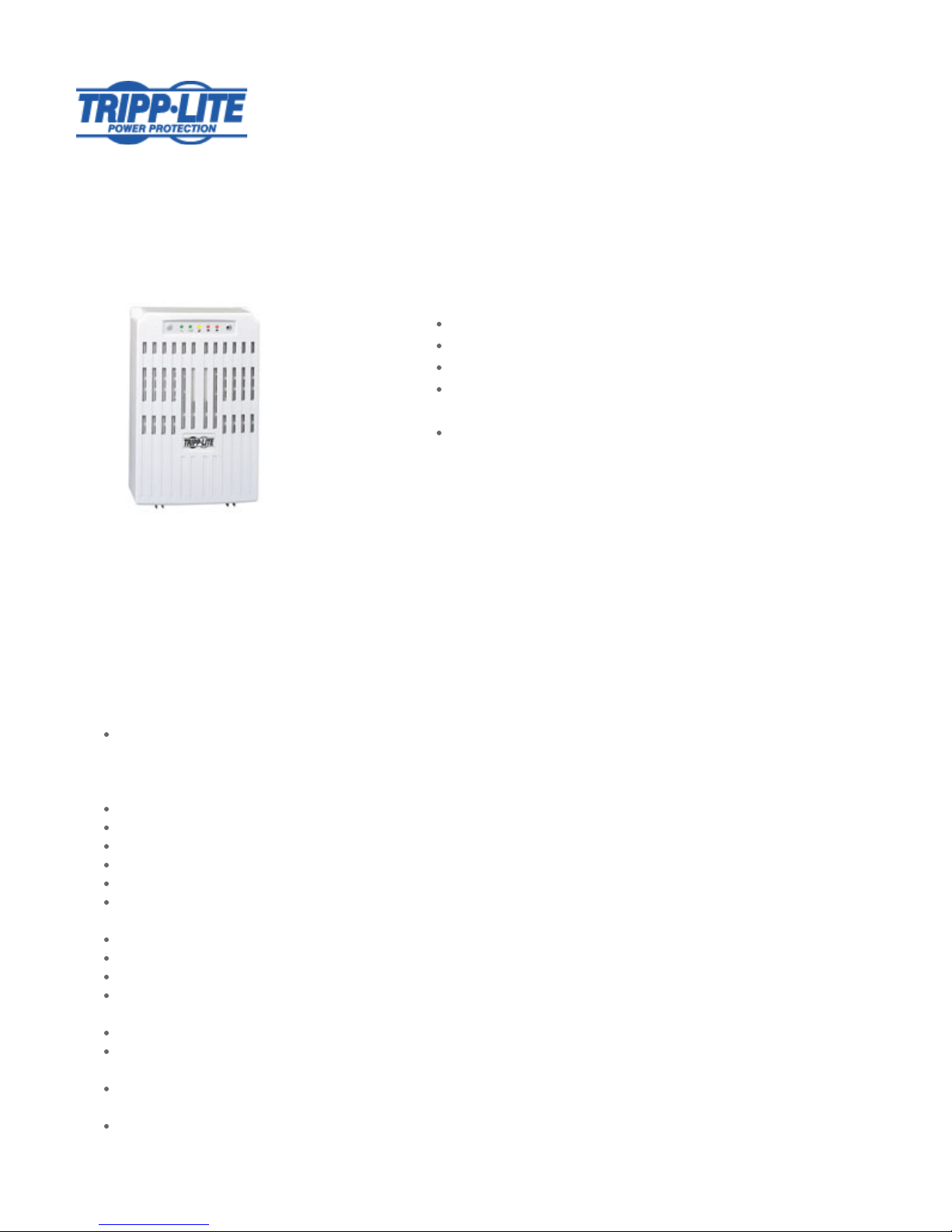

Page 1

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: SMART3000VS

SmartPro 3kVA Line Interactive UPS, Extended-run & SNMPWEBCARD options, Tower, USB, Serial, 120V

Highlights

3kVA / 3000VA line interactive tower UPS system

120V nominal output during brownouts to 79V and overvoltages to 147V

Front panel status LEDs with load and battery capacity level display

USB, RS232, EPO and optional SNMP/Web card are available for

simultaneous use

NEMA L5-30P input; 7 NEMA 5-15R, 2 5-15/20R & 1 L5-30R outlets

Description

Tripp Lite's SMART 3000VS intelligent, line interactive UPS with expandable runtime protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches. Large capacity 3000 VA/2250 watt rated UPS system offers 4 minutes runtime at full load and 14 minutes at half load during power failures. Runtime is expandable with optional external battery packs. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 10 outlets, 3 of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes slot for internal SNMPWEBCARD, plus 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.

Package Includes

SMART 3000VS UPS System, PowerAlert Software and cabling, Instruction manual

Features

3000VA/2250 watt output capacity accommodates a variety of server, networking and telecom devices High power density 3kVA UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches Compatible with North American 120V/60 Hz power as found in the USA, Canada and Mexico Offers 4 minutes runtime with a full load of 3000VA and 14 minutes with a half load of 1500VA Runtime is expandable with BP48V24-2U (limit 1) or BP48V60RT3U (multi-pack compatible) external battery packs Line interactive voltage regulation corrects severe brownouts and overvoltages from 79 to 147v back to normal 120v levels without using battery power 10 total outlets (7 NEMA5-15R; 2 NEMA5-15/20R; 1 L5-30R) Includes NEMA L5-30P locking 30 amp input plug connection Notification of system status via 5 LEDs and multi-function audible alarms Included PowerAlert Software provides e-mail notification of power problems and the simultaneous automatic unattended shutdown of multiple servers 4 built-in communications ports (2-DB9, 2-USB) for remote monitoring and unattended shutdown Slot for SNMP/web card (part#: SNMPWEBCARD) and environmental sensor (part#: ENVIROSENSE) for remote communications in large IP environments Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment

Page 2

3 individual customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or perform "load shedding" of less critical loads to extend battery runtime for the most critical equipment Built-in Emergency Power Off (EPO) interface supports emergency shutoff in large facilities Hot-swappable/user replaceable batteries allow on-site battery replacement without powering off connected equipment UPS battery set ships fully assembled and ready for use, no time consuming, connection of individual internal batteries by user is necessary

Specifications

OUTPUT

Output Volt Amp Capacity (VA)

3000

Output kVA capacity (kVA) 3

Output Watt Capacity (watts)

2250

Output kW capacity 2.2

Output power factor 0.8

Nominal Output Voltage(s) Supported

120V

Frequency compatibility 60 Hz

Output voltage regulation (line mode)

-18% / +8%

Output voltage regulation (Battery mode)

+/- 5%

Built-in UPS output receptacles

7 5-15R outlet(s); 2 5-15/20R outlet(s); 1 L5-30R outlet(s)

Built-in controllable switched load banks

Three switchable two-outlet 5-15R load banks

Output circuit breaker 20A branch rated (x2) - breaker 1 protects 5-20R, breaker 2 protects 5-15R, L5-30R is unbreakered

Output AC waveform (AC mode)

Sine wave

Output AC waveform (battery mode)

PWM sine wave

INPUT

Rated input current (at maximum load)

24A

Nominal Input Voltage(s) Supported

120V AC

UPS input connection type L5-30P

Input circuit breaker 30A

UPS Input cord length (ft.) 8

UPS Input cord length (m) 2.4

Recommended Electrical Service

120V 30A

BATTERY

Full load runtime (minutes) 4 min. (2250w)

Page 3

Half load runtime (minutes) 14 min. (1125w)

Expandable battery runtime Extended runtime supported via optional external battery packs

External battery pack compatibility

BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible)

DC system voltage (VDC) 48

Battery recharge rate (included batteries)

Less than 4 hours from 10% to 90%

Replacement battery cartridge (internal UPS battery replacement)

RBC54

Battery Access Battery access door

Battery replacement description

Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage regulation description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 79V to 147V

Overvoltage correction Input voltages between 128 and 147 are reduced by 12%

Undervoltage correction Input voltages between 95 and 104 are boosted by 12%

Severe undervoltage correction

Input voltages between 79 and 94 are boosted by 24%

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Alarms Audible alarm indicates power-failure, overload and low-battery conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate

low-battery status

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation

SURGE / NOISE SUPPRESSION

UPS AC suppression joule rating

480

UPS AC suppression response time

Instantaneous

EMI / RFI AC noise suppression

Yes

PHYSICAL

Installation form factors supported with included accessories

Tower

Primary form factor Tower

UPS / Power Module dimensions in primary form factor (height x width x depth / inches)

14.2 x 9.2 x 12

UPS / Power Module dimensions in primary form factor (height x width x depth / cm)

36.2 x 23.5 x 30.5

Page 4

UPS / Power Module weight (lbs)

UPS / Power Module weight (kg)

26.8

UPS Shipping dimensions (height x width x depth / inches)

16 x 14.8 x 19.8

UPS Shipping dimensions (height x width x depth / cm)

40.6 x 37.5 x 50.2

Shipping weight (lbs) 66

Shipping weight (kg) 30

UPS housing material Polycarbonate

Cooling method Fan

ENVIRONMENTAL

Operating Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load)

488.3

Battery mode BTU / hr. (full load)

1143.1

Audible Noise Audible Noise < 47dBA At Front Side 1 Meter

COMMUNICATIONS

Network monitoring port description

Supports detailed monitoring of UPS and site power conditions

PowerAlert software Included

Communications cable 2 USB and 2 DB9 cables included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time 2-4 milliseconds

Low voltage transfer to battery power (setpoint)

High voltage transfer to battery power (setpoint)

147

SPECIAL FEATURES

Cold Start (startup in battery mode during a power failure)

Cold-start operation supported

High availability UPS features

Hot swappable batteries

Green & high efficiency features

Individually controllable load banks

CERTIFICATIONS

Page 5

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A

(EMI)

WARRANTY

Product Warranty Period (Worldwide)

2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty.

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$250,000 Ultimate Lifetime Insurance
