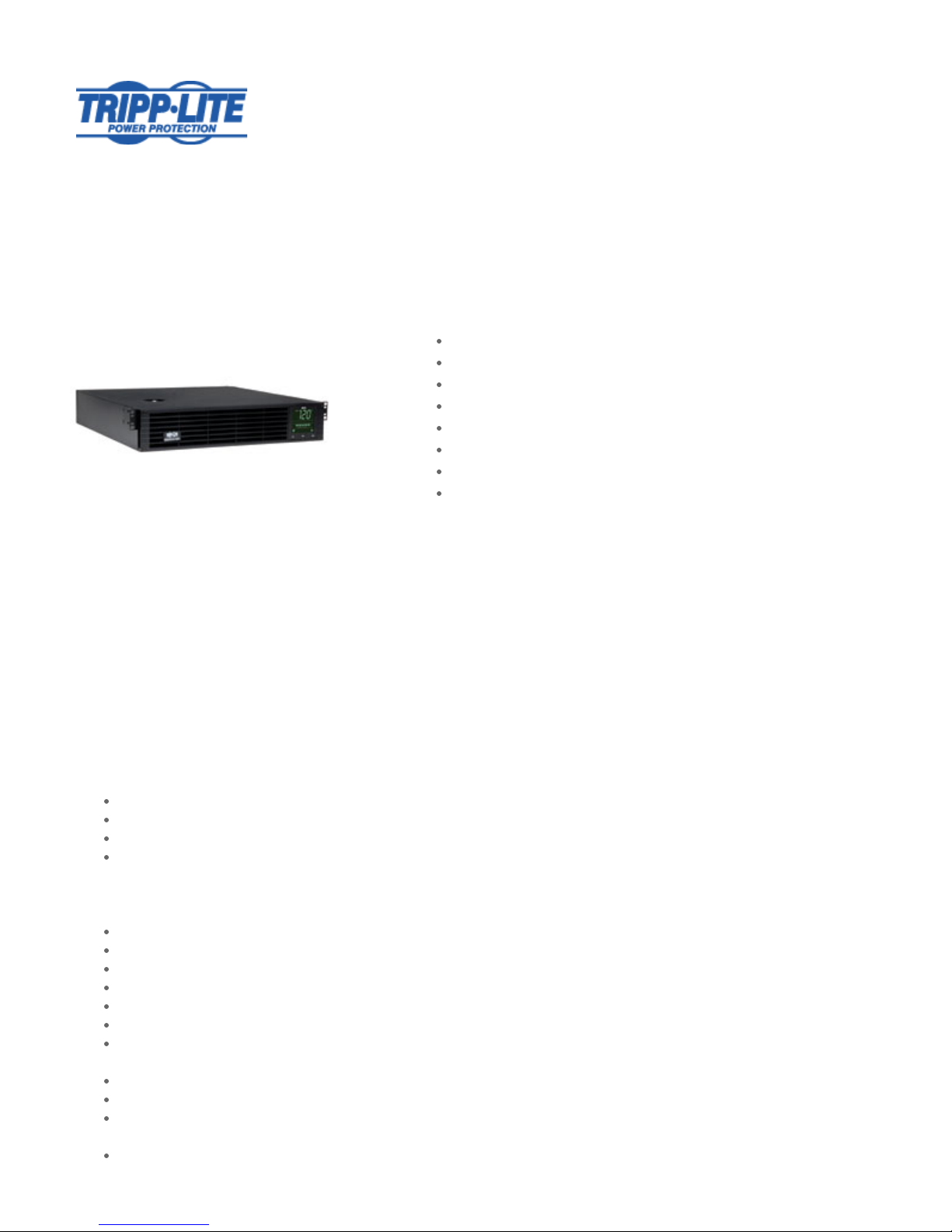

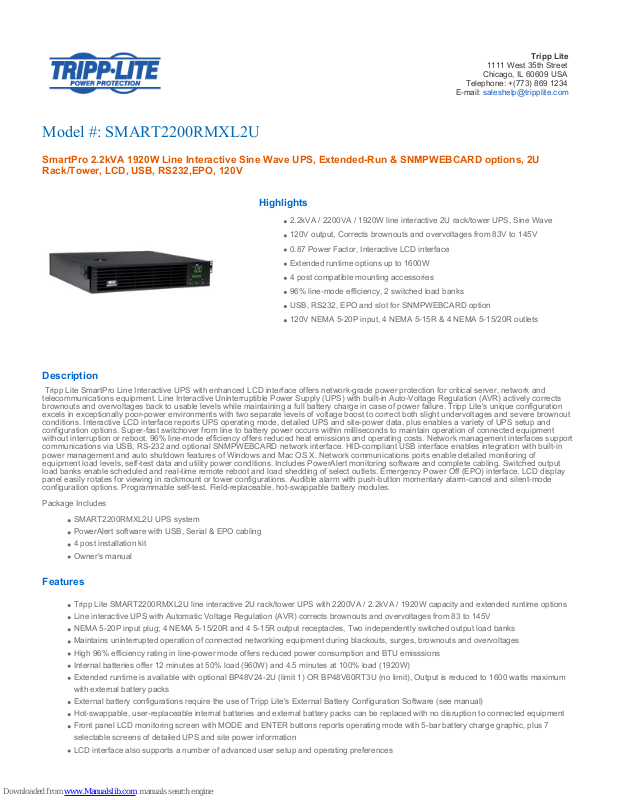

Page 1
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model #: SMART2200RMXL2U
SmartPro 2.2kVA 1920W Line Interactive Sine Wave UPS, Extended-Run & SNMPWEBCARD options, 2U
Rack/Tower, LCD, USB, RS232,EPO, 120V
Highlights
2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave
120V output, Corrects brownouts and overvoltages from 83V to 145V
0.87 Power Factor, Interactive LCD interface
Extended runtime options up to 1600W
4 post compatible mounting accessories
96% line-mode efficiency, 2 switched load banks
USB, RS232, EPO and slot for SNMPWEBCARD option
120V NEMA 5-20P input, 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
Description
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and
telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects
brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration
excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout
conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and
configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment
without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support
communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in
power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of
equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output
load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display
panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode
configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
Package Includes
SMART2200RMXL2U UPS system
PowerAlert software with USB, Serial & EPO cabling
4 post installation kit
Owner's manual
Features
Tripp Lite SMART2200RMXL2U line interactive 2U rack/tower UPS with 2200VA / 2.2kVA / 1920W capacity and extended runtime options
Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V
NEMA 5-20P input plug; 4 NEMA 5-15/20R and 4 5-15R output receptacles, Two independently switched output load banks
Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
Internal batteries offer 12 minutes at 50% load (960W) and 4.5 minutes at 100% load (1920W)
Extended runtime is available with optional BP48V24-2U (limit 1) OR BP48V60RT3U (no limit), Output is reduced to 1600 watts maximum
with external battery packs
External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7
selectable screens of detailed UPS and site power information
LCD interface also supports a number of advanced user setup and operating preferences
Page 2
Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional
2-9USTAND enables tower placement
Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable
Specifications
OUTPUT
Output Volt Amp
Capacity (VA)
2200
Output kVA capacity
(kVA)
2.2
Output Watt Capacity
(watts)
1920
Output kW capacity 1.92
Output power factor 0.87
Output Capacity
Details
Output derates to 1600 watts in all external battery pack configurations
Nominal Output
Voltage(s) Supported
120V
Frequency
compatibility
60 Hz
Output voltage
regulation (line mode)
-14%, +6%
Output voltage
regulation (Battery
mode)
+/- 5%
Built-in UPS output
receptacles
4 5-15R outlet(s); 4 5-15/20R outlet(s)
Built-in controllable
switched load banks
Two switched single outlet load banks (1 5-15/20R & 1 5-15R)
Output AC waveform
(AC mode)
Pure Sine wave
Output AC waveform
(battery mode)
Pure Sine wave
INPUT
Rated input current
(at maximum load)
16.0A
Nominal Input
Voltage(s) Supported
120V AC
UPS input
connection type
5-20P
UPS Input cord
length (ft.)
10
UPS Input cord
length (m)
3
Recommended
Electrical Service
20A 120V
Page 3
BATTERY
Full load runtime
(minutes)
4.5 min. (1920w)
Half load runtime
(minutes)
12 min. (960w)
Expandable battery
runtime
Extended runtime supported via optional external battery packs
External battery pack
compatibility
BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible)
Expandable runtime
description
Maximum output capacity is 1600 watts when used with external battery packs
DC system voltage
(VDC)
48
Battery recharge rate
(included batteries)
Less than 4.5 hours from 10% to 90%
Replacement battery
cartridge (internal
UPS battery
replacement)
RBC94-2U
Battery Access Front panel battery access door
Battery replacement
description
Hot-swappable, user replaceable batteries
VOLTAGE REGULATION
Voltage regulation
description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
Overvoltage
correction
Voltage reduction of 12% applies when input is between 127 and 145
Undervoltage
correction
Voltage boost of 12% applies when input voltage is between 96 and 108
Severe undervoltage
correction
Voltage boost of 24% applies when input voltage is between 83 and 95
LEDS ALARMS & SWITCHES
Front panel LCD
display
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data,
plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for
detailed LCD configuration and monitoring options)
Alarms Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Alarm cancel
operation
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option
available
Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
SURGE / NOISE SUPPRESSION
UPS AC suppression
joule rating
570
UPS AC suppression
response time
Instantaneous
EMI / RFI AC noise
suppression
Yes
PHYSICAL
Page 4
Installation form
factors supported
with included
accessories
4 post 19 inch rackmount
Included mounting
accessory description
Adjustable mounting rail kit included
Installation form
factors supported
with optional
accessories
2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
Primary form factor Rackmount
UPS / Power Module
dimensions in
primary form factor
(height x width x
depth / inches)
3.46 x 17.32 x 19.29
UPS / Power Module
dimensions in
primary form factor
(height x width x
depth / cm)
8.8 x 44 x 49
Rack Height 2U
Secondary form
factor
Tower (requires 2-9USTAND)
UPS / Power Module
weight (lbs)
57.6
UPS / Power Module
weight (kg)
26.2
UPS Shipping
dimensions (height x
width x depth /
inches)
9.1 x 22.44 x 24.2
UPS Shipping
dimensions (height x
width x depth / cm)
23 x 57 x 61.5
Shipping weight (lbs) 68.8
Shipping weight (kg) 31.2
Cooling method Fan
UPS housing material Steel
ENVIRONMENTAL
Operating
Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature
Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC mode BTU / hr.
(full load)
306
COMMUNICATIONS
Communications
interface
USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Page 5
Network monitoring
port description
Supports detailed monitoring of UPS and site power conditions
PowerAlert software Included
Communications
cable
USB and DB9 cabling included
WatchDog
compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time 5 milliseconds (line to battery mode); 1 millisecond (battery to line mode)
Low voltage transfer
to battery power
(setpoint)
83
High voltage transfer
to battery power
(setpoint)
145
SPECIAL FEATURES
Grounding lug Back panel grounding lug
Cold Start (startup in
battery mode during
a power failure)
Cold-start operation supported
High availability UPS
features
Hot swappable batteries
Green & high
efficiency features
Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI);
ROHS (Restriction of Hazardous Substances)
WARRANTY
Product Warranty
Period (Worldwide)
2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty.
Connected
Equipment Insurance
(U.S., Canada &
Puerto Rico)
$250,000 Ultimate Lifetime Insurance
Related Items
Optional Products
Related Model Description Qty.
WEXT5-2200-3000 5-Year Extended Warranty - For Smart Line-Interactive and Online Tower or Rack
models, 2200-3000VA or less
1
BP48V24-2U BP48V242U - External Battery Pack for UPS System 1
BP48V60RT-3U External Battery Pack and Cable. 3U, Expandable, Blue 2-Point Connector 1
SNMPWEBCARD For remote monitoring and control via SNMP, Web, or Telnet. 1
MODBUSCARD For remote monitoring and control via MODBUS protocol 1
ENVIROSENSE Monitors temperature, humidity and contact-closure inputs. (Requires SNMPWEBCARD
or switched PDU.)
1
SRSWITCH Magnetic Door Switch Kit for front and rear doors; requires ENVIROSENSE 1
Page 6
2-9USTAND Enables Tower Placement of Rackmount UPS Systems 1
2POSTRMKITWM Enables 2-Post Rackmount or Wallmount Installation of Select Rackmount UPS Systems 1
WATCHDOGSW WatchDog Service Monitoring / Reboot Software 1
PDU1220 Basic PDU / Power Distribution Unit - Safe, reliable power distribution for critical
networking equipment
1
PDUV20 Single-Phase Basic PDU, 20A 120V, 0U Vertical Rackmount, NEMA 5-15/20R outlets,
NEMA L5-20P input with 5-20P adapter
1
PDUMH20 Single-Phase Metered PDU, 20A 120V, 1U Horizontal Rackmount, NEMA 5-15/20R
outlets, NEMA L5-20P input with 5-20P adapter
1
PDUNV Single-Phase Basic PDU, 16A 100-240V, 1U Rackmount, C13 C19 outlets, C20 input
and C14, L6-20P, L5-20P, 5-20P and 5-15P adapters
1
PDUMV20 Single-Phase Metered PDU, 20A 120V, 0U Vertical Rackmount, NEMA 5-15/20R outlets,
NEMA L5-20P input with 5-20P adapter
1
PDUMNV20 Single-Phase Monitored PDU, 20A 120V, 0U Vertical Rackmount, NEMA 5-15/20R
outlets, NEMA L5-20P input with 5-20P adapter
1
PDUMNH20 Single-Phase Monitored PDU, 20A 120V, 1U Horizontal Rackmount, NEMA 5-15/20R
outlets, NEMA L5-20P input with 5-20P adapter
1
PDUMV20NET Single-Phase Switched PDU, 20A 120V, 0U Vertical Rackmount, NEMA 5-15/20R
outlets, NEMA L5-20P input with 5-20P adapter
1
PDUMH20AT Single-Phase Auto Transfer Switch / Metered PDU, 20A 120V, 1U Horizontal
Rackmount, 5-15/20R outlets, 2 L5-20P / 5-20P adapters
1
PDUMH20ATNET Single-Phase Auto Transfer Switch / Switched PDU 20A 120V, 1U Horizontal
Rackmount, 5-15/20R outlets, 2 L5-20P / 5-20P inputs
1
PDUB20 Single-Phase Hot-Swap PDU, 20A 120V, 2U Horizontal Rackmount, NEMA 5-15R &
5-15/20R outlets, set of 2 NEMA 5-20P input plugs
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=3264.
Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
