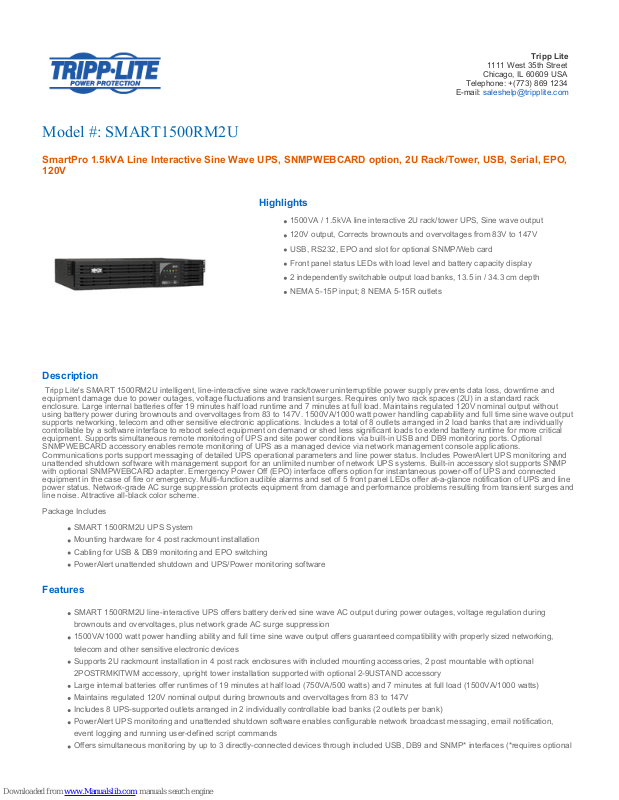

Model #: SMART1500RM2U
SmartPro 1.5kVA Line Interactive Sine Wave UPS, SNMPWEBCARD option, 2U Rack/Tower, USB, Serial, EPO,
120V
Highlights
1500VA / 1.5kVA line interactive 2U rack/tower UPS, Sine wave output
120V output, Corrects brownouts and overvoltages from 83V to 147V
USB, RS232, EPO and slot for optional SNMP/Web card
Front panel status LEDs with load level and battery capacity display
2 independently switchable output load banks, 13.5 in / 34.3 cm depth
NEMA 5-15P input; 8 NEMA 5-15R outlets
Description
Tripp Lite's SMART 1500RM2U intelligent, line-interactive sine wave rack/tower uninterruptible power supply prevents data loss, downtime and
equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack
enclosure. Large internal batteries offer 19 minutes half load runtime and 7 minutes at full load. Maintains regulated 120V nominal output without
using battery power during brownouts and overvoltages from 83 to 147V. 1500VA/1000 watt power handling capability and full time sine wave output
supports networking, telecom and other sensitive electronic applications. Includes a total of 8 outlets arranged in 2 load banks that are individually
controllable by a software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical
equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Optional
SNMPWEBCARD accessory enables remote monitoring of UPS as a managed device via network management console applications.
Communications ports support messaging of detailed UPS operational parameters and line power status. Includes PowerAlert UPS monitoring and
unattended shutdown software with management support for an unlimited number of network UPS systems. Built-in accessory slot supports SNMP
with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected
equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line
power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and
line noise. Attractive all-black color scheme.
Package Includes
SMART 1500RM2U UPS System
Mounting hardware for 4 post rackmount installation
Cabling for USB & DB9 monitoring and EPO switching
PowerAlert unattended shutdown and UPS/Power monitoring software
Features
SMART 1500RM2U line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during
brownouts and overvoltages, plus network grade AC surge suppression
1500VA/1000 watt power handling ability and full time sine wave output offers guaranteed compatibility with properly sized networking,
telecom and other sensitive electronic devices
Supports 2U rackmount installation in 4 post rack enclosures with included mounting accessories, 2 post mountable with optional
2POSTRMKITWM accessory, upright tower installation supported with optional 2-9USTAND accessory
Large internal batteries offer runtimes of 19 minutes at half load (750VA/500 watts) and 7 minutes at full load (1500VA/1000 watts)
Maintains regulated 120V nominal output during brownouts and overvoltages from 83 to 147V
Includes 8 UPS-supported outlets arranged in 2 individually controllable load banks (2 outlets per bank)
PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification,
event logging and running user-defined script commands
Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional
Page 2
SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software.
Communications ports support messaging of UPS and line power status, including on battery, low-battery, power restored, AC line voltage,
DC battery voltage and remaining battery capacity
Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for a delayed or immediate
reboot of connected devices
Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating
systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires
optional WATCHDOGSW)
Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter
Emergency Power Off (EPO) interface with cable
Multi-function audible alarms and set of 5 front panel LEDs
Network-grade AC surge suppression
Attractive all-black color scheme
UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary
Specifications
OUTPUT
Output Volt Amp Capacity
(VA)
1500
Output kVA capacity (kVA) 1.5
Output Watt Capacity
(watts)
1000
Output kW capacity 1
Output power factor 0.7
Nominal Output Voltage(s)
Supported
120V
Frequency compatibility 60 Hz
Output voltage regulation
(line mode)
-21%, +8%
Output voltage regulation
(Battery mode)
+/- 5%
Built-in UPS output
receptacles
8 5-15R outlet(s)
Built-in controllable
switched load banks
Two switchable two-outlet 5-15R load banks
Output AC waveform (AC
mode)
Sine wave
Output AC waveform
(battery mode)
Pure Sine wave
INPUT
Rated input current (at
maximum load)
10.4A
Nominal Input Voltage(s)
Supported
120V AC
UPS input connection type 5-15P
Input circuit breaker 15A
UPS Input cord length (ft.) 10
Page 3
UPS Input cord length (m) 3
Recommended Electrical
Service
15A 120V
BATTERY
Full load runtime (minutes) 7 min. (1000w)
Half load runtime (minutes) 19 min. (500w)
DC system voltage (VDC) 36
Battery recharge rate
(included batteries)
Less than 4.5 hours from 10% to 90%
Replacement battery
cartridge (internal UPS
battery replacement)
RBC93-2U
Battery Access Front panel battery access door
Battery replacement
description
Hot-swappable, user replaceable batteries
VOLTAGE REGULATION
Voltage regulation
description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Overvoltage correction Input voltages between 128 and 147 are reduced by 12%
Undervoltage correction Input voltages between 83 and 107 are boosted by 14%
LEDS ALARMS & SWITCHES
LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Alarms Audible alarm indicates power-failure, overload and low-battery conditions
Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate
low-battery status
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
SURGE / NOISE SUPPRESSION
UPS AC suppression joule
rating
570
UPS AC suppression
response time
Instantaneous
EMI / RFI AC noise
suppression
Yes
PHYSICAL
Installation form factors
supported with included
accessories
4 post 19 inch rackmount (mounting rail kit included)
Installation form factors
supported with optional
accessories
2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
Primary form factor Rackmount
UPS / Power Module
dimensions in primary form
factor (height x width x
depth / inches)
3.5 x 17.5 x 13.5
Page 4
UPS / Power Module
dimensions in primary form
factor (height x width x
depth / cm)
8.9 x 44.4 x 34.3
Installed whole system
total rack space height
(rack spaces)
2U
Secondary form factor Tower (requires 2-9USTAND)
UPS / Power Module weight
(lbs)
46
UPS / Power Module weight
(kg)
20.9
UPS Shipping dimensions
(height x width x depth /
inches)
9 x 24 x 20.2
UPS Shipping dimensions
(height x width x depth / cm)
22.9 x 61 x 51.4
Shipping weight (lbs) 53
Shipping weight (kg) 24.1
UPS housing material Steel
Cooling method Fan
ENVIRONMENTAL
Operating Temperature
Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC mode BTU / hr. (full
load)
105.2
Battery mode BTU / hr. (full
load)
600
COMMUNICATIONS
Communications interface USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network monitoring port
description
Supports detailed monitoring of UPS and site power conditions
PowerAlert software Included
Communications cable USB and DB9 cabling included
WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time 2-4 milliseconds
Low voltage transfer to
battery power (setpoint)
83
High voltage transfer to
battery power (setpoint)
147
SPECIAL FEATURES
Page 5
Grounding lug Back panel grounding lug
Cold Start (startup in
battery mode during a
power failure)
Cold-start operation supported
High availability UPS
features
Hot swappable batteries
Green & high efficiency
features
Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B
(EMI)
WARRANTY
Product Warranty Period
(Worldwide)
2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty.
Connected Equipment
Insurance (U.S., Canada &
Puerto Rico)
$250,000 Ultimate Lifetime Insurance
Related Items
Optional Products
Product Type Related Model Description Qty.
Extended Warranties WEXT5-500-1500 5-Year Extended Warranty - For Smart Line-Interactive and Online
Tower or Rack models, 1500VA or less
1
Power Cables P007-002 2-ft. Heavy-Duty 14AWG Power cord
(IEC-320-C13 to NEMA 5-15P)
1
Power Cables P007-006 6-ft. Heavy-Duty 14AWG Power cord
(IEC-320-C13 to NEMA 5-15P)
1
Power Cables P007-010 10-ft. Heavy-Duty 14AWG Power cord
(IEC-320-C13 to NEMA 5-15P)
1
Power Cables P010-012 12-ft. 18AWG Power cord
(NEMA 5-15P to IEC-320-C13)
1
Power Cables P022-001 1-ft. 18AWG Power Extension cord
(NEMA 5-15R to NEMA 5-15P)
1
Power Cables P023-001 1-ft. 14AWG Power Adapter cord
(NEMA L5-15R to NEMA 5-15P)
1
Power Cables P034-010 10-ft. 14AWG Heavy Duty Power cord
( IEC-320-C19 to NEMA 5-15P)
1
Power Distribution PDU1215 Basic PDU / Power Distribution Unit - Safe, reliable power distribution
for critical networking equipment
1
Power Distribution PDUB15 Dual source Power Distribution Unit / PDU with Manual Transfer Switch
enables Hot-swappable UPS Replacement in Critical Network
Applications
1
Power Distribution PDUMH15 Metered PDU / Power Distribution Unit - Safe, reliable power
distribution with digital current meter
1
Power Distribution PDUMH15AT Metered PDU with ATS - Power Distribution Unit with dual-input Auto
Transfer Switching
1
Power Distribution PDUMH15ATNET Switched, Metered PDU with ATS - Power Distribution Unit with
dual-input Auto Transfer Switching, individual outlet control and remote
network interface
1
Page 6
Power Distribution PDUMNH15 Monitored PDU / Power Distribution Unit supports real-time remote
monitoring of load level, voltage and frequency with options for remote
environmental and security monitoring
1
Power Distribution PDUMNV15 Monitored PDU / Power Distribution Unit supports real-time remote
monitoring of load level, voltage and frequency with options for remote
environmental and security monitoring
1
Power Distribution PDUMV15 Metered PDU / Power Distribution Unit - Safe, reliable power
distribution with digital current meter
1
Power Distribution PDUMV15NET Switched, Metered PDU with Remote Monitoring - 0U Vertical
Rackmount Power Distribution Unit for Networks with Individually
Switchable Outlets, Current Metering, Remote Monitoring and Control
1
Power Distribution PDUNV Basic PDU / Power Distribution Unit - Safe, reliable power distribution
for critical networking equipment
1
Power Distribution PDUV15 Safe, reliable power distribution for critical networking equipment 1
Rackmount/Wallmount Kits 2POSTRMKITWM Enables 2-Post Rackmount or Wallmount Installation of Select
Rackmount UPS Systems
1
Replacement Batteries RBC93-2U 2U UPS Replacement Battery Cartridge for select Tripp Lite SmartPro
UPS
1
SNMP Accessories ENVIROSENSE Monitors temperature, humidity and contact-closure inputs. (Requires
SNMPWEBCARD or switched PDU.)
1
SNMP Accessories SNMPWEBCARD For remote monitoring and control via SNMP, Web, or Telnet. 1
Software WATCHDOGSW WatchDog Service Monitoring / Reboot Software 1
Tower Stands 2-9USTAND Enables Tower Placement of Rackmount UPS Systems 1
UPS Accessories MODBUSCARD For remote monitoring and control via MODBUS protocol 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=2658.
Copyright © 2012 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
