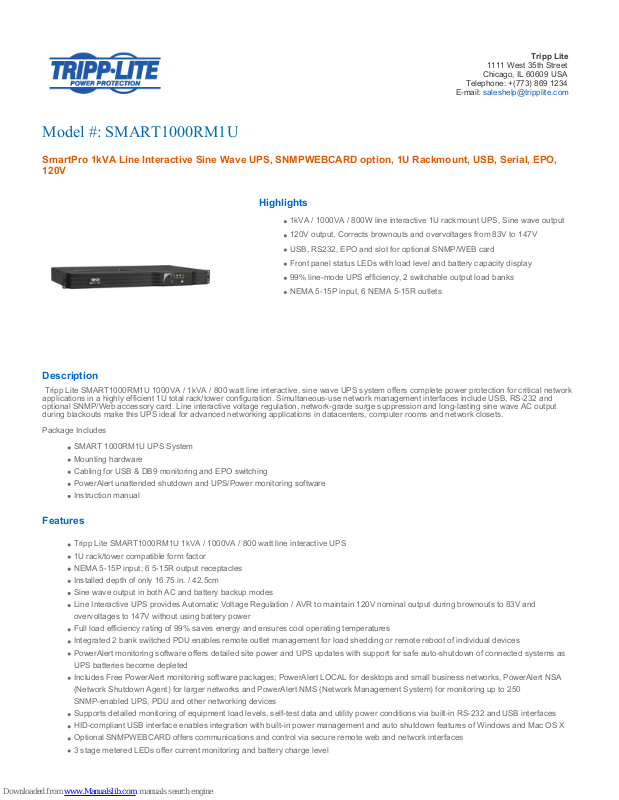

Model #: SMART1000RM1U

SmartPro 1kVA Line Interactive Sine Wave UPS, SNMPWEBCARD option, 1U Rackmount, USB, Serial, EPO, 120V

Highlights

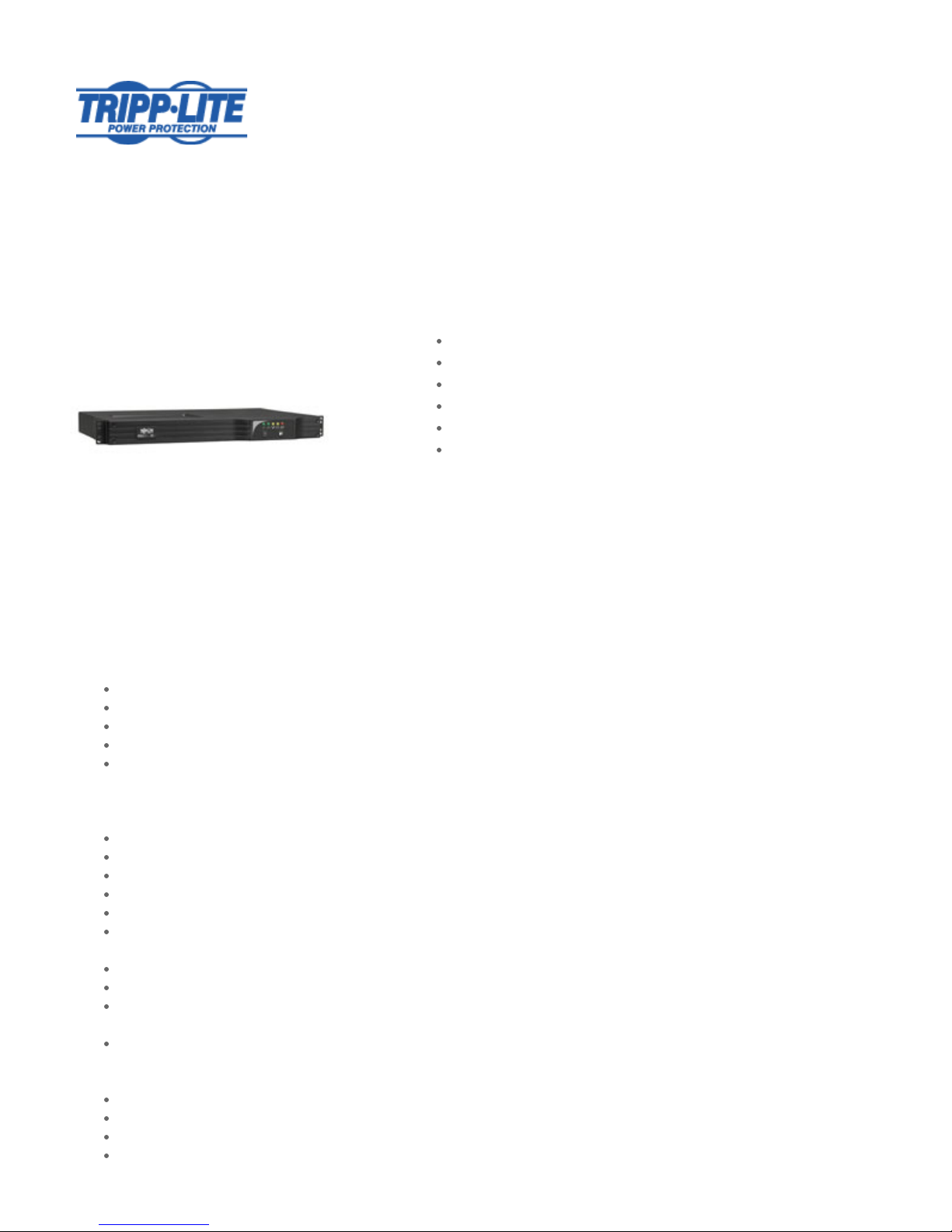

1kVA / 1000VA / 800W line interactive 1U rackmount UPS, Sine wave output

120V output, Corrects brownouts and overvoltages from 83V to 147V

USB, RS232, EPO and slot for optional SNMP/WEB card

Front panel status LEDs with load level and battery capacity display

99% line-mode UPS efficiency, 2 switchable output load banks

NEMA 5-15P input, 6 NEMA 5-15R outlets

Description

Tripp Lite SMART1000RM1U 1000VA / 1kVA / 800 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and optional SNMP/Web accessory card. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.

Package Includes

SMART 1000RM1U UPS System Mounting hardware Cabling for USB & DB9 monitoring and EPO switching PowerAlert unattended shutdown and UPS/Power monitoring software Instruction manual

Features

Tripp Lite SMART1000RM1U 1kVA / 1000VA / 800 watt line interactive UPS 1U rack/tower compatible form factor NEMA 5-15P input; 6 5-15R output receptacles Installed depth of only 16.75 in. / 42.5cm Sine wave output in both AC and battery backup modes Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power Full load efficiency rating of 99% saves energy and ensures cool operating temperatures Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces 3 stage metered LEDs offer current monitoring and battery charge level

Page 2

Mains power and voltage regulation LEDs offer at-a-glance power status information Front panel switches support self-test and alarm cancel functions Field replaceable, hot-swappable internal UPS batteries

Specifications

OUTPUT

Output Volt Amp Capacity (VA)

1000

Output kVA capacity (kVA) 1

Output Watt Capacity (watts)

800

Output power factor 0.8

Nominal Output Voltage(s) Supported

120V

Frequency compatibility 60 Hz

Output voltage regulation (line mode)

-21%, +8%

Output voltage regulation (Battery mode)

+/- 5%

Built-in UPS output receptacles

6 5-15R outlet(s)

Built-in controllable switched load banks

Two switchable single-outlet 5-15R load banks

Output AC waveform (AC mode)

Sine wave

Output AC waveform (battery mode)

Pure Sine wave

INPUT

Rated input current (at maximum load)

9.2A

Nominal Input Voltage(s) Supported

120V AC

UPS input connection type 5-15P

Input circuit breaker 15A

Recommended Electrical Service

15A 120V

Input cord length (ft.) 10

Input cord length (m) 3

BATTERY

Full load runtime (minutes) 4 min. (800w)

Half load runtime (minutes) 14 min. (400w)

DC system voltage (VDC) 24

Battery recharge rate (included batteries)

Less than 4 hours from 10% to 90%

Page 3

Replacement battery cartridge (internal UPS battery replacement)

RBC69-1U

Battery Access Front panel battery access door

Battery replacement description

Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage regulation description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147

Overvoltage correction Input voltages between 128 and 147 are reduced by 12%

Undervoltage correction Input voltages between 83 and 107 are boosted by 14%

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Alarms Audible alarm indicates power-failure, overload and low-battery conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate

low-battery status

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation

SURGE / NOISE SUPPRESSION

UPS AC suppression joule rating

450 joules

EMI / RFI AC noise suppression

Yes

AC suppression response time

Instantaneous

PHYSICAL

Primary form factor Rackmount

UPS / Power Module dimensions in primary form factor (height x width x depth / inches)

1.7 x 17.5 x 16.8

UPS / Power Module dimensions in primary form factor (height x width x depth / cm)

4.4 x 44.4 x 42.5

Installed whole system total rack space height (rack spaces)

UPS / Power Module weight (lbs)

UPS / Power Module weight (kg)

14.5

UPS Shipping dimensions (height x width x depth / inches)

6.2 x 23.5 x 22.5

UPS Shipping dimensions (height x width x depth / cm)

15.9 x 59.7 x 57.2

Shipping weight (lbs) 36

Page 4

Shipping weight (kg) 16.3

UPS housing material Steel

Cooling method Fan

ENVIRONMENTAL

Operating Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load)

138.9

Battery mode BTU / hr. (full load)

477.7

COMMUNICATIONS

Communications interface USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network monitoring port description

Supports detailed monitoring of UPS and site power conditions

PowerAlert software Included

Communications cable USB and DB9 cabling included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time 5 milliseconds AC to DC; 1 millisecond DC to AC

Low voltage transfer to battery power (setpoint)

High voltage transfer to battery power (setpoint)

147

SPECIAL FEATURES

Grounding lug Back panel grounding lug

Cold Start (startup in battery mode during a power failure)

Cold-start operation supported

High availability UPS features

Hot swappable batteries

Green & high efficiency features

Greater than 95% efficiency - GREEN UPS; Individually controllable load banks

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A

(EMI)

WARRANTY

Product Warranty Period (Worldwide)

2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty.

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$250,000 Ultimate Lifetime Insurance
