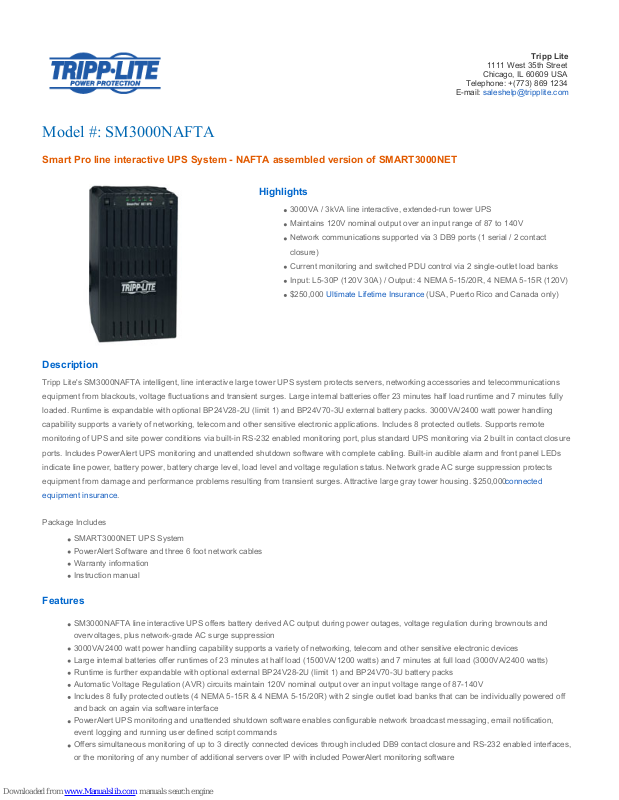

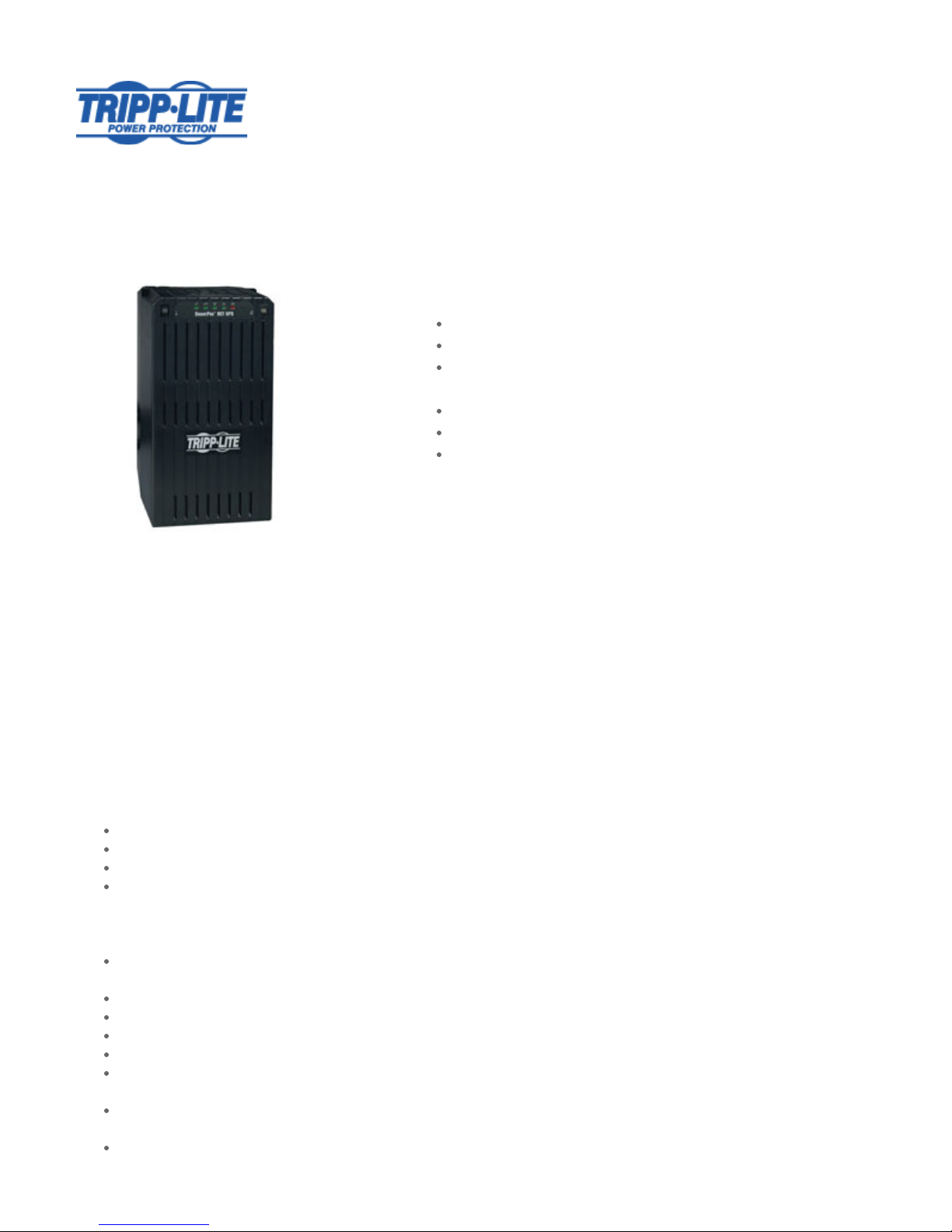

Smart Pro line interactive UPS System - NAFTA assembled version of SMART3000NET

Highlights

3000VA / 3kVA line interactive, extended-run tower UPS

Maintains 120V nominal output over an input range of 87 to 140V

Network communications supported via 3 DB9 ports (1 serial / 2 contact

closure)

Current monitoring and switched PDU control via 2 single-outlet load banks

Input: L5-30P (120V 30A) / Output: 4 NEMA 5-15/20R, 4 NEMA 5-15R (120V)

$250,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only)

Description

Tripp Lite's SM3000NAFTA intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications

equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 23 minutes half load runtime and 7 minutes fully

loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U external battery packs. 3000VA/2400 watt power handling

capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 8 protected outlets. Supports remote

monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure

ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible alarm and front panel LEDs

indicate line power, battery power, battery charge level, load level and voltage regulation status. Network grade AC surge suppression protects

equipment from damage and performance problems resulting from transient surges. Attractive large gray tower housing. $250,000 connected

equipment insurance.

Package Includes

SMART3000NET UPS System PowerAlert Software and three 6 foot network cables Warranty information Instruction manual

Features

SM3000NAFTA line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression 3000VA/2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices Large internal batteries offer runtimes of 23 minutes at half load (1500VA/1200 watts) and 7 minutes at full load (3000VA/2400 watts) Runtime is further expandable with optional external BP24V28-2U (limit 1) and BP24V70-3U battery packs Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V Includes 8 fully protected outlets (4 NEMA 5-15R & 4 NEMA 5-15/20R) with 2 single outlet load banks that can be individually powered off and back on again via software interface PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification, event logging and running user defined script commands Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software

Page 2

In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity Supports activate self-test and UPS output power control for delayed or immediate reboot of connected equipment Diagnostic LEDs (indicate 17 performance conditions) UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Emissions) $250,000 Ultimate Lifetime Insurance (USA & Canada Only)

Specifications

OUTPUT

Output Volt Amp Capacity (VA)

3000

Output kVA capacity (kVA)

Output Watt Capacity (watts)

2400

Output kW capacity 2.4

Output power factor 0.8

Nominal Output Voltage(s) Supported

120V

Frequency compatibility 60 Hz

Output voltage regulation (line mode)

-13% / +5%

Output voltage regulation (Battery mode)

+/- 5%

Built-in UPS output receptacles

4 5-15R outlet(s); 4 5-15/20R outlet(s)

Built-in controllable switched load banks

Three switchable single-outlet 5-15R load banks

Output circuit breaker 15A branch rated (x2) - each breaker protects 4 outlets

Basic PDU options PDU1220 (1U / 13 5-15/20R outlets); PDUNV (1U / 2 C19, 12 C13 outlets); PDUV20 (0U / 12 5-15/20R outlets);

PDU40TDUAL (0U / 40 5-15/20R outlets)

Metered PDU options PDUMH20 (1U / 13 5-15/20R outlets); PDUMH20AT (1U / 16 5-15/20R outlets)*; PDUMV20 (0U / 16 5-15/20R

outlets); PDUMV40 (0U / 32 5-15/20R outlets)

Switched PDU options PDUMH20ATNET (1U / 16 5-15/20R outlets)*; PDUMV20NET (0U / 24 5-15/20R outlets)

External PDU redundancy options

*Auto Transfer Switch features utilizing the secondary PDU input cord are compatible with Smart Online UPS models only

Output AC waveform (AC mode)

Sine wave

Output AC waveform (battery mode)

PWM sine wave

INPUT

Rated input current (at maximum load)

22A

Nominal Input Voltage(s) Supported

120V AC

Page 3

UPS input connection type

L5-30P

UPS Input cord length (ft.)

UPS Input cord length (m)

2.4

Recommended Electrical Service

30A 120V

Input cord length (m) 2.4

BATTERY

Full load runtime (minutes)

7 min. (2400w)

Half load runtime (minutes)

23 min. (1200w)

External battery pack compatibility

BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)

DC system voltage (VDC)

Battery recharge rate (included batteries)

Less than 9 hours from 10% to 90%

VOLTAGE REGULATION

Voltage regulation description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 87 to 140

Overvoltage correction Input voltages between 127 and 140 are reduced by 12%

Undervoltage correction Input voltages between 95 and 105 are boosted by 10%

Severe undervoltage correction

Input voltages between 87 and 94 are boosted by 22%

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Alarms Audible alarm indicates power-failure, overload and low-battery conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate

low-battery status

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; set of 4 rear-panel switches control

system enable and contact closure port inverter shutoff commands

SURGE / NOISE SUPPRESSION

UPS AC suppression joule rating

480

UPS AC suppression response time

Instantaneous

EMI / RFI AC noise suppression

Yes

PHYSICAL

Installation form factors supported with included accessories

Tower

Primary form factor Tower

Page 4

UPS / Power Module dimensions in primary form factor (height x width x depth / inches)

17 x 9 x 12.5

UPS / Power Module dimensions in primary form factor (height x width x depth / cm)

43.2 x 22.9 x 31.8

UPS / Power Module weight (lbs)

UPS / Power Module weight (kg)

40.4

UPS Shipping dimensions (height x width x depth / inches)

22.2 x 12.8 x 16.5

UPS Shipping dimensions (height x width x depth / cm)

56.5 x 32.4 x 41.9

Shipping weight (lbs) 96

Shipping weight (kg) 43.6

UPS housing material PVC

Cooling method Fan

ENVIRONMENTAL

Operating Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load)

82.4

Battery mode BTU / hr. (full load)

1219.3

COMMUNICATIONS

Communications interface

DB9 Serial; Contact closure

Network monitoring port description

Supports detailed monitoring of UPS and site power conditions; contact closure communications via two additional DB9 ports (3 total)

PowerAlert software Included

Communications cable 3 DB9 cables included

LINE / BATTERY TRANSFER

Transfer time 2-4 milliseconds

Low voltage transfer to battery power (setpoint)

High voltage transfer to battery power (setpoint)

140

SPECIAL FEATURES

Page 5

Cold Start (startup in battery mode during a power failure)

Cold-start operation supported

Green & high efficiency features

Greater than 95% efficiency - GREEN UPS; Individually controllable load banks

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A

(EMI); ROHS (Restriction of Hazardous Substances)

WARRANTY

Product Warranty Period (Worldwide)

2-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$250,000 Ultimate Lifetime Insurance
