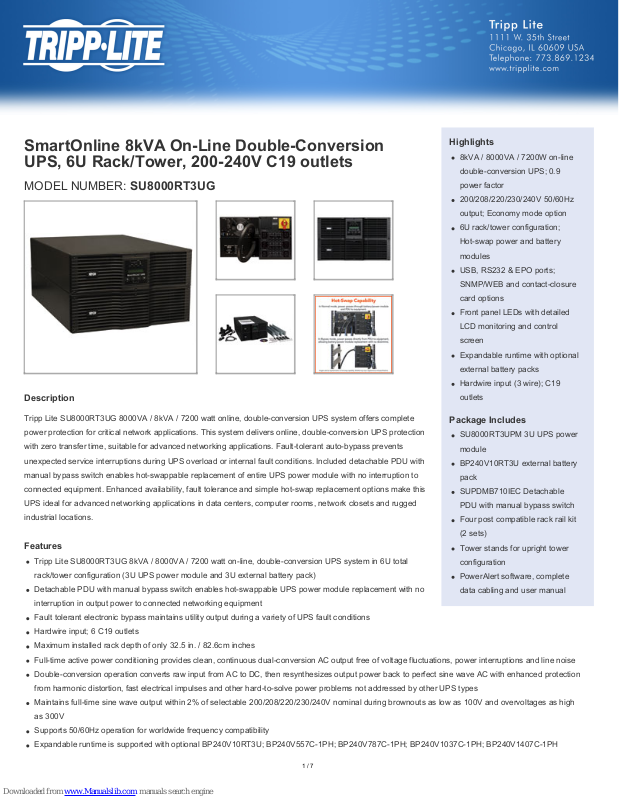

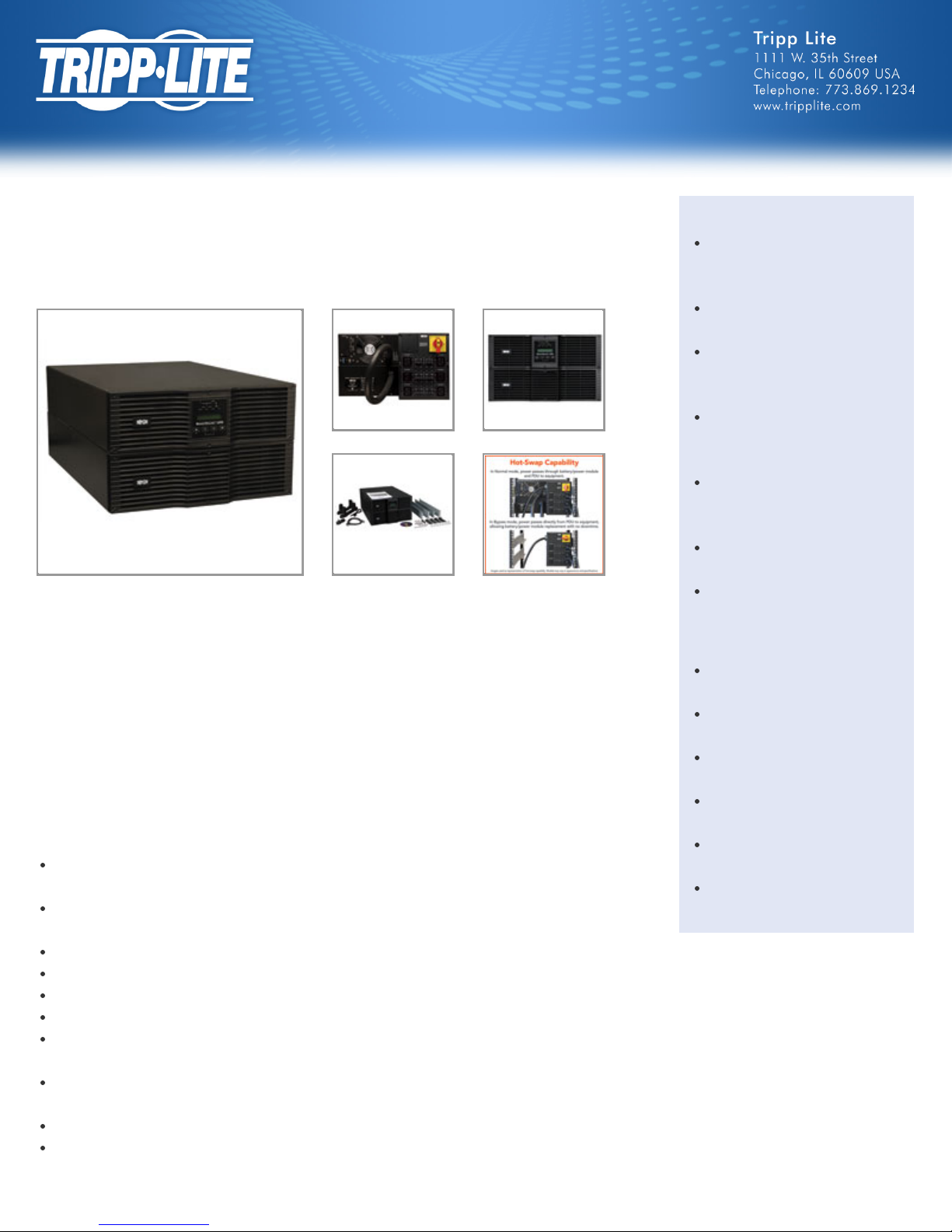

Page 1

SmartOnline 8kVA On-Line Double-Conversion UPS, 6U Rack/Tower, 200-240V C19 outlets

MODEL NUMBER: SU8000RT3UG

Description

Tripp Lite SU8000RT3UG 8000VA / 8kVA / 7200 watt online, double-conversion UPS system offers complete

power protection for critical network applications. This system delivers online, double-conversion UPS protection

with zero transfer time, suitable for advanced networking applications. Fault-tolerant auto-bypass prevents

unexpected service interruptions during UPS overload or internal fault conditions. Included detachable PDU with

manual bypass switch enables hot-swappable replacement of entire UPS power module with no interruption to

connected equipment. Enhanced availability, fault tolerance and simple hot-swap replacement options make this

UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged

industrial locations.

Features

Tripp Lite SU8000RT3UG 8kVA / 8000VA / 7200 watt on-line, double-conversion UPS system in 6U total

rack/tower configuration (3U UPS power module and 3U external battery pack)

Detachable PDU with manual bypass switch enables hot-swappable UPS power module replacement with no

interruption in output power to connected networking equipment

Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions

Hardwire input; 6 C19 outlets

Maximum installed rack depth of only 32.5 in. / 82.6cm inches

Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise

Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection

from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types

Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low as 100V and overvoltages as high

as 300V

Supports 50/60Hz operation for worldwide frequency compatibility

Expandable runtime is supported with optional BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH

Highlights

8kVA / 8000VA / 7200W on-line

double-conversion UPS; 0.9

power factor

200/208/220/230/240V 50/60Hz

output; Economy mode option

6U rack/tower configuration;

Hot-swap power and battery

modules

USB, RS232 & EPO ports;

SNMP/WEB and contact-closure

card options

Front panel LEDs with detailed

LCD monitoring and control

screen

Expandable runtime with optional

external battery packs

Hardwire input (3 wire); C19

outlets

Package Includes

SU8000RT3UPM 3U UPS power

module

BP240V10RT3U external battery

pack

SUPDMB710IEC Detachable

PDU with manual bypass switch

Four post compatible rack rail kit

(2 sets)

Tower stands for upright tower

configuration

PowerAlert software, complete

data cabling and user manual

1 / 7

Page 2

external battery packs

Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)

Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs

Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and

require replacement

PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries

become depleted

Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network

Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other

networking devices

Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces

HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces

Optional RELAYIOCARD supports six configurable hard contact closure outputs for custom event notification

Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB

interface module)

Supports Emergency Power Off (EPO) via built-in interface

Included rail kit supports 6U 19 inch rackmount installation in 4 post racks

Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks

Optional 2-9USTAND supports upright tower placement

Front panel LEDs and LCD readout with scroll controls and password option supports visual monitoring of all major UPS functions and advanced UPS

settings for charge level, nominal voltage selection, frequency conversion and other operational parameters

LED / LCD display panel rotates for viewing in rackmount or tower configurations

Network-grade AC surge and noise suppression

Industrial mode option (factory preset) enables supports high current startup loads by momentarily switching to bypass mode in response to short duration

overload conditions

Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)

External battery packs are field replaceable and hot swappable

Specifications

OUTPUT

Output Volt Amp Capacity (VA) 8000

Output kVA capacity (kVA) 8

Output Watt Capacity (watts) 7200

Output kW capacity 7.2

Output power factor 0.9

Output Capacity Details

Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as load levels are reduced to 95% or less

Nominal Output Voltage(s) Supported

200V; 208V; 220V; 230V; 240V

2 / 7

Page 3

Nominal Voltage details Voltage selection via front panel LCD interface

Frequency compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion

Frequency compatibility details

Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)

Output voltage regulation (line mode) +/- 2%

Output voltage regulation (Economy line mode)

+/- 10%

Output voltage regulation (Battery mode)

+/- 2%

Built-in UPS output receptacles 6 C19 outlet(s)

Output circuit breaker 20A double-pole (x6) protects 1 C19 outlet each

Output AC waveform (AC mode) Sine wave

Output AC waveform (battery mode) Pure Sine wave

INPUT

Rated input current (at maximum load)

46A (200V), 44.2A (208V), 41.8A (220V), 40A (230V), 38.3A (240V)

Nominal Input Voltage(s) Supported 200V AC; 208V AC; 230V AC; 240V AC

UPS input connection type Hardwire

UPS input connection description 3 wire single phase input (L1, L2, G)

Recommended Electrical Service 50A

Voltage compatibility (VAC) 200; 208; 230; 240

Phase Single-Phase

BATTERY

Full load runtime (minutes) 5.5 min. (7200w)

Half load runtime (minutes) 13.5 min. (3600w)

Expandable battery runtime Supports extended runtime with optional external battery packs

External battery pack compatibility

BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH

DC system voltage (VDC) 240

Battery recharge rate (included batteries)

Less than 6 hours from 10% to 90%

Battery replacement description Hot-swappable, user replaceable external battery packs

VOLTAGE REGULATION

Voltage regulation description 2% output voltage regulation in standard online, double-conversion mode

Overvoltage correction Corrects overvoltages up to 300V

Undervoltage correction Corrects undervoltages as low as 100V

3 / 7

Page 4

LEDS ALARMS & SWITCHES

LED Indicators

6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options

Front panel LCD display

Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH and PORTUGUESE (see manual)

Alarms Unique audible alarms for all major UPS, environmental and power conditions (see manual)

Alarm cancel operation Alarm cancel switch

Switches

2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module replacement

SURGE / NOISE SUPPRESSION

UPS AC suppression response time Instantaneous

EMI / RFI AC noise suppression Yes

PHYSICAL

Installation form factors supported with included accessories

Tower

Included mounting accessory description

2 sets of adjustable 4 post rack rails included; 2-9USTAND tower kit included (supports up to 9U in tower format)

Installation form factors supported with optional accessories

2 post rackmount (2POSTRMKITHD)

Optional mounting accessory notes 2 sets of

2POSTRMKITHD

required for 2 post rackmount installation of separate power module and battery pack

Primary form factor Rackmount

UPS / Power Module dimensions in primary form factor (height x width x depth / inches)

5.14 x 17.5 x 25.82

UPS / Power Module dimensions in primary form factor (height x width x depth / cm)

13.1 x 44.4 x 65.6

Installed whole system maximum rack depth (inches)

32.5

Installed whole system maximum rack depth (cm)

82.6

Rack Height 6U

Secondary form factor Tower

UPS / Power Module weight (lbs) 43

UPS / Power Module weight (kg) 19.5

Included battery pack dimensions (height x width x depth / inches)

5.25 x 17.5 x 25

Included battery pack dimensions (height x width x depth / cm)

13.3 x 44.4 x 63.5

4 / 7

Page 5

Included battery pack weight (lbs) 158.7

Included battery pack weight (kg) 72

UPS Shipping dimensions (height x width x depth / inches)

39.8 x 31.5 x 23

UPS Shipping dimensions (height x width x depth / cm)

101 x 80 x 58.4

Shipping weight (lbs) 331

Shipping weight (kg) 150.3

Cooling method Fan

UPS housing material Steel

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load) 2732

AC economy mode BTU / hr. (full load)

1020

AC mode efficiency rating (100% load)

91%

AC economy mode efficiency rating (100% load)

96%

Operating Elevation (ft.) 0-3000m (0 to 10,000 ft.)

Audible Noise 60 dBA at front side 1 meter

Operating Elevation (m) 0-3000 m

COMMUNICATIONS

Communications interface USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network monitoring port description

Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports

PowerAlert software Included

Communications cable USB, DB9 serial and EPO cables included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time No transfer time (0 ms.) in online, double-conversion mode

Transfer time (economy mode) 8 ms. typical power failure response in optional economy mode

Low voltage transfer to battery power (setpoint)

100V

5 / 7

Page 6

High voltage transfer to battery power (setpoint)

300V

SPECIAL FEATURES

Cold Start (startup in battery mode during a power failure)

Cold-start operation supported

Economy mode operation

Optional economy mode enables high efficiency bypass operation with a maximum output voltage variation of +/-10%. Double conversion mode is automatically restored as mains voltage varies beyond +/-10% with less than 1 millisecond transfer time between modes.

High availability UPS features

Automatic inverter bypass; Manual bypass switch; Detachable hot-swap PDU; Hot swappable UPS power module; Hot swappable batteries

Green & high efficiency features High efficiency economy mode operation; Schedulable daily hours of economy mode operation

CERTIFICATIONS

UPS Certifications

Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); CE; Meets FCC Part 15 Category A (EMI)

UPS Certification details IEC 61000-4-5 1995 B Surge Immunity

WARRANTY

Product Warranty Period (Worldwide) 2-year limited warranty
