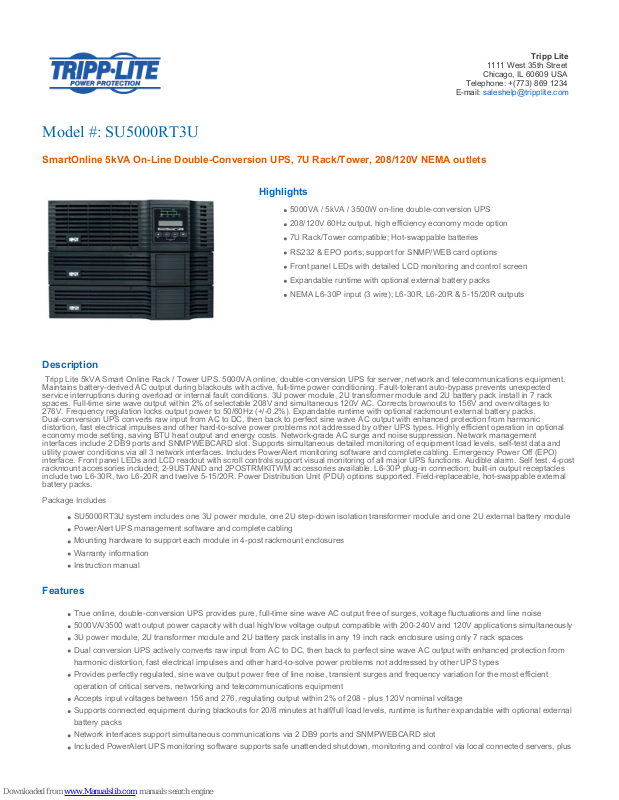

Model #: SU5000RT3U

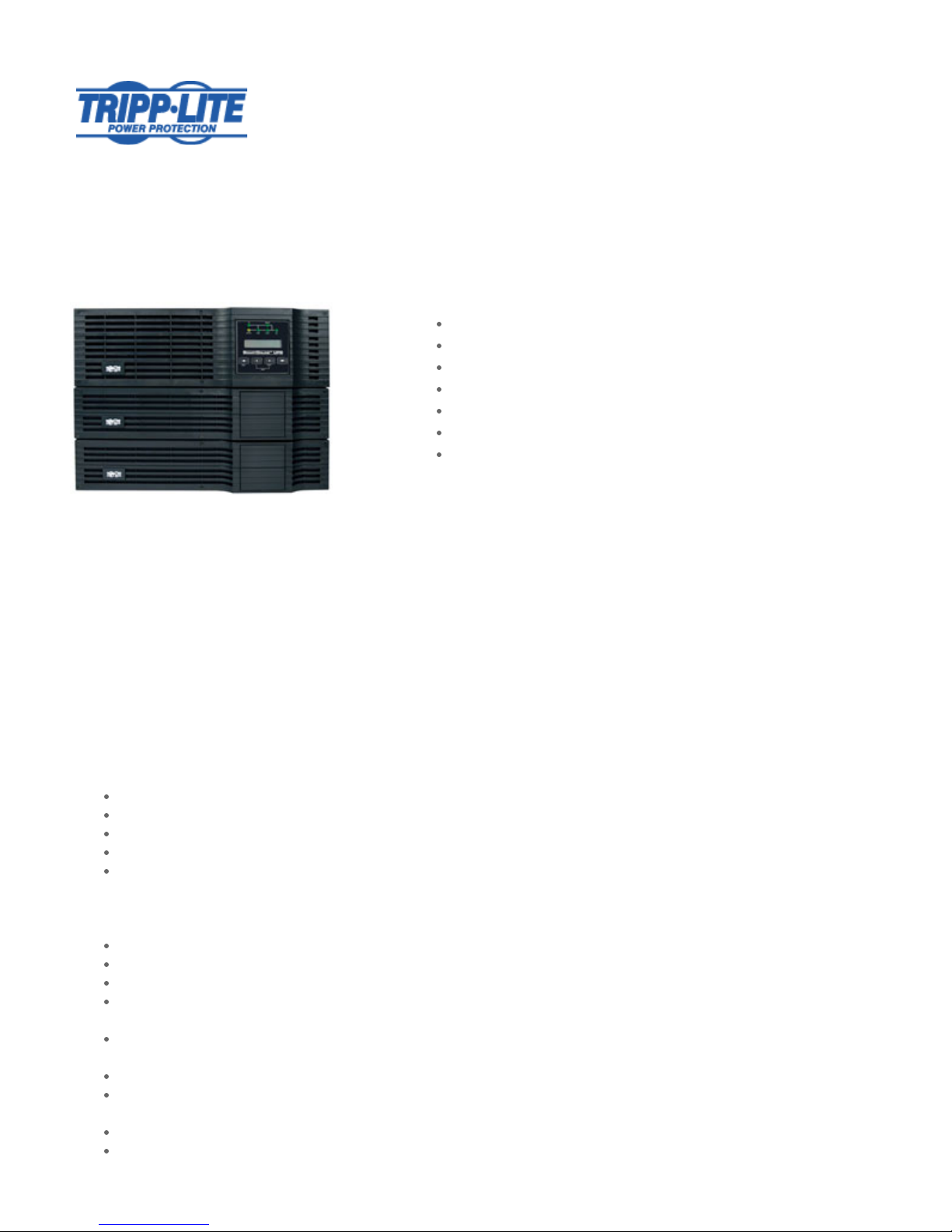

SmartOnline 5kVA On-Line Double-Conversion UPS, 7U Rack/Tower, 208/120V NEMA outlets

Highlights

5000VA / 5kVA / 3500W on-line double-conversion UPS

208/120V 60Hz output, high efficiency economy mode option

7U Rack/Tower compatible; Hot-swappable batteries

RS232 & EPO ports; support for SNMP/WEB card options

Front panel LEDs with detailed LCD monitoring and control screen

Expandable runtime with optional external battery packs

NEMA L6-30P input (3 wire); L6-30R, L6-20R & 5-15/20R outputs

Description

Tripp Lite 5kVA Smart Online Rack / Tower UPS. 5000VA online, double-conversion UPS for server, network and telecommunications equipment. Maintains battery-derived AC output during blackouts with active, full-time power conditioning. Fault-tolerant auto-bypass prevents unexpected service interruptions during overload or internal fault conditions. 3U power module, 2U transformer module and 2U battery pack install in 7 rack spaces. Full-time sine wave output within 2% of selectable 208V and simultaneous 120V AC. Corrects brownouts to 156V and overvoltages to 276V. Frequency regulation locks output power to 50/60Hz (+/-0.2%). Expandable runtime with optional rackmount external battery packs. Dual-conversion UPS converts raw input from AC to DC, then back to perfect sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types. Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs. Network-grade AC surge and noise suppression. Network management interfaces include 2 DB9 ports and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Front panel LEDs and LCD readout with scroll controls support visual monitoring of all major UPS functions. Audible alarm. Self test. 4-post rackmount accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. L6-30P plug-in connection; built-in output receptacles include two L6-30R, two L6-20R and twelve 5-15/20R. Power Distribution Unit (PDU) options supported. Field-replaceable, hot-swappable external battery packs.

Package Includes

SU5000RT3U system includes one 3U power module, one 2U step-down isolation transformer module and one 2U external battery module PowerAlert UPS management software and complete cabling Mounting hardware to support each module in 4-post rackmount enclosures Warranty information Instruction manual

Features

True online, double-conversion UPS provides pure, full-time sine wave AC output free of surges, voltage fluctuations and line noise 5000VA/3500 watt output power capacity with dual high/low voltage output compatible with 200-240V and 120V applications simultaneously 3U power module, 2U transformer module and 2U battery pack installs in any 19 inch rack enclosure using only 7 rack spaces Dual conversion UPS actively converts raw input from AC to DC, then back to perfect sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types Provides perfectly regulated, sine wave output power free of line noise, transient surges and frequency variation for the most efficient operation of critical servers, networking and telecommunications equipment Accepts input voltages between 156 and 276, regulating output within 2% of 208 - plus 120V nominal voltage Supports connected equipment during blackouts for 20/8 minutes at half/full load levels, runtime is further expandable with optional external battery packs Network interfaces support simultaneous communications via 2 DB9 ports and SNMPWEBCARD slot Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus

Page 2

any number of additional servers over IP Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, AC line frequency, timed inverter shutoff, activate self-test and output power control Built-in Emergency Power Off (EPO) interface with cable Includes 17 built-in output receptacles (3 L6-30R w/one L6-30R used for transformer connection, 2 L6-20R, 12 NEMA 5-15/20R) L6-30P input plug-in connection Front panel LEDs and LCD readout with scroll button enables visual confirmation of all major UPS functions and current site electrical conditions Front panel switches enable power on/off control, self-test and alarm cancel functions Included adjustable mounting rails support installation in 4 post 19 inch rack enclosures, optional 2POSTRMKITWM supports 2 post rackmount installation UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user is required Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions

Specifications

OUTPUT

Output Volt Amp Capacity (VA)

5000

Output kVA capacity (kVA)

Output Watt Capacity (watts)

3500

Output kW capacity 3.5

Output power factor 0.7

Crest Factor 3:1

Nominal Output Voltage(s) Supported

120V; 208V

Frequency compatibility 50 / 60 Hz

Frequency compatibility details

Output frequency matches input nominal on startup

Output voltage regulation (line mode)

+/- 2%

Output voltage regulation (Economy line mode)

+/- 10%

Output voltage regulation (Battery mode)

+/- 2%

Built-in UPS output receptacles

12 5-15/20R outlet(s); 2 L6-20R outlet(s); 2 L6-30R outlet(s)

Output circuit breaker 20A breakers (x4) on transformer module protect 3 5-15/20R outlets each, 20A breaker on power module protects

L6-20R outlets, L6-30R outlets are unbreakered

Output AC waveform (AC mode)

Sine wave

Output AC waveform (battery mode)

Pure Sine wave

INPUT

Rated input current (at maximum load)

24A (208V), 21A (240V)

Page 3

Nominal Input Voltage(s) Supported

208V AC

UPS input connection type

L6-30P

UPS Input cord length (ft.)

UPS Input cord length (m)

Recommended Electrical Service

30A 208V

BATTERY

Full load runtime (minutes)

8 min. (3500w)

Half load runtime (minutes)

20 min. (1750w)

Expandable battery runtime

Supports extended runtime with optional external battery packs

External battery pack compatibility

BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH

DC system voltage (VDC)

240

Battery recharge rate (included batteries)

Less than 6 hours from 10% to 80%

Battery replacement description

Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage regulation description

Online, double-conversion power conditioning

Overvoltage correction 2% output voltage regulation during overvoltages to 276

Undervoltage correction 2% output voltage regulation during undervoltages to 130

LEDS ALARMS & SWITCHES

LED Indicators 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD

screen offers additional information and control options

Front panel LCD display Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options;

LED/LCD panel rotates for viewing in rack/tower formats (see manual)

Alarms Unique audible alarms for all major UPS, environmental and power conditions (see manual)

Alarm cancel operation Alarm cancel switch

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and

execute scrolling LCD functions

SURGE / NOISE SUPPRESSION

UPS AC suppression joule rating

480

UPS AC suppression response time

Instantaneous

EMI / RFI AC noise suppression

Yes

Page 4

ISOLATION

Output isolation transformer

120V 5-15/20R outlets include load isolation transfomer protection

PHYSICAL

Installation form factors supported with included accessories

4 post 19 inch rackmount (mounting rail kit included)

Included mounting accessory description

3 sets of adjustable 4 post rack rails included

Installation form factors supported with optional accessories

2 post rackmount (2POSTRMKITWM); Tower (2-9USTAND)

Optional mounting accessory notes

3 sets of 2POSTRMKITWM required for 2 post rackmount installation of separate power module, transformer and battery pack

Primary form factor Rackmount

UPS / Power Module dimensions in primary form factor (height x width x depth / inches)

5.2 x 17.5 x 26

UPS / Power Module dimensions in primary form factor (height x width x depth / cm)

13.3 x 44.4 x 66

Installed whole system maximum rack depth (inches)

Installed whole system maximum rack depth (cm)

Installed whole system total rack space height (rack spaces)

Secondary form factor Tower (requires 2-9USTAND)

UPS / Power Module weight (lbs)

UPS / Power Module weight (kg)

19.1

UPS dimensions details Includes 3U power module, 2U stepdown transformer and 2U external battery pack

Stepdown transformer dimensions (height x width x depth / inches)

3.5 x 17.5 x 21

Stepdown transformer dimensions (height x width x depth / cm)

8.9 x 44.4 x 53.3

Stepdown transformer weight (lbs)

Stepdown transformer weight (kg)

25.9

Included battery pack dimensions (height x width x depth / inches)

3.5 x 17.5 x 22.5

Page 5

Included battery pack dimensions (height x width x depth / cm)

8.9 x 44.4 x 57.2

Included battery pack weight (lbs)

Included battery pack weight (kg)

41.8

Shipping weight (lbs) 256

Shipping weight (kg) 116.2

UPS housing material Steel

Cooling method Fan

ENVIRONMENTAL

Operating Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load)

1322.2

AC economy mode BTU / hr. (full load)

759.6

Battery mode BTU / hr. (full load)

1322.2

AC economy mode efficiency rating (100% load)

94%

COMMUNICATIONS

Communications interface

DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface

Network monitoring port description

RS232 and contact closure communications are located on two separate DB9 ports

PowerAlert software Included

Communications cable DB9 cable included

LINE / BATTERY TRANSFER

Transfer time No transfer time (0 ms.) in online, double-conversion mode

Low voltage transfer to battery power (setpoint)

156

High voltage transfer to battery power (setpoint)

276

SPECIAL FEATURES

Cold Start (startup in battery mode during a power failure)

Cold-start operation supported

High availability UPS features

Automatic inverter bypass; Hot swappable batteries

Page 6

Green & high efficiency features

High efficiency economy mode operation; Schedulable daily hours of economy mode operation

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to CE (EU); Tested to

GOST (Russia); Tested to SASO (Saudi Arabia); Meets FCC Part 15 Category A (EMI)

WARRANTY

Product Warranty Period (Worldwide)

2-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$250,000 Ultimate Lifetime Insurance
