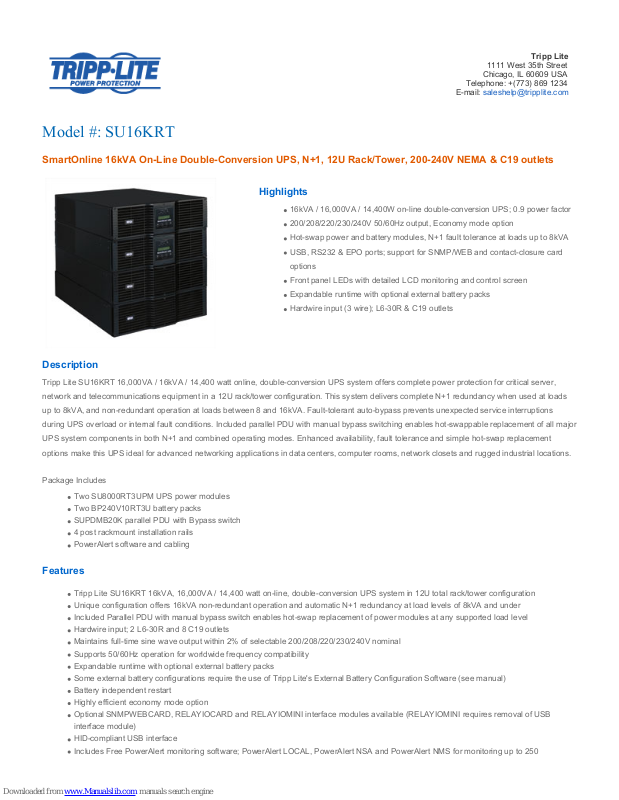

Tripp Lite SmartOnline SU16KRT Specification

Download

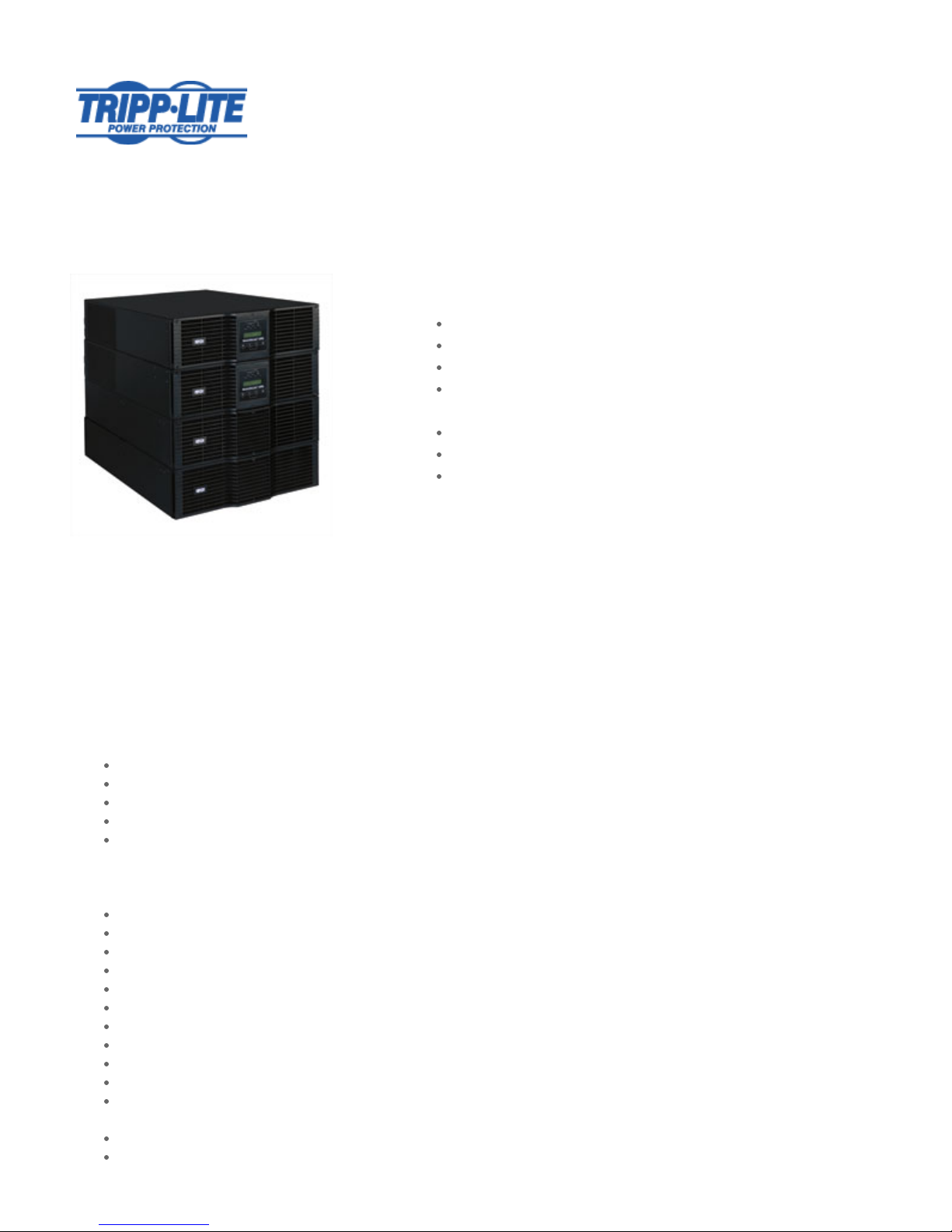

Page 1

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: SU16KRT

SmartOnline 16kVA On-Line Double-Conversion UPS, N+1, 12U Rack/Tower, 200-240V NEMA & C19 outlets

Highlights

16kVA / 16,000VA / 14,400W on-line double-conversion UPS; 0.9 power factor

200/208/220/230/240V 50/60Hz output, Economy mode option

Hot-swap power and battery modules, N+1 fault tolerance at loads up to 8kVA

USB, RS232 & EPO ports; support for SNMP/WEB and contact-closure card

options

Front panel LEDs with detailed LCD monitoring and control screen

Expandable runtime with optional external battery packs

Hardwire input (3 wire); L6-30R & C19 outlets

Description

Tripp Lite SU16KRT 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete power protection for critical server,

network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads

up to 8kVA, and non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions

during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major

UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement

options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

Package Includes

Two SU8000RT3UPM UPS power modules Two BP240V10RT3U battery packs SUPDMB20K parallel PDU with Bypass switch 4 post rackmount installation rails PowerAlert software and cabling

Features

Tripp Lite SU16KRT 16kVA, 16,000VA / 14,400 watt on-line, double-conversion UPS system in 12U total rack/tower configuration Unique configuration offers 16kVA non-redundant operation and automatic N+1 redundancy at load levels of 8kVA and under Included Parallel PDU with manual bypass switch enables hot-swap replacement of power modules at any supported load level Hardwire input; 2 L6-30R and 8 C19 outlets Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal Supports 50/60Hz operation for worldwide frequency compatibility Expandable runtime with optional external battery packs Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual) Battery independent restart Highly efficient economy mode option Optional SNMPWEBCARD, RELAYIOCARD and RELAYIOMINI interface modules available (RELAYIOMINI requires removal of USB interface module) HID-compliant USB interface Includes Free PowerAlert monitoring software; PowerAlert LOCAL, PowerAlert NSA and PowerAlert NMS for monitoring up to 250

Page 2

SNMP-enabled UPS, PDU and other networking devices Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (4 required) Optional 2-9USTAND supports upright tower placement (2 required) Supports Emergency Power Off (EPO) via built-in interface Front panel LEDs and LCD readout with scroll controls LED / LCD display panel rotates for viewing in rackmount or tower configurations External battery packs are field replaceable and hot swappable Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)

Specifications

OUTPUT

Output Volt Amp Capacity (VA)

16000

Output kVA capacity (kVA)

Output Watt Capacity (watts)

14400

Output kW capacity 14.4

Output power factor 0.9

Output Capacity Details

Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as load levels are reduced to 95% or less

Nominal Output Voltage(s) Supported

200V; 208V; 240V

Nominal Voltage details

Voltage selection via front panel LCD interface

Frequency compatibility

50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion

Frequency compatibility details

Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)

Output voltage regulation (line mode)

+/- 2%

Output voltage regulation (Economy line mode)

+/- 10%

Output voltage regulation (Battery mode)

+/- 2%

Built-in UPS output receptacles

2 L6-30R outlet(s); 8 C19 outlet(s)

Output circuit breaker

Two built-in 30A breakers protect one L6-30R outlet each; Eight built-in 20A breakers protect one C19 outlet each

Output AC waveform (AC mode)

Sine wave

Output AC waveform (battery mode)

Pure Sine wave

INPUT

Rated input current (at maximum load)

92A (200V), 88.4A (208V), 83.6A (220V), 80A (230V), 76.6A (240V)

Page 3

Nominal Input Voltage(s) Supported

200V AC; 208V AC; 240V AC

UPS input connection type

Hardwire

UPS input connection description

3 wire single phase input (L1, L2, G)

Recommended Electrical Service

100A @ 200V-240V (L, N, PE), or 100A @ 200V, 208V, or 240V (L1, L2, G)

Phase Single-Phase

BATTERY

Full load runtime (minutes)

5.5 minutes (14,400 watts)

Half load runtime (minutes)

13.5 minutes (7200 watts)

Expandable battery runtime

Runtime is expandable with external battery packs

External battery pack compatibility

BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH

Expandable runtime description

For best results, add external batteries in multiples of two so that both included 8kVA power modules have an equal number and type of connected battery packs

DC system voltage (VDC)

240

Battery recharge rate (included batteries)

Less than 8 hours from 10% to 90%

Battery replacement description

Hot-swappable, user replaceable external battery packs

VOLTAGE REGULATION

Voltage regulation description

2% output voltage regulation in standard online, double-conversion mode

Overvoltage correction

Corrects overvoltages up to 300V

Undervoltage correction

Corrects undervoltages as low as 100V

LEDS ALARMS & SWITCHES

LED Indicators 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD

screen offers additional information and control options

Front panel LCD display

Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH and PORTUGUESE (see manual)

Alarms Unique audible alarms for all major UPS, environmental and power conditions (see manual)

Alarm cancel operation

Alarm cancel switch

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and

execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module replacement

SURGE / NOISE SUPPRESSION

Page 4

UPS AC suppression response time

Instantaneous

EMI / RFI AC noise suppression

Yes

PHYSICAL

Installation form factors supported with included accessories

4 post 19 inch rackmount

Included mounting accessory description

4 sets of adjustable 4 post rack rails included

Installation form factors supported with optional accessories

2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND)

Optional mounting accessory notes

Qty 4 2POSTRMKITHD required; Qty 2 2-9USTAND required

Primary form factor Rackmount

UPS / Power Module dimensions in primary form factor (height x width x depth / inches)

5.14 x 17.5 x 25.82

UPS / Power Module dimensions in primary form factor (height x width x depth / cm)

13.1 x 44.5 x 65.6

Installed whole system maximum rack depth (inches)

32.5

Installed whole system maximum rack depth (cm)

82.6

Rack Height 12U

Secondary form factor

Tower

UPS / Power Module weight (lbs)

UPS / Power Module weight (kg)

19.5

UPS dimensions details

Includes 2 SU8000RT3UPM UPS/Power modules and 2 BP240V10RT3U Battery packs; Listed weights and dimensions for UPS/Power module and Included battery pack each refer to a single unit

Included battery pack dimensions (height x width x depth / inches)

5.25 x 17.5 x 25

Included battery pack dimensions (height x width x depth / cm)

13.3 x 44.5 x 63.5

Page 5

Included battery pack weight (lbs)

158.7

Included battery pack weight (kg)

UPS Shipping dimensions (height x width x depth / inches)

36 x 40.25 x 51

UPS Shipping dimensions (height x width x depth / cm)

91.4 x 102.2 x 129.5

Shipping weight (lbs) 600

Shipping weight (kg) 272.4

Cooling method Fans

UPS housing material

Steel

ENVIRONMENTAL

Operating Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load)

5464

AC economy mode BTU / hr. (full load)

2040

AC economy mode efficiency rating (100% load)

96%

Operating Elevation (ft.)

0-3000m (0 to 10,000 ft.)

Audible Noise 60 dBA at front side 1 meter

Operating Elevation (m)

0-3000 m

COMMUNICATIONS

Communications interface

USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network monitoring port description

Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports

PowerAlert software Included

Communications cable

USB, DB9 serial and EPO cables included

WatchDog compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time No transfer time (0 ms.) in online, double-conversion mode

Page 6

Transfer time (economy mode)

8 milliseconds typical power failure response in optional economy mode

Low voltage transfer to battery power (setpoint)

100V

High voltage transfer to battery power (setpoint)

300V

SPECIAL FEATURES

Cold Start (startup in battery mode during a power failure)

Cold-start operation supported

Economy mode operation

Optional economy mode enables high efficiency bypass operation with a maximum output voltage variation of +/-10%. Double conversion mode is automatically restored as mains voltage varies beyond +/-10% with less than 1 millisecond transfer time between modes.

High availability UPS features

Automatic inverter bypass; Manual bypass switch; Detachable hot-swap PDU; Hot swappable UPS power module; Hot swappable batteries

Green & high efficiency features

High efficiency economy mode operation; Support for daily startup and shutoff; Schedulable daily hours of economy mode operation

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI); ROHS (Restriction of

Hazardous Substances)

UPS Certification details

IEC 61000-4-5 1995 B Surge Immunity

WARRANTY

Product Warranty Period (Worldwide)

2-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$250,000 Ultimate Lifetime Insurance
