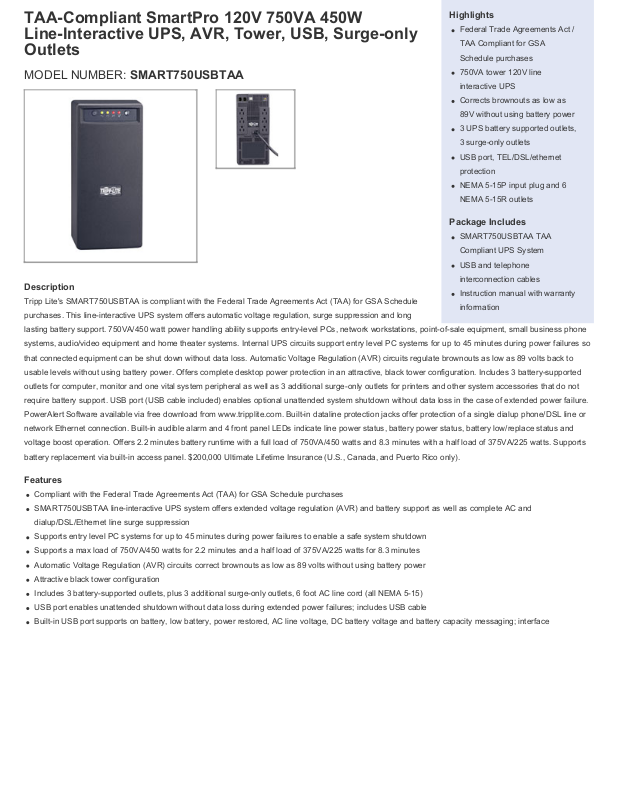

TAA-Compliant SmartPro 120V 750VA 450W
Highlights
Federal Trade Agreements Act /
TAA Compliant for GSA
Schedule purchases
750VA tower 120V line
interactive UPS
Corrects brownouts as low as
89V without using battery power
3 UPS battery supported outlets,
3 surge-only outlets
USB port, TEL/DSL/ethernet
protection
NEMA 5-15P input plug and 6
NEMA 5-15R outlets
Package Includes
SMART750USBTAA TAA
Compliant UPS System
USB and telephone
interconnection cables
Instruction manual with warranty
information
Line-Interactive UPS, AVR, Tower, USB, Surge-only
Outlets
MODEL NUMBER: SMART750USBTAA
Description
Tripp Lite's SMART750USBTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule
purchases. This line-interactive UPS system offers automatic voltage regulation, surge suppression and long
lasting battery support. 750VA/450 watt power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone
systems, audio/video equipment and home theater systems. Internal UPS circuits support entry level PC systems for up to 45 minutes during power failures so
that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to
usable levels without using battery power. Offers complete desktop power protection in an attractive, black tower configuration. Includes 3 battery-supported
outlets for computer, monitor and one vital system peripheral as well as 3 additional surge-only outlets for printers and other system accessories that do not
require battery support. USB port (USB cable included) enables optional unattended system shutdown without data loss in the case of extended power failure.
PowerAlert Software available via free download from www.tripplite.com. Built-in dataline protection jacks offer protection of a single dialup phone/DSL line or
network Ethernet connection. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and
voltage boost operation. Offers 2.2 minutes battery runtime with a full load of 750VA/450 watts and 8.3 minutes with a half load of 375VA/225 watts. Supports
battery replacement via built-in access panel. $200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
Features
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
SMART750USBTAA line-interactive UPS system offers extended voltage regulation (AVR) and battery support as well as complete AC and
dialup/DSL/Ethernet line surge suppression
Supports entry level PC systems for up to 45 minutes during power failures to enable a safe system shutdown
Supports a max load of 750VA/450 watts for 2.2 minutes and a half load of 375VA/225 watts for 8.3 minutes
Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 89 volts without using battery power
Attractive black tower configuration
Includes 3 battery-supported outlets, plus 3 additional surge-only outlets, 6 foot AC line cord (all NEMA 5-15)
USB port enables unattended shutdown without data loss during extended power failures; includes USB cable
Built-in USB port supports on battery, low battery, power restored, AC line voltage, DC battery voltage and battery capacity messaging; interface
Page 2
supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
PowerAlert UPS monitoring and unattended shutdown software available via free download from www.tripplite.com
Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked
computers by automatically switching UPS power off and back on again (part #WATCHDOGSW)
Built-in dataline suppression jacks protect a single dialup phone/DSL line or network Ethernet line connection
Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status
750VA/450 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment
Supports battery replacement via built-in access panel
Compatible with 120V/60Hz applications for USA, Canada, Mexico and more
$200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
Specifications
OUTPUT
Output Volt Amp Capacity (VA) 750
Output Watt Capacity (Watts) 450
Nominal Output Voltage(s)
Supported
Nominal Voltage Details 115v nominal output in battery mode
Frequency Compatibility 60 Hz
Output Voltage Regulation (Battery
Mode)
Output Receptacles (6) 5-15R
UPS Output Receptacles (Surge
Suppression Only)
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) PWM sine wave
INPUT
Rated input current (Maximum Load) 12A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P; Right-Angled
UPS Input Cord Length (ft.) 6
UPS Input Cord Length (m) 1.8
Recommended Electrical Service 15A 120V
110V; 115V; 120V
+/- 5%
3 UPS outlets, 3 surge-only outlets
Input Phase Single-Phase
BATTERY
Full Load Runtime (min.) 2.2 min. (450w)
Page 3
Half Load Runtime (min.) 8.3 min. (225w)
DC System Voltage (VDC) 12
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Battery Access Battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
Undervoltage Correction Input voltages between 89 and 104 are boosted by 14%
USER INTERFACE, ALERTS & CONTROLS
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation
Audible Alarm Audible alarm indicates power-failure and low-battery conditions
LED Indicators 4 LEDs indicate line power, battery power, overload and battery low/replace status
Less than 4.5 hours from 10% to 90%
RBC51
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate
low-battery status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 480
UPS AC Suppression Response
Time
UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Installation Form Factors Supported
with Included Accessories
Installation Form Factors Supported
with Optional Accessories
Primary Form Factor Tower
UPS Power Module Dimensions
(hwd, in.)
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Weight (lbs.) 20
UPS Power Module Weight (kg) 9.1
Instantaneous
Tower
Wallmount(
10.8 x 5.2 x 7.5
27.3 x 13.3 x 19
UPSWM
- tower mounting kit)
Page 4
UPS Shipping Dimensions (hwd / in.) 14 x 8.5 x 10.5
UPS Shipping Dimensions (hwd /
cm)
Shipping Weight (lbs.) 22
Shipping Weight (kg) 10
UPS Housing Material PVC
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 47.3
Battery Mode BTU / Hr. (Full Load) 431.5
AC Mode Efficiency Rating (100%
Load)
COMMUNICATIONS
Communications Interface USB (HID enabled)
PowerAlert Software Free download from www.tripplite.com
35.6 x 21.6 x 26.7
97%
Communications Cable USB interface cable included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer Time 2-4 milliseconds
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features Hot swappable batteries
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
CERTIFICATIONS
UPS Certifications
89
139
Cold-start operation supported
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B
(EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant
WARRANTY
Product Warranty Period (U.S. &
Canada)
Product Warranty Period (Latin
America)
Product Warranty Period
(International)
Product Warranty Period (Mexico) 3-year limited warranty
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
3-year limited warranty
3-year limited warranty
2-year limited warranty
$200,000
Ultimate Lifetime Insurance
