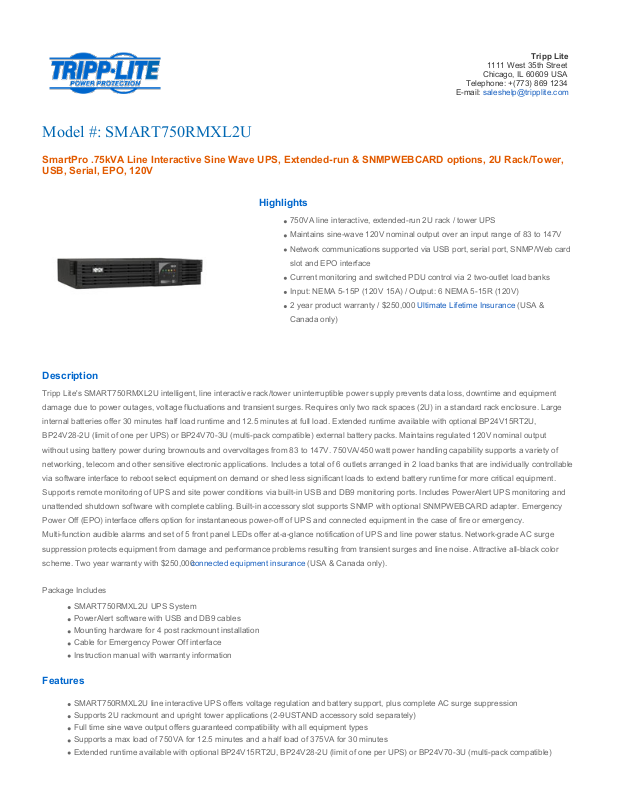

Model #: SMART750RMXL2U

SmartPro .75kVA Line Interactive Sine Wave UPS, Extended-run & SNMPWEBCARD options, 2U Rack/Tower, USB, Serial, EPO, 120V

Highlights

750VA line interactive, extended-run 2U rack / tower UPS

Maintains sine-wave 120V nominal output over an input range of 83 to 147V

Network communications supported via USB port, serial port, SNMP/Web card

slot and EPO interface

Current monitoring and switched PDU control via 2 two-outlet load banks

Input: NEMA 5-15P (120V 15A) / Output: 6 NEMA 5-15R (120V)

2 year product warranty / $250,000 Ultimate Lifetime Insurance (USA &

Canada only)

Description

Tripp Lite's SMART750RMXL2U intelligent, line interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment

damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure. Large

internal batteries offer 30 minutes half load runtime and 12.5 minutes at full load. Extended runtime available with optional BP24V15RT2U,

BP24V28-2U (limit of one per UPS) or BP24V70-3U (multi-pack compatible) external battery packs. Maintains regulated 120V nominal output

without using battery power during brownouts and overvoltages from 83 to 147V. 750VA/450 watt power handling capability supports a variety of

networking, telecom and other sensitive electronic applications. Includes a total of 6 outlets arranged in 2 load banks that are individually controllable

via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment.

Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and

unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency

Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency.

Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge

suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color

scheme. Two year warranty with $250,000 connected equipment insurance (USA & Canada only).

Package Includes

SMART750RMXL2U UPS System PowerAlert software with USB and DB9 cables Mounting hardware for 4 post rackmount installation Cable for Emergency Power Off interface Instruction manual with warranty information

Features

SMART750RMXL2U line interactive UPS offers voltage regulation and battery support, plus complete AC surge suppression Supports 2U rackmount and upright tower applications (2-9USTAND accessory sold separately) Full time sine wave output offers guaranteed compatibility with all equipment types Supports a max load of 750VA for 12.5 minutes and a half load of 375VA for 30 minutes Extended runtime available with optional BP24V15RT2U, BP24V28-2U (limit of one per UPS) or BP24V70-3U (multi-pack compatible)

Page 2

external battery packs Maintains regulated 120V nominal output 83 to 147V 750VA/450 watt power handling capability supports a variety of sensitive electronic loads Includes 6 UPS supported outlets arranged in 2 individually controllable load banks Built in USB and DB9 serial ports support remote monitoring of UPS and site power conditions Built in accessory slot supports SNMP with optional SNMPWEBCARD adapter Emergency Power Off (EPO) interface with cable Multi-function audible alarms and set of 5 front panel LEDs Network-grade AC surge suppression Attractive all-black color scheme UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary Two year warranty with $250,000 connected equipment insurance (USA & Canada only) Mounting hardware included for 4 post rackmount enclosures, 2 post telecom rack compatible with separate purchase 2POSTRMKITWM, compatible with upright tower installation with included hardware

Specifications

OUTPUT

Output Volt Amp Capacity (VA)

750

Output Watt Capacity (watts)

450

Output power factor 0.6

Nominal Output Voltage(s) Supported

120V

Frequency compatibility 60 Hz

Output voltage regulation (line mode)

-21%, +8%

Output voltage regulation (Battery mode)

+/- 5%

Built-in UPS output receptacles

6 5-15R outlet(s)

Built-in controllable switched load banks

Two switchable two-outlet 5-15R load banks

Basic PDU options PDU1215 (1U / 13 5-15R outlets); PDUNV (1U / 2 C19, 12 C13 outlets); PDU1415 (0U / 14 5-15R outlets);

PDUV15 (0U / 12 5-15R outlets)

Metered PDU options PDUMH15 (1U / 13 5-15R outlets); PDUMH15AT (1U / 8 5-15R outlets)*; PDUMV15 (0U / 16 5-15R outlets)

Switched PDU options PDUMH15ATNET (1U / 8 5-15R outlets)*; PDUMV15NET (0U / 16 5-15R outlets)

External PDU redundancy options

*Auto Transfer Switch features utilizing the secondary PDU input cord are compatible with Smart Online UPS models only

Output AC waveform (AC mode)

Sine wave

Output AC waveform (battery mode)

Pure Sine wave

INPUT

Rated input current (at maximum load)

6.8A

Nominal Input Voltage(s) Supported

120V AC

Page 3

UPS input connection type 5-15P

Input circuit breaker 15A

UPS Input cord length (ft.) 10 ft / 3m

Recommended Electrical Service

15A 120V

Input cord length (ft.) 10

Input cord length (m) 3

BATTERY

Full load runtime (minutes) 12.5 min. (450w)

Half load runtime (minutes)

30 min. (225w)

Expandable battery runtime

Extended runtime supported via optional external battery packs

External battery pack compatibility

BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)

DC system voltage (VDC) 24

Battery recharge rate (included batteries)

Less than 4 hours from 10% to 90%

Replacement battery cartridge (internal UPS battery replacement)

RBC92-2U

Battery Access Front panel battery access door

Battery replacement description

Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage regulation description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147

Overvoltage correction Input voltages between 128 and 147 are reduced by 12%

Undervoltage correction Input voltages between 83 and 107 are boosted by 14%

LEDS ALARMS & SWITCHES

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Alarms Audible alarm indicates power-failure, overload and low-battery conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate

low-battery status

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation

SURGE / NOISE SUPPRESSION

UPS AC suppression joule rating

480 joules

EMI / RFI AC noise suppression

Yes

AC suppression joule rating

480

Page 4

AC suppression response time

Instantaneous

PHYSICAL

Installation form factors supported with included accessories

4 post 19 inch rackmount (mounting rail kit included)

Installation form factors supported with optional accessories

2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)

Primary form factor Rackmount

UPS / Power Module dimensions in primary form factor (height x width x depth / inches)

3.5 x 17.5 x 14.2

UPS / Power Module dimensions in primary form factor (height x width x depth / cm)

8.9 x 44.4 x 36.2

Installed whole system total rack space height (rack spaces)

Secondary form factor Tower (requires 2-9USTAND)

Installed whole system dimensions in secondary form factor (height x width x depth / inches)

17.5 x 3.5 x 14.2

UPS dimensions in secondary form factor (height x width x depth / cm)

44.4 x 8.9 x 36.2

UPS / Power Module weight (lbs)

UPS / Power Module weight (kg)

15.9

UPS Shipping dimensions (height x width x depth / inches)

9.2 x 20 x 24

UPS Shipping dimensions (height x width x depth / cm)

23.5 x 50.8 x 61

Shipping weight (lbs) 46

Shipping weight (kg) 20.9

UPS housing material Steel

Cooling method Fan

ENVIRONMENTAL

Operating Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

Page 5

AC mode BTU / hr. (full load)

47.3

Battery mode BTU / hr. (full load)

170

COMMUNICATIONS

Communications interface USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network monitoring port description

Supports detailed monitoring of UPS and site power conditions

PowerAlert software Included

Communications cable USB and DB9 cabling included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time 2-4 milliseconds

Low voltage transfer to battery power (setpoint)

High voltage transfer to battery power (setpoint)

147

SPECIAL FEATURES

Grounding lug Back panel grounding lug

Cold Start (startup in battery mode during a power failure)

Cold-start operation supported

High availability UPS features

Hot swappable batteries

Green & high efficiency features

Individually controllable load banks

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B

(EMI)

WARRANTY

Product Warranty Period (U.S., Canada & Puerto Rico)

2-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$250,000 Ultimate Lifetime Insurance
