Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

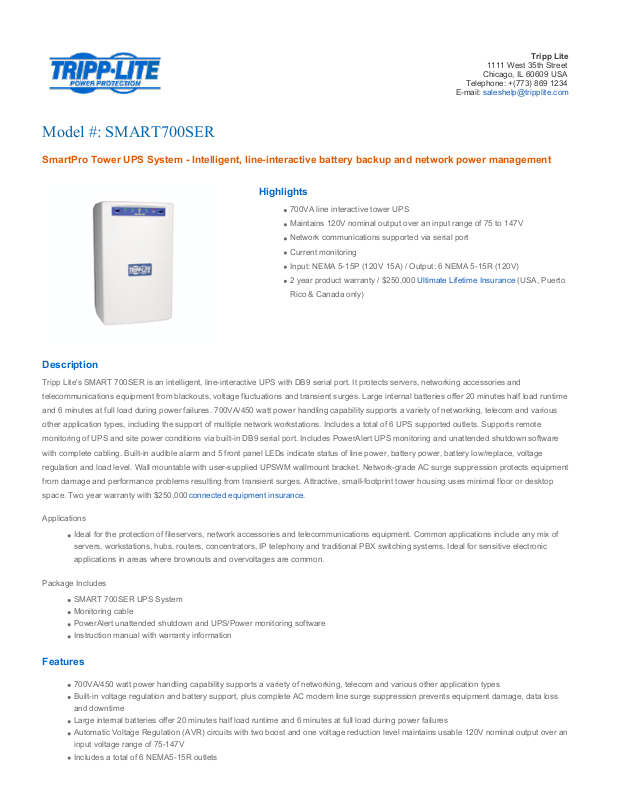

Model #: SMART700SER

SmartPro Tower UPS System - Intelligent, line-interactive battery backup and network power management

Highlights

700VA line interactive tower UPS

Maintains 120V nominal output over an input range of 75 to 147V

Network communications supported via serial port

Current monitoring

Input: NEMA 5-15P (120V 15A) / Output: 6 NEMA 5-15R (120V)

2 year product warranty / $250,000 Ultimate Lifetime Insurance (USA, Puerto

Rico & Canada only)

Description

Tripp Lite's SMART 700SER is an intelligent, line-interactive UPS with DB9 serial port. It protects servers, networking accessories and

telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime

and 6 minutes at full load during power failures. 700VA/450 watt power handling capability supports a variety of networking, telecom and various

other application types, including the support of multiple network workstations. Includes a total of 6 UPS supported outlets. Supports remote

monitoring of UPS and site power conditions via built-in DB9 serial port. Includes PowerAlert UPS monitoring and unattended shutdown software

with complete cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage

regulation and load level. Wall mountable with user-supplied UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment

from damage and performance problems resulting from transient surges. Attractive, small-footprint tower housing uses minimal floor or desktop

space. Two year warranty with $250,000 connected equipment insurance.

Applications

Ideal for the protection of fileservers, network accessories and telecommunications equipment. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems. Ideal for sensitive electronic applications in areas where brownouts and overvoltages are common.

Package Includes

SMART 700SER UPS System Monitoring cable PowerAlert unattended shutdown and UPS/Power monitoring software Instruction manual with warranty information

Features

700VA/450 watt power handling capability supports a variety of networking, telecom and various other application types Built-in voltage regulation and battery support, plus complete AC modem line surge suppression prevents equipment damage, data loss and downtime Large internal batteries offer 20 minutes half load runtime and 6 minutes at full load during power failures Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 120V nominal output over an input voltage range of 75-147V Includes a total of 6 NEMA5-15R outlets

Page 2

PowerAlert Software and DB9 serial communications port enable remote monitoring of UPS status and site power conditions; safe unattended shutdown without data loss during extended power failures; messaging of UPS and line power status: on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity Communications ports support timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment PowerAlert UPS monitoring and unattended shutdown software with complete cabling included Battery replacement door Notification of system status via 5 LEDs and multi-function audible alarms Wall mountable with user-supplied UPSWM wallmount bracket Cold start capability enables UPS turn-on in battery mode during blackout conditions 2 year manufacturer's product warranty $250,000 Ultimate Lifetime Insurance

Specifications

SYSTEM OVERVIEW

Voltage compatibility

120V AC

Frequency compatibility

60Hz

OUTPUT

Output VA 700

Output watts 450

Output nominal voltage

120V AC

Output voltage regulation

LINE MODE: Sine wave line voltage 120V (-18% / +8%), BATTERY MODE: PWM sine wave output 120V +/-5%

Output frequency regulation

LINE MODE: Passes line frequency of 60Hz +/-10% BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz

Outlet quantity / type

6 NEMA 5-15R

Overload protection

Via 10A input circuit breaker

INPUT

Maximum input amps

4.33A / 520 watts

Input connection type

NEMA 5-15P

Input cord length 7 ft., 16 gauge

Recommended Electrical Service

15A 120V

BATTERY

Full load runtime 6 minutes (700VA)

Half load runtime 20 minutes (350VA)

DC system voltage 12 VDC

Typical battery lifespan

3-6 years, depending on usage

Battery recharge rate

2-4 hours to 90%

Replacement Battery Cartridge

RBC52 (quantity 2)

VOLTAGE REGULATION

Page 3

Voltage regulation description

Automatic Voltage Regulation (AVR) circuits maintain clean, regulated computer-grade 120V nominal output, without using battery power, during brownouts to 75V and overvoltages to 147V

Overvoltage correction

Input voltages between 128 and 147VAC are reduced by 12%

Direct pass through

Input voltages between 108 and 127VAC are passed on to connected equipment unchanged

Brownout correction

Input voltages between 93 and 107VAC are boosted by 14%

Severe brownout correction

Input voltages between 75 and 92VAC are boosted by 30%

LEDS ALARMS & SWITCHES

Front panel LEDs Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE

REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information

Alarms Audible alarm with 15 second delay sounds to indicate loss of utility power. Alarm can be silenced by pressing front panel

alarm cancel button. Once silenced, alarm will re-sound when approximately 2 minutes runtime remain.

Switches Includes 2 front panel switches - one main on/off power switch and one dual function "alarm cancel" / "self test" button

SURGE / NOISE SUPPRESSION

AC surge suppression

480 joules

AC suppression response time

Instantaneous

EMI / RFI AC noise suppression

Yes

PHYSICAL

Shipping weight (lbs)

23.5

Shipping weight (kg)

10.7

Shipping Dimensions (HWD/in)

15 x 11.25 x 10.75

Shipping Dimensions (HWD/cm)

38.1 x 28.6 x 27.3

Unit weight (lbs) 21

Unit weight (kg) 9.5

Unit Dimensions (HWD/in)

11.75 x 7.25 x 7.75

Unit Dimensions (HWD/cm)

29.8 x 18.4 x 19.7

Material of construction

Polycarbonate

Form factors supported

Tower

Cooling method Convection

Battery Access Battery access door allows user replacement of UPS batteries

ENVIRONMENTAL

Relative Humidity 0 to 95%, non-condensing

Storage Temperature

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Operating Temperature

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Page 4

Line mode BTU/hr. (Max.)

39.2

Battery mode BTU/hr. (Max.)

133.0

COMMUNICATIONS

Network monitoring port

Built-in DB9 port supports on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment. Supports reboot of all connected devices at once via software interface. Compatible with Tripp Lite's PowerAlert software.

Software and cabling included

Includes PowerAlert UPS monitoring and auto-shutdown software and cabling

LINE / BATTERY TRANSFER

Transfer time from line power to battery mode

2-4 milliseconds

Low voltage transfer to battery power

Switches to battery power as line voltage decreases to 75 volts or less. Resets back to line power mode as line voltage increases to 79V or higher.

High voltage transfer to battery power

Switches to battery power as line voltage increases to 147 volts or higher. Resets to line power mode as line voltage decreases to 143V or less.

SPECIAL FEATURES

Cold Start Yes, inverter can be "cold started" to enable temporary AC output during a power failure

Appearance Attractive gray tower UPS

CERTIFICATIONS

Certifications Tested to UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico)

WARRANTY

Product Warranty Period

2 year product warranty

Connected Equipment Coverage

$250,000 connected equipment insurance (USA / Canada only)

Optional Coverage 3-5 year warranties, plus next day and on-site warranty coverage available for select opportunities. Contact Tripp Lite for

additional information.
