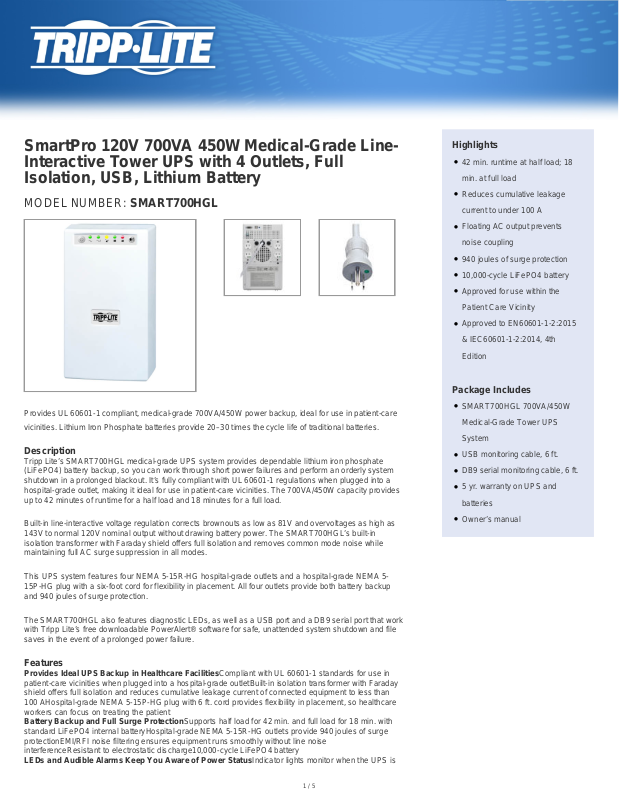

SmartPro 120V 700VA 450W Medical-Grade LineInteractive Tower UPS with 4 Outlets, Full
Isolation, USB, Lithium Battery
MODEL NUMBER: SMART700HGL
Provides UL 60601-1 compliant, medical-grade 700VA/450W power backup, ideal for use in patient-care
vicinities. Lithium Iron Phosphate batteries provide 20–30 times the cycle life of traditional batteries.
Description
Tripp Lite’s SMART700HGL medical-grade UPS system provides dependable lithium iron phosphate
(LiFePO4) battery backup, so you can work through short power failures and perform an orderly system
shutdown in a prolonged blackout. It’s fully compliant with UL 60601-1 regulations when plugged into a
hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides
up to 42 minutes of runtime for a half load and 18 minutes for a full load.
Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as
143V to normal 120V nominal output without drawing battery power. The SMART700HGL’s built-in
isolation transformer with Faraday shield offers full isolation and removes common mode noise while
maintaining full AC surge suppression in all modes.
Highlights
●
42 min. runtime at half load; 18
min. at full load
●
Reduces cumulative leakage
current to under 100 A
●
Floating AC output prevents
noise coupling
●
940 joules of surge protection
●
10,000-cycle LiFePO4 battery
●
Approved for use within the
Patient Care Vicinity
●
Approved to EN60601-1-2:2015
& IEC60601-1-2:2014, 4th
Edition
Package Includes
●
SMART700HGL 700VA/450W
Medical-Grade Tower UPS
System
●
USB monitoring cable, 6 ft.
●
DB9 serial monitoring cable, 6 ft.
●
5 yr. warranty on UPS and
batteries
●
Owner’s manual
This UPS system features four NEMA 5-15R-HG hospital-grade outlets and a hospital-grade NEMA 515P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both battery backup
and 940 joules of surge protection.
The SMART700HGL also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work
with Tripp Lite’s free downloadable PowerAlert® software for safe, unattended system shutdown and file
saves in the event of a prolonged power failure.
Features
Provides Ideal UPS Backup in Healthcare FacilitiesCompliant with UL 60601-1 standards for use in
patient-care vicinities when plugged into a hospital-grade outletBuilt-in isolation transformer with Faraday
shield offers full isolation and reduces cumulative leakage current of connected equipment to less than
100 AHospital-grade NEMA 5-15P-HG plug with 6 ft. cord provides flexibility in placement, so healthcare
workers can focus on treating the patient
Battery Backup and Full Surge ProtectionSupports half load for 42 min. and full load for 18 min. with
standard LiFePO4 internal batteryHospital-grade NEMA 5-15R-HG outlets provide 940 joules of surge
protectionEMI/RFI noise filtering ensures equipment runs smoothly without line noise
interferenceResistant to electrostatic discharge10,000-cycle LiFePO4 battery
LEDs and Audible Alarms Keep You Aware of Power StatusIndicator lights monitor when the UPS is
1 / 5
Page 2
on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load
level and low-battery warningAudible alarms alert you to power failure, overload and low battery
conditionsMute/quiet mode ensures “alarm fatigue” compliance
Saves Your Files, Even When You’re AwayWorks with Tripp Lite PowerAlert software (available as a
free download) to enable safe, unattended system shutdown and files saves during prolonged power
failuresConnects to your computer via DB9 or USB port
Specifications
OVERVIEW
UPC Code 037332192219
UPS Type Line-Interactive
INPUT
Rated input current (Maximum Load) 5.5A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P-HG
Input Circuit Breakers 10A
UPS Input Cord Length (ft.) 6
UPS Input Cord Length (m) 1.8
Recommended Electrical Service 15A 120V
Input Phase Single-Phase
Input Cord Length (ft.) 6
Input Cord Length (m) 1.83
OUTPUT
Output Volt Amp Capacity (VA) 700
Output Watt Capacity (Watts) 450
Power Factor 0.6
Frequency Compatibility 60 Hz
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation (Battery
Mode)
Output Receptacle Details Hospital grade output receptacles
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery
Mode)
Nominal Output Voltage(s)
Supported
-18%, +8%
115V (+/- 5%)
PWM sine wave
115V; 120V
2 / 5
Page 3
Output Receptacles (4) 5-15R
Individually Controllable Load Banks No
BATTERY
Full Load Runtime (min.) 18 min. (450w)
Half Load Runtime (min.) 42 min. (225w)
DC System Voltage (VDC) 36
Battery Recharge Rate (Included
Batteries)
Less than 4 hours from 10% to 90%
Battery Access Battery access door
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143
Overvoltage Correction Input voltages between 126 and 143 are reduced by 9%
Undervoltage Correction Input voltages between 96 and 106 are boosted by 10%
Severe Undervoltage Correction Input voltages between 81 and 95 are boosted by 21%
USER INTERFACE, ALERTS & CONTROLS
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-
battery status
Audible Alarm Audible alarm indicates power-failure, overload and low-battery conditions
LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 940
UPS AC Suppression Response
Time
Instantaneous
EMI / RFI AC Noise Suppression Yes
AC Suppression Joule Rating 940
AC Suppression Response Time Instantaneous
ISOLATION
Output Isolation Transformer Hospital grade load isolation transformer
Leakage Current Equal to less than 100 microamps
PHYSICAL
Cooling Method Fan
3 / 5
Page 4
Installation Form Factors Supported
with Included Accessories
Tower
Installation Form Factors Supported
with Optional Accessories
Wallmount ( <a class="productLink" href="// Wall-Mount-Bracket-Installation-Accessories-
for-UPS-Systems~UPSWM">UPSWM</a> - tower mounting kit)
Primary Form Factor Tower
Primary UPS Depth (mm) 229
Primary UPS Height (mm) 325
Primary UPS Width (mm) 191
Shipping Dimensions (hwd / cm) 43.18 x 28.45 x 33.02
Shipping Dimensions (hwd / in.) 17.00 x 11.20 x 13.00
Shipping Weight (kg) 16.07
Shipping Weight (lbs.) 35.43
UPS Housing Material PVC
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Dimensions
(hwd, in.)
32.51 x 19.05 x 22.86
12.8 x 7.5 x 9
UPS Power Module Weight (kg) 15.30
UPS Power Module Weight (lbs.) 33.73
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 97.7
Battery Mode BTU / Hr. (Full Load) 189.1
AC Mode Efficiency Rating (100%
Load)
94%
COMMUNICATIONS
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software For local monitoring via the UPS’s built-in communication ports , download PowerAlert Local software at
http:// poweralert
Communications Cable USB and DB9 serial cabling included
Communications Interface USB; DB9 Serial
LINE / BATTERY TRANSFER
Transfer Time 2-4 milliseconds
Low Voltage Transfer to Battery
Power (Setpoint)
81
4 / 5
Page 5
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Grounding Lug Grounding lug
143
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features Hot swappable batteries
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
STANDARDS & COMPLIANCE
UPS Certifications Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada);
WARRANTY
Product Warranty Period
(Worldwide)
Cold-start operation supported
Tested to UL1778 (USA); Tested to UL60601-1 (medical grade)
5-year limited warranty
