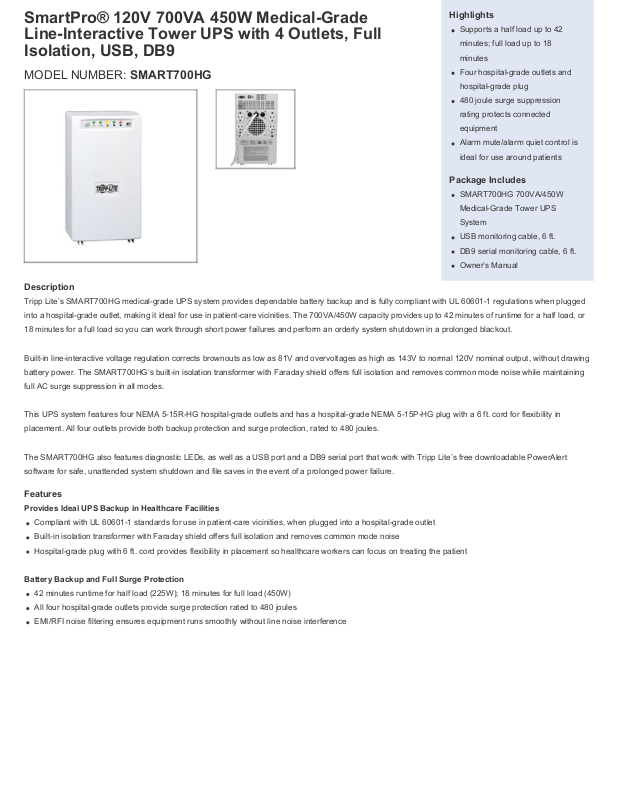

Tripp-Lite SMART700HG Specifications

SmartPro® 120V 700VA 450W Medical-Grade

Highlights

Supports a half load up to 42

minutes; full load up to 18

minutes

Four hospital-grade outlets and

hospital-grade plug

480 joule surge suppression

rating protects connected

equipment

Alarm mute/alarm quiet control is

ideal for use around patients

Package Includes

SMART700HG 700VA/450W

Medical-Grade Tower UPS

System

USB monitoring cable, 6 ft.

DB9 serial monitoring cable, 6 ft.

Owner’s Manual

Line-Interactive Tower UPS with 4 Outlets, Full
Isolation, USB, DB9

MODEL NUMBER: SMART700HG

Description

Tripp Lite’s SMART700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged

into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load, or

18 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.

Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing

battery power. The SMART700HG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining

full AC surge suppression in all modes.

This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6 ft. cord for flexibility in

placement. All four outlets provide both backup protection and surge protection, rated to 480 joules.

The SMART700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite’s free downloadable PowerAlert

software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.

Features

Provides Ideal UPS Backup in Healthcare Facilities

Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet

Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise

Hospital-grade plug with 6 ft. cord provides flexibility in placement so healthcare workers can focus on treating the patient

Battery Backup and Full Surge Protection

42 minutes runtime for half load (225W); 18 minutes for full load (450W)

All four hospital-grade outlets provide surge protection rated to 480 joules

EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference

Resistant to electrostatic discharge

LEDs and Audible Alarms Keep You Aware of Power Status

Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery

mode, relative load level and low-battery warning

Audible alarms alert you to power failure, overload and low battery conditions; the alarm’s mute/quiet mode ensures patients are not disturbed

Saves Your Files, Even When You’re Away

Works with Tripp Lite PowerAlert software (available as a free download) to enable safe, unattended system shutdown and files saves during prolonged

power failures

Connects to your computer via either the DB9 port or USB port

Specifications

OUTPUT

Output Volt Amp Capacity (VA) 700

Output Watt Capacity (Watts) 450

Power Factor 0.6

Nominal Output Voltage(s)
Supported

Frequency Compatibility 60 Hz

Output Voltage Regulation (Line
Mode)

Output Voltage Regulation (Battery
Mode)

Output Receptacles (4) 5-15R

Output Receptacle Details Hospital grade output receptacles

Output AC Waveform (AC Mode) Sine wave

Output AC Waveform (Battery Mode) PWM sine wave

INPUT

Rated input current (Maximum Load) 5.5A

Nominal Input Voltage(s) Supported 120V AC

UPS Input Connection Type 5-15P-HG

Input Circuit Breakers 10A

UPS Input Cord Length (ft.) 6

UPS Input Cord Length (m) 1.8

115V; 120V

-18%, +8%

115V (+/- 5%)

Recommended Electrical Service 15A 120V

Input Cord Length (ft.) 6

Input Cord Length (m) 1.8

Input Phase Single-Phase

BATTERY

Full Load Runtime (min.) 18 min. (450w)

Half Load Runtime (min.) 42 min. (225w)

DC System Voltage (VDC) 36

Battery Recharge Rate (Included
Batteries)

Internal UPS Replacement Battery
Cartridge

Battery Access Battery access door

Battery Replacement Description Hot-swappable, user replaceable batteries

Expandable Runtime No

VOLTAGE REGULATION

Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143

Overvoltage Correction Input voltages between 126 and 143 are reduced by 9%

Undervoltage Correction Input voltages between 96 and 106 are boosted by 10%

Severe Undervoltage Correction Input voltages between 81 and 95 are boosted by 21%

USER INTERFACE, ALERTS & CONTROLS

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation

Alarm Cancel Operation

Audible Alarm Audible alarm indicates power-failure, overload and low-battery conditions

Less than 4 hours from 10% to 90%

RBC53

Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate
low-battery status

LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

SURGE / NOISE SUPPRESSION

UPS AC Suppression Joule Rating 480

UPS AC Suppression Response
Time

EMI / RFI AC Noise Suppression Yes

AC Suppression Joule Rating 480

AC Suppression Response Time Instantaneous

ISOLATION

Output Isolation Transformer Hospital grade load isolation transformer

Instantaneous

Leakage Current Equal to 100 microamps

PHYSICAL

Installation Form Factors Supported
with Optional Accessories

Primary Form Factor Tower

UPS Power Module Dimensions
(hwd, in.)

UPS Power Module Dimensions
(hwd, cm)

UPS Power Module Weight (lbs.) 44.2

UPS Power Module Weight (kg) 20.1

UPS Shipping Dimensions (hwd / in.) 18.2 x 11.8 x 13.5

UPS Shipping Dimensions (hwd /
cm)

Shipping Weight (lbs.) 49

Shipping Weight (kg) 22.2

Cooling Method Fan

UPS Housing Material PVC

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Wallmount(

12.8 x 7.5 x 9

32.4 x 19 x 22.9

46.4 x 29.8 x 34.3

UPSWM

- tower mounting kit)

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load) 97.7

Battery Mode BTU / Hr. (Full Load) 189.1

AC Mode Efficiency Rating (100%
Load)

COMMUNICATIONS

Communications Interface USB; DB9 Serial

Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions

PowerAlert Software Included

Communications Cable USB and DB9 serial cabling included

LINE / BATTERY TRANSFER

Transfer Time 2-4 milliseconds

Low Voltage Transfer to Battery
Power (Setpoint)

94%

81

High Voltage Transfer to Battery
Power (Setpoint)

SPECIAL FEATURES

Grounding Lug Grounding lug

143

Cold Start (Startup in Battery Mode
During a Power Failure)

High Availability UPS Features Hot swappable batteries

Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS

CERTIFICATIONS

UPS Certifications

WARRANTY

Product Warranty Period (Worldwide) 2-year limited warranty

Cold-start operation supported

Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada);
Tested to UL1778 (USA); Tested to UL60601-1 (medical grade)
