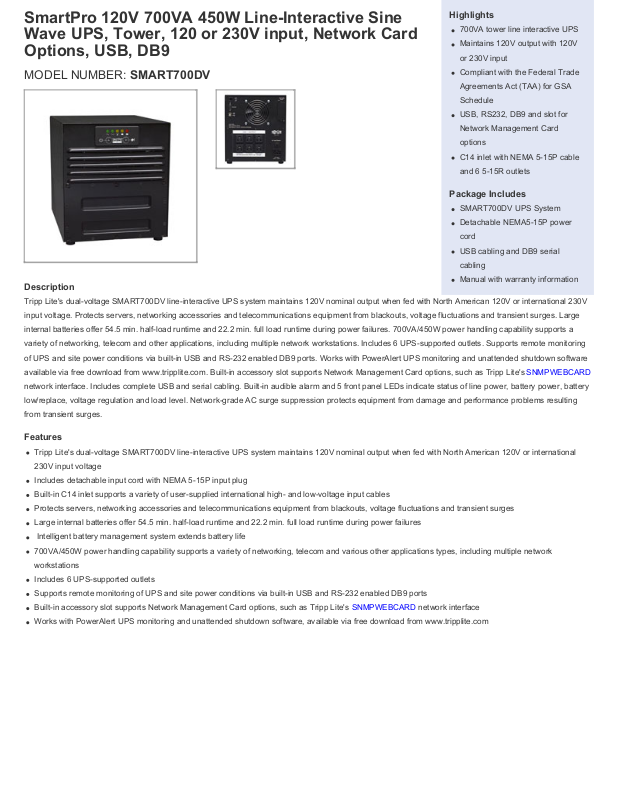

SmartPro 120V 700VA 450W Line-Interactive Sine
Highlights
700VA tower line interactive UPS
Maintains 120V output with 120V
or 230V input
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Schedule
USB, RS232, DB9 and slot for
Network Management Card
options
C14 inlet with NEMA 5-15P cable
and 6 5-15R outlets
Package Includes
SMART700DV UPS System
Detachable NEMA5-15P power
cord
USB cabling and DB9 serial
cabling
Manual with warranty information
Wave UPS, Tower, 120 or 230V input, Network Card
Options, USB, DB9
MODEL NUMBER: SMART700DV
Description
Tripp Lite's dual-voltage SMART700DV line-interactive UPS system maintains 120V nominal output when fed with North American 120V or international 230V
input voltage. Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large
internal batteries offer 54.5 min. half-load runtime and 22.2 min. full load runtime during power failures. 700VA/450W power handling capability supports a
variety of networking, telecom and other applications, including multiple network workstations. Includes 6 UPS-supported outlets. Supports remote monitoring
of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports. Works with PowerAlert UPS monitoring and unattended shutdown software
available via free download from www.tripplite.com. Built-in accessory slot supports Network Management Card options, such as Tripp Lite's SNMPWEBCARD
network interface. Includes complete USB and serial cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery
low/replace, voltage regulation and load level. Network-grade AC surge suppression protects equipment from damage and performance problems resulting
from transient surges.
Features
Tripp Lite's dual-voltage SMART700DV line-interactive UPS system maintains 120V nominal output when fed with North American 120V or international
230V input voltage
Includes detachable input cord with NEMA 5-15P input plug
Built-in C14 inlet supports a variety of user-supplied international high- and low-voltage input cables
Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges
Large internal batteries offer 54.5 min. half-load runtime and 22.2 min. full load runtime during power failures
Intelligent battery management system extends battery life
700VA/450W power handling capability supports a variety of networking, telecom and various other applications types, including multiple network
workstations
Includes 6 UPS-supported outlets
Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports
Built-in accessory slot supports Network Management Card options, such as Tripp Lite's SNMPWEBCARD network interface
Works with PowerAlert UPS monitoring and unattended shutdown software, available via free download from www.tripplite.com
Page 2
Includes complete USB and serial cabling
Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level
Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges
Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
Specifications
OUTPUT
Output Volt Amp Capacity (VA) 700
Output Watt Capacity (Watts) 450
Nominal Output Voltage(s)
Supported
Nominal Voltage Details 120v nominal output in battery mode
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Automatic frequency selection
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation (Battery
Mode)
Output Receptacles (6) 5-15R
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) Pure Sine wave
INPUT
Rated input current (Maximum Load) 4.8A (120V), 2.6A (230V)
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P; C14 inlet
UPS Input Connection Description Detachable 120v 5-15P input cable included
Input Circuit Breakers 6A
110V; 115V; 120V
-21%, +8%
+/- 5%
UPS Input Cord Length (ft.) 6
UPS Input Cord Length (m) 1.8
Input Phase Single-Phase
BATTERY
Full Load Runtime (min.) 22.2 min. (450w)
Half Load Runtime (min.) 54.5 min. (225w)
DC System Voltage (VDC) 24
Page 3
Battery Recharge Rate (Included
Batteries)
Less than 4 hours from 10% to 90% (typical, full load discharge)
Internal UPS Replacement Battery
Cartridge
Battery Access Battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description
Overvoltage Correction A voltage reduction of 12% applies when input voltage is between 125 and 147 (120V), 240 to 282 (230V)
Undervoltage Correction A voltage boost of 14% applies when input voltage is between 83 and 104 (120V), 159V and 199V (230V)
USER INTERFACE, ALERTS & CONTROLS
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation
Audible Alarm Audible alarm indicates power-failure and low-battery conditions
LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
RBC54
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 (120V),
159 to 282 (230V)
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate
low-battery status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 570
UPS AC Suppression Response
Time
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Primary Form Factor Tower
UPS Power Module Dimensions
(hwd, in.)
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Weight (lbs.) 62
UPS Power Module Weight (kg) 28.1
UPS Shipping Dimensions (hwd / in.) 15.2 x 17.8 x 14.2
UPS Shipping Dimensions (hwd /
cm)
Shipping Weight (lbs.) 65
Shipping Weight (kg) 29.5
Instantaneous
10.2 x 9 x 12.5
26 x 22.9 x 31.8
38.7 x 45.1 x 36.2
Page 4
Cooling Method Fan
UPS Housing Material Steel
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 97.7
Battery Mode BTU / Hr. (Full Load) 313.4
AC Mode Efficiency Rating (100%
Load)
COMMUNICATIONS
Communications Interface USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
LINE / BATTERY TRANSFER
Transfer Time 2-4 milliseconds
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
High Availability UPS Features Hot swappable batteries
CERTIFICATIONS
UPS Certifications CE; Meets FCC Part 15 Category A (EMI); TAA Compliant; Tested to CSA (Canada); Tested to UL1778 (USA)
94%
83 (120v), 159 (230v)
147 (120v), 282 (230v)
WARRANTY
Product Warranty Period (Worldwide) 2-year limited warranty
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
$250,000
Ultimate Lifetime Insurance
