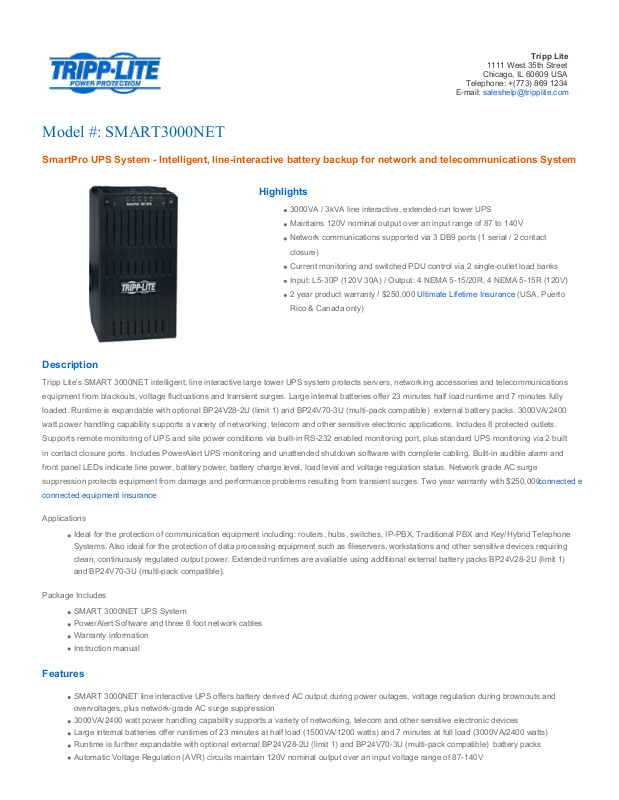

Model #: SMART3000NET

SmartPro UPS System - Intelligent, line-interactive battery backup for network and telecommunications System

Highlights

3000VA / 3kVA line interactive, extended-run tower UPS

Maintains 120V nominal output over an input range of 87 to 140V

Network communications supported via 3 DB9 ports (1 serial / 2 contact

closure)

Current monitoring and switched PDU control via 2 single-outlet load banks

Input: L5-30P (120V 30A) / Output: 4 NEMA 5-15/20R, 4 NEMA 5-15R (120V)

2 year product warranty / $250,000 Ultimate Lifetime Insurance (USA, Puerto

Rico & Canada only)

Description

Tripp Lite's SMART 3000NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications

equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 23 minutes half load runtime and 7 minutes fully

loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U (multi-pack compatible) external battery packs. 3000VA/2400

watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 8 protected outlets.

Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built

in contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible alarm and

front panel LEDs indicate line power, battery power, battery charge level, load level and voltage regulation status. Network grade AC surge

suppression protects equipment from damage and performance problems resulting from transient surges. Two year warranty with $250,000 connected equipment insurance

connected equipment insurance.

Applications

Ideal for the protection of communication equipment including: routers, hubs, switches, IP-PBX, Traditional PBX and Key/Hybrid Telephone Systems. Also ideal for the protection of data processing equipment such as fileservers, workstations and other sensitive devices requiring clean, continuously regulated output power. Extended runtimes are available using additional external battery packs BP24V28-2U (limit 1) and BP24V70-3U (multi-pack compatible).

Package Includes

SMART 3000NET UPS System PowerAlert Software and three 6 foot network cables Warranty information Instruction manual

Features

SMART 3000NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression 3000VA/2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices Large internal batteries offer runtimes of 23 minutes at half load (1500VA/1200 watts) and 7 minutes at full load (3000VA/2400 watts) Runtime is further expandable with optional external BP24V28-2U (limit 1) and BP24V70-3U (multi-pack compatible) battery packs Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V

Page 2

Includes 8 fully protected outlets (4 NEMA 5-15R & 4 NEMA 5-15/20R) with 2 single outlet load banks that can be individually powered off and back on again via software interface PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification, event logging and running user defined script commands Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity Supports activate self-test and UPS output power control for delayed or immediate reboot of connected equipment Diagnostic LEDs (indicate 17 performance conditions) UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Emissions) $250,000 Ultimate Lifetime Insurance (USA & Canada Only)

Specifications

SYSTEM OVERVIEW

Voltage compatibility

120V AC

Frequency compatibility

60 Hz

OUTPUT

Output VA 3000

Output watts 2400

Output nominal voltage

120V AC

Output voltage regulation

LINE MODE: Sine wave line voltage 120V (-13% / +5%) BATTERY MODE: PWM sine wave output 120V +/-5%

Output frequency regulation

LINE MODE: Passes line frequency of 60Hz +/-10% BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz

Outlet quantity / type

4 NEMA 5-15R and 4 NEMA 5-15/20R

Customized load management receptacles

"2 individually controllable outlets support load shedding and remote reboot on demand of locked network devices. Controllable via PowerAlert software to switch off optional loads, like monitors, to increase available runtime for servers and other critical devices. "

Overload protection

Yes, via 35A input breaker and two 15A output load breakers

INPUT

Maximum input amps

22A, 2600 watts

Input connection type

NEMA L5-30P

Input cord length 8 ft.

Recommended Electrical Service

30A 120V

BATTERY

Full load runtime 7 minutes (3000VA)

Half load runtime 23 minutes (1500VA)

Expandable battery runtime

Supports extended runtime with optional BP24V28-2U (limit 1) and BP24V70-3U (multi-pack compatible)

DC system voltage

24 V DC

Typical battery lifespan

3-6 years, depending on usage

Page 3

Battery recharge rate

2-4 hours to 90%

VOLTAGE REGULATION

Voltage regulation description

Line interactive UPS offers 2 boost levels of brownout correction and a single level of overvoltage adjustment to maintain usable, computer grade output without consuming battery power.

Overvoltage correction

Input voltages between 127 and 140V AC are reduced by 10%

Direct pass through

Input voltages between 110 and 127V AC are passed through unchanged

Brownout correction

Input voltages between 95 and 105V AC are boosted by 12%

Severe brownout correction

Input voltages between 87 and 94V AC are boosted by 22%

LEDS ALARMS & SWITCHES

Front panel LEDs Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE

REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information

Alarms Audible alarm with 15 second delay sounds to indicate loss of utility power. Alarm can be silenced by pressing front panel

alarm cancel button. Once silenced, alarm will re-sound when approximately 2 minutes runtime remain.

Switches Includes 2 front panel switches — one on/standby power switch and one dual function "alarm cancel" / "self test" button,

plus 1 rear panel system enable switch

SURGE / NOISE SUPPRESSION

AC surge suppression

480 joules

AC suppression response time

Instantaneous

EMI / RFI AC noise suppression

Yes

PHYSICAL

Shipping weight (lbs)

Shipping weight (kg)

43.6

Shipping Dimensions (HWD/in)

22.25 x 12.75 x 16.5

Shipping Dimensions (HWD/cm)

57.2 x 32.4 x 42

Unit weight (lbs) 89

Unit weight (kg) 40.4

Unit Dimensions (HWD/in)

17 x 9 x 12.5

Unit Dimensions (HWD/cm)

43.2 x 22.9 x 31.75

Material of construction

PVC

Form factors supported

Tower

Cooling method Fan

Receptacle Color BLACK

ENVIRONMENTAL

Page 4

Relative Humidity 0 to 95%, non-condensing

Storage Temperature

+5 to +122 degrees Fahrenheit, -15 to +50 degrees Celsius

Operating Temperature

+32 to +104 degrees Fahrenheit, 0 to +40 degrees Celsius

Line mode BTU/hr. (Max.)

209.2

Battery mode BTU/hr. (Max.)

709.6

COMMUNICATIONS

Network monitoring port

Includes 3 built-in DB9 monitoring ports, 1 enabled with RS-232 data communications and 2 with standard contact closure communications. All interfaces support on battery, low battery and power restored messaging. RS-232 enabled port adds data regarding AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Supports individual reboot of selected items connected to load management receptacles and load shedding to increase battery runtime for the most critical loads.

Software and cabling included

Includes PowerAlert UPS monitoring software and complete cabling

LINE / BATTERY TRANSFER

Transfer time from line power to battery mode

2-4 milliseconds

Low voltage transfer to battery power

Switches to battery power as line voltage decreases to 87 volts or less.

High voltage transfer to battery power

Switches to battery power as line voltage increases to 140 volts or higher.

SPECIAL FEATURES

Appearance Black tower UPS

BATTERY PACK ACCESSORY (optional)

Battery Pack Accessory (optional)

BP24V28-2U (limit 1) and BP24V70-3U (multi-pack compatible)

CERTIFICATIONS

Certifications Tested to UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico)

WARRANTY

Product Warranty Period

2 year product warranty

Connected Equipment Coverage

$250,000 connected equipment insurance (USA / Canada only)

Optional Coverage

3-5 year warranties, plus next day and on-site warranty coverage available for select opportunities. Contact Tripp Lite for additional information
