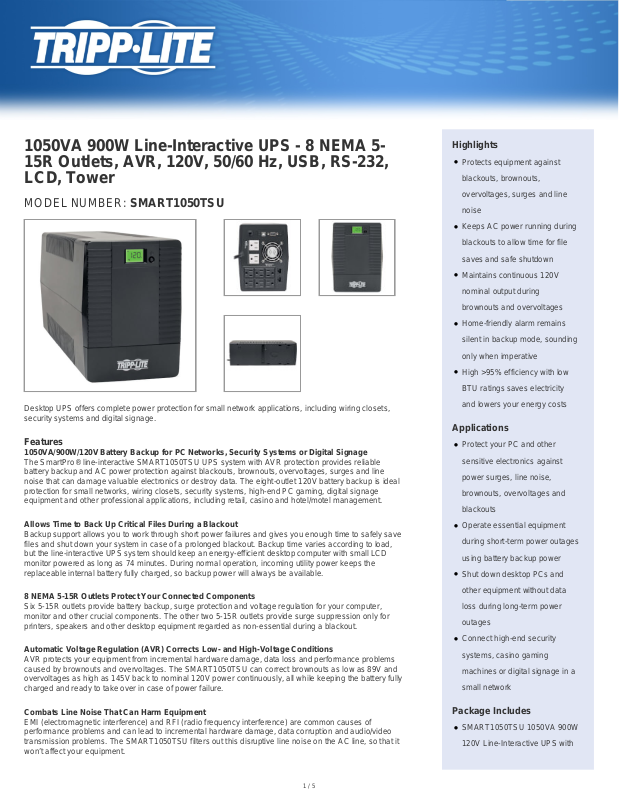

Page 1
1050VA 900W Line-Interactive UPS - 8 NEMA 515R Outlets, AVR, 120V, 50/60 Hz, USB, RS-232,
LCD, Tower
MODEL NUMBER: SMART1050TSU
Desktop UPS offers complete power protection for small network applications, including wiring closets,
security systems and digital signage.
Features
1050VA/900W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
The SmartPro® line-interactive SMART1050TSU UPS system with AVR protection provides reliable
battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line
noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal
protection for small networks, wiring closets, security systems, high-end PC gaming, digital signage
equipment and other professional applications, including retail, casino and hotel/motel management.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save
files and shut down your system in case of a prolonged blackout. Backup time varies according to load,
but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD
monitor powered as long as 74 minutes. During normal operation, incoming utility power keeps the
replaceable internal battery fully charged, so backup power will always be available.
8 NEMA 5-15R Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, surge protection and voltage regulation for your computer,
monitor and other crucial components. The other two 5-15R outlets provide surge suppression only for
printers, speakers and other desktop equipment regarded as non-essential during a blackout.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems
caused by brownouts and overvoltages. The SMART1050TSU can correct brownouts as low as 89V and
overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully
charged and ready to take over in case of power failure.
Highlights
●
Protects equipment against
blackouts, brownouts,
overvoltages, surges and line
noise
●
Keeps AC power running during
blackouts to allow time for file
saves and safe shutdown
●
Maintains continuous 120V
nominal output during
brownouts and overvoltages
●
Home-friendly alarm remains
silent in backup mode, sounding
only when imperative
●
High >95% efficiency with low
BTU ratings saves electricity
and lowers your energy costs
Applications
●
Protect your PC and other
sensitive electronics against
power surges, line noise,
brownouts, overvoltages and
blackouts
●
Operate essential equipment
during short-term power outages
using battery backup power
●
Shut down desktop PCs and
other equipment without data
loss during long-term power
outages
●
Connect high-end security
systems, casino gaming
machines or digital signage in a
small network
Combats Line Noise That Can Harm Equipment
EMI (electromagnetic interference) and RFI (radio frequency interference) are common causes of
performance problems and can lead to incremental hardware damage, data corruption and audio/video
transmission problems. The SMART1050TSU filters out this disruptive line noise on the AC line, so that it
won’t affect your equipment.
1 / 5
Package Includes
●
SMART1050TSU 1050VA 900W
120V Line-Interactive UPS with
Page 2
Designed for High Efficiency to Help You Save Money and Protect the Environment
A >95% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Home-Friendly Silent Alarm and LCD Touchscreen Keep You Informed 24/7
The UPS remains silent in both line and battery backup modes. The alarm sounds only to report low
battery, battery replace, overload and fault condition. The LCD touchscreen offers five screens of UPS
and site power information when the UPS is operating in either on-line or battery power mode. It displays
vital voltage, load and battery data, as well as critical fault status.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite’s free downloadable
PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged
power failure. Cables are included.
Compact Housing Compatible with Easy Desktop Installation
The space-saving ABS tower fits on a desktop, shelf or any other flat surface convenient to your
workstation or home theater. The five-foot power cord with NEMA 5-15P plug connects to any compatible
AC outlet. A built-in fan regulates the internal temperature to help prevent overheating.
Specifications
OVERVIEW
UPC Code 037332221575
UPS Type Line-Interactive
8 Outlets
●
USB cable
●
DB9 cable
●
Owner’s manual
INPUT
Rated input current (Maximum Load) 12A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P
Input Circuit Breakers 15A
UPS Input Cord Length (ft.) 5
UPS Input Cord Length (m) 1.5
Recommended Electrical Service 15A 120V
Input Phase Single-Phase
OUTPUT
Output Volt Amp Capacity (VA) 1050
Output kVA Capacity (kVA) 1.05
Output Watt Capacity (Watts) 900
Power Factor 0.86
Nominal Voltage Details 120v nominal output in battery mode
Frequency Compatibility 50 / 60 Hz
2 / 5
Page 3
Output Voltage Regulation (Line
Mode)
120V (+6%/-12%)
Output Voltage Regulation (Battery
Mode)
UPS Output Receptacles (Surge
Suppression Only)
120V (±10%)
6 UPS outlets, 2 surge-only outlets
Hot-Swap PDU options PDUB15 (2U / 8 5-15R outlets)
Output AC Waveform (AC Mode) Pure sine wave
Output AC Waveform (Battery
Mode)
Nominal Output Voltage(s)
Supported
PWM sine wave
110V; 115V; 120V
Output Receptacles (8) 5-15R
Individually Controllable Load Banks No
BATTERY
Full Load Runtime (min.) 3 min. (900w)
Half Load Runtime (min.) 8.5 min. (450w)
DC System Voltage (VDC) 12
Battery Recharge Rate (Included
Batteries)
8 hours (10% to 90%)
Battery Access Battery access door
Battery Replacement Description Replaceable internal batteries (see manual)
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
Overvoltage Correction Input voltages between 128 and 149 are reduced by 15%
Undervoltage Correction Input voltages between 89 and 108 are boosted by 18%
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display Touchscreen LCD reports input voltage, output voltage, load percentage, battery charge percentage and overload
status
Switches Power off/on switch
Audible Alarm UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-
battery conditions
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 316
UPS AC Suppression Response
Time
Instantaneous
UPS Dataline Suppression 1 line TEL/DSL or Ethernet
3 / 5
Page 4
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Cooling Method Fan
Installation Form Factors Supported
with Included Accessories
Tower
Primary Form Factor Desktop
Primary UPS Depth (mm) 381
Primary UPS Height (mm) 191
Primary UPS Width (mm) 140
Shipping Dimensions (hwd / in.) 11.70 x 9.30 x 19.50
Shipping Weight (kg) 11.02
UPS Housing Material ABS
UPS Power Module Dimensions
(hwd, in.)
7.5 x 5.5 x 15
UPS Power Module Weight (kg) 11.02
UPS Power Module Weight (lbs.) 24.3
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
Relative Humidity 0 to 90%, non-condensing
AC Mode BTU / Hr. (Full Load) 145
AC Mode Efficiency Rating (100%
Load)
>95%
COMMUNICATIONS
PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at
http:// poweralert
Communications Cable USB and Serial interface cables included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network UPS Tools Compatibility
Communications Interface DB9 Serial; USB (HID enabled)
LINE / BATTERY TRANSFER
Transfer Time 6 milliseconds typical (10 milliseconds max)
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
89
145
4 / 5
Page 5
SPECIAL FEATURES
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features Automatic Voltage Regulation (AVR); Surge/noise protection
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
STANDARDS & COMPLIANCE
UPS Certifications Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Certification Details UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS A; FCC Part 68 Approved
WARRANTY
Product Warranty Period (U.S. &
Canada)
Product Warranty Period (Latin
America)
Product Warranty Period
(International)
Product Warranty Period (Mexico) 3-year limited warranty
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
Cold-start operation supported
(#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia)
3-year limited warranty
3-year limited warranty
2-year limited warranty
$250,000 <a class="insuranceLink" href="// support/insurance-policy">Ultimate Lifetime
Insurance</a>
