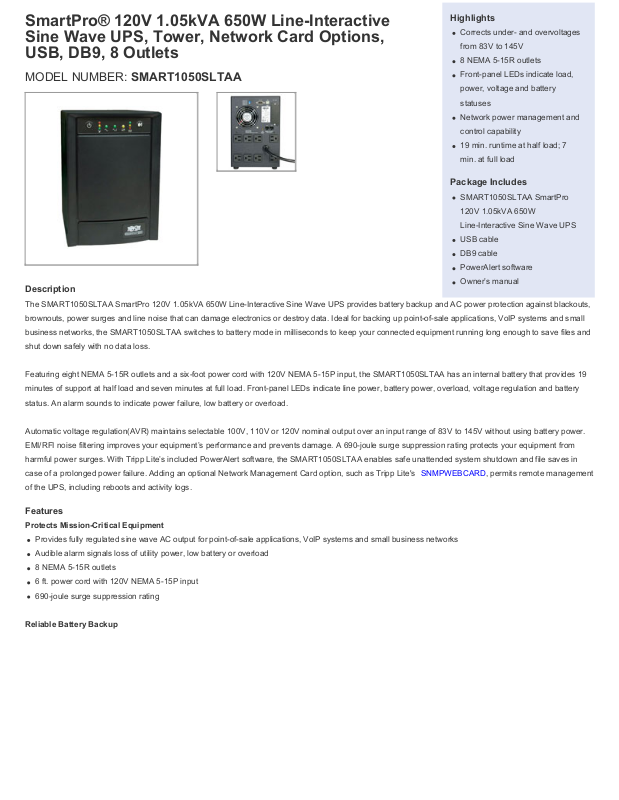

SmartPro® 120V 1.05kVA 650W Line-Interactive
Highlights
Corrects under- and overvoltages
from 83V to 145V
8 NEMA 5-15R outlets
Front-panel LEDs indicate load,
power, voltage and battery
statuses
Network power management and
control capability
19 min. runtime at half load; 7
min. at full load
Package Includes
SMART1050SLTAA SmartPro
120V 1.05kVA 650W
Line-Interactive Sine Wave UPS
USB cable
DB9 cable
PowerAlert software
Owner’s manual
Sine Wave UPS, Tower, Network Card Options,
USB, DB9, 8 Outlets
MODEL NUMBER: SMART1050SLTAA
Description
The SMART1050SLTAA SmartPro 120V 1.05kVA 650W Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts,
brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up point-of-sale applications, VoIP systems and small
business networks, the SMART1050SLTAA switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and
shut down safely with no data loss.
Featuring eight NEMA 5-15R outlets and a six-foot power cord with 120V NEMA 5-15P input, the SMART1050SLTAA has an internal battery that provides 19
minutes of support at half load and seven minutes at full load. Front-panel LEDs indicate line power, battery power, overload, voltage regulation and battery
status. An alarm sounds to indicate power failure, low battery or overload.
Automatic voltage regulation(AVR) maintains selectable 100V, 110V or 120V nominal output over an input range of 83V to 145V without using battery power.
EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 690-joule surge suppression rating protects your equipment from
harmful power surges. With Tripp Lite’s included PowerAlert software, the SMART1050SLTAA enables safe unattended system shutdown and file saves in
case of a prolonged power failure. Adding an optional Network Management Card option, such as Tripp Lite's SNMPWEBCARD, permits remote management
of the UPS, including reboots and activity logs.
Features
Protects Mission-Critical Equipment
Provides fully regulated sine wave AC output for point-of-sale applications, VoIP systems and small business networks
Audible alarm signals loss of utility power, low battery or overload
8 NEMA 5-15R outlets
6 ft. power cord with 120V NEMA 5-15P input
690-joule surge suppression rating
Reliable Battery Backup
Page 2
Supports half load up to 19 min. and full load up to 7 min.
Internal batteries designed for hot-swap field replacement
95% line-power efficiency rating saves money in energy costs
Cold-start capability enables turn-on in battery mode during blackouts
Automatic Voltage Regulation(AVR)
Maintains selectable 100V, 110V or 120V nominal output over input range of 83V–145V without using battery power
EMI/RFI Line Noise Filtering
Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance
LED Indicators
Front-panel LEDs signal indicate line power, battery power, overload, voltage regulation and battery status
Network Management Card Options
Optional Network Management Cards, such as Tripp Lite's SNMPWEBCARD, permits remote management of UPS, including reboots, configuration,
updates and activity logs
Communication Ports
USB and DB9 ports combine with included PowerAlert software to monitor operating conditions, monitor AC power, and enable safe unattended system
shutdown and file saves in case of a prolonged power failure
Telephone/Network Jacks
Protect against power surges over telephone/DSL or network Ethernet lines
Specifications
OUTPUT
Output Volt Amp Capacity (VA) 1050
Output kVA Capacity (kVA) 1.05
Output Watt Capacity (Watts) 650
Nominal Output Voltage(s)
Supported
Nominal Voltage Details 120V default (voltage selection via back panel switches)
Frequency Compatibility 50 / 60 Hz
Frequency Compatibility Details Automatic frequency selection
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation (Battery
Mode)
Output Receptacles (8) 5-15R
100V; 110V; 120V
-13%, + 15%
+/- 5%
Page 3
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) Pure Sine wave
INPUT
Rated input current (Maximum Load) 6.1A (120V), 6.6A (110V), 7.2A (100V)
Nominal Input Voltage(s) Supported 100V AC; 110V AC; 120V AC
UPS Input Connection Type 5-15P
UPS Input Cord Length (ft.) 6
UPS Input Cord Length (m) 1.8
Recommended Electrical Service 15A 120V
Input Phase Single-Phase
BATTERY
Full Load Runtime (min.) 7 min. (650w)
Half Load Runtime (min.) 19 min. (325w)
DC System Voltage (VDC) 24
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Battery Access Battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description
Overvoltage Correction Voltage reduction of 12% applies when input is 127 to 145 (120v), 116 to 133 (110v), 111 to 121 (100v)
Undervoltage Correction Voltage boost of 14% applies when input is 95 to 108 (120v), 87 to 99 (110v), 83 to 90 (100v)
USER INTERFACE, ALERTS & CONTROLS
Switches
Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch
Audible Alarm Audible alarm indicates power failure and overload conditions
3 hours
RBC24-SLT
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 95 to 145 (120v),
87 to 133 (110v), 83 to 121 (100v)
2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support
nominal voltage selection
LED Indicators
Site Wiring Fault Indication Rear panel site wiring fault LED
9 LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter for
load and battery charge level
Page 4
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 690
UPS AC Suppression Response
Time
UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Installation Form Factors Supported
with Included Accessories
Primary Form Factor Tower
UPS Power Module Dimensions
(hwd, in.)
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Weight (lbs.) 36
UPS Power Module Weight (kg) 16.3
UPS Shipping Dimensions (hwd / in.) 14 x 9.8 x 18.5
UPS Shipping Dimensions (hwd /
cm)
Shipping Weight (lbs.) 39.6
Shipping Weight (kg) 18
Instantaneous
Tower
10.2 x 6.8 x 13.2
26 x 17.1 x 33.7
35.6 x 24.8 x 47
Cooling Method Fan
UPS Housing Material Steel
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 141.1
Battery Mode BTU / Hr. (Full Load) 452.7
AC Mode Efficiency Rating (100%
Load)
Audible Noise Audible Noise < 50 dBA at Front Side 1 Meter
COMMUNICATIONS
Communications Interface USB (HID enabled); DB9 Serial; Slot for SNMP/Web interface
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
95%
Page 5
PowerAlert Software Included
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications.
Network UPS Tools Compatibility
LINE / BATTERY TRANSFER
Transfer Time 4-6 milliseconds
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features Hot swappable batteries
CERTIFICATIONS
UPS Certifications
WARRANTY
Product Warranty Period (Worldwide) 2-year limited warranty
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at
http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
95V (120V), 87V (110V), 83V (100V)
145V (120V), 133V (110V), 121V (100V)
Cold-start operation supported
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B
(EMI); TAA Compliant
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
$250,000
Ultimate Lifetime Insurance
