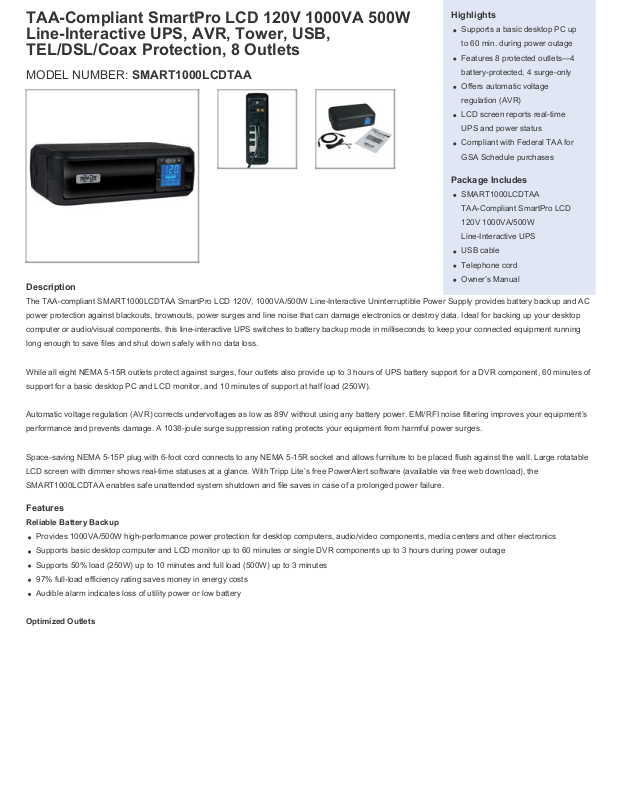

TAA-Compliant SmartPro LCD 120V 1000VA 500W
Highlights
Supports a basic desktop PC up
to 60 min. during power outage
Features 8 protected outlets—4
battery-protected, 4 surge-only
Offers automatic voltage
regulation (AVR)
LCD screen reports real-time
UPS and power status
Compliant with Federal TAA for
GSA Schedule purchases
Package Includes
SMART1000LCDTAA
TAA-Compliant SmartPro LCD
120V 1000VA/500W
Line-Interactive UPS
USB cable
Telephone cord
Owner’s Manual
Line-Interactive UPS, AVR, Tower, USB,
TEL/DSL/Coax Protection, 8 Outlets
MODEL NUMBER: SMART1000LCDTAA
Description
The TAA-compliant SMART1000LCDTAA SmartPro LCD 120V, 1000VA/500W Line-Interactive Uninterruptible Power Supply provides battery backup and AC
power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop
computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running
long enough to save files and shut down safely with no data loss.
While all eight NEMA 5-15R outlets protect against surges, four outlets also provide up to 3 hours of UPS battery support for a DVR component, 60 minutes of
support for a basic desktop PC and LCD monitor, and 10 minutes of support at half load (250W).
Automatic voltage regulation (AVR) corrects undervoltages as low as 89V without using any battery power. EMI/RFI noise filtering improves your equipment’s
performance and prevents damage. A 1038-joule surge suppression rating protects your equipment from harmful power surges.
Space-saving NEMA 5-15P plug with 6-foot cord connects to any NEMA 5-15R socket and allows furniture to be placed flush against the wall. Large rotatable
LCD screen with dimmer shows real-time statuses at a glance. With Tripp Lite’s free PowerAlert software (available via free web download), the
SMART1000LCDTAA enables safe unattended system shutdown and file saves in case of a prolonged power failure.
Features
Reliable Battery Backup
Provides 1000VA/500W high-performance power protection for desktop computers, audio/video components, media centers and other electronics
Supports basic desktop computer and LCD monitor up to 60 minutes or single DVR components up to 3 hours during power outage
Supports 50% load (250W) up to 10 minutes and full load (500W) up to 3 minutes
97% full-load efficiency rating saves money in energy costs
Audible alarm indicates loss of utility power or low battery
Optimized Outlets
Page 2
4 NEMA 5-15R outlets deliver battery backup for devices that require constant power
All 8 outlets protect against surges or spikes that can harm equipment or data
Space-saving NEMA 5-15P right-angle plug with 6-foot cord connects to any NEMA 5-15R socket
Automatic Voltage Regulation (AVR)
Corrects undervoltages as low as 89V with a 14% boost without drawing battery backup power
Rotatable LCD Status Screen
Large LCD screen shows real-time input voltage, overload, AVR and battery statuses
Rotates for easy viewing in both horizontal and vertical installations
Dimmer switch controls brightness level
AC Line, Coaxial and Tel/DSL Surge Suppression
Surge suppression rating of 1038 joules protects connected equipment and data from harmful power surges
Tel/DSL RJ11 jacks protect standard dialup/DSL phone connection
2.2 Hz coaxial jacks protect CATV, broadband cable internet, satellite or broadcast antenna connections
EMI/RFI Line Noise Filtering
Removes electromagnetic and radio frequency interference that can disrupt or damage your equipment’s performance
USB Communication Port and Free PowerAlert Software
HID-compliant USB port integrates with built-in power management and auto-shutdown of Windows and Mac OS X
Works with Tripp Lite PowerAlert software (available as free web download) to enable safe, unattended system shutdown and file saves during prolonged
power failure
TAA-Compliant for GSA Schedule Purchases
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OUTPUT
Output Volt Amp Capacity (VA) 1000
Output kVA Capacity (kVA) 1
Output Watt Capacity (Watts) 500
Nominal Output Voltage(s)
Supported
Nominal Voltage Details 115v nominal output in battery mode
Frequency Compatibility 60 Hz
Output Voltage Regulation (Battery
Mode)
Output Receptacles (8) 5-15R
110V; 115V; 120V
+/- 5%
Page 3
UPS Output Receptacles (Surge
Suppression Only)
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) PWM sine wave
INPUT
Rated input current (Maximum Load) 12A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P; Right-Angled
UPS Input Cord Length (ft.) 6
UPS Input Cord Length (m) 1.8
Recommended Electrical Service 15A 120V
Input Phase Single-Phase
BATTERY
Full Load Runtime (min.) 3 min. (500w)
Half Load Runtime (min.) 10 min. (250w)
DC System Voltage (VDC) 12
4 UPS outlets, 4 surge-only outlets
Battery Recharge Rate (Included
Batteries)
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
Undervoltage Correction Input voltages between 89 and 104 are boosted by 14%
USER INTERFACE, ALERTS & CONTROLS
Front Panel LCD Display
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; dimmer switch controls LCD brightness
Alarm Cancel Operation
Audible Alarm Audible alarm indicates power-failure and low-battery status; alarm can be disabled using PowerAlert software
LED Indicators Front panel LCD display
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 480
Less than 16 hours from 10% to 90%
Backlighted LCD screen indicates input voltage, 5-bar battery charge level, overload, AVR, on battery and replace
battery status; LCD screen rotates for rack/tower viewing
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate
low-battery status
UPS AC Suppression Response
Time
Instantaneous
Page 4
UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); Coax jacks (1 set)
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Installation Form Factors Supported
with Included Accessories
Primary Form Factor Tower
UPS Power Module Dimensions
(hwd, in.)
UPS Power Module Dimensions
(hwd, cm)
UPS Power Module Weight (lbs.) 14.9
UPS Power Module Weight (kg) 6.8
UPS Shipping Dimensions (hwd / in.) 10.4 x 15.6 x 4.8
UPS Shipping Dimensions (hwd /
cm)
Shipping Weight (lbs.) 16.2
Shipping Weight (kg) 7.4
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
Tower
11.8 x 3.7 x 7.2
30.1 x 9.4 x 18.3
26.5 x 39.5 x 12.3
AC Mode BTU / Hr. (Full Load) 61
AC Mode Efficiency Rating (100%
Load)
COMMUNICATIONS
Communications Interface USB (HID enabled)
PowerAlert Software Free download from www.tripplite.com
Communications Cable USB cable included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network UPS Tools Compatibility
LINE / BATTERY TRANSFER
Transfer Time 4 milliseconds (AC to battery) / 3 milliseconds (Battery to AC)
Low Voltage Transfer to Battery
Power (Setpoint)
97%
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at
http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
89
Page 5
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
139
Cold Start (Startup in Battery Mode
During a Power Failure)
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
CERTIFICATIONS
UPS Certifications
WARRANTY
Product Warranty Period (U.S. &
Canada)
Product Warranty Period (Latin
America)
Product Warranty Period
(International)
Product Warranty Period (Mexico) 3-year limited warranty
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
Cold-start operation supported
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B
(EMI); TAA Compliant
3-year limited warranty
3-year limited warranty
2-year limited warranty
$250,000
Ultimate Lifetime Insurance
