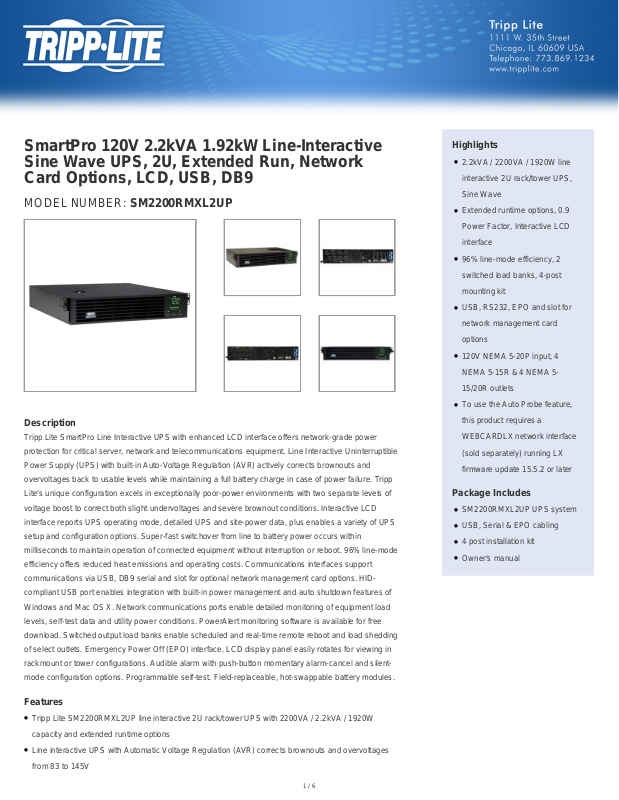

Tripp Lite SM2200RMXL2UP Data Sheet

SmartPro 120V 2.2kVA 1.92kW Line-Interactive
Sine Wave UPS, 2U, Extended Run, Network
Card Options, LCD, USB, DB9

MODEL NUMBER: SM2200RMXL2UP

Description

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power
protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible
Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and
overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp
Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of
voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD
interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS
setup and configuration options. Super-fast switchover from line to battery power occurs within
milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode
efficiency offers reduced heat emissions and operating costs. Communications interfaces support
communications via USB, DB9 serial and slot for optional network management card options. HID­compliant USB port enables integration with built-in power management and auto shutdown features of
Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load
levels, self-test data and utility power conditions. PowerAlert monitoring software is available for free
download. Switched output load banks enable scheduled and real-time remote reboot and load shedding
of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in
rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent­mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

Highlights

●

2.2kVA / 2200VA / 1920W line
interactive 2U rack/tower UPS,
Sine Wave

●

Extended runtime options, 0.9
Power Factor, Interactive LCD
interface

●

96% line-mode efficiency, 2
switched load banks, 4-post
mounting kit

●

USB, RS232, EPO and slot for
network management card
options

●

120V NEMA 5-20P input, 4
NEMA 5-15R & 4 NEMA 5­15/20R outlets

●

To use the Auto Probe feature,
this product requires a
WEBCARDLX network interface
(sold separately) running LX
firmware update 15.5.2 or later

Package Includes

●

SM2200RMXL2UP UPS system

●

USB, Serial & EPO cabling

●

4 post installation kit

●

Owner's manual

Features

●

Tripp Lite SM2200RMXL2UP line interactive 2U rack/tower UPS with 2200VA / 2.2kVA / 1920W
capacity and extended runtime options

●

Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages
from 83 to 145V

1 / 6

●

NEMA 5-20P input plug; 4 NEMA 5-15/20R and 4 5-15R output receptacles, Two independently
switched output load banks

●

Maintains uninterrupted operation of connected networking equipment during blackouts, surges,
brownouts and overvoltages

●

High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions

●

Internal batteries offer 12 minutes at 50% load (960W) and 4.5 minutes at 100% load (1920W)

●

Extended runtime is available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack
compatible) and BP48V27-2US (multi-pack compatible), Supports 1920 watts in standalone or extended
run configurations

●

External battery configurations require the use of Tripp Lite's External Battery Configuration Software
(see manual)

●

Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no
disruption to connected equipment

●

Intelligent battery management system extends battery life

●

Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar
battery charge graphic, plus 7 selectable screens of detailed UPS and site power information

●

LCD interface also supports a number of advanced user setup and operating preferences

●

Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post
rackmount/wallmount installation; Optional 2-9USTAND enables tower placement

●

Built-in USB, DB9 and EPO (Emergency Power Off) interfaces

●

Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and
SNMPWEBCARD

●

HID-compliant USB port enables integration with built-in power management and auto shutdown
features of Windows and Mac OS X

●

USB & DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert
software, available via FREE download from www.tripplite.com/poweralert

●

Built-in Emergency Power Off (EPO) interface with cable

Specifications

OVERVIEW

UPC Code 037332144348
UPS Type Line-Interactive

INPUT

Rated input current (Maximum Load) 16A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-20P

2 / 6

UPS Input Cord Length (ft.) 10
UPS Input Cord Length (m) 3.1
Recommended Electrical Service 20A 120V
Input Phase Single-Phase

OUTPUT

Output Volt Amp Capacity (VA) 2200
Output kVA Capacity (kVA) 2.20
Output Watt Capacity (Watts) 1920
Output kW Capacity (kW) 1.92
Output Capacity Details Supports 1920 watts in standalone or extended runtime configurations
Power Factor 0.87
Nominal Voltage Details 120v nominal output in battery mode
Frequency Compatibility 60 Hz
Output Voltage Regulation (Line

Mode)
Output Voltage Regulation (Battery

Mode)

-14%, +6%

+/- 5%

Load Management Receptacles Two switched single outlet load banks (1 5-15/20R & 1 5-15R)
Output AC Waveform (AC Mode) Pure Sine wave
Output AC Waveform (Battery

Mode)
Nominal Output Voltage(s)

Supported

Pure Sine wave

110V; 115V; 120V

Output Receptacles (4) 5-15R; (4) 5-15/20R
Individually Controllable Load Banks Yes

BATTERY

Battery Type Valve Regulated Lead Acid (VRLA)
Full Load Runtime (min.) 4.5 min. (1920w)
Half Load Runtime (min.) 12 min. (960w)
Expandable Battery Runtime Extended runtime supported via optional external battery packs
Expandable Runtime Yes
External Battery Pack Compatibility  <a class="productLink" href="//www.tripplite.com/External-48V-2U-Rack-Tower-Battery-Pack-Enclosure-DC-

Cabling-select-UPS-Systems~BP48V24-2U">BP48V24-2U</a>  (limit 1);  <a class="productLink"
href="//www.tripplite.com/External-48V-3U-Rack-Tower-Battery-Pack-Enclosure-DC-Cabling-select-UPS­Systems~BP48V60RT-3U">BP48V60RT-3U</a>  (multi-pack compatible);  <a class="productLink"
href="//www.tripplite.com/External-48V-2U-Rack-Tower-Battery-Pack-for-UPS-Systems~BP48V27-2US">BP48V27­2US</a>  (multi-pack compatible)

DC System Voltage (VDC) 48

3 / 6

Battery Recharge Rate (Included
Batteries)

Less than 4.5 hours from 10% to 90% (typical, full load discharge)

Battery Access Front panel battery access door
Internal UPS Replacement Battery

Cartridge

 <a class="productLink" href="//www.tripplite.com/2U-UPS-Replacement-48VDC-Battery-Cartridge-1-set-4­select-Tripp-Lite-SmartPro-UPS~RBC94-2U">RBC94-2U</a>

Battery Replacement Description Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage Regulation Description Automatic voltage regulation (AVR) maintains regulated line power output with an input voltage range of 83 and 145
Overvoltage Correction Voltage reduction of 12% applies when input is between 127 and 145
Undervoltage Correction Voltage boost of 12% applies when input voltage is between 96 and 108
Severe Undervoltage Correction Voltage boost of 24% applies when input voltage is between 83 and 95

USER INTERFACE, ALERTS & CONTROLS

Front Panel LCD Display Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data,

plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for

detailed LCD configuration and monitoring options)
Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Alarm Cancel Operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option

available
Audible Alarm Audible alarm indicates power-failure, overload and low-battery conditions

SURGE / NOISE SUPPRESSION

UPS AC Suppression Joule Rating 570
UPS AC Suppression Response

Time

Instantaneous

EMI / RFI AC Noise Suppression Yes

PHYSICAL

Cooling Method Fan
Included Mounting Accessory

Description
Installation Form Factors Supported

with Included Accessories
Installation Form Factors Supported

with Optional Accessories

Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to

914mm)

4 post 19 inch rackmount

2 post rackmount ( <a class="productLink" href="//www.tripplite.com/2-Post-Rack-Mount-Wall-Mount-Adapter-

Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> ); 2-4 post front rail

rackmount ( <a class="productLink" href="//www.tripplite.com/Heavy-Duty-2-post-Front-Mounting-Ear-

Kit~UPSHDEARKIT">UPSHDEARKIT</a> ); 4 post rackmount short-depth ( <a class="productLink"

href="//www.tripplite.com/4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-Wall-Mount-

Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> ); Tower ( <a class="productLink"

href="//www.tripplite.com/2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-9USTAND">2-

9USTAND</a> ); Wallmount ( <a class="productLink" href="//www.tripplite.com/2-Post-Rack-Mount-

Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> )
Minimum Required Rack Depth with

External Battery Pack (cm)
Minimum Required Rack Depth with

External Battery Pack (in.)

66

26

4 / 6

Minimum Required Rack Depth
without External Battery Pack (cm)

62

Minimum Required Rack Depth
without External Battery Pack (in.)

24.5

Optional Mounting Accessory Notes Optional  <a class="productLink" href="//www.tripplite.com/2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-

Systems~2-9USTAND">2-9USTAND</a>  enables upright tower UPS placement;  <a

class="productLink" href="//www.tripplite.com/2-Post-Rack-Mount-Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-

Systems~2POSTRMKITWM">2POSTRMKITWM</a>  enables wall-mount and 2-post rackmount installation;

 <a class="productLink" href="//www.tripplite.com/4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-

Wall-Mount-Racks~4POSTRAILKITWM">4POSTRAILKITWM</a>  enables installation in 4-post short-depth

racks from 14.5 to 23.5 inches (368 to 597mm);  <a class="productLink" href="//www.tripplite.com/Heavy-

Duty-2-post-Front-Mounting-Ear-Kit~UPSHDEARKIT">UPSHDEARKIT</a>  enables installation in 2 or 4-post

racks using front vertical rails only, without rear support
Primary Form Factor Rackmount
Primary UPS Depth (mm) 483
Primary UPS Height (mm) 89
Primary UPS Width (mm) 445
Rack Height 2U
Shipping Dimensions (hwd / cm) 22.35 x 55.12 x 60.96
Shipping Dimensions (hwd / in.) 8.80 x 21.70 x 24.00
Shipping Weight (kg) 36.29
Shipping Weight (lbs.) 80.00
UPS Housing Material Steel
UPS Power Module Dimensions

(hwd, cm)

8.89 x 44.45 x 48.26

UPS Power Module Dimensions
(hwd, in.)

3.50 x 17.50 x 19.00

UPS Power Module Weight (kg) 29.03
UPS Power Module Weight (lbs.) 64

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Relative Humidity 0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load) 250
Battery Mode BTU / Hr. (Full Load) 980
AC Mode Efficiency Rating (100%

Load)

96%

Audible Noise 45 dBA maximum, front side 1m

COMMUNICATIONS

5 / 6

Network Management Cards  <a class="productLink" href="//www.tripplite.com/SNMP-Web-Management-Accessory-Card-SmartPro-

Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions

SmartOnline-UPS-Systems~SNMPWEBCARD">SNMPWEBCARD</a> ;  <a class="productLink"

href="//www.tripplite.com/Web-Management-Accessory-Card-SmartPro-SmartOnline-UPS-

Systems~TLNETCARD">TLNETCARD</a> ;  <a class="productLink" href="//www.tripplite.com/Web-

Management-Accessory-Card~WEBCARDLX">WEBCARDLX</a>

PowerAlert Software For local monitoring via the UPS’s built-in USB / Serial ports, download PowerAlert Local software at

Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at

Communications Interface DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)

LINE / BATTERY TRANSFER

Transfer Time 5 milliseconds (line to battery mode); 1 millisecond (battery to line mode)
Low Voltage Transfer to Battery

Power (Setpoint)
High Voltage Transfer to Battery

Power (Setpoint)

SPECIAL FEATURES

Grounding Lug Back panel grounding lug
Cold Start (Startup in Battery Mode

During a Power Failure)
High Availability UPS Features Auto Probe Monitoring and Reboot (requires WEBCARDLX); Automatic Voltage Regulation (AVR); Expandable

http://www.tripplite.com/poweralert

http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

83

145

Cold-start operation supported

battery backup; Hot swappable batteries; Remote management; Sine wave output; Surge/noise protection
Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS; Individually controllable load banks

STANDARDS & COMPLIANCE

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)

WARRANTY

Product Warranty Period
(Worldwide)

Connected Equipment Insurance
(U.S., Canada & Puerto Rico)

2-year warranty, 3 year with registration. Note: <a class="insuranceLink"

href="//www.tripplite.com/support/product-warranty-registration">Registration is required</a> for 3-year

warranty.

$250,000 <a class="insuranceLink" href="//www.tripplite.com/support/insurance-policy">Ultimate Lifetime

Insurance</a>

© 2020 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies

6 / 6
