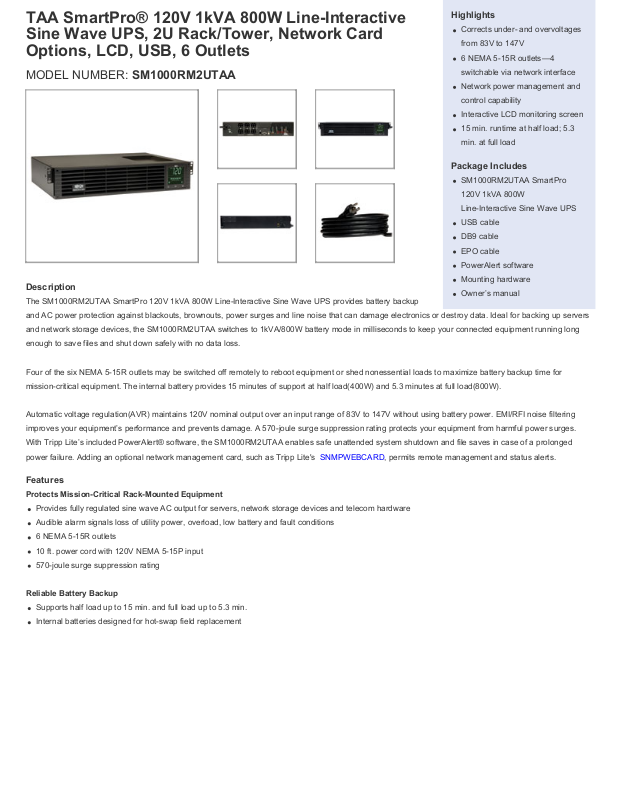

TAA SmartPro® 120V 1kVA 800W Line-Interactive
Highlights
Corrects under- and overvoltages
from 83V to 147V
6 NEMA 5-15R outlets—4
switchable via network interface
Network power management and
control capability
Interactive LCD monitoring screen
15 min. runtime at half load; 5.3
min. at full load
Package Includes
SM1000RM2UTAA SmartPro
120V 1kVA 800W
Line-Interactive Sine Wave UPS
USB cable
DB9 cable
EPO cable
PowerAlert software
Mounting hardware
Owner’s manual
Sine Wave UPS, 2U Rack/Tower, Network Card
Options, LCD, USB, 6 Outlets
MODEL NUMBER: SM1000RM2UTAA
Description
The SM1000RM2UTAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS provides battery backup
and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up servers
and network storage devices, the SM1000RM2UTAA switches to 1kVA/800W battery mode in milliseconds to keep your connected equipment running long
enough to save files and shut down safely with no data loss.
Four of the six NEMA 5-15R outlets may be switched off remotely to reboot equipment or shed nonessential loads to maximize battery backup time for
mission-critical equipment. The internal battery provides 15 minutes of support at half load(400W) and 5.3 minutes at full load(800W).
Automatic voltage regulation(AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering
improves your equipment’s performance and prevents damage. A 570-joule surge suppression rating protects your equipment from harmful power surges.
With Tripp Lite’s included PowerAlert® software, the SM1000RM2UTAA enables safe unattended system shutdown and file saves in case of a prolonged
power failure. Adding an optional network management card, such as Tripp Lite's SNMPWEBCARD, permits remote management and status alerts.
Features
Protects Mission-Critical Rack-Mounted Equipment
Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
Audible alarm signals loss of utility power, overload, low battery and fault conditions
6 NEMA 5-15R outlets
10 ft. power cord with 120V NEMA 5-15P input
570-joule surge suppression rating
Reliable Battery Backup
Supports half load up to 15 min. and full load up to 5.3 min.
Internal batteries designed for hot-swap field replacement
Page 2
95% line-power efficiency rating saves money in energy costs
Switchable Outlets
2 load banks, each with 2 outlets controllable remotely to reboot equipment or shed nonessential loads
Automatic Voltage Regulation(AVR)
Maintains 120V nominal output over input range of 83V–147V without using battery power
EMI/RFI Line Noise Filtering
Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance
Interactive LCD Screen
Front-panel LCD monitors operating mode, load level, power factor, voltage, battery charge and estimated runtimes
Rotates for easy viewing in rack-mount or tower configurations
SNMP/Web Capability
Network management card options, such as Tripp Lite’s SNMPWEBCARD, permit remote management and status alerts
Communications Ports
USB and DB9 ports combine with included PowerAlert software to monitor operating conditions, monitor AC power, and enable safe unattended system
shutdown and file saves in case of a prolonged power failure
EPO port supports emergency shutdown in large facilities
Versatile Installation Options
Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
Mounts in upright tower position with optional 2-9USTAND accessory
TAA Compliant
Complies with Federal Trade Agreements Act(TAA) for GSA Schedule purchases
Specifications
OUTPUT
Output Volt Amp Capacity (VA) 1000
Output kVA Capacity (kVA) 1
Output Watt Capacity (Watts) 800
Power Factor 0.8
Nominal Output Voltage(s)
Supported
Nominal Voltage Details 120v nominal output in battery mode
Frequency Compatibility 60 Hz
110V; 115V; 120V
Page 3
Output Voltage Regulation (Line
Mode)
-21%, +8%
Output Voltage Regulation (Battery
Mode)
Output Receptacles (6) 5-15R
Load Management Receptacles Two switchable two-outlet 5-15R load banks
Output AC Waveform (AC Mode) Sine wave
Output AC Waveform (Battery Mode) Pure Sine wave
INPUT
Rated input current (Maximum Load) 9.2A
Nominal Input Voltage(s) Supported 120V AC
UPS Input Connection Type 5-15P
Input Circuit Breakers 10A
UPS Input Cord Length (ft.) 10
UPS Input Cord Length (m) 3
Recommended Electrical Service 15A 120V
Input Phase Single-Phase
BATTERY
+/- 5%
Full Load Runtime (min.) 5.3 min. (800w)
Half Load Runtime (min.) 15 min. (400w)
DC System Voltage (VDC) 24
Battery Recharge Rate (Included
Batteries)
Internal UPS Replacement Battery
Cartridge
Battery Access Front panel battery access door
Battery Replacement Description Hot-swappable, user replaceable batteries
Expandable Runtime No
VOLTAGE REGULATION
Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Overvoltage Correction Input voltages between 128 and 147 are reduced by 12%
Undervoltage Correction Input voltages between 83 and 107 are boosted by 14%
USER INTERFACE, ALERTS & CONTROLS
Less than 4 hours from 10% to 90%
See Tripp Lite UPS Battery Selector
Page 4
Front Panel LCD Display
Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating
data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual
for detailed LCD configuration and monitoring options)
Alarm Cancel Operation
Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating 570
UPS AC Suppression Response
Time
EMI / RFI AC Noise Suppression Yes
PHYSICAL
Installation Form Factors Supported
with Optional Accessories
Primary Form Factor Rackmount
UPS Power Module Dimensions
(hwd, in.)
UPS Power Module Dimensions
(hwd, cm)
Rack Height (U Spaces) 2
Minimum Required Rack Depth
(inches)
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option
available
Instantaneous
2 post rackmount(
3.45 x 17.35 x 12.5
8.8 x 44.1 x 31.8
15.5
2POSTRMKITWM
); Wallmount(
2POSTRMKITWM
); Tower(
2-9USTAND
)
Minimum Required Rack Depth (cm) 39.4
UPS Power Module Weight (lbs.) 35.4
UPS Power Module Weight (kg) 16.1
UPS Shipping Dimensions (hwd / in.) 7.9 x 22.9 x 19.3
UPS Shipping Dimensions (hwd /
cm)
Shipping Weight (lbs.) 46.4
Shipping Weight (kg) 21.1
Cooling Method Fan
UPS Housing Material Steel
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
20.1 x 58.2 x 49
Page 5
AC Mode BTU / Hr. (Full Load) 134
AC Mode Efficiency Rating (100%
Load)
COMMUNICATIONS
Communications Interface USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
PowerAlert Software Included
Communications Cable USB and DB9 cabling included
WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network UPS Tools Compatibility
LINE / BATTERY TRANSFER
Transfer Time 2-4 milliseconds
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
SPECIAL FEATURES
95%
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at
http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
83
147
Grounding Lug Back panel grounding lug
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features Hot swappable batteries
Green Energy-Saving Features Individually controllable load banks
CERTIFICATIONS
UPS Certifications
WARRANTY
Product Warranty Period (Worldwide) 2-year limited warranty
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
Cold-start operation supported
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B
(EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant
$250,000
Ultimate Lifetime Insurance
