Tripp Lite SK6-6 User Manual

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +[phone]

E-mail: [e-mail]

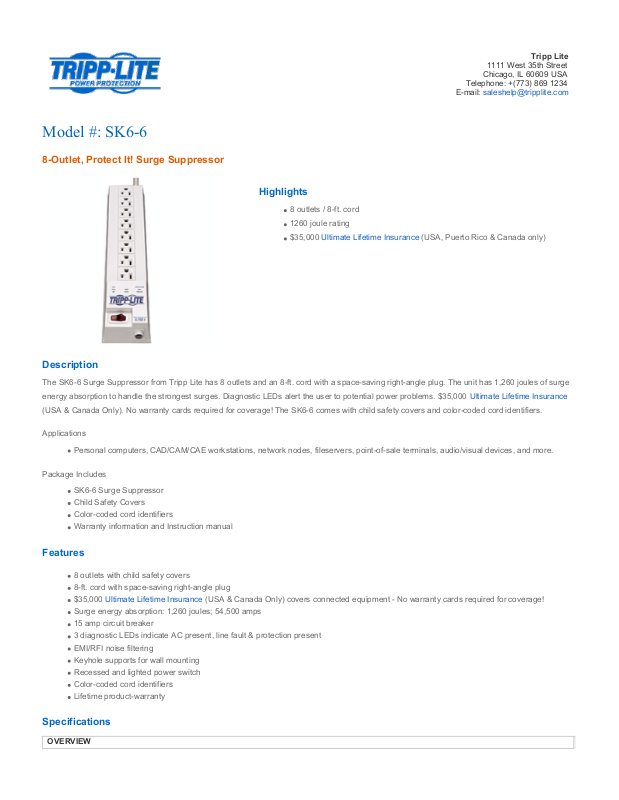

Model #: SK6-6

8-Outlet, Protect It! Surge Suppressor

Highlights

8 outlets / 8-ft. cord

1260 joule rating

$35,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)

Description

The SK6-6 Surge Suppressor from Tripp Lite has 8 outlets and an 8-ft. cord with a space-saving right-angle plug. The unit has 1,260 joules of surge

energy absorption to handle the strongest surges. Diagnostic LEDs alert the user to potential power problems. $35,000 Ultimate Lifetime Insurance

(USA & Canada Only). No warranty cards required for coverage! The SK6-6 comes with child safety covers and color-coded cord identifiers.

Applications

Personal computers, CAD/CAM/CAE workstations, network nodes, fileservers, point-of-sale terminals, audio/visual devices, and more.

Package Includes

SK6-6 Surge Suppressor
Child Safety Covers
Color-coded cord identifiers
Warranty information and Instruction manual

Features

8 outlets with child safety covers
8-ft. cord with space-saving right-angle plug
$35,000 Ultimate Lifetime Insurance (USA & Canada Only) covers connected equipment - No warranty cards required for coverage!
Surge energy absorption: 1,260 joules; 54,500 amps
15 amp circuit breaker
3 diagnostic LEDs indicate AC present, line fault & protection present
EMI/RFI noise filtering
Keyhole supports for wall mounting
Recessed and lighted power switch
Color-coded cord identifiers
Lifetime product-warranty

Specifications

OVERVIEW

Intended Application Home/Office

SYSTEM OVERVIEW

Voltage compatibility 120 VAC

Frequency compatibility 50/60 Hz

OUTPUT

Output volt amp capacity
(amps)

15

Output watts 1800

Outlet quantity / type 8 NEMA 5-15R

Transformer accommodation Holds up to 4 large transformer plugs

INPUT

Input connection type NEMA 5-15P input plug

Input cord length (ft.) 8 ft.

Input cord length (m) 2.4

Recommended Electrical
Service

120V (110-125V)

LEDS ALARMS & SWITCHES

Diagnostic LEDs PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)

Switches Two position red illuminated on/off power switch

SURGE / NOISE SUPPRESSION

Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression

AC suppression joule rating 1260 joules

Clamping voltage (RMS) 140V

AC suppression response
time

< 1 ns

AC suppression surge
current rating

54,500 amps

UL1499 let through rating 330V - UL Verified

Immunity Conforms to IEE 587 / ANSI C62.41

DATALINE SURGE SUPPRESSION

Telephone/DSL Protection No

Cable (Coax) Protection No

Network (Ethernet) Protection No

PHYSICAL

Unit Dimensions (HWD/in) 1.5 x 2.5 x 13

Unit Dimensions (HWD/cm) 3.8 x 6.4 x 33

Material of construction Plastic

Integrated keyhole mounting
tabs

Keyhole mounting tabs enable wall mounting

Receptacle Color Gray

AC line cord color Gray

Style Strip

CERTIFICATIONS

UL1449 1998 Rev. (AC
Suppression)

UL1449
