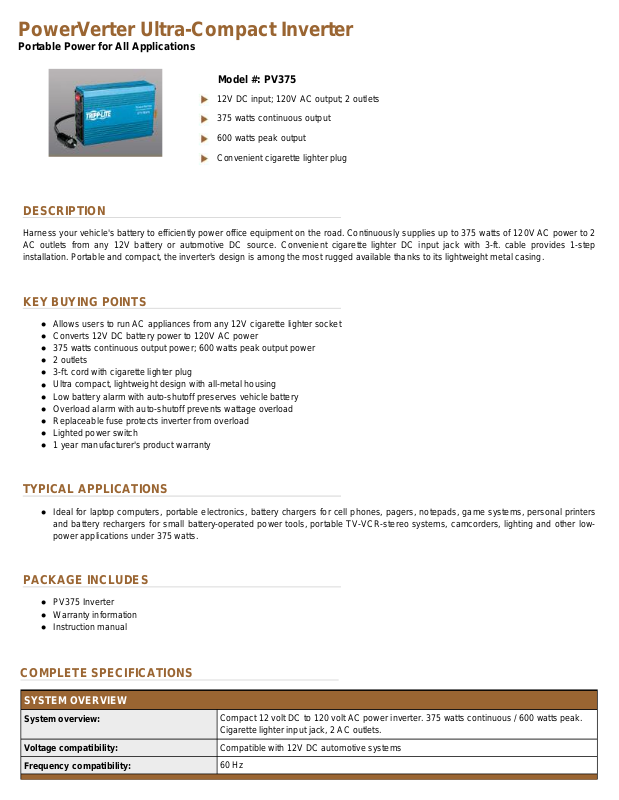

Tripp-Lite PV375 Specification Sheet

PowerVerter Ultra

-

Compact Inverter

Portable Power for All Applications

Model #: PV375

12V DC input; 120V AC output; 2 outlets

375 watts continuous output

600 watts peak output

Convenient cigarette lighter plug

DESCRIPTION

Harness your vehicle's battery to efficiently power office equipment on the road. Continuously supplies up to 375 watts of 120V AC power to 2

AC outlets from any 12V battery or automotive DC source. Convenient cigarette lighter DC input jack with 3-ft. cable provides 1-

step

installation. Portable and compact, the inverter's design is among the most rugged available thanks to its lightweight metal casing.

KEY BUYING POINTS



Allows users to run AC appliances from any 12V cigarette lighter socket



Converts 12V DC battery power to 120V AC power



375 watts continuous output power; 600 watts peak output power



2 outlets



3-ft. cord with cigarette lighter plug



Ultra compact, lightweight design with all-metal housing



Low battery alarm with auto-shutoff preserves vehicle battery



Overload alarm with auto-shutoff prevents wattage overload



Replaceable fuse protects inverter from overload



Lighted power switch



1 year manufacturer's product warranty

TYPICAL APPLICATIONS



Ideal for laptop computers, portable electronics, battery chargers for cell phones, pagers, notepads, game systems, personal printers

and battery rechargers for small battery-operated power tools, portable TV-VCR-stereo systems, camcorders, lighting and other low-

power applications under 375 watts.

PACKAGE INCLUDES

 PV375 Inverter

 Warranty information



Instruction manual

COMPLETE SPECIFICATIONS

SYSTEM OVERVIEW

System overview:

Compact 12 volt DC to 120 volt AC power inverter. 375 watts continuous / 600 watts peak.

Cigarette lighter input jack, 2 AC outlets.

Voltage compatibility:

Compatible with 12V DC automotive systems

Frequency compatibility:

60 Hz

OUTPUT

Output watt capacity (watts):

375 watts continuous, supports peak output up to 600 watts for up to 500 milliseconds

Output nominal voltage:

120V nominal

Output voltage regulation:

Maintains PWM sine wave output voltage of 115 V AC (+/- 8 V AC)

Output frequency regulation:

60 Hz (+/- 3 Hz)

Outlet quantity / type:

Includes 2 NEMA 5-15R output receptacles

Overload protection:

Via 40A automotive input fuse

INPUT

Maximum input amps / watts:

Full continuous load - 40A at 12V DC, No load - 0.65A at 12V DC

Input connection type:

12V DC cigarette lighter input plug connection

Input cord length:

3 ft. hardwire input cable, 16 gauge, 2 wire

BATTERY

DC system voltage:

DC input operating range 10-15V DC. Alarm sounds as voltage drops to 10.5V. Auto-

shutdown occurs at 10V.

LEDS ALARMS & SWITCHES

Alarms:

Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less.

Switches:

Lighted on/off power switch

PHYSICAL

Shipping weight (lbs):

2.3

Shipping weight (kg):

1.04

Unit weight (lbs):

2.2

Unit weight (kg):

0.99

Unit Dimensions (HWD/in):

2 x 4.25 x 7

Unit Dimensions (HWD/cm):

5 x 10.8 x 17.8

Shipping Dimensions (HWD/in):

11.5 x 7.3 x 2.2

Shipping Dimensions (HWD/cm):

29.2 x 18.54 x 5.59

Material of construction:

Aluminum / sheet metal

Cooling method:

Fan

ENVIRONMENTAL

Operating Temperature:

32-104 Fahrenheit / 0-40 Celcius

Relative Humidity:

0-95% non-condensing

WARRANTY

Product warranty:

1 year (Outside the U.S. and Canada, call for warranty information)

SPECIAL FEATURES

Appearance:

Attractive, rugged, metallic blue color inverter system
