Tripp Lite PV1000HF, PV1800HF, PV3000HF User Manual

Owner’s Manual

Specifications 2

Safety 2

Feature Identification 3

Operation 4

Application Guide 5

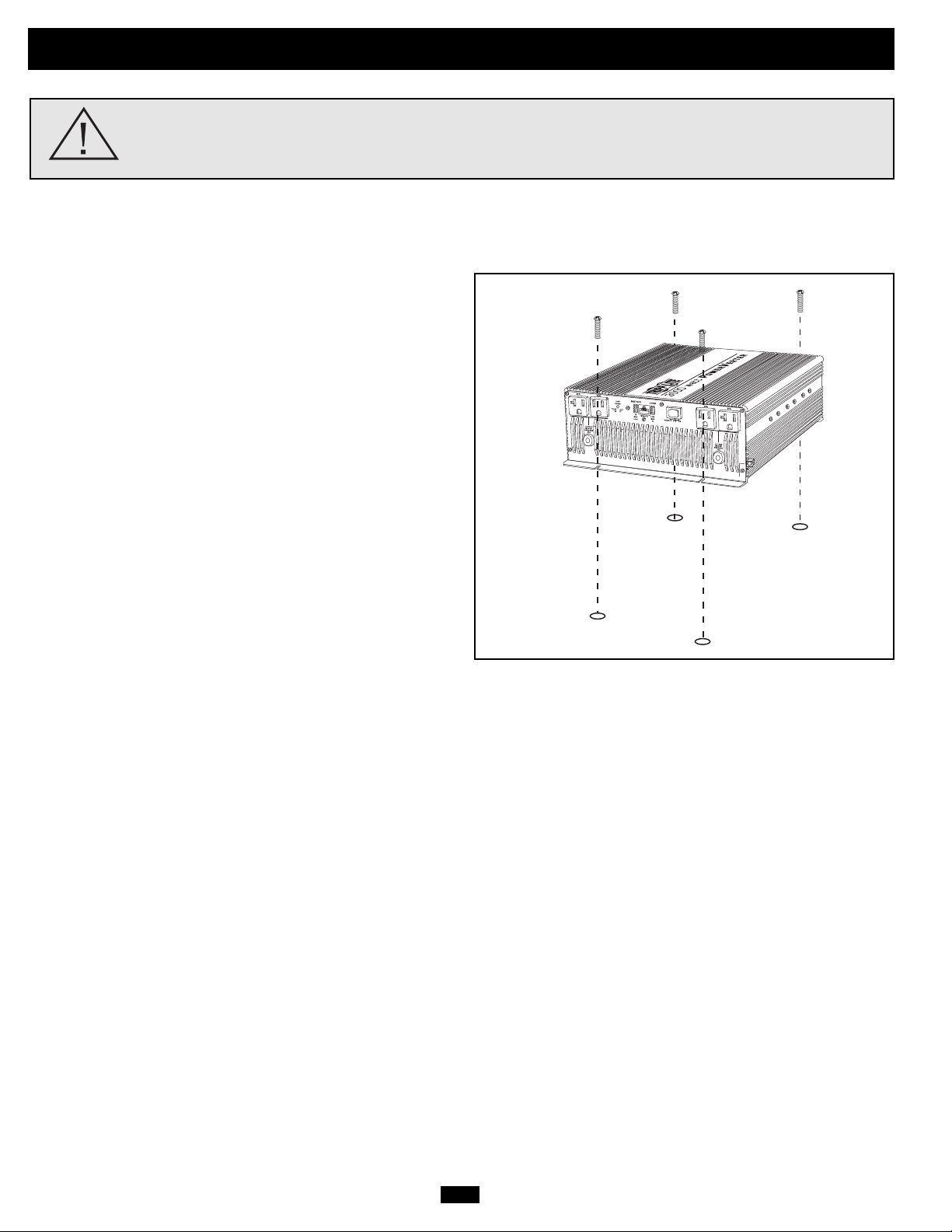

Mounting 6

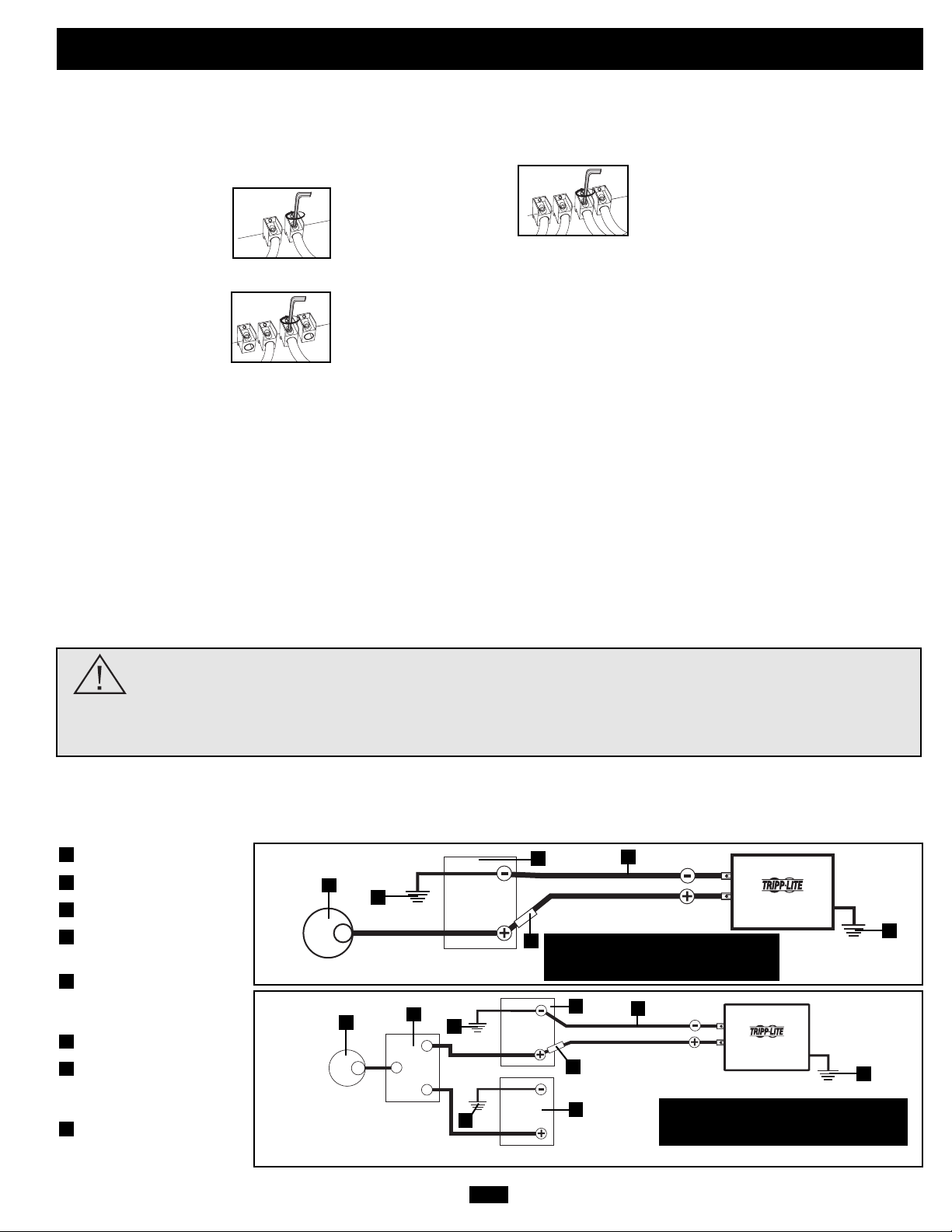

Battery Connection 7

Troubleshooting/Service/
Maintenance/Warranty 8 (back page)

Warranty Registration 8 (back page)

PowerVerter

®

PV1000HF, PV1800HF

& PV3000HF

DC-to-AC Inverters

Input Output

12 VDC 120V, 60 Hz. AC

1111 W. 35th Street, Chicago, IL 60609 USA

Customer Support: [phone]

www.tripplite.com

Copyright © 2004. PowerVerter®is a registered trademark of Tripp Lite. All rights reserved.

Contents

Reliable AC Power Wherever You Need It!

Congratulations! You’ve purchased the most advanced, feature-rich
Inverter designed as a mobile energy source for your vehicle.
PowerVerter Inverters efficiently convert DC (battery) power into
120V AC (household) power, allowing you to use equipment you
commonly use at home—appliances, entertainment systems, computers,
power tools and more—while cruising the open road or out on the
open water. PowerVerter Inverters, through a high-efficiency conversion
process and a charge conservation setting, draw the highest level of
performance from your batteries without overtaxing them, lengthening
their service life. An automatic low battery shutdown feature ensures
you'll always have plenty of power for starting purposes.

• Automatic Overload Protection

• Automatic “Battery-Saver” Low Voltage Shutdown

• High Efficiency DC-to-AC Inversion

• Multi-Function Lights & Switches

• Optional Remote Control Capability

(Module included with PV3000HF)

PV1000HF PV1800HF PV3000HF

Warranty

Registration

Register online today for a

chance to win a FREE

Tripp Lite product!

www.tripplite.com/warranty

GROUND

MODEL NUMBER: PV1000HF PV1800HF PV3000HF

Continuous Power (@ 20° C):* 1000 Watts 1800 Watts 3000 Watts
Double Boost™ Peak Surge Power:* 2000 Watts 3600 Watts 6000 Watts
DC Input Volts (Nominal): 12 VDC 12 VDC 12 VDC
DC Input Voltage Range: 10 - 15 VDC 10 - 15 VDC 10.5 - 15 VDC
DC Input Connection:

User Supplied Cables User Supplied Cables User Supplied Cables
Output Volts (Nominal): 120 VAC 120 VAC 120 VAC
Output Frequency (Nominal): 60 Hz, ± 0.5% 60 Hz, ± 0.5% 60 Hz, ± 0.5%
Efficiency: Up to 94% Up to 94% Up to 94%
Output Waveform:

Modified Sine Wave Modified Sine Wave Modified Sine Wave

* DoubleBoost duration (instantaneous). Actual output depends on battery age, battery charge
level and ambient temperature. The policy of Tripp Lite is one of continuous improvement.
Specifications are subject to change without notice.

This product designed and engineered in the USA.

Wire Gauge

2 Conductors 4 Conductors

(all models) (PV3000HF only)

Watts 6 4 2 0 00 Twin 00

500 15 ft 25 ft 39 ft 62 ft 79 ft 158 ft

700 11 ft 18 ft 28 ft 44 ft 56 ft 112 ft

1000 N/R 12 ft 20 ft 31 ft 39 ft 78 ft

2000 N/R N/R N/R 16 ft 20 ft 40 ft

2400 N/R N/R N/R 13 ft 16 ft 32 ft

3000 N/R N/R N/R 10 ft 13 ft 26 ft

† N/R = Not Recommended. NOTE: Acceptable power is directly related to cable length (i.e. - the shorter the cable, the better the performance)

Important Safety Instructions

SAVE THESE INSTRUCTIONS!

This manual contains important instructions and warnings that should be followed during the installation, operation and storage of all Tripp Lite Inverters.

Location Warnings

• Install your Inverter in a location or compartment in your vehicle that minimizes exposure to heat, dust, direct sunlight and moisture.
Flooding the unit with water will cause it to short circuit and could cause personal injury due to electric shock.

• Leave a minimum of 2" clearance at front and back of the Inverter for proper ventilation. To avoid overheating the Inverter, any
compartment that contains the Inverter must be properly ventilated with adequate outside air flow. The heavier the load of connected
equipment, the more heat will be generated by the unit.

• Do not install the Inverter directly near magnetic storage media, as this may result in data corruption.

• Do not install near flammable materials, fuel or chemicals.

Battery Connection Warnings

• Multiple battery systems must be comprised of batteries of identical voltage, age, amp-hour capacity and type.

• Because explosive hydrogen gas can accumulate near batteries if they are not kept well ventilated, your batteries should not be
installed in a “dead air” compartment. Ideally, any compartment would have some ventilation to outside air.

• Sparks may result during final battery connection. Always observe proper polarity as batteries are connected.

• Do not allow objects to contact the DC input terminals. Do not short or bridge these terminals together. Serious personal injury
or property damage could result.

Ground Connection Warnings

• Safe operation requires connecting the Inverter's Main Ground Lug directly to the frame of the vehicle or earth ground.

• For protection against possible electrical shock hazards, if the Inverter is operated in wet or damp conditions, a user-supplied, portable
GFCI (ground fault circuit interruptor) must be connected between each Inverter receptacle and the equipment it powers.

Equipment Connection Warnings

• Do not use a Tripp Lite Inverter in life support or healthcare applications where a malfunction or failure of a Tripp Lite

Inverter could cause failure of, or significantly alter the performance of, a life support device or medical equipment.

• You may experience uneven performance results if you connect a surge suppressor, line conditioner or UPS system to the output of
the Inverter.

Operation Warnings

• Your Inverter does not require routine maintenance.

• Potentially lethal voltages exist within the Inverter as long as the battery supply is connected. During any service work, the battery
supply should therefore be disconnected.

• Do not connect or disconnect batteries while the Inverter is operating from the battery supply. Dangerous arcing may result.

2PV

Specifications

Minimum Recommended Cable Sizing Chart

†

Always loosely twist each pair of cables (one positive and one negative) together.

Use in conjunction with DC wiring connection instructions in the Battery Connection section.

Using 4 conductors is recommended (but not required) to obtain

maximum output power from PV3000HF models.

Tripp Lite Inverters include a Battery Charge Conserver (Load Sense) Control which saves battery power by allowing users to
set the minimum load level at which the unit’s inverter turns on. Users can significantly reduce the No Load DC Input Current to
a very low amperage power level with the use of this control.

3PV

Feature Identification

Identify the premium features on your specific model and quickly locate instructions on how to maximize their use.

Operating Mode Switch: controls Inverter operation. Set this
3-position rocker switch to “ON” to have your Inverter provide
connected equipment with AC power by converting DC power
from an attached battery. Set switch to “OFF” when not using
connected equipment to prevent battery drain. Set switch to
“REMOTE” to remotely monitor and control the Inverter with
the use of an optional remote module.

“LOAD” Indicator Lights: intuitive “traffic light” signals show
approximate equipment load level. See page 4 for instructions
on reading indicator lights.

“BATTERY” Indicator Lights: intuitive “traffic light” signals
show approximate charge level of your battery. See page 4 for
instructions on reading indicator lights.

DC Power Terminals: connect to your battery terminals. See
page 7 for connection instructions.

AC Receptacles: allow you to connect equipment that would
normally be plugged into a utility outlet. PV3000HF models
include two receptacles that accept either 15- or 20-amp plugs.

Resettable Circuit Breaker(s): protect your Inverter against
damage due to overload. PV3000HF models include two separate
20-amp circuits. See page 4 for resetting instructions.

Remote Control Module Connector: allows remote monitoring
and control with an optional module (Tripp Lite model
APSRM4, sold separately or included with PV3000HF models).
See remote module owner’s manual for connection instructions.

Battery Charge Conserver (Load Sense) Dial: conserves battery
power by setting the low-load level at which the Inverter auto­matically shuts off. See page 4 for setting instructions.

Multi-Speed Cooling Fan(s): quiet, efficient fans prolong
equipment service life.

Main Ground Lug: properly grounds the Inverter to vehicle
grounding system or earth ground. See page 7 for connection
instructions.

Low Battery Alarm/Shutdown (internal, not shown): auto­matically detects low voltage and shuts down Inverter to preserve
vehicle battery.

Overload Alarm/Shutdown (internal, not shown): automatically
detects wattage overload on Inverter outlets and shuts down
Inverter as a protective measure.

1

2

3

4

5

6

7

8

9

PV3000HF Rear Panel PV3000HF Front Panel

10

PV1800HF Rear Panel PV1800HF Front Panel

PV1000HF Rear Panel

PV1000HF Front Panel

1

2

73

8

5

10

6

99 4

1

2

73

8

10

5

9

4

4

9

4

4

1

2

73

8

10

5

5

GREATER

LOAD
SENSE

LESSER

LOAD

LOAD

ON

ON

LOAD

BATTERY

HI

LOW

REMOTE

MED

MED

LOW

HI

REMOTE

OFF

ON

Observe proper polarity. Reversed polarity
will blow internal fuses. See manual.

CAUTION!

CAUTION!

Observe proper polarity. Reversed polarity
will blow internal fuses. See manual.

12V DC

12V DC

CAUTION!

12V DC

Observe proper polarity. Reversed polarity
will blow internal fuses. See manual.

20A

OUTPUT
CIRCUIT
BREAKER

20A

GROUND

REMOTE

REMOTE

OFF

ON

GROUND

OFF

ON

15A

20A

OUTPUT
CIRCUIT
BREAKER

20A

GROUND

GREATER

LOAD
SENSE

LESSER

LOAD

LOAD

ON

ON

LOAD

BATTERY

HI

LOW

REMOTE

MED

MED

LOW

HI

15A

LOAD
SENSE

GREATER

LESSER

LOAD

LOAD

ON

ON

LOAD

BATTERY

HI

LOW

REMOTE

MED

MED

LOW

HI

4PV

Operation

Switch Modes

Switch between the following operating modes as appropriate to
your situation:

“ON”: Switch to this setting to provide connected
equipment with AC power.

“OFF”: Switch to this setting to shut down the Inverter
completely, preventing it from drawing power from
the batteries. Use this switch to automatically reset
the unit if it shuts down due to low battery or overload.
Use an optional remote control module (Tripp Lite model APSRM4,
sold separately or included with PV3000HF models) to reset unit
due to overload only.

“REMOTE”: Switch to this setting to remotely
monitor and control the Inverter with the use of an
optional remote module. See remote module’s
owner’s manual for operating instructions.

Indicator Lights

Your Inverter is equipped with a simple, intuitive, user-friendly set of
indicator lights. These easily-remembered “traffic light” signals will
allow you, shortly after first use, to tell at a glance the charge condition
of your batteries, as well as ascertain approximate equipment load level.

“BATTERY” Indicator Lights: These three lights will illuminate in
several sequences to show the approximate charge level of your con­nected battery:

Approximate Battery Charge Level

†

Indicator Illuminated Battery Capacity

Green 91%–Full
Green & Yellow 81%–90%
Yellow 61%–80%
Yellow & Red 41%–60%
Red 21%–40%
Flashing Red (slowly)* 1%–20%
Flashing Red (quickly)** 0% (Inverter

has shutdown)

“LOAD” Indicator Lights: These three lights will illuminate in
several sequences to show the approximate equipment load level on
the Inverter’s AC receptacles.

Approximate Equipment Load Level

Indicator Illuminated Load Level

Green 0%-50%
Green & Yellow 51%-75%
Yellow 76%-90%
Red >

90%

Flashing Red (quickly)** OVERLOAD

(Inverter has
shutdown)

† Charge levels listed are approximate. Actual conditions vary depending on battery condition
and load. * Approximately ½ second on, ½ second off. ** Approximately ¼ second on, ¼ second
off. See “Resetting Your Inverter to Restore AC Power” to reset after Inverter shut down.

Resetting Your Inverter to Restore
AC Power

Your Inverter may cease supplying AC power in order to protect
itself from overload or to protect your electrical system. To restore
normal functioning:

Low Battery Shutdown Reset: Set operating mode switch to
“OFF” and run vehicle engine to recharge battery. When battery is
adequately charged, switch operating mode switch back to either
“REMOTE” or “ON.”

Overload Shutdown Reset: Set operating mode switch to “OFF”
and remove some of the connected electrical load (ie: turn off some
of the AC devices drawing power which may have caused the over­load of the unit). Wait one minute, then switch operating mode
switch back to either “REMOTE” or “ON.”

Output Circuit Breaker Reset (Select Models): Alternatively,
check output circuit breaker(s) on the unit's front panel. If tripped,
remove some of the electrical load, then wait one minute to allow
components to cool before resetting the circuit breaker. See
Troubleshooting for other possible reasons AC output may be absent.

Set Battery Charge Conserver
(Load Sense) Dial

In order to save battery power, the Inverter automatical­ly shuts off in the absence of any power demand from
connected equipment or appliances (the electrical
load). When the unit detects a load, it automatically turns on. Users
may choose the minimum load the Inverter will detect by adjusting
the Battery Charge Conserver Dial (see diagram). Using a small tool,
turn the dial clockwise to lower the minimum load that will be
detected, causing the Inverter to turn on for smaller loads. When the
dial is turned fully clockwise, the Inverter will operate even when
there is no load. Turn the dial counterclockwise to set a higher minimum
load, causing the Inverter to stay off until the new minimum load is
reached. When the dial is turned fully counterclockwise, the Inverter
will turn on when it detects any load greater than approximately 150 Watts.

Note: The factory setting for the dial is fully clockwise. However, based on the threshold load to which
you’d like the Inverter to respond, you should adjust the dial counterclockwise to reduce its sensitivity
until the Inverter is active only when connected equipment or appliances are actually in use.

Connect Remote Control—OPTIONAL (included with PV3000HF)

All models feature an 8-conductor telephone style receptacle on the
front panel for use with an optional remote control module (Tripp Lite
model APSRM4, sold separately or included with PV3000HF models).
The remote module allows the Inverter to be mounted in a compartment
or cabinet out of sight, while operated conveniently from your vehicle’s
dashboard. See instructions packed with the remote control module.

1

2 3

4

5

6

7

1

2

3

4

5

6

7

1

2

3

4

5

1

2 3

4

5

REMOTE

OFF

ON

REMOTE

OFF

ON

REMOTE

OFF

ON

GREATER

LOAD

ON

LOAD

SENSE

LESSER
LOAD
ON

5PV

Application Guide

540 watts ÷ 12V = 45 DC Amps

45 DC Amps × 5 Hrs. Runtime

× 1.2 = 270 Amp-Hours

Match Battery Amp-Hour Capacity to Your Application

Select a battery or system of batteries that will provide your Inverter with proper DC voltage and an adequate amp-hour capacity to power
your application. Even though Tripp Lite Inverters are highly efficient at DC-to-AC inversion, their rated output capacities are limited by
the total amp-hour capacity of connected batteries and the support of your vehicle’s alternator if the engine is kept running.

• STEP 1: Determine Total Wattage Required

Add the wattage ratings of all equipment you will connect to your Inverter.
Wattage ratings are usually listed in equipment manuals or on nameplates. If
your equipment is rated in amps, multiply that number times AC utility voltage
to determine watts. (Example: a ¼ in. drill requires 2½ amps. 2½ amps × 120
volts = 300 watts.)

Note: Your Inverter will operate at higher efficiencies at about 75% - 80% of nameplate rating.

• STEP 2: Determine DC Battery Amps Required

Divide the total wattage required (from step 1, above) by the battery voltage (12)
to determine the DC amps required.

• STEP 3: Estimate Battery Amp-Hours Required (for operation
unsupported by the alternator)
Multiply the DC amps required (from step 2, above) by the number of hours
you estimate you will operate your equipment exclusively from battery power
before you have to recharge your batteries. Compensate for inefficiency and
wiring losses by multiplying this number by 1.2. This will give you a rough
estimate of how many amp-hours of battery power (from one or several batteries)
you should connect to your Inverter.

NOTE: Battery amp-hour ratings are usually given for a 20-hour discharge rate. Actual amp-hour capacities are less when
batteries are discharged at faster rates. For example, batteries discharged in 55 minutes provide only 50% of their
listed amp-hour ratings, while batteries discharged in 9 minutes provide as little as 30% of their amp-hour ratings.

You must allow your batteries to recharge long enough to replace the charge lost during Inverter operation or else you will eventually run down your batteries.

NOTE: For Tripp Lite Inverters over 1000 watts used in mobile applications, Tripp Lite recommends you use at least two batteries, if possible, fed by a heavy-duty alternator anytime the vehicle is
running. Tripp Lite Inverters will provide adequate power for ordinary usage within limited times without the assistance of your vehicle’s alternator. However, when operating extremely heavy electrical
loads at their peak, you may wish to “assist your batteries” by running your vehicle engine faster than normal idling.

Example

Tools

300W + 220W + 20W = 540W

¼" Drill Orbital Sander Cordless Tool Charger

Appliances

300W + 140W + 100W = 540W

Blender Color TV Laptop Computer

6PV

Mounting

optional

WARNING! If you choose to mount your Inverter, mount it and wire its DC input
BEFORE DC battery connection. Failure to follow these instructions may lead to
personal injury and/or damage to the Inverter and connected systems.

Tripp Lite Inverters are designed for horizontal mounting in a variety of vehicular or non-vehicular applications. User must supply mounting
hardware and is responsible for determining if the hardware and mounting surface are suitable to support the weight of the Inverter. Contact
Tripp Lite if you require further assistance in mounting your Inverter.

Vehicular and Non-Vehicular Horizontal Mount

Install and tighten four user-supplied fasteners through Inverter
mounting slots and into a rigid horizontal surface. Install fasteners
as far back in the mounting slots as possible, otherwise the Inverter
may slide back and forth if fasteners loosen.

GROUND

7PV

• Connect DC Wiring:

Connection to Two DC Terminals

PV1000HF and
PV1800HF models
include two DC termi­nals; PV3000HF models
include four DC terminals
(two positive and two
negative). For PV3000HF
models, it is acceptable to
use only one set of cables
to connect your battery to
only one positive and one
negative DC terminal,
however, your PV3000HF may provide
reduced output power. It doesn’t make a
difference which positive and negative
terminal you choose for the connection
because both positive terminals are internally
bonded and both negative terminals are also
internally bonded.

Regardless of the model, you must run posi­tive cable(s) through user-supplied UL-listed
fuse(s) and fuse block(s) of the proper size:
PV1000HF—175 amp fuse, PV1800HF—
250 amp fuse, PV3000HF—500 amp fuse.

See Specifications page for Minimum Recommended Cable Sizing
Chart. An excellent source of cables are battery jumper cables.
Output performance will decrease if you use only one jumper cable.

Connection to Four DC Terminals

To obtain maximum
output power from
PV3000HF models, it is
recommended (but not
required) that you use
four 00 gauge cables to
connect your battery to all four DC
terminals. In this connection you must run
two positive cables of equal length through
two user-supplied UL-listed 250-amp fuses
and fuse blocks. Use the equivalent of two
00 cables in all other connections within the
battery system.

Length & Gauge of Cables

Although your Inverter is a high-efficiency
converter of electricity, its rated output
capacity is limited by the length and gauge
of the cabling running from the battery to
the unit. Use the shortest length and largest
diameter cabling (maximum 00 gauge) to fit
your Inverter’s DC Input terminals. Shorter
and heavier gauge cabling reduces DC volt­age drop and allows for maximum transfer
of current. Your Inverter is capable of deliv­ering peak wattage at up to 200% of its rated
continuous wattage output instantaneously.
See Specifications page for details. Heavier

gauge cabling should be used when continu­ously operating heavy draw equipment
under these conditions. Tighten your
Inverter and battery terminals to approxi­mately 3.5 Newton-meters (2.58 foot lbs.) of
torque to create an efficient
connection and to prevent excessive heating
at this connection. Insufficient tightening of
the terminals could void your warranty.

• Connect Ground: Using a #8 AWG wire
or larger, directly connect the Main Ground
Lug to the vehicle's chassis ground or earth
ground. See Feature Identification section to
locate Main Ground Lug. All installations
must comply with national and local codes
and ordinances.

• Connect Fuse: In addition to the
protection provided by the Inverter’s
internal fuses, NEC article 551 requires that
you connect your Inverter’s positive DC
Terminal(s) directly to a UL-listed fuse(s)
and fuse block(s) within 18 inches of the
battery. See diagrams below for proper fuse
placement.

Battery Connection

Vehicular

Your Inverter’s Nominal DC Input Voltage must match the voltage of your battery or batteries—12 Volts in most vehicular applications. It is possible
to connect your Inverter to the main battery within your vehicle’s electrical system. In many vehicular contexts, the Inverter will be connected
to one or more dedicated auxiliary (house) batteries which are isolated from the drive system to prevent possible draining of the main battery.

12 Volt Main Battery Connection—two DC terminals

12 Volt Alternator

Vehicle Battery Ground

12 Volt Main Battery

12 Volt Auxiliary (House)
Battery

UL-Listed Fuses & Fuse
Blocks (mounted within 18
inches of the battery)

Battery Isolator

Large Diameter Cabling,
Maximum 00 Gauge to Fit
Terminals

8 AWG (minimum) Ground
Wire to Vehicle Frame or
Earth Ground

8

7

6

5

4

3

2

1

12 Volt Main and Auxiliary (House) Battery Connection (Isolated Parallel)—two DC terminals

Connect your Inverter to your batteries using the following procedures—always loosely twist each pair of cables (one positive and
one negative) together:

WARNING! Never attempt to operate your Inverter by connecting it directly to output from an alternator rather than
a battery or battery bank.

CAUTION! Observe proper polarity with all DC connections. If polarity is reversed, the Inverter’s 40-amp internal
fuses will blow.To access internal fuses, disconnect all equipment and batteries from the Inverter. Then, unscrew
and remove front panel; slide out bottom panel to access fuses. Replace blown fuses with an equal number of new
fuses of the same type and amperage. Replace front panel and screws.

PV3000HF

Note: Connection to all four DC terminals

is recommended to provide the maximum

output power from PV3000HF models.

Note: Connection to all four DC terminals

is recommended to provide the maximum

output power from PV3000HF models.

PV1000HF
PV1800HF

1

2

3

5

7

8

1

2

2

6

4

3

5

7

8

PV3000HF

12 Volts

12 Volts

12 Volts

12 Volts

12 Volts

12 Volt Inverter

12 Volt Inverter

8PV

HI
MED
LOW

LOW
MED

HI

REMOTE

REMOTE

OFF

ON

LOAD

SENSE

GREATER

LOAD

ON

LESSER
LOAD
ON

BATTERY

LOAD

Try these remedies for common Inverter problems before calling for assistance. Call Tripp Lite Customer Service at [phone] before
returning your unit for service.

Troubleshooting

SYMPTOM PROBLEMS CORRECTIONS

No AC Output Operating Mode Switch is set to “OFF.” Set Operating Mode Switch to “REMOTE” or “ON.”
(All Indicator Lights Are OFF)

User-supplied UL-listed external DC input fuses have blown. Replace fuses.

Red Battery Indicator Light Unit has shut down due to excessive battery discharge. Run your engine to raise battery voltage. Check external battery
Is Rapidly Flashing connections and fuse. Reset by moving Operating Mode Switch
(¼ Second Flashes) to “OFF.” Wait one minute and switch to “REMOTE” or “ON.”

If unit remains in shutdown mode after several attempts to reset
contact Tripp Lite Customer Service for assistance.

Red Load Indicator Light Unit has shut down due to overload. Reduce load. Reset by moving Operating Mode Switch to “OFF.”
Is Rapidly Flashing Wait one minute and switch to “REMOTE” or “ON.” If unit remains in
(¼ Second Flashes) shutdown mode after several attempts to reset contact Tripp Lite

Customer Service for assistance.

Connected Equipment Experiences Audio/Video interference. Reposition equipment antennas and Inverter.
Buzzing Sound Or Picture Distortion

Inverter Output Seems Intermittent Loose cable connections. Check and secure all connections.

Operating Mode Switch

Battery Indicator Lights

Load Indicator Lights

200409046 93-2283

Limited Warranty

Tripp Lite warrants its Inverters to be free from defects in materials and workman­ship for a period of one year (domestic) or 120 days (export) from the date of retail
purchase by end user.

Tripp Lite’s obligation under this warranty is limited to repairing or replacing (at its
sole option) any such defective products.To obtain service under this warranty you
must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an
authorized Tripp Lite ser vice center. Products must be returned to Tripp Lite or an
authorized Tripp Lite ser vice center with transportation charges prepaid and must
be accompanied by a brief description of the problem encountered and proof of
date and place of purchase. This warranty does not apply to equipment which has
been damaged by accident, negligence or misapplication or has been altered or
modified in any way, including opening of the unit’s casing for any reason. This
warranty applies only to the original purchaser who must have properly regis­tered the product within 10 days of retail purchase.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit lim­itation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or
exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE
FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAM­AGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tr ipp Lite is not liable for
any costs, such as lost profits or revenue, loss of equipment, loss of use of equip­ment, loss of software, loss of data, costs of substitutes, claims by third parties,
or otherwise.

Tripp Lite has a policy of continuous improvement. Specifications are subject to
change without notice.

Service

If you are returning your Inverter to Tripp Lite, please pack it carefully, using the ORIGINAL PACKING MATERIAL that came with the
unit. Enclose a letter describing the symptoms of the problem. If the Inverter is within the warranty period, enclose a copy of your sales
receipt. To obtain service you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite
service center.

Your Inverter requires no maintenance and contains no user-serviceable or replaceable parts, but should be kept dry at all times. Periodically
check, clean and tighten all cable connections, as necessary, both at the unit and at the battery.

Maintenance

Warranty Registration

Visit www.tripplite.com/warranty to register the
warranty of your new Tripp Lite product.You'll be
automatically entered into a drawing for a chance
to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions
apply. See website for details.
