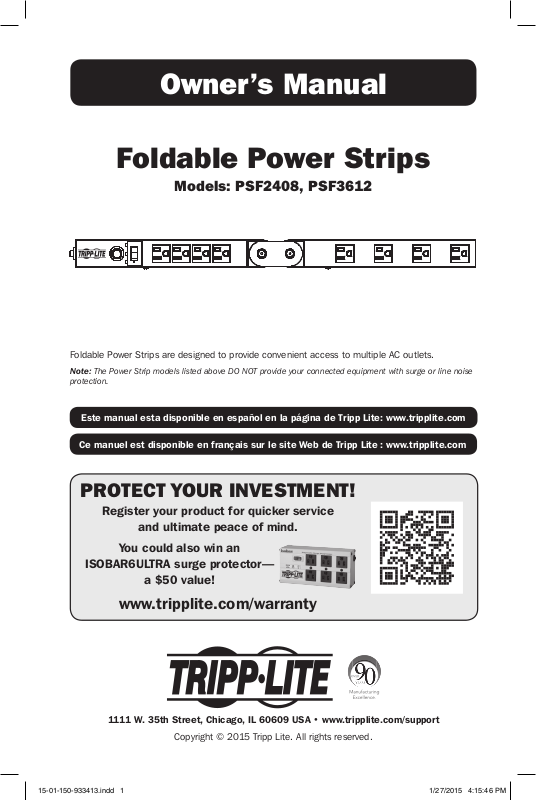

Owner’s Manual
Foldable Power Strips
Models: PSF2408, PSF3612
Foldable Power Strips are designed to provide convenient access to multiple AC outlets.
Note: The Power Strip models listed above DO NOT provide your connected equipment with surge or line noise
protection.
Este manual esta disponible en español en la página de Tripp Lite: www.tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : www.tripplite.com
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an
ISOBAR6ULTRA surge protector—
a $50 value!
www.tripplite.com/warranty
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2015 Tripp Lite. All rights reserved.
1
15-01-150-933413.indd 1 1/27/2015 4:15:46 PM
Page 2
Important Safety Instructions
SAVE THESE INSTRUCTIONS
• DO NOT connect the power strip to an ungrounded outlet.
• DO NOT use the power strip with 2-wire extension cords or adapters.
• This power strip is designed for indoor use only. Install the power strip away from heat-emitting
appliances such as radiators or heat registers.
• Do not install where excessive moisture is present.
• Do not plug extension cords into the power strip.
• Never install electrical, telephone, network or coaxial wiring during a lightning storm.
• Do not drill into any part of the housing or open the housing for any reason. There are no
user-serviceable parts inside.
• Use of this equipment in life support applications where failure of this equipment can
reasonably be expected to cause the failure of the life support equipment or to significantly
affect its safety or effectiveness is not recommended. Do not use this equipment in the
presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.
Equipment Connection
Plug your equipment into the Power Strip’s AC receptacles. DO NOT plug in equipment that draws
more total amps than your Power Strip’s amperage rating (see label on Power Strip for amperage
rating), or you will trip the circuit breaker. If the circuit breaker trips, remove overload and depress
breaker to reset. Leave enough clearance at the end of the Power Strip to allow the circuit
breaker to operate normally.
Note: Select models with a power switch feature a protective switch cover. To access the switch, flip open the
attached cover.
Folding Feature
For added convenience, the power strips can be folded to create multiple space-saving
configurations.
PSF2408 model shown
2
15-01-150-933413.indd 2 1/27/2015 4:15:47 PM
Page 3
Wall Mounting
All Power Strip models feature clips for horizontal or vertical mounting on a variety of surfaces.
The user must supply other mounting hardware (screws, etc.) and determine its suitability for use
with the chosen mounting surface.
1
Mark a straight horizontal or vertical line where
you want to mount the Power Strip. At each end
of the line, mark where the edges of the Power
Strip will be located. Place a mounting clip on
the mounting surface 1” in from these edges
and mark where the screws must be driven into
the wall. For strips longer than 48” (120 cm),
also mark a screw hole for a third mounting clip
midway between the other two.
2
Clip Mounting: Drive #10 screws through
washers, through the centers of the mounting
clips and into the mounting surface 2a. Place
the Power Strip inside one edge of the mounting
clips, then snap the Power Strip into place 2b.
1
2a
2b
Specifications
Model
PSF2408
PSF3612
15-01-150-933413.indd 3 1/27/2015 4:15:47 PM
Amperage
Rating
15A 8 x 5-15R 5-15P 15 ft. 24 in. 15A
15A 12 x 5-15R 5-15P 15 ft. 36 in. 15A
Outlet
Qty. x Type Input Plug Cord Length
3
Overall
Length Breaker
Page 4
Lifetime Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original
defects in material and workmanship for its lifetime. If the product should prove defective in material or
workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this
Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges
prepaid) to: TRIPP LITE; 1111 W. 35th Street, Chicago, IL 60609. Seller will pay return shipping charges. Visit
www.tripplite.com/support before sending any equipment back for repair.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE,
ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY
SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES,
INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE
WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND
CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts,
and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have
other rights which vary from jurisdiction to jurisdiction.)
WARNING: The individual user should take care to determine prior to use whether this device is suitable,
adequate or safe for the use intended. Since individual applications are subject to great variation, the
manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any
specific application.
PRODUCT REGISTRATION
Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered
into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
Regulatory Compliance Identification Numbers
For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been
assigned a unique series number. The series number can be found on the product nameplate label, along
with all required approval markings and information. When requesting compliance information for this product,
always refer to the series number. The series number should not be confused with the marketing name or
model number of the product.
Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without
notice.
