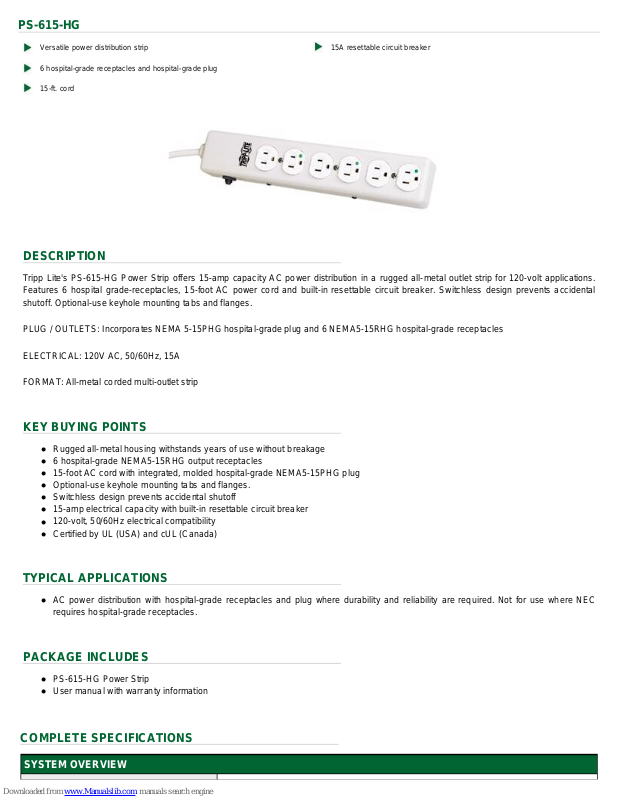

PS-615-HG
Versatile power distribution strip 15A resettable circuit breaker
DESCRIPTION
volt applications.
in resettable circuit breaker. Switchless design prevents accidental
KEY BUYING POINTS
TYPICAL APPLICATIONS
grade receptacles and plug where durability and reliability are required. Not for use where NEC
PACKAGE INCLUDES
COMPLETE SPECIFICATIONS
6 hospital-grade receptacles and hospital-grade plug
15-ft. cord
Tripp Lite's PS-615-HG Power Strip offers 15-amp capacity AC power distribution in a rugged all-metal outlet strip for 120Features 6 hospital grade-receptacles, 15-foot AC power cord and builtshutoff. Optional-use keyhole mounting tabs and flanges.
PLUG / OUTLETS: Incorporates NEMA 5-15PHG hospital-grade plug and 6 NEMA5-15RHG hospital-grade receptacles
ELECTRICAL: 120V AC, 50/60Hz, 15A
FORMAT: All-metal corded multi-outlet strip
Rugged all-metal housing withstands years of use without breakage
6 hospital-grade NEMA5-15RHG output receptacles
15-foot AC cord with integrated, molded hospital-grade NEMA5-15PHG plug
Optional-use keyhole mounting tabs and flanges.
Switchless design prevents accidental shutoff
15-amp electrical capacity with built-in resettable circuit breaker
120-volt, 50/60Hz electrical compatibility
Certified by UL (USA) and cUL (Canada)
AC power distribution with hospital-
requires hospital-grade receptacles.
PS-615-HG Power Strip
User manual with warranty information
SYSTEM OVERVIEW
Page 2
System overview:
Voltage compatibility:
Frequency compatibility:
OUTPUT
6 outlet power strip with hospital-grade plug and outlets, 15 ft. cord
120VAC
50/60 Hz
Output volt amp capacity (amps):
Outlet quantity / type:
Outlet orientation:
Overload protection:
INPUT
Input connection type:
Input cord length (ft.):
Input cord length (m):
Recommended electrical service:
LEDS ALARMS & SWITCHES
Switches:
PHYSICAL
Unit Dimensions (HWD/in):
Unit Dimensions (HWD/cm):
Material of construction:
Integrated keyhole mounting tabs:
Housing color:
Receptacle color:
AC line cord color:
15A
6 NEMA 5-15RHG receptacles
Single row of 6
15A circuit breaker
NEMA 5-15PHG input plug
15
4.572
15A 120V
No power switch
1.5 x 13.75 x 2.5
3.8 x 34.9 x 6.4
Metal
Keyhole mounting tabs and flanges enable mounting to a variety of surfaces
White
White
White
CERTIFICATIONS
UL1363 (Power Tap):
cUL / CSA (Canada):
WARRANTY
Product warranty:
UL1363 (Series Number: AGIB12015SL)
cUL (Series Number: AGIB12015SL)
Lifetime
Page 3
The policy of Tripp Lite is one of continuous improvement.
Specifications are subject to change without notice.
Therefore, your product may vary slightly from what is currently listed.
