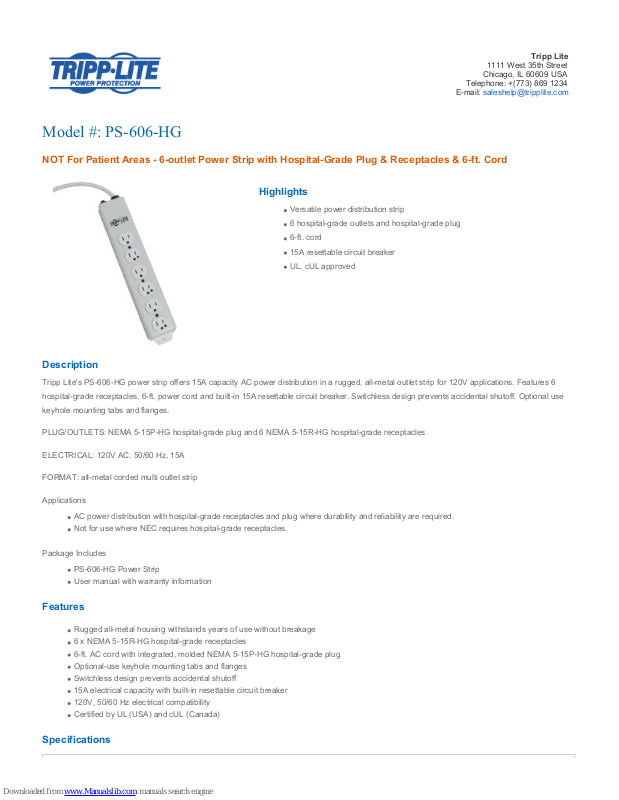

Page 1
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model #: PS-606-HG
NOT For Patient Areas - 6-outlet Power Strip with Hospital-Grade Plug & Receptacles & 6-ft. Cord
Highlights
Versatile power distribution strip
6 hospital-grade outlets and hospital-grade plug
6-ft. cord
15A resettable circuit breaker
UL, cUL approved
Description
Tripp Lite's PS-606-HG power strip offers 15A capacity AC power distribution in a rugged, all-metal outlet strip for 120V applications. Features 6
hospital-grade receptacles, 6-ft. power cord and built-in 15A resettable circuit breaker. Switchless design prevents accidental shutoff. Optional use
keyhole mounting tabs and flanges.
PLUG/OUTLETS: NEMA 5-15P-HG hospital-grade plug and 6 NEMA 5-15R-HG hospital-grade receptacles
ELECTRICAL: 120V AC, 50/60 Hz, 15A
FORMAT: all-metal corded multi outlet strip
Applications
AC power distribution with hospital-grade receptacles and plug where durability and reliability are required.
Not for use where NEC requires hospital-grade receptacles.
Package Includes
PS-606-HG Power Strip
User manual with warranty information
Features
Rugged all-metal housing withstands years of use without breakage
6 x NEMA 5-15R-HG hospital-grade receptacles
6-ft. AC cord with integrated, molded NEMA 5-15P-HG hospital-grade plug
Optional-use keyhole mounting tabs and flanges
Switchless design prevents accidental shutoff
15A electrical capacity with built-in resettable circuit breaker
120V, 50/60 Hz electrical compatibility
Certified by UL (USA) and cUL (Canada)
Specifications
Page 2
OVERVIEW
Model Type NOT For Patient Areas
OUTPUT
Frequency compatibility 50 / 60 Hz
Circuit Breaker (amps) 15
Overload protection 15A circuit breaker
Outlet quantity / type 6 NEMA 5-15R-HG
Outlet orientation Single row of 6
INPUT
Nominal Input Voltage(s)
Supported
120V AC
Recommended Electrical
Service
15A, 120V
Input connection type NEMA 5-15P-HG
Input cord length (ft.) 6
Input cord length (m) 1.83
Voltage compatibility (VAC) 120
LEDS ALARMS & SWITCHES
Switches No power switch
PHYSICAL
Shipping weight (lbs) 3.5
Shipping weight (kg) 1.6
Unit Dimensions (HWD/in) 1.5 x 13.75 x 2.5
Unit Dimensions (HWD/cm) 3.8 x 34.9 x 6.4
Unit weight (lbs) 2.4
Unit weight (kg) 1.1
Material of construction Metal
Integrated keyhole mounting
tabs
Keyhole mounting tabs and flanges enable mounting to a variety of surfaces
Receptacle Color White
AC line cord color White
Outlets center to center
measurement
38.7mm
Keyhole slot center to center
measurement
Distance between keyhole tabs = 261.92mm; Distance between end tabs = 330.17
CERTIFICATIONS
UL1363 (Power Tap) UL1363 (Series Number: AGIB12015SL)
cUL / CSA (Canada) cUL (Series Number: AGIB12015SL)
WARRANTY
Page 3
Product Warranty Period
(Worldwide)
Lifetime limited warranty
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?variables.txtModelID=2661.
Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
