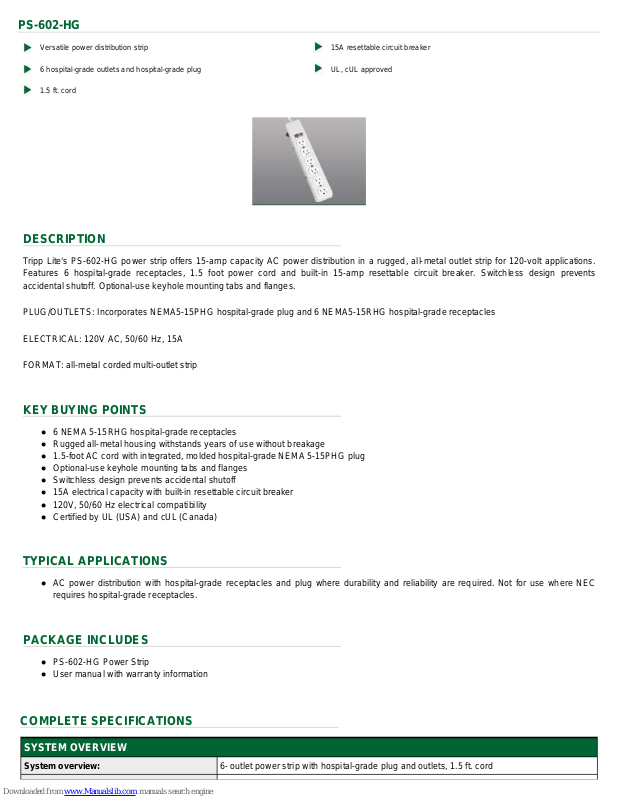

Page 1
PS-602-HG
Versatile power distribution strip 15A resettable circuit breaker
DESCRIPTION
volt applications.
amp resettable circuit breaker. Switchless design prevents
KEY BUYING POINTS
TYPICAL APPLICATIONS
grade receptacles and plug where durability and reliability are required. Not for use where NEC
PACKAGE INCLUDES
COMPLETE SPECIFICATIONS
6 hospital-grade outlets and hospital-grade plug UL, cUL approved
1.5 ft. cord
Tripp Lite's PS-602-HG power strip offers 15-amp capacity AC power distribution in a rugged, all-metal outlet strip for 120Features 6 hospital-grade receptacles, 1.5 foot power cord and built-in 15accidental shutoff. Optional-use keyhole mounting tabs and flanges.
PLUG/OUTLETS: Incorporates NEMA5-15PHG hospital-grade plug and 6 NEMA5-15RHG hospital-grade receptacles
ELECTRICAL: 120V AC, 50/60 Hz, 15A
FORMAT: all-metal corded multi-outlet strip
6 NEMA 5-15RHG hospital-grade receptacles
Rugged all-metal housing withstands years of use without breakage
1.5-foot AC cord with integrated, molded hospital-grade NEMA 5-15PHG plug
Optional-use keyhole mounting tabs and flanges
Switchless design prevents accidental shutoff
15A electrical capacity with built-in resettable circuit breaker
120V, 50/60 Hz electrical compatibility
Certified by UL (USA) and cUL (Canada)
AC power distribution with hospital-
requires hospital-grade receptacles.
PS-602-HG Power Strip
User manual with warranty information
SYSTEM OVERVIEW
System overview:
6- outlet power strip with hospital-grade plug and outlets, 1.5 ft. cord
Page 2
Voltage compatibility:
Frequency compatibility:
OUTPUT
120V AC
50/60 Hz
Outlet quantity / type:
Outlet orientation:
Overload protection:
INPUT
Input connection type:
Input cord length (ft.):
Input cord length (m):
Recommended electrical service:
LEDS ALARMS & SWITCHES
Switches:
PHYSICAL
Shipping weight (lbs):
Shipping weight (kg):
Unit weight (lbs):
Unit weight (kg):
Unit Dimensions (HWD/in):
Unit Dimensions (HWD/cm):
Material of construction:
Integrated keyhole mounting tabs:
Housing color:
Receptacle color:
AC line cord color:
6 NEMA 15-5RHG
Single row of 6
15 amp circuit breaker
NEMA 5-15PHG input plug
1.5
0.46
15A, 120V
no
3.1
1.4
2
0.91
1.5 x 13.75 x 2.5
3.8 x 34.9 x 6.4
Metal
Keyhole mounting tabs and flanges enable mounting to a variety of surfaces
White
White
White
CERTIFICATIONS
UL1363 (Power Tap):
cUL / CSA (Canada):
WARRANTY
Product warranty:
UL1363 (Series Number: AGIB12015SL)
cUL (Series Number: AGIB12015SL)
Lifetime
Page 3
The policy of Tripp Lite is one of continuous improvement.
Specifications are subject to change without notice.
Therefore, your product may vary slightly from what is currently listed.
