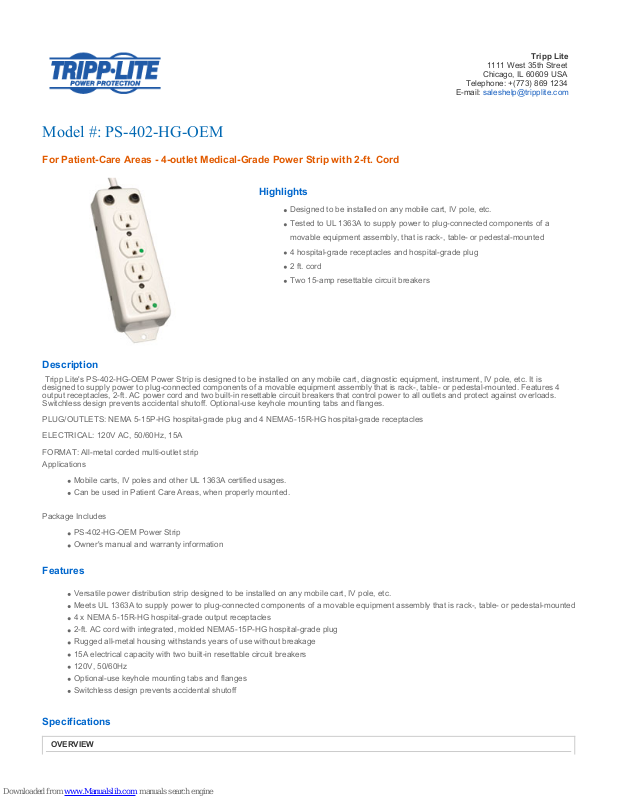

Page 1
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model #: PS-402-HG-OEM
For Patient-Care Areas - 4-outlet Medical-Grade Power Strip with 2-ft. Cord
Highlights
Designed to be installed on any mobile cart, IV pole, etc.
Tested to UL 1363A to supply power to plug-connected components of a
movable equipment assembly, that is rack-, table- or pedestal-mounted
4 hospital-grade receptacles and hospital-grade plug
2 ft. cord
Two 15-amp resettable circuit breakers
Description
Tripp Lite's PS-402-HG-OEM Power Strip is designed to be installed on any mobile cart, diagnostic equipment, instrument, IV pole, etc. It is
designed to supply power to plug-connected components of a movable equipment assembly that is rack-, table- or pedestal-mounted. Features 4
output receptacles, 2-ft. AC power cord and two built-in resettable circuit breakers that control power to all outlets and protect against overloads.
Switchless design prevents accidental shutoff. Optional-use keyhole mounting tabs and flanges.
PLUG/OUTLETS: NEMA 5-15P-HG hospital-grade plug and 4 NEMA5-15R-HG hospital-grade receptacles
ELECTRICAL: 120V AC, 50/60Hz, 15A
FORMAT: All-metal corded multi-outlet strip
Applications
Mobile carts, IV poles and other UL 1363A certified usages.
Can be used in Patient Care Areas, when properly mounted.
Package Includes
PS-402-HG-OEM Power Strip
Owner's manual and warranty information
Features
Versatile power distribution strip designed to be installed on any mobile cart, IV pole, etc.
Meets UL 1363A to supply power to plug-connected components of a movable equipment assembly that is rack-, table- or pedestal-mounted
4 x NEMA 5-15R-HG hospital-grade output receptacles
2-ft. AC cord with integrated, molded NEMA5-15P-HG hospital-grade plug
Rugged all-metal housing withstands years of use without breakage
15A electrical capacity with two built-in resettable circuit breakers
120V, 50/60Hz
Optional-use keyhole mounting tabs and flanges
Switchless design prevents accidental shutoff
Specifications
OVERVIEW
Page 2
Intended Application Hospital/Medical
Model Type For Patient-Care Areas
OUTPUT
Frequency compatibility 50 / 60 Hz
Circuit Breaker (amps) 15
Overload protection 2 x 15amp breakers (1 line, 1 neutral)
Outlet quantity / type 4 NEMA 5-15R-HG
Outlet orientation Single row of 4
INPUT
Nominal Input Voltage(s)
Supported
120V AC
Recommended Electrical
Service
15A, 120V
Input connection type NEMA 5-15P-HG
Input cord length (ft.) 2
Input cord length (m) 4.572
Input cord gauge, type 14 gauge, SJT
Voltage compatibility (VAC) 120
LEDS ALARMS & SWITCHES
Switches No power switch
PHYSICAL
Shipping Dimensions
(HWD/in)
2.36 x 6.10 x 9.76
Shipping weight (lbs) 1.64
Unit Dimensions (HWD/in) 1.73 x 2.50 x 8.54
Unit weight (lbs) 1.45
Material of construction Metal
Integrated keyhole mounting
tabs
Keyhole mounting tabs and flanges enable mounting to a variety of surfaces
Receptacle Color White
AC line cord color White
Style Strip
Outlets center to center
measurement
Inner outlets = 32.5mm
Keyhole slot center to center
measurement
Distance between keyhole tabs = 127mm; Distance between end tabs = 207.45mm
CERTIFICATIONS
Approvals TUV tested to UL 1363A
WARRANTY
Page 3
Product Warranty Period
(Worldwide)
Lifetime limited warranty
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=5491.
Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
