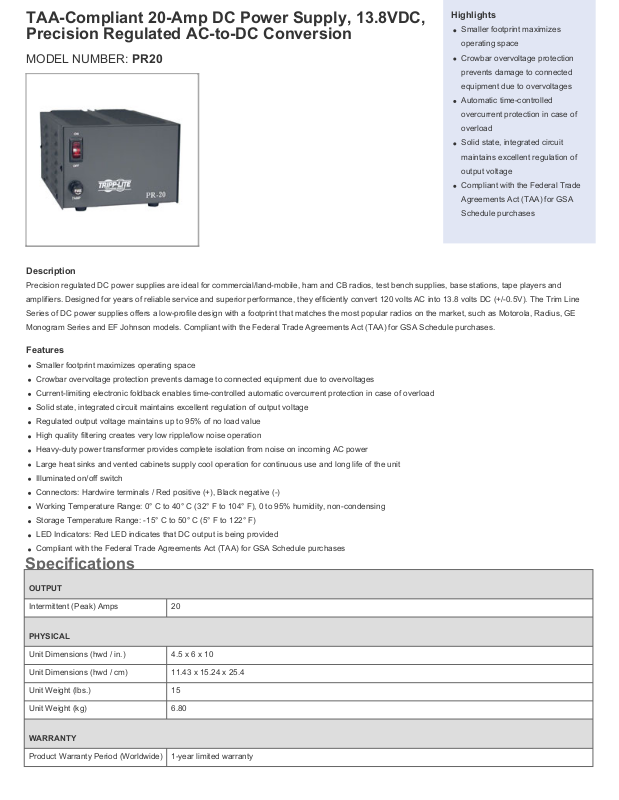

Tripp-Lite PR20 Specifications

TAA-Compliant 20-Amp DC Power Supply, 13.8VDC,

Highlights

Smaller footprint maximizes

operating space

Crowbar overvoltage protection

prevents damage to connected

equipment due to overvoltages

Automatic time-controlled

overcurrent protection in case of

overload

Solid state, integrated circuit

maintains excellent regulation of

output voltage

Compliant with the Federal Trade

Agreements Act (TAA) for GSA

Schedule purchases

Precision Regulated AC-to-DC Conversion

MODEL NUMBER: PR20

Description

Precision regulated DC power supplies are ideal for commercial/land-mobile, ham and CB radios, test bench supplies, base stations, tape players and

amplifiers. Designed for years of reliable service and superior performance, they efficiently convert 120 volts AC into 13.8 volts DC (+/-0.5V). The Trim Line

Series of DC power supplies offers a low-profile design with a footprint that matches the most popular radios on the market, such as Motorola, Radius, GE

Monogram Series and EF Johnson models. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

Smaller footprint maximizes operating space

Crowbar overvoltage protection prevents damage to connected equipment due to overvoltages

Current-limiting electronic foldback enables time-controlled automatic overcurrent protection in case of overload

Solid state, integrated circuit maintains excellent regulation of output voltage

Regulated output voltage maintains up to 95% of no load value

High quality filtering creates very low ripple/low noise operation

Heavy-duty power transformer provides complete isolation from noise on incoming AC power

Large heat sinks and vented cabinets supply cool operation for continuous use and long life of the unit

Illuminated on/off switch

Connectors: Hardwire terminals / Red positive (+), Black negative (-)

Working Temperature Range: 0° C to 40° C (32° F to 104° F), 0 to 95% humidity, non-condensing

Storage Temperature Range: -15° C to 50° C (5° F to 122° F)

LED Indicators: Red LED indicates that DC output is being provided

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

OUTPUT

Intermittent (Peak) Amps 20

PHYSICAL

Unit Dimensions (hwd / in.) 4.5 x 6 x 10

Unit Dimensions (hwd / cm) 11.43 x 15.24 x 25.4

Unit Weight (lbs.) 15

Unit Weight (kg) 6.80

WARRANTY

Product Warranty Period (Worldwide) 1-year limited warranty
