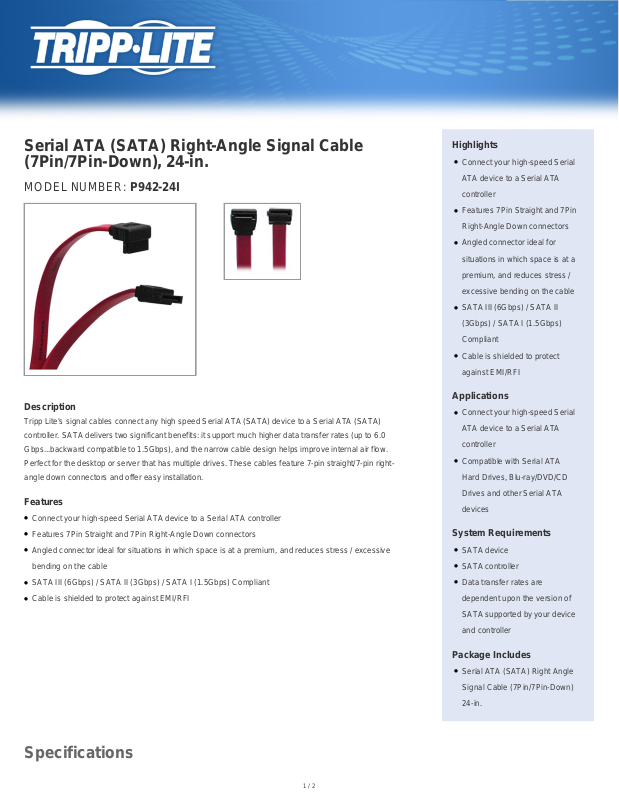

Tripp-Lite P942-24I Data Sheet

Serial ATA (SATA) Right-Angle Signal Cable
(7Pin/7Pin-Down), 24-in.

MODEL NUMBER: P942-24I

Description

Tripp Lite's signal cables connect any high speed Serial ATA (SATA) device to a Serial ATA (SATA)
controller. SATA delivers two significant benefits: it support much higher data transfer rates (up to 6.0
Gbps...backward compatible to 1.5Gbps), and the narrow cable design helps improve internal air flow.
Perfect for the desktop or server that has multiple drives. These cables feature 7-pin straight/7-pin right­angle down connectors and offer easy installation.

Features

●

Connect your high-speed Serial ATA device to a Serial ATA controller

●

Features 7Pin Straight and 7Pin Right-Angle Down connectors

●

Angled connector ideal for situations in which space is at a premium, and reduces stress / excessive
bending on the cable

●

SATA III (6Gbps) / SATA II (3Gbps) / SATA I (1.5Gbps) Compliant

●

Cable is shielded to protect against EMI/RFI

Highlights

●

Connect your high-speed Serial
ATA device to a Serial ATA
controller

●

Features 7Pin Straight and 7Pin
Right-Angle Down connectors

●

Angled connector ideal for
situations in which space is at a
premium, and reduces stress /
excessive bending on the cable

●

SATA III (6Gbps) / SATA II
(3Gbps) / SATA I (1.5Gbps)
Compliant

●

Cable is shielded to protect
against EMI/RFI

Applications

●

Connect your high-speed Serial
ATA device to a Serial ATA
controller

●

Compatible with Serial ATA
Hard Drives, Blu-ray/DVD/CD
Drives and other Serial ATA
devices

System Requirements

●

SATA device

●

SATA controller

●

Data transfer rates are
dependent upon the version of
SATA supported by your device
and controller

Specifications

1 / 2

Package Includes

●

Serial ATA (SATA) Right Angle
Signal Cable (7Pin/7Pin-Down)
24-in.

OVERVIEW

UPC Code 037332184405

INPUT

Cable Length (ft.) 2
Cable Length (m) 0.6
Cable Length (in.) 24
Cable Length (cm) 60.96

PHYSICAL

Cable Outer Diameter (OD) 2.2 +/- 0.10 mm * 7.8 +/- 0.15 mm
Color Red
Shipping Dimensions (hwd / cm) 17.78 x 22.86 x 1.27
Shipping Dimensions (hwd / in.) 7.00 x 9.00 x 0.50
Shipping Weight (kg) 0.03
Shipping Weight (lbs.) 0.06

CONNECTIONS

Side A - Connector 1 7 PIN SATA STRAIGHT (MALE)
Side B - Connector 1 7 PIN SATA (MALE) - RIGHT ANGLE DOWN

FEATURES & SPECIFICATIONS

Technology SATA/eSATA

WARRANTY

Product Warranty Period
(Worldwide)

Lifetime limited warranty
