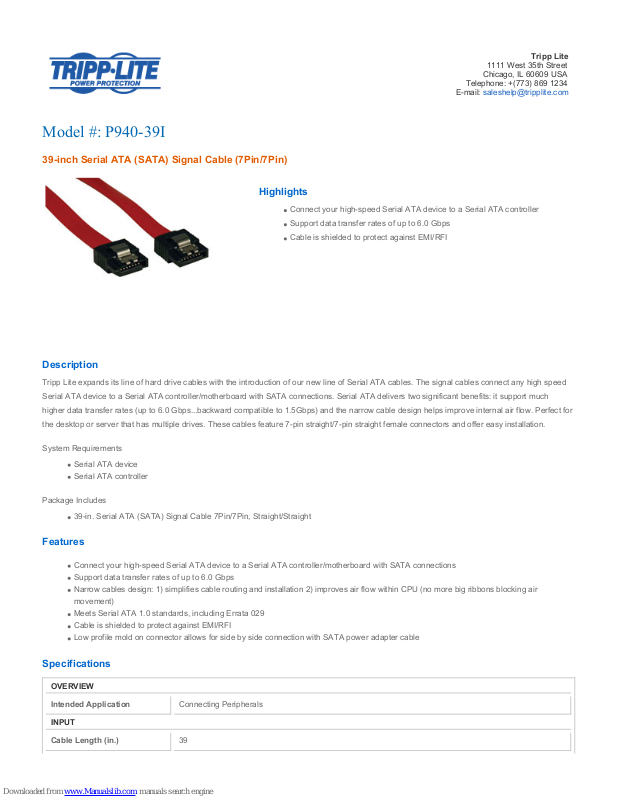

Page 1
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: saleshelp@tripplite.com
Model #: P940-39I
39-inch Serial ATA (SATA) Signal Cable (7Pin/7Pin)
Highlights
Connect your high-speed Serial ATA device to a Serial ATA controller
Support data transfer rates of up to 6.0 Gbps
Cable is shielded to protect against EMI/RFI
Description
Tripp Lite expands its line of hard drive cables with the introduction of our new line of Serial ATA cables. The signal cables connect any high speed
Serial ATA device to a Serial ATA controller/motherboard with SATA connections. Serial ATA delivers two significant benefits: it support much
higher data transfer rates (up to 6.0 Gbps...backward compatible to 1.5Gbps) and the narrow cable design helps improve internal air flow. Perfect for
the desktop or server that has multiple drives. These cables feature 7-pin straight/7-pin straight female connectors and offer easy installation.
System Requirements
Serial ATA device
Serial ATA controller
Package Includes
39-in. Serial ATA (SATA) Signal Cable 7Pin/7Pin, Straight/Straight
Features
Connect your high-speed Serial ATA device to a Serial ATA controller/motherboard with SATA connections
Support data transfer rates of up to 6.0 Gbps
Narrow cables design: 1) simplifies cable routing and installation 2) improves air flow within CPU (no more big ribbons blocking air
movement)
Meets Serial ATA 1.0 standards, including Errata 029
Cable is shielded to protect against EMI/RFI
Low profile mold on connector allows for side by side connection with SATA power adapter cable
Specifications
OVERVIEW
Intended Application Connecting Peripherals
INPUT
Cable Length (in.) 39
Page 2
PHYSICAL
Color Red
Style SATA
CONNECTIONS
Connector A
7 PIN SATA STRAIGHT (MALE)
Connector B
7 PIN SATA STRAIGHT (MALE)
Number of Connectors 2
CERTIFICATIONS
Certifications RoHS-Compliant
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
Related Items
Optional Products
Product Type Related Model Description Qty.
Serial Cables P940-19I 19-inch Serial ATA (SATA) Signal Cable
(7Pin/7Pin)
1
Serial Cables P940-39I 39-inch Serial ATA (SATA) Signal Cable
(7Pin/7Pin)
1
Serial Cables P942-19I 19-inch Serial ATA (SATA) Signal Cable
(7Pin/7Pin-Down)
1
Serial Cables P944-06I 6-inch Serial ATA (SATA) Power Cable
(4Pin to 15pin)
1
Serial Cables P946-12I 12-inch Serial ATA (SATA) Dual Power Adapter Cable
(4pin/2x15pin SATA)
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=2647.
Copyright © 2012 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
